Глобальная версия высокая производительность 3600 Мбит/с IPQ8072A четырехъядерный Gigabit WiFi6 5G SIM беспроводной
- Категория: Wireless Networking >>>
- Поставщик: Shenzhen,Zhibotong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 502.84 $* | 512.60 $* |
| Jul-15-2025 | 407.39 $* | 415.71 $* |
| Jun-15-2025 | 494.6 $* | 504.16 $* |
| May-15-2025 | 490.28 $* | 500.98 $* |
| Apr-15-2025 | 391.55 $* | 399.70 $* |
| Mar-15-2025 | 482.20 $* | 492.11 $* |
| Feb-15-2025 | 478.28 $* | 488.57 $* |
| Jan-15-2025 | 474.14 $* | 483.10 $* |
Характеристики
Production Selling Points and Tips
1.Selling points:
1) .Adopt IPQ8072A chipset solution, Quad core Arm Cortex A53s CPU at 2.2GHZ.
2) .Large RAM and Flash: 1GB DDR4 and 256MB

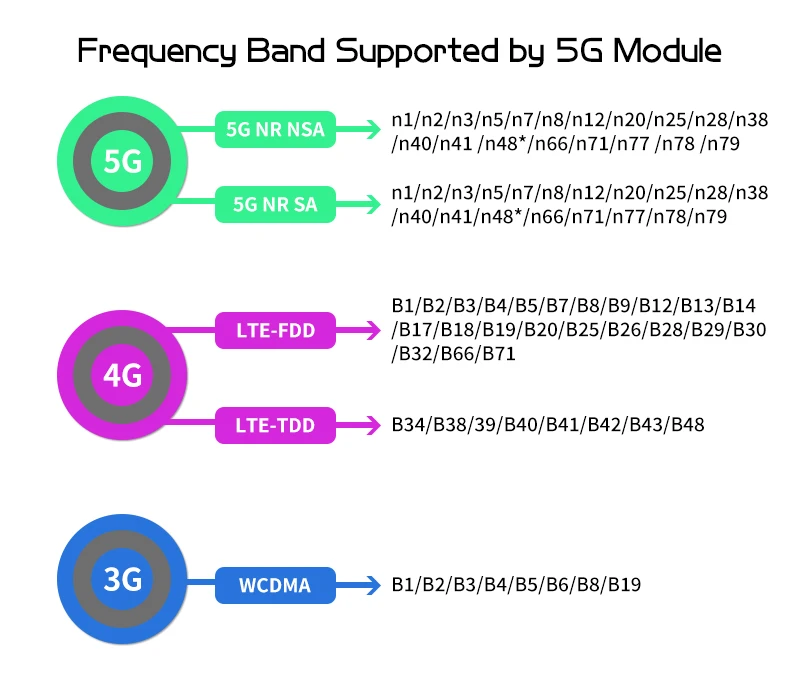

3) .Built-in M.2 standard interface,it can be installed 5G module.
4) .Dual band 2.4G&5.8G,high speed,wireless rate:3600Mpbs
5) .Protocol standard:802.11ax/ac/a/n/g/b.
6) .High quality and stable performance.
7). It can be supported 4G&5G function after install 5G module.
8). High power for 2.4G&5.8G wifi chipset.
9). 5G module power supply is independently controlled by GPIO
2.Tips:
The price is included 5G module cost on Alibaba.If you no need support 4G&5G function, please let me know, we are pleased to quote not included 5G module cost for you.
1) .Adopt IPQ8072A chipset solution, Quad core Arm Cortex A53s CPU at 2.2GHZ.
2) .Large RAM and Flash: 1GB DDR4 and 256MB
3) .Built-in M.2 standard interface,it can be installed 5G module.
4) .Dual band 2.4G&5.8G,high speed,wireless rate:3600Mpbs
5) .Protocol standard:802.11ax/ac/a/n/g/b.
6) .High quality and stable performance.
7). It can be supported 4G&5G function after install 5G module.
8). High power for 2.4G&5.8G wifi chipset.
9). 5G module power supply is independently controlled by GPIO
2.Tips:
The price is included 5G module cost on Alibaba.If you no need support 4G&5G function, please let me know, we are pleased to quote not included 5G module cost for you.
Product Description
Specification
Hardware | ||
Chipset | IPQ8072A chipset solution, Quad core Arm Cortex A53s CPU,the main frequency is up to 2.2 GHz | |
2.4G Chip set | QCN5024,IEEE 802.11ax/n/g/b, maximum speed 1147Mbps,4T4R | |
5.8G Chip set | QCN 5054,IEEE 802.11ax/ac/a, maximum speed 2402Mbps,4T4R | |
RAM | DDR4 1GB (MAX DDR4 1GMB) | |
System architecture | OPEN WRT Open architecture | |
PA | 2.4G&5.8 both with high power PA chipset. | |
DDR4 | 1GB | |
FLASH | 256MB | |
Antennas | 12pcs*external 5dBi High-Gain antennas | |

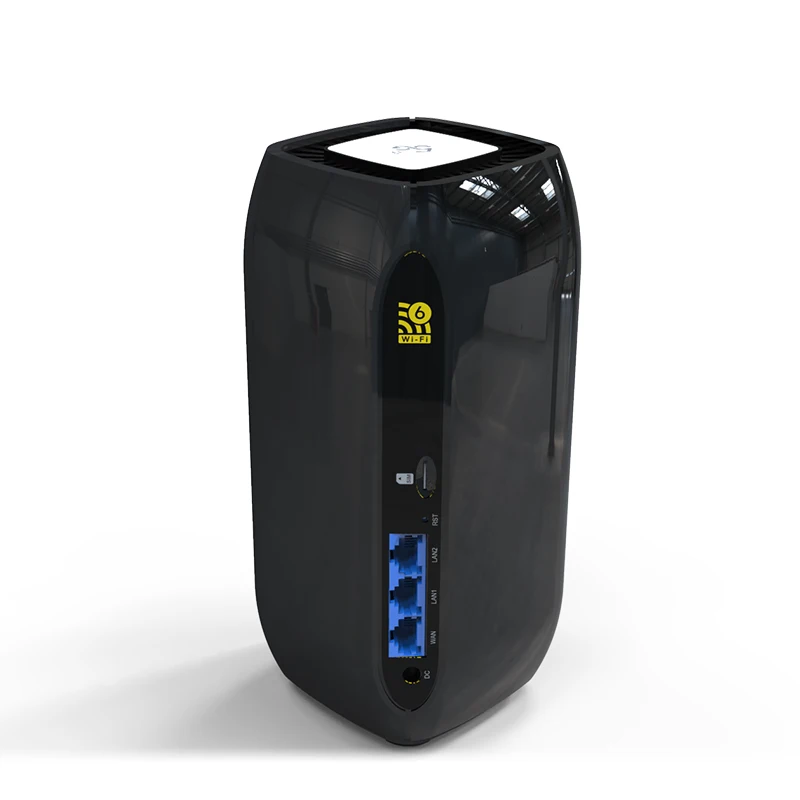

LAN | 2*10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX) | |
WAN | 1*10/100/1000M RJ45 Ethernet Port(Auto MDI/MDIX) | |
Wifi interface | 2.4GHz 802.11ax(4x4) 5GHz 802.11ax (4x4) | |
Wireless speed | 2.4GHz: 1200Mbps 5GHz: 2400Mbps | |
Wireless band | 2.4GHz: 20/40MHz/; 5GHz: 20/40/80MHz | |
Mesh user | Support 1*main host,4*sub host | |
Protocal Standard | Support IEEE802.11b/g/n, IEEE802.11ac, IEEE802.11ax Wireless access standard | |
Protocol stack | Support IPV6/IPV4 dual stack | |
Management configuration | Web, TELNET etc. Multiple management methods | |
Size | 190mm(L)×130mm(W)×26mm(H) | |
Operatiing: 0℃~60℃;10%~85% non-condensing | ||
Store:-40℃~80℃;5%~95% non-condensing | ||
Power adapter | 12V/2.5A | |
Company Profile
Welcome to Shenzhen Zhibotong Electronics Co., Ltd.established in 2010, located at Longhua District,Shenzhen,China. ZBT is a
manufacturer which is consist of 500 staffs, with a 50-person R & D team, 10,000 Square meters production scale. Professional in
R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT wifi router,3G/4G router,Vehicles
router,AP,Outdoor CPE and LTE CPE.ZBT is also a Wi-Fi coverage service provider,provides the solution for
hotel,school,hospital,enterprise,airport and vehicle field.We have built a long term cooperation with Mediatek,Broadcom and
Qualcomm,capably offering good quality products and fast after-sale service to our clients.Till now, ZBT's products have exported
to over 30 countries and regions.Our main customers are China Mobile, Vivacom in Bulgaria, Sprint,T-Mobile,AT&T in USA and Smart
in Philippine. We also take part in different Communication Fairs,such as MWCA in USA,Gitex in Dubai, Cebit in Germany and
Computex in Taipei. Each year, ZBT will take out more than 35% of the annual turnover as R&D funds to develop new products,so as
to satisfy clients' new coming requests.Customers' satisfaction is ZBT's continuously pursues. ZBT warmly welcome everybody
joining in and build win-win cooperation.
manufacturer which is consist of 500 staffs, with a 50-person R & D team, 10,000 Square meters production scale. Professional in
R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT wifi router,3G/4G router,Vehicles
router,AP,Outdoor CPE and LTE CPE.ZBT is also a Wi-Fi coverage service provider,provides the solution for
hotel,school,hospital,enterprise,airport and vehicle field.We have built a long term cooperation with Mediatek,Broadcom and
Qualcomm,capably offering good quality products and fast after-sale service to our clients.Till now, ZBT's products have exported
to over 30 countries and regions.Our main customers are China Mobile, Vivacom in Bulgaria, Sprint,T-Mobile,AT&T in USA and Smart
in Philippine. We also take part in different Communication Fairs,such as MWCA in USA,Gitex in Dubai, Cebit in Germany and
Computex in Taipei. Each year, ZBT will take out more than 35% of the annual turnover as R&D funds to develop new products,so as
to satisfy clients' new coming requests.Customers' satisfaction is ZBT's continuously pursues. ZBT warmly welcome everybody
joining in and build win-win cooperation.
Certifications
Exhibition
FAQ
Can you printing Customer logo on products?
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
