Машина для производства пластиковых резервуаров для воды Juneng
US $35000-$38000
Автоматическая выдувная формовочная машина для бутылок HDPE PP PE 500 мл 1 литр 2 л 3 4
- Категория: Extrusion Blow Molding Machines >>>
- Поставщик: Powerjet,Plastic,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.65 $* | 0.45 $* |
| Aug-19-2025 | 0.97 $* | 0.34 $* |
| Jul-19-2025 | 0.7 $* | 0.8 $* |
| Jun-19-2025 | 0.93 $* | 0.68 $* |
| May-19-2025 | 0.5 $* | 0.85 $* |
| Apr-19-2025 | 0.69 $* | 0.60 $* |
| Mar-19-2025 | 0.53 $* | 0.0 $* |
| Feb-19-2025 | 0.38 $* | 0.10 $* |
| Jan-19-2025 | 0.27 $* | 0.63 $* |
Характеристики
Products Description
TECHNOLOGY
1.Die-head
2.Linear displacement transducer used to control the clamping units' movement
3.Parallel clamping units
4.Central supporting frame for the mold
5.Speed control valves for mold's movement
6.Imported hydraulic components
7.Imported solenoid valve
8.Blowing units
8.Blowing units
9.Extrusion system

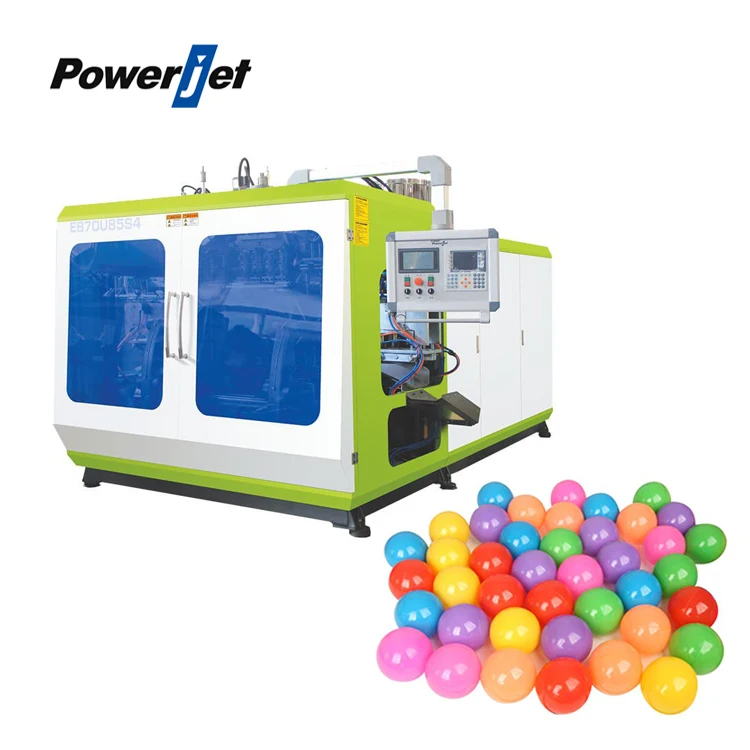

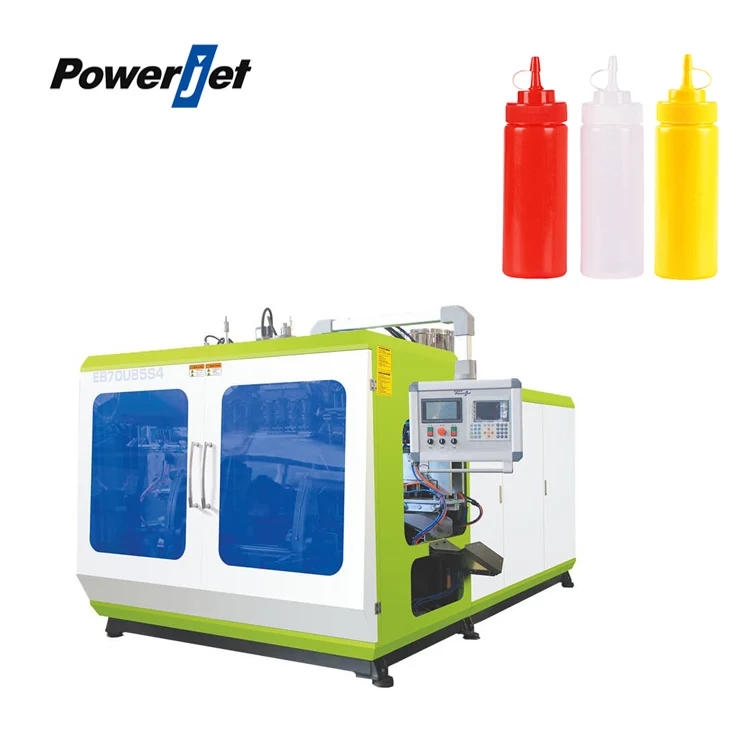

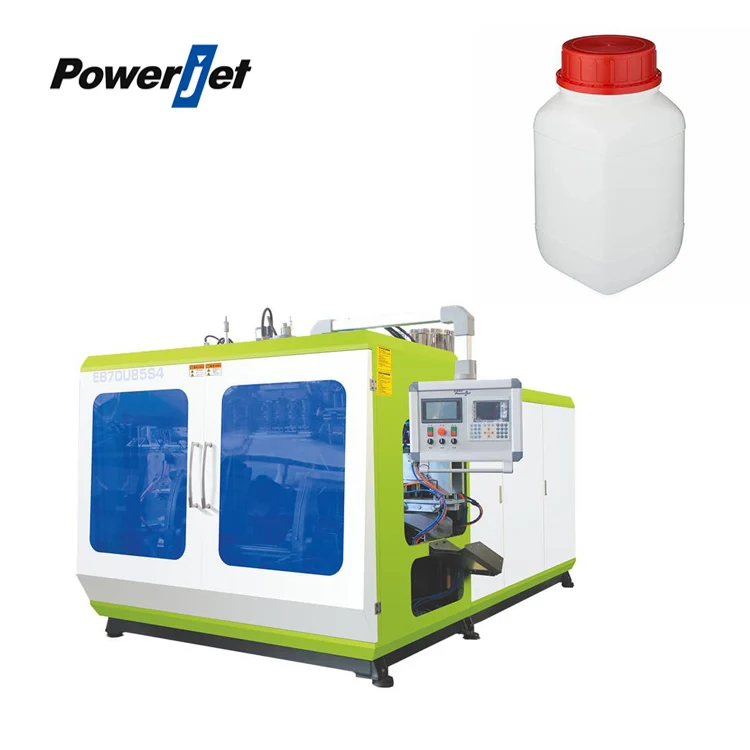

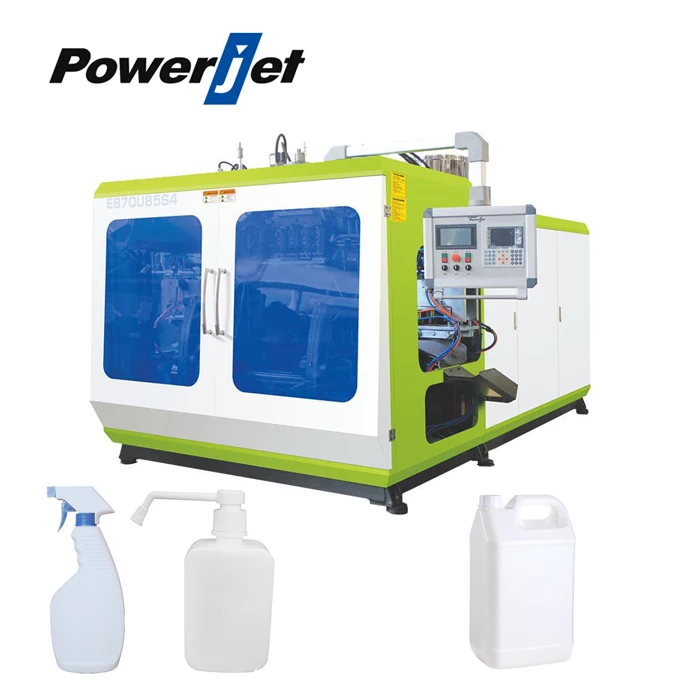

HIGH-SPEED DOUBLE STATION EXTRUSION BLOW MOLDING MACHINE EB70U
Powerjet Double Station Extrusion Blow Molding Machine EB70U is specialized for manufacturing bottles and containers which Max.10L.
Max Bottle Capacity – 10(L)
Clamping Force – 85/110(KN)
Extrusion Weight(HDPE) – 80/125(kg/hr)
Applications – Wide Range Of Bottles for Daily necessities, toiletries, beverages, gels, detergents, chlorine etc.
Max Bottle Capacity – 10(L)
Clamping Force – 85/110(KN)
Extrusion Weight(HDPE) – 80/125(kg/hr)
Applications – Wide Range Of Bottles for Daily necessities, toiletries, beverages, gels, detergents, chlorine etc.
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers’ top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers’ top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.
Template hydraulic drive automatic translation
Dual proportional control of pressure & flow
Special reducer valve, accurate positioning shift mode, no impact
Humanized touch screen, easy to master and operate
1.Rotary Trimming Equipment 2.Auto Deflashing Equipment 3.Rotary Trimming Configuration 4.Die Head
5.Optional for all Accessory Equipment 6.Mould 7.Parison Controller
Product Paramenters
Model | EB70U | ||
Max. Product | L | 10 | |
Clamping Force | KN | 85/110 | |
Max.Mold Size(W*H) | mm | 580*400 | |
Screw Diameter | mm | Φ85 | |
Screw L/D Ratio | L/D | 24 | |
Screw Rotary Speed | RPM | 65 | |
Extrusion Weight (HDPE) | kg | 125 | |
Extrusion Motor Power | KW | 11 | |
Pump Motor Power | KW | 21 | |
Heating Capacity | KW | 14 | |
Operation Pressure | Mpa | 0.6~0.8 | |
Air Consumption | m3/min | 3 | |
Cooling Water Consumption(25°c) | L/min | 100 | |
Machine Dimensions (LXWXH) | mm | 4220*3900*2500 | |
Machine Weight | kg | 5950 | |
Company Profile
POWERJET PLASTIC MACHINERY CO., LTD. was founded in 2000, the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong Province, occupying an area of 130,000 square meters.POWERJET is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and extrusion blow molding machine.
In a production area of more than 50,000 square meters, we have an automated production line and an active staff. Lean organizational structure, efficient operation and ultra-modern machinery and equipment to ensure the production efficiency and flexibility, allows us to ensure quality and the fastest production cycle at the same time, at very competitive prices. Annual production capacity has reach to 4000-5000 injection sets of.
Please feel free to consult us to know more information. Thanks~
FAQ
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
