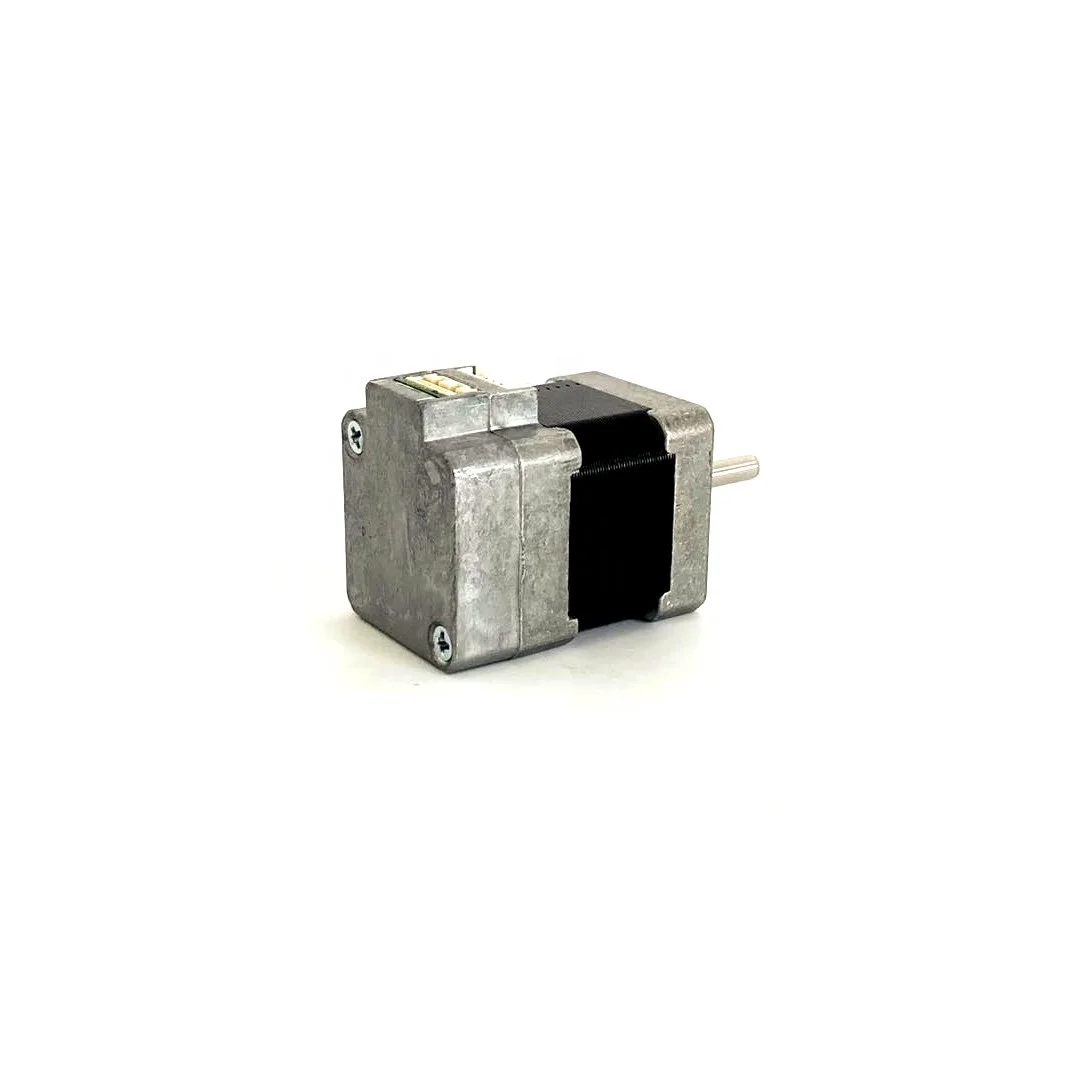

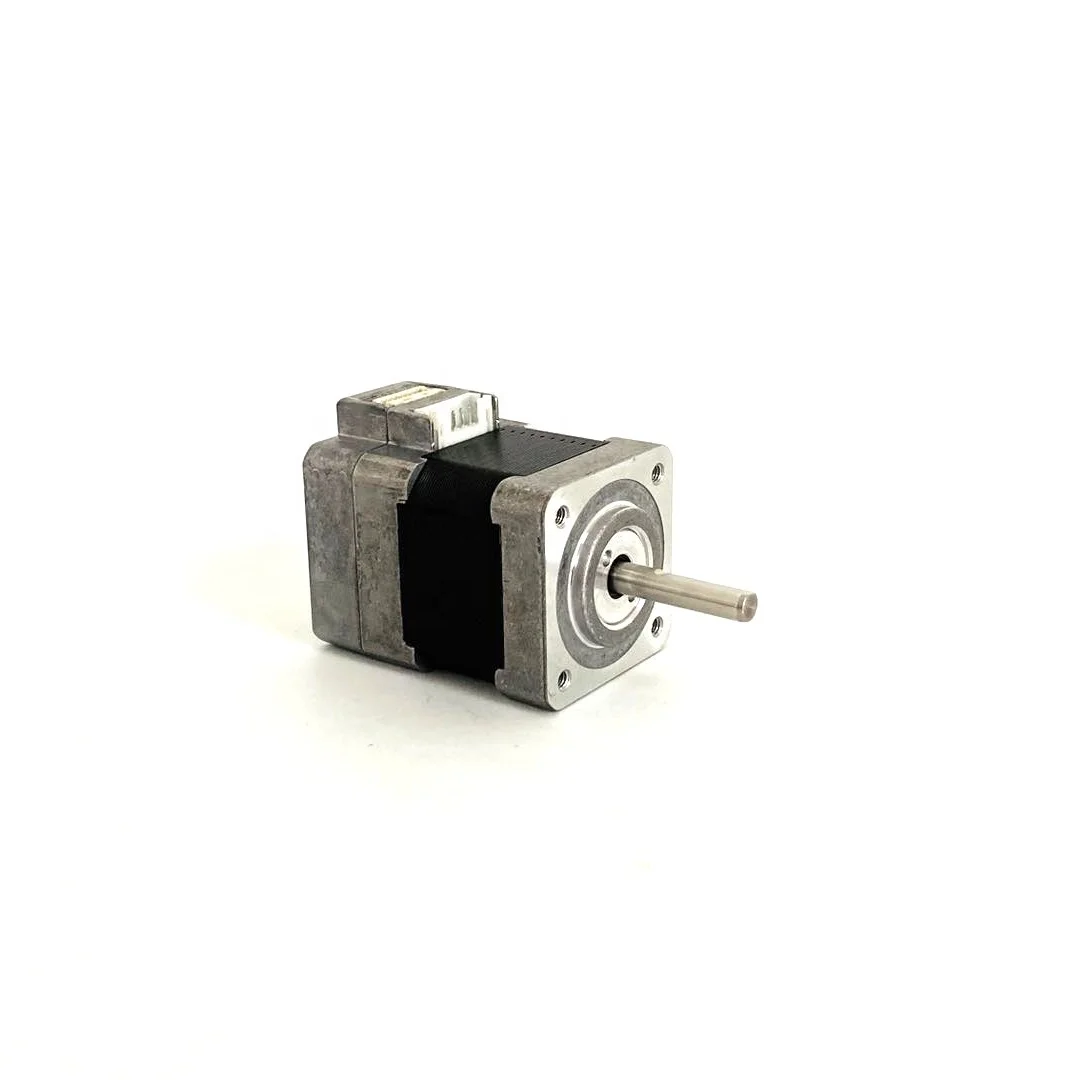

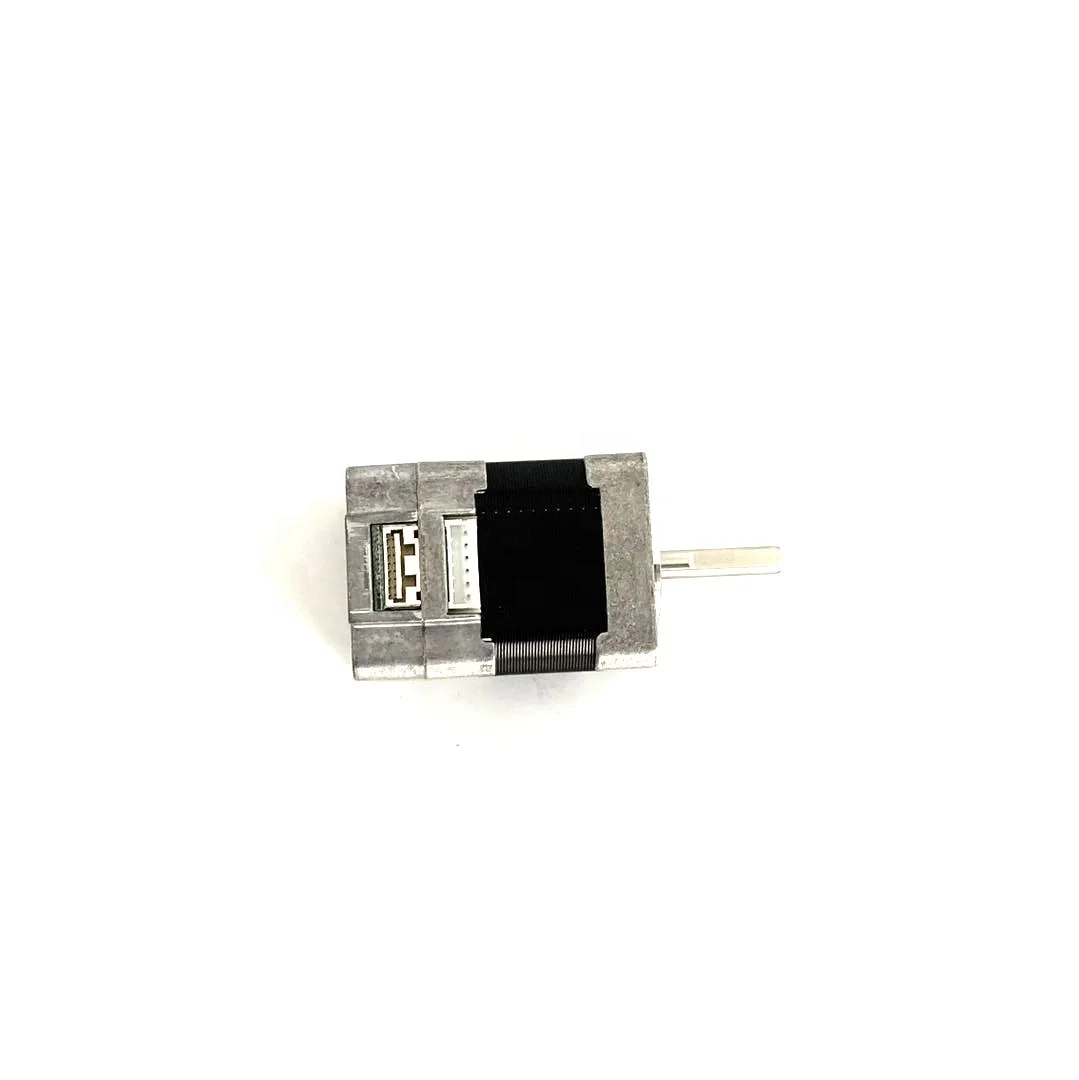

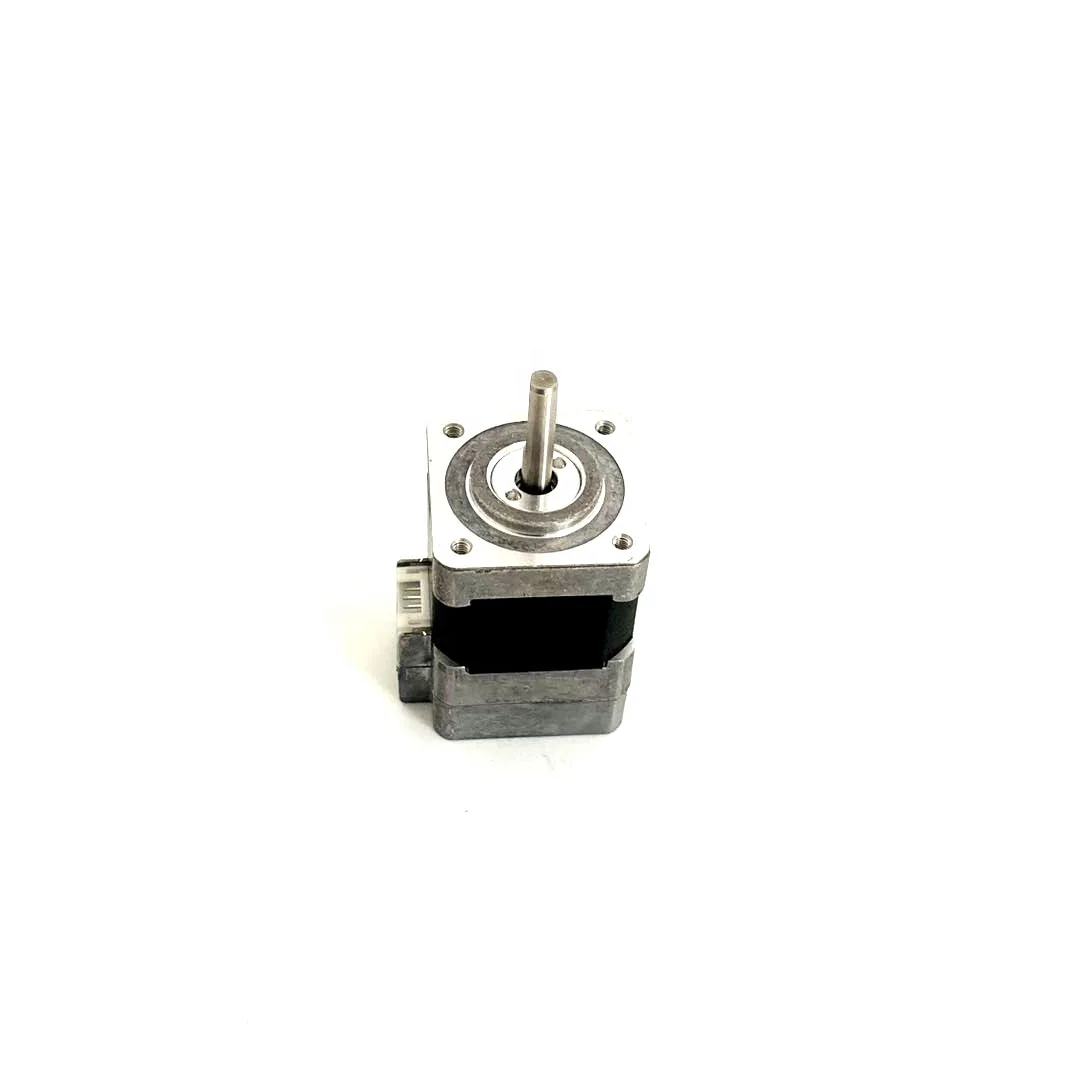

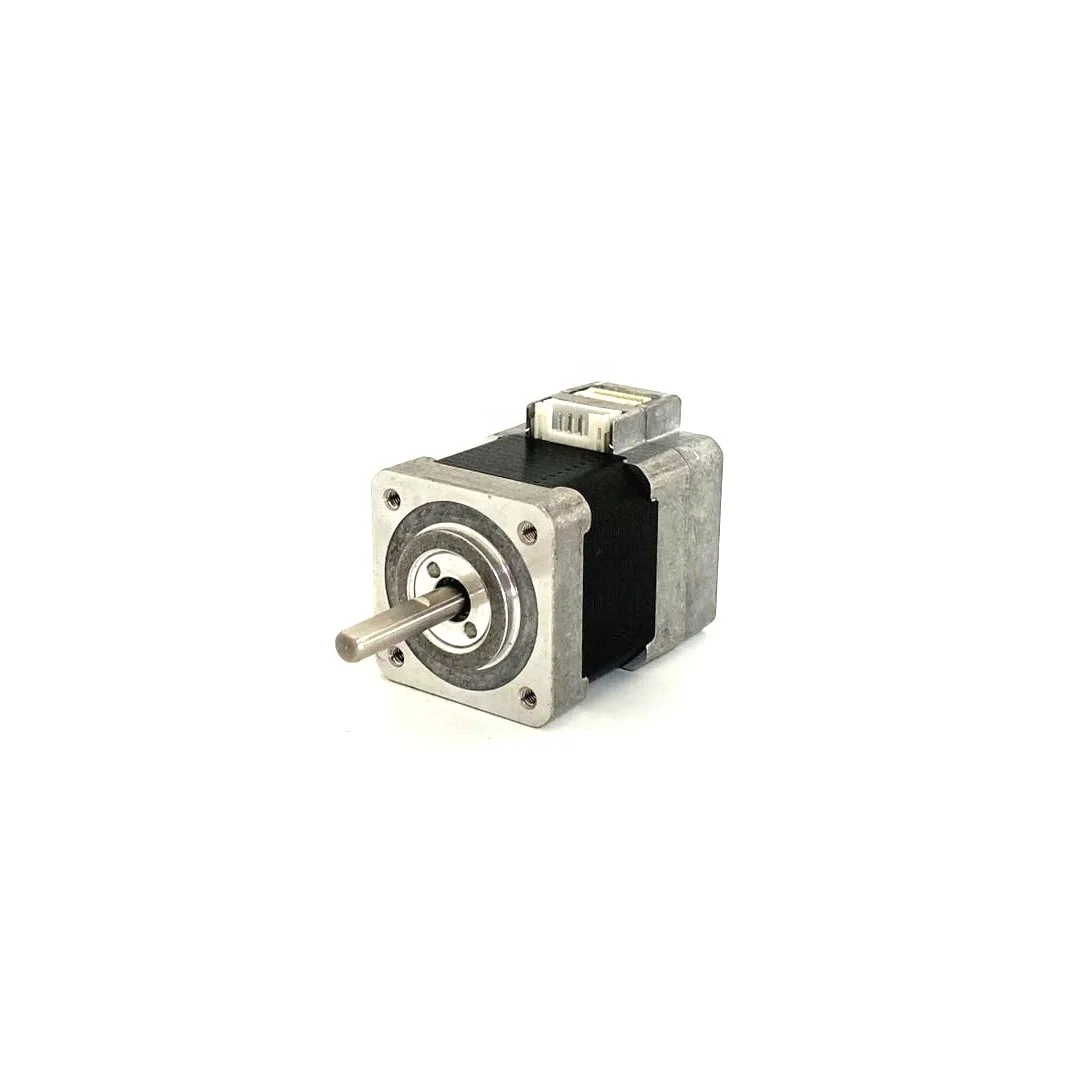

Китайский завод по продажам стандартный шаговый двигатель Prostepper 0.07N.m NEMA14 для системы
- Категория: >>>
- Поставщик: Changzhou,Prostepper,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 7.97 $* | 7.21 $* |
| Aug-16-2025 | 7.97 $* | 7.87 $* |
| Jul-16-2025 | 6.93 $* | 6.24 $* |
| Jun-16-2025 | 7.14 $* | 7.62 $* |
| May-16-2025 | 6.81 $* | 6.3 $* |
| Apr-16-2025 | 7.77 $* | 7.1 $* |
| Mar-16-2025 | 7.66 $* | 7.35 $* |
| Feb-16-2025 | 7.59 $* | 7.45 $* |
| Jan-16-2025 | 7.1 $* | 7.39 $* |
Характеристики
Product Description
China Factory sales Prostepper 0.07N.m NEMA14 Encoder Stepper Motor Standard Type for Security system
Prostepper stepper motor has the characteristics of high performance, high reliability and low cost. With complete specifications, complete functions, convenient wiring and easy operation, it not only meets the market's requirements for domestic universal machine equipment, but also provides a variety of operating options for special machines.
Product features:
Imported accessories,
longer service life;
Low Vibration, low noise;
The output torque is larger for the same volume;
Higher speed, lower temperature rise.
Low Vibration, low noise;
The output torque is larger for the same volume;
Higher speed, lower temperature rise.
Specification
Product name | Nema14 stepper motor |
Model | PEM35H226E1KzS |
Holding Torque | 0.07 N.m |
Rated Current A/Phase | 1.5 A |
Resistance Ω/Phase | 1.4 Ω |
Inductance mH/Phase | 0.9 mH |
Inertia | 12 g.cm² |
Output | Differental |
Encoder Resolution | 1000 CPR |
Frame Size | 35*35mm |
Speed/Torque Characteristics(Reference Value)
NOTE
The Speed/torque curve is based on Prostepper's test conditions.When the conditions change, the dynamic torque changes too.
The rated current in the specification is an effective value, Plesae adjust the driver‘s current below the rated current.
The rated current in the specification is an effective value, Plesae adjust the driver‘s current below the rated current.
Outline(Unit:mm)
Encoder Specifications
MODEL | E1Kz | E2Kz | |
Resolution | 1000cpr/4000ppr | 2000cpr/8000ppr | |
Type | Incremental Encoder | ||
Output Mode | Differental | ||
Output Signal | A+A；B+B-； Z+Z- | A+A；B+B-； Z+Z- | |
Supply Voltage | 5vDC±5% | ||
Packing & Delivery
Package & Storage
Inside: High-density foam
box outside: hardboard carton box
Packing Qty: 15pcs/Carton
Export bulk packing: Carton + Pallet
Inner packing: EPE foam.
Outer packing: by carton from our factory or as the customer's size.
Inside: High-density foam
box outside: hardboard carton box
Packing Qty: 15pcs/Carton
Export bulk packing: Carton + Pallet
Inner packing: EPE foam.
Outer packing: by carton from our factory or as the customer's size.
Company Profile
CHANGZHOU PROSTEPPER CO.,LTD. was established in 2004 as Jiangsu High-Tech Enterprise, which is engaging in Developing, designing and producing professional stepper motor and DC brushless motor. It's motor manufacturing and R&D history dated from 1998. "Prostepper" Brand has a good reputation in China and oversea markets. Prostepper possess an annual production capacity is over 3.0 million motors.
Prostepper is the high-level motor supplier in the field of Industrial Automation and Medical Science. Prostepper own a manufacturing team with rich experience and also have very strictly Quality control system, Obtained ISO9001 certificate, the motor products are compliance with CE and RoHS standard.
FAQ
1.Q:Can I get some samples first?
A: Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A: Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A: It usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regardless quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
A: Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A: Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A: It usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regardless quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
