Тестер твердости Leeb измеритель металлических материалов из металла и стали показаний HRB HRC HV HB HS HL дюрометр с ёмкостью

Specifications

Measuring range:
(170-960)HLD,
(17-68.5)HRC
(19-651)HB
(80-976)HV,
(30-100)HS,
(59-85)HRA,
(13-100)HRB

Measuring direction:360°
Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HSAccuracy: ≤6HLD (HLD=800)
Repeatability: ≤6HLD (HLD=800)
Resolution: 1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS
Materials: steel & cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.
Impact devices: D (optional impact devices: C/G/DC/DL)

Display:segment LCD
Data memory:max. 100 groups(relative to impact times 32~1)
Working voltage:2AA battery (not included)

Continuous working period:about 100 hours(With backlight off)
Communication interface:USB

Hardness Tester Metal

1. Compact plastic case,suitable for use under poor working conditions. Test at any angle, even upside down.

2. Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL

3. Large screen (segment LCD), showing all functions and parameters. With EL background light.

4. Large capacity memory could store 100 groups information.

5. Datapro Software to connect with PC via USB port.

6. Software calibration function.

Main Application

Die cavity of molds

Bearings and other parts

Failure analysis of pressure vessel, steam generator and other equipment

Heavy work piece

The installed machinery and permanently assembled parts.

Testing surface of a small hollow space

Material identification in the warehouse of metallic materials

Rapid testing in large range and multi-measuring areas for large-scale work piece

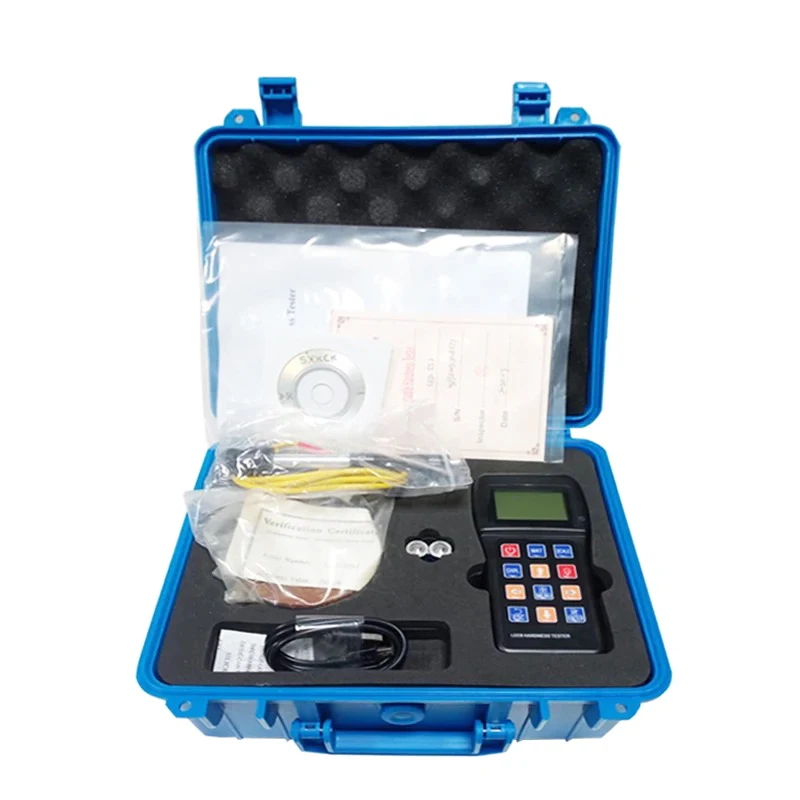

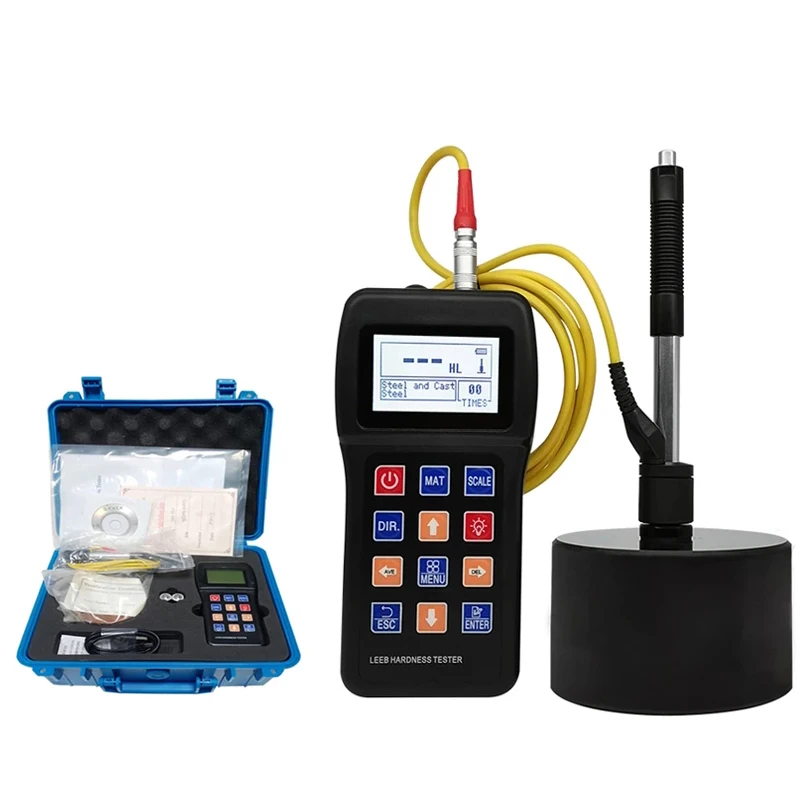

Standard Configuration

1. Main unit
2. D-type impact device With cable

(Dear buyer, we are the yellow wire and the gray wire,Shipped randomly,If you need to specify the color, please leave a note back your order )

3. Standard test block
4. Cleaning brush
5. Small support ring
6. Manual
7. Instrument package case

Leeb Hardness Tester Metal Steel Durometer Meter Metallic Materials Direct Display of Hardness Scales HRB, HRC, HV, HB, HS, HL with 100 Groups Capacity
