Specification

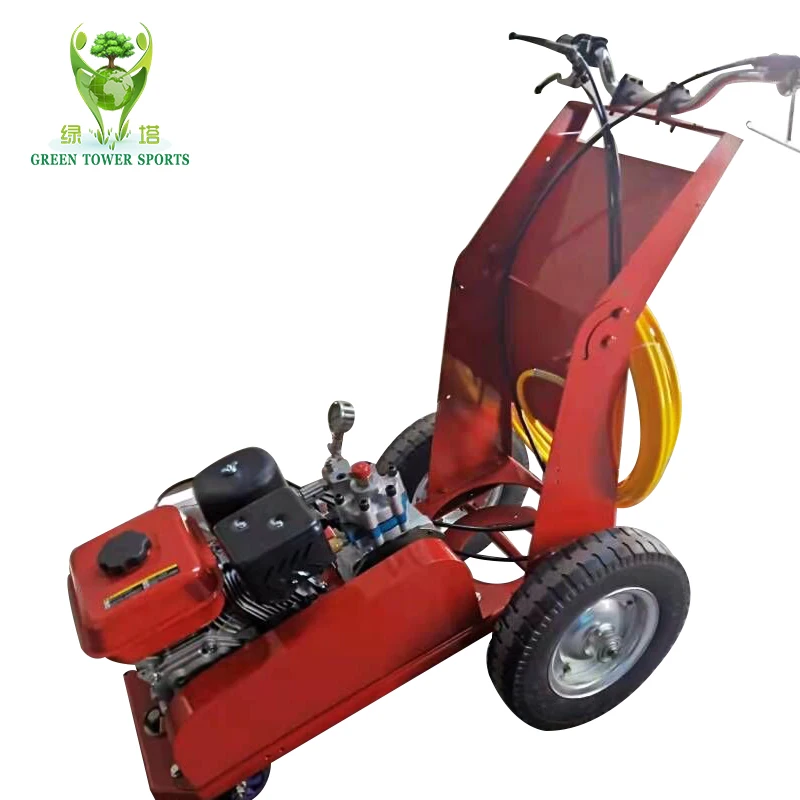

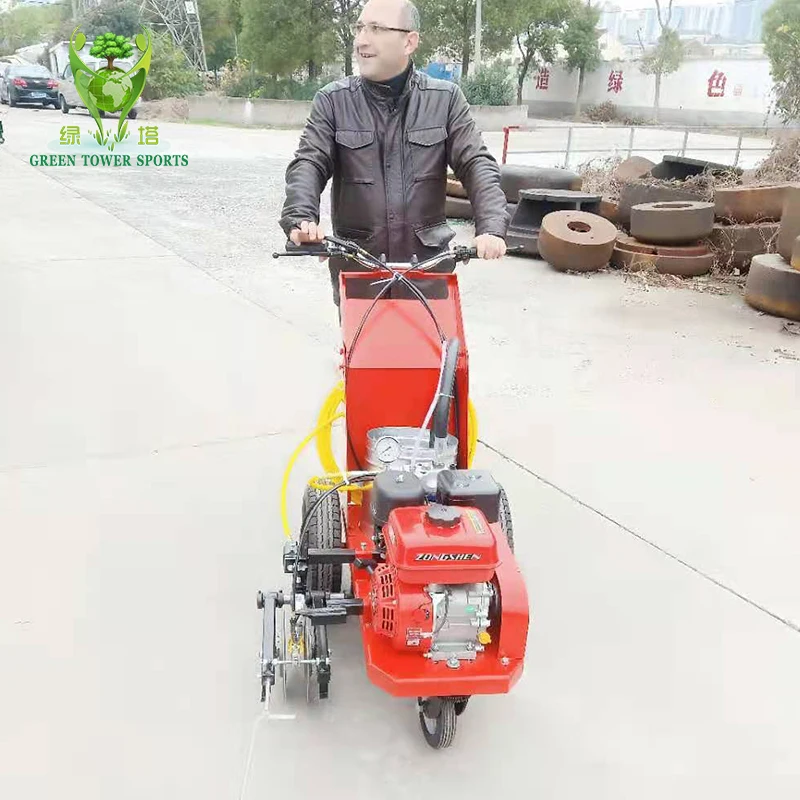

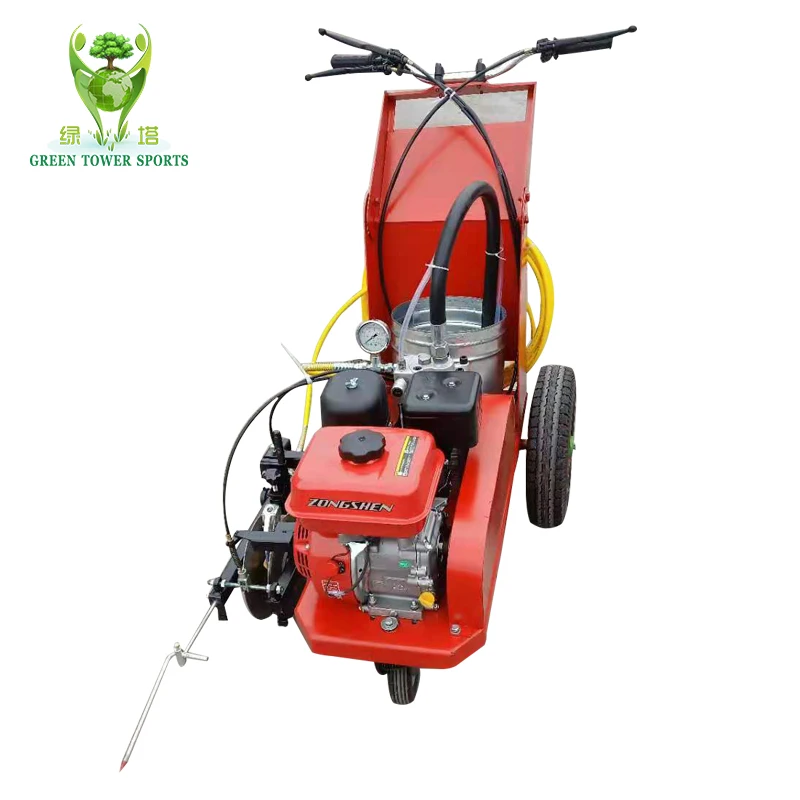

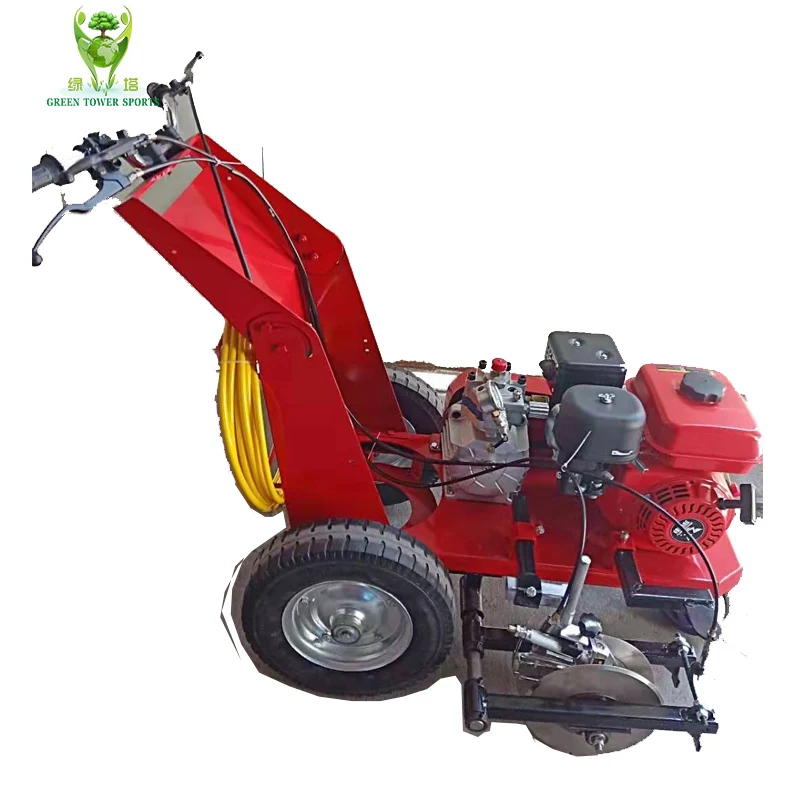

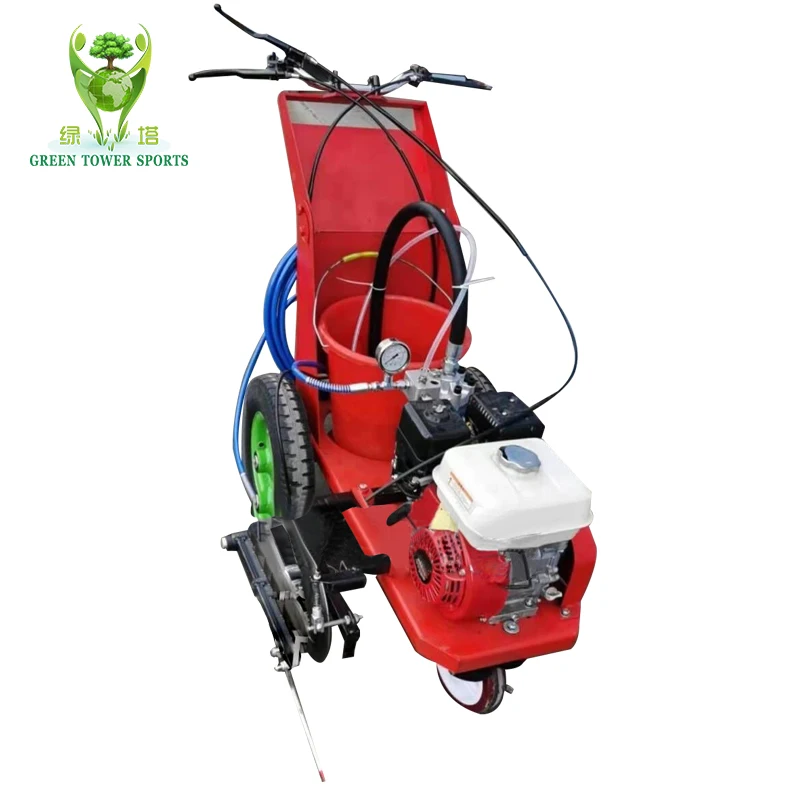

Plastic runway line drawing machine Parking lot marking machine

Honda engine power	5.5Hp
Marking rate	0.5-3KM/H
Common pressure	10-20Mpa
Max flow rate	1.2L/Min
Weight	95Kg
Appearance measurement	1000*700*880mm

Product Description

Model:LT- HXJ    Motor rated power :4.3HP

Motor high power :5.5HP

Maximum working pressure: 250bar

Machine weight: 95KG

Working pressure: 12 mpa (1700 psi)

Scribing speed: 0.5 – 3 km/h

Flow rate: 1.2 l/min

Weight: 95 kg

Dimension: 1000mm*700mm*880mm

Large flow: 4 liters/minute

Large support nozzle: 0.031 inches

Power: 5.5hp gasoline engine

We have Hongda and Zongshen engine you can choose

Scribing speed: inner circle 400 meters/9 minutes 30 seconds, outer circle 400 meters/15 minutes 25 seconds.

Structure & Function of Road Striping Runway Sports Line Marking Machine

1. Airless spraying painting technology for which the high-pressure pump is driven by a gasoline engine has been adopted in the line marking machine to create clear, smooth, saturating and even limes, providing a high workingefficiency.

2. Both sides of the spraying gun are equipped with a paint-limiting plates, ensuring the line free of raw edges. Such plates may be lift through a pulling line in steering, turning flexibly.

3. The spraying gun may be conveniently dismantled to change different nozzles and control the line width, suitable for common airless spraying for marks or labels.

4. It runs by pushing, with convenient turning, reliable orientation, and flexible turning.

Product advantages



Structure function:

1. Simple operation, straight lines, clear lines, no burrs, high efficiency, etc.

2. It can spray polyurethane, epoxy paint, solvent paint and other special marking paint for sports venues.

3. The starting and stopping of the engine is controlled by the operator.

4. Pressure control range (400psi to 3300psi), high pressure 22.8MPa (3300psi), can also spray thin coating type paint, and low VOC marking paint.

5. Equipped with marking spray gun and marking nozzle, as well as a 15-meter anti-static high-pressure hose, which is convenient for spraying characters.

6. The designed frame can spray a single line quickly and evenly.

7. Pneumatic tires are conducive to smooth marking.

8. The front universal runner can lock straight and arc markings.
