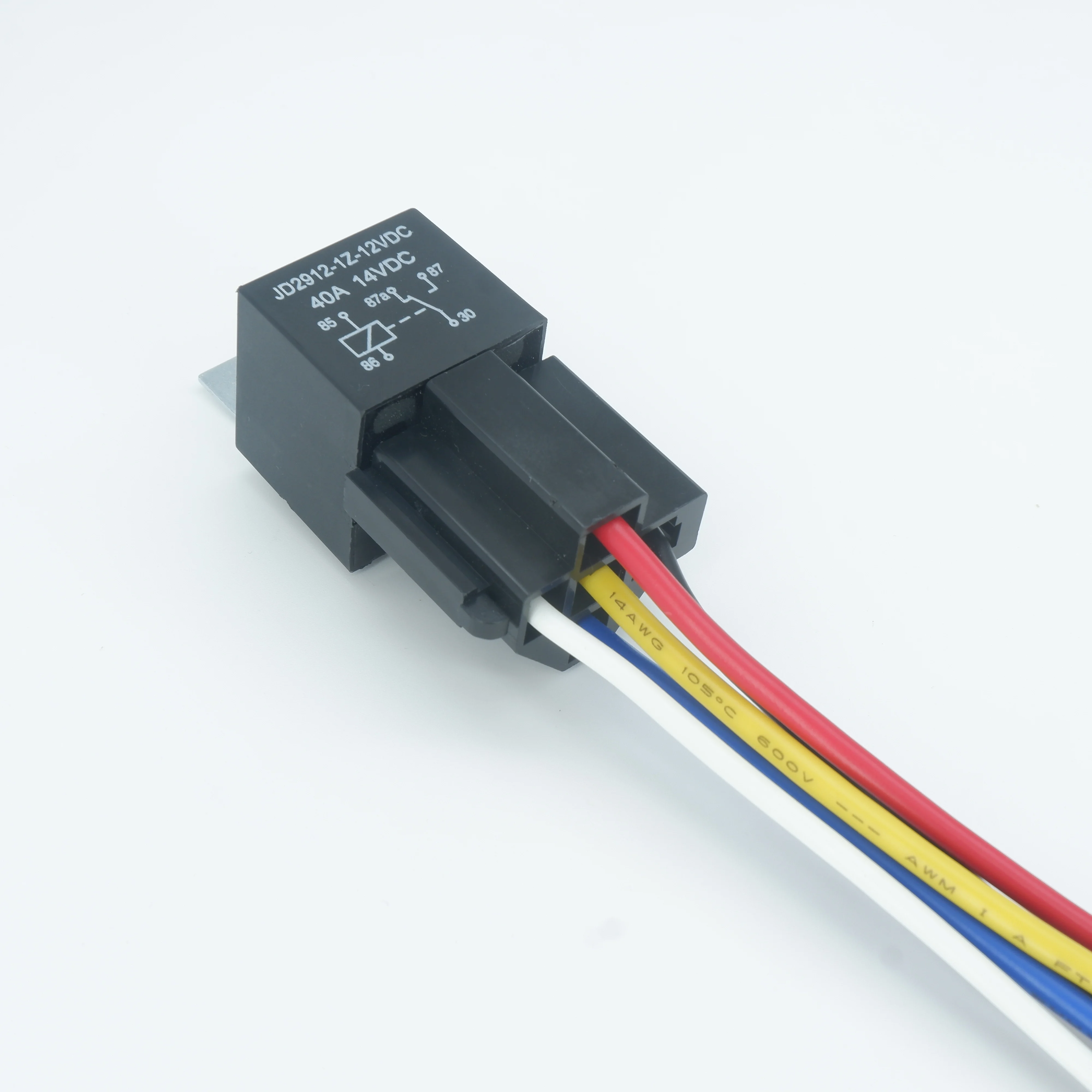

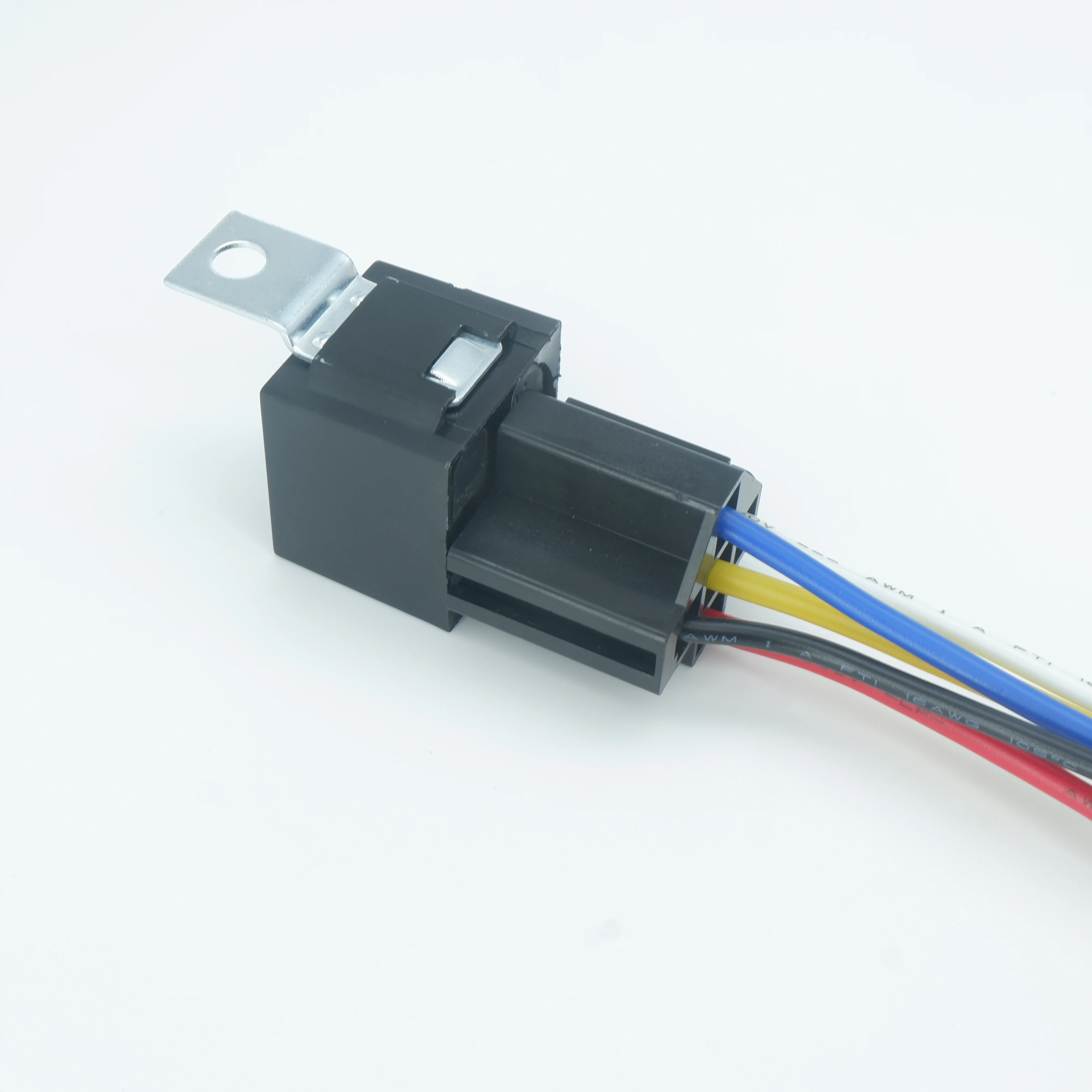

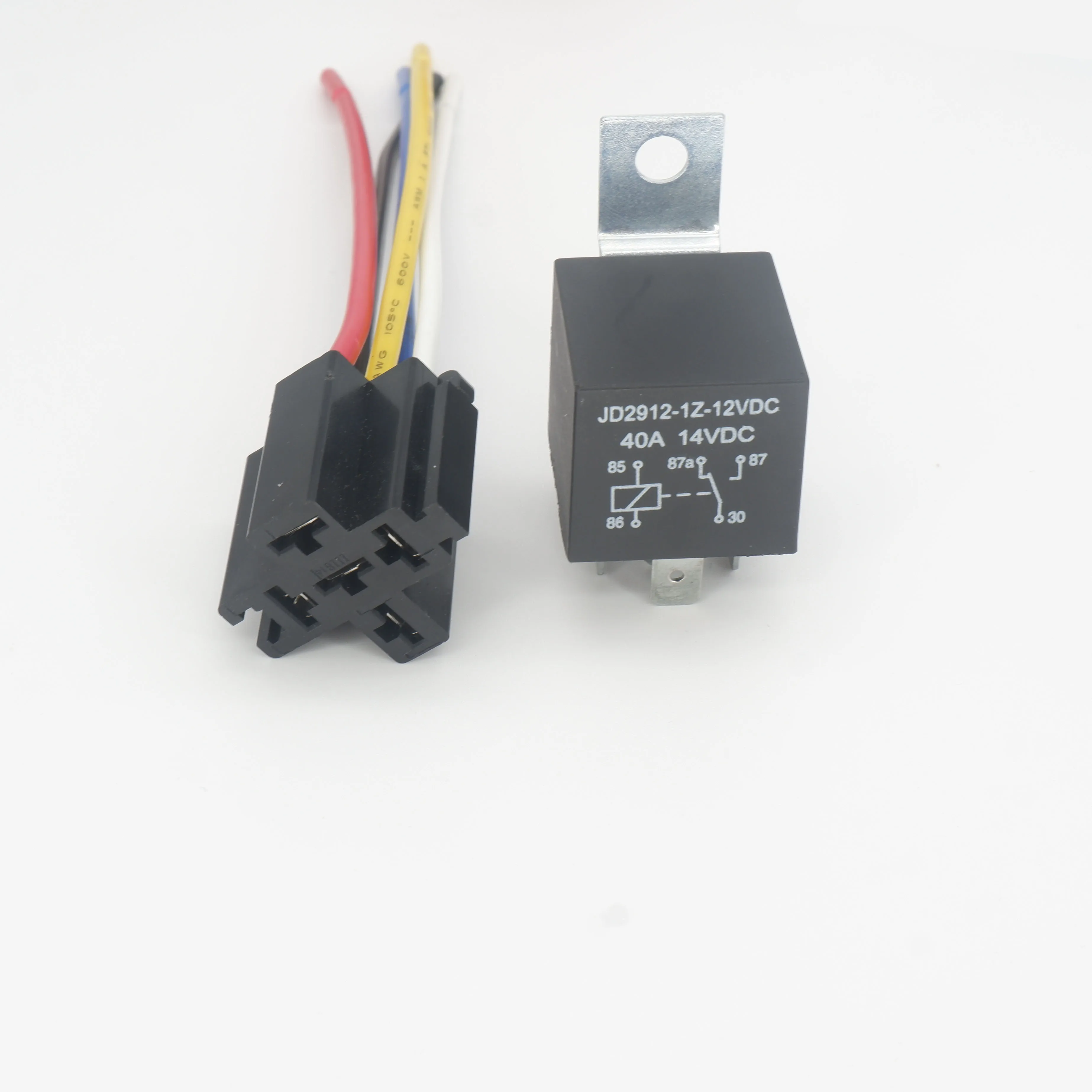

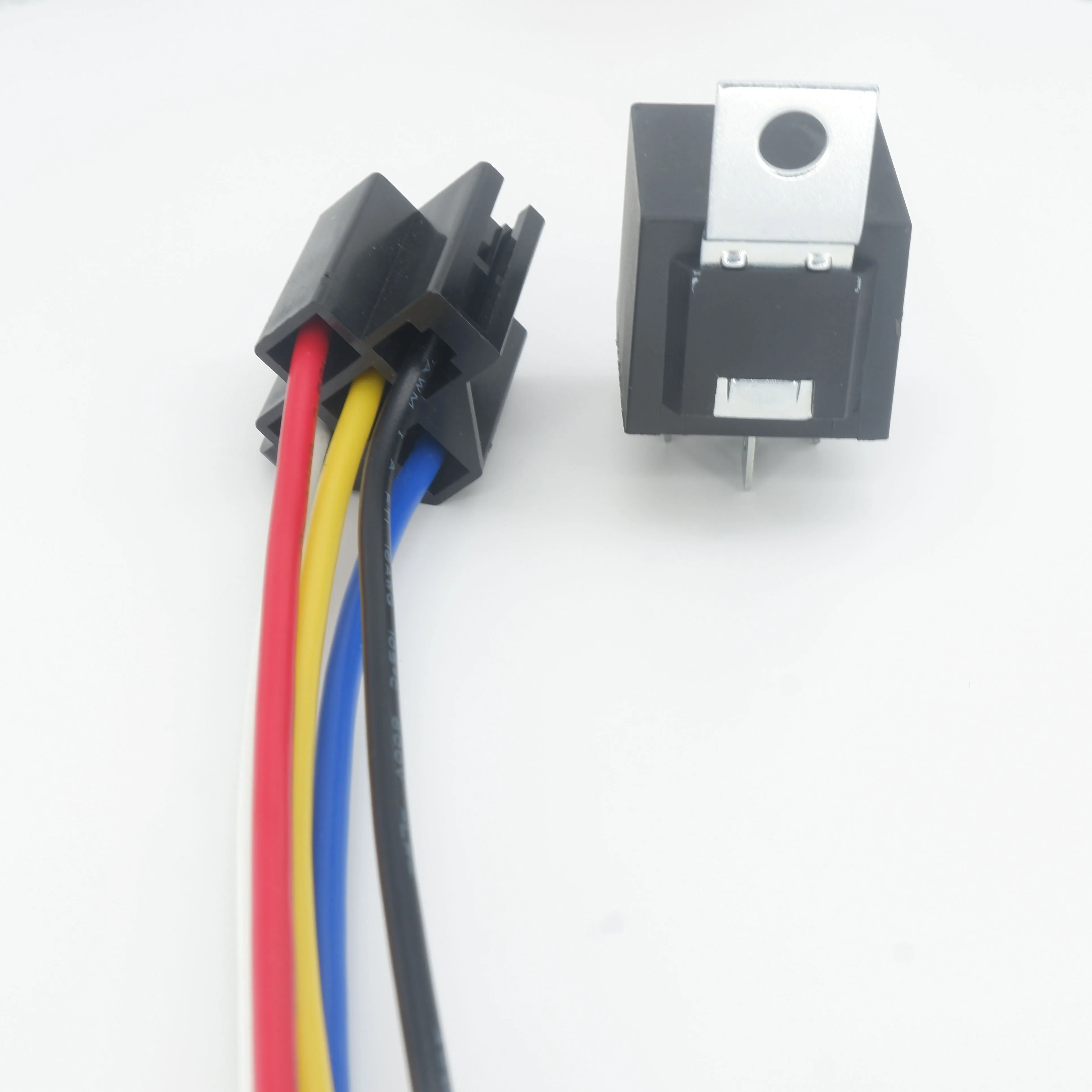

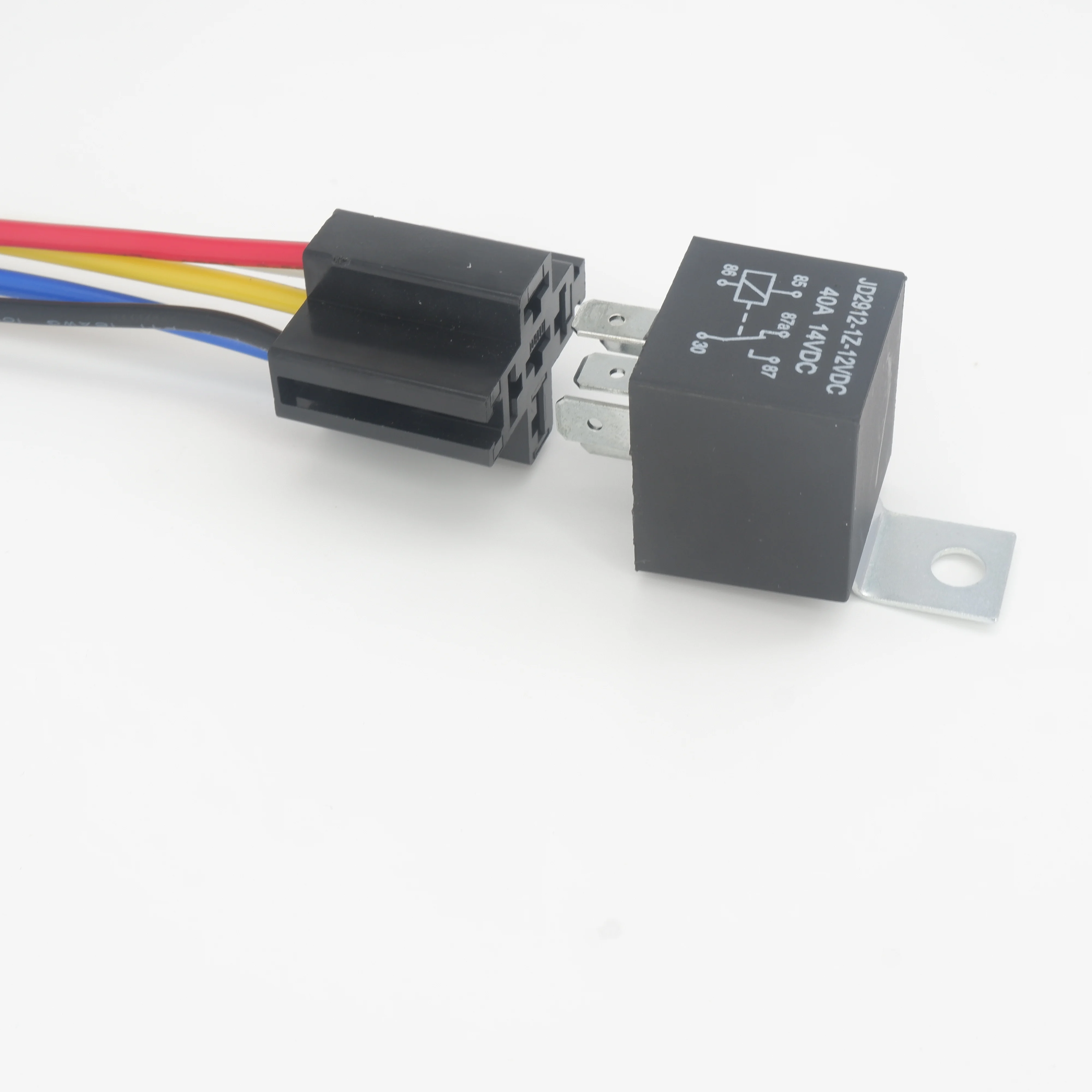

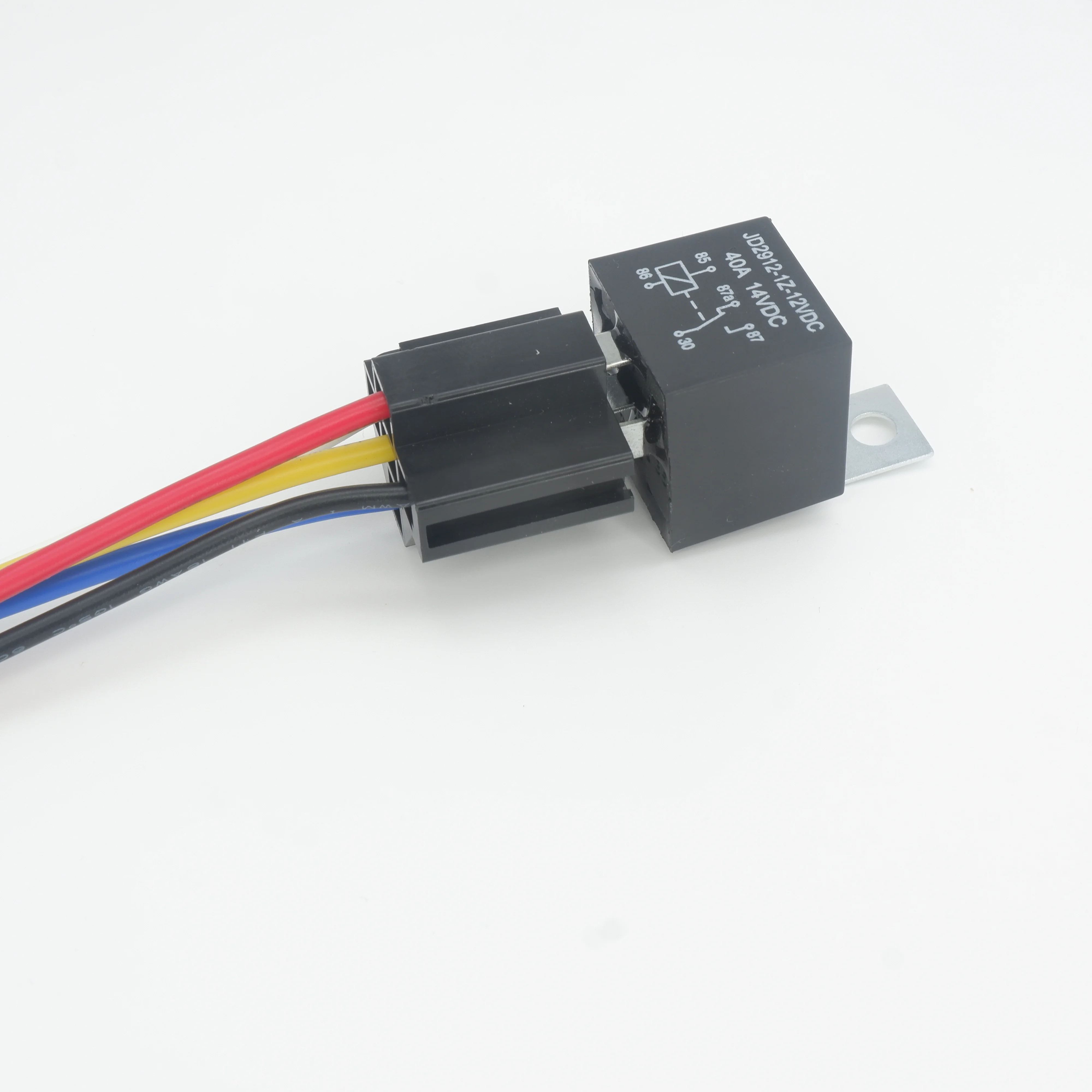

12V 40A 5 Pin автомеханический переключатель с железный кронштейн и
- Категория: Auto Relays >>>
- Поставщик: Yueqing,Kuanghong,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.73 $* | 0.66 $* |
| Aug-16-2025 | 0.83 $* | 0.82 $* |
| Jul-16-2025 | 0.40 $* | 0.98 $* |
| Jun-16-2025 | 0.38 $* | 0.12 $* |
| May-16-2025 | 0.27 $* | 0.16 $* |
| Apr-16-2025 | 0.56 $* | 0.87 $* |
| Mar-16-2025 | 0.46 $* | 0.35 $* |
| Feb-16-2025 | 0.0 $* | 0.63 $* |
| Jan-16-2025 | 0.43 $* | 0.5 $* |
Характеристики
Product Detail
Specification
Name | Automotive relay with socket |
Colour | Black |
Shape | Square |
CONTACT DATA
Contact Material | AgSnO12 |
Contact Form | 1Z(1C)\\1H(1A) |
Contact Ratings | NO:40A 14VDC |
Contact Resistance | 100mMax at6VDC 1A |
Max Switching Current | 40A |
Max Switching Voltage | 75VDC |
Max Switching Power | 560W |
Life Expectancy Electrical | 100,000 Operations(at 30 Operations/minute) |
Life Expectancy Mechanical | 100,000 Operations |
COIL SPECIFICATION
Nominal Voltage（VDC） | 12 | ||
Coil Resistance（Ω） | 1.8W | 80 | |
Max Operate Voltage（VDC） | 6.0~8.0 | ||
Mix Release Voltage（VDC） | 1.2~3.6 | ||
Max Applicable Voltage(VDC) | 15 | ||
CHARACTERISTICS
Temperature Range | -30℃~+80℃ | ||
Vibration Resistance | 10~55Hz，1.5mm | ||
Shock Resistance | Operations Extremes | 10g | |
Damage Limits | 100g | ||
Humidity | 40%~85% | ||
Insulation Resistance | 100mΩ Min at 500VDC | ||
Safety Standard | CCEE | ||
Dielectric Strength Between Open Contacts | 500VAC（for one minute/sec） | ||
Between Contact And Coil | 750VAC(for one minute/sec) | ||
Operate Time | 7ms | ||
Release Time | 5ms | ||
