Высокоскоростная автоматическая машина для загрузки и разгрузки
- Категория: >>>
- Поставщик: Luoyang,Disai,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.94 $* | 0.87 $* |
| Aug-19-2025 | 0.39 $* | 0.66 $* |
| Jul-19-2025 | 0.44 $* | 0.47 $* |
| Jun-19-2025 | 0.27 $* | 0.90 $* |
| May-19-2025 | 0.64 $* | 0.29 $* |
| Apr-19-2025 | 0.91 $* | 0.29 $* |
| Mar-19-2025 | 0.44 $* | 0.15 $* |
| Feb-19-2025 | 0.61 $* | 0.3 $* |
| Jan-19-2025 | 0.19 $* | 0.16 $* |
Характеристики
Why Choose Us
Well-chosen parts
all the spare parts and materials are from internationally renowned supplier.
Strict quality control
from material selection, to production, assembly, quality inspection, the whole process is under our strict supervision.
Excellent service
1 year warranty, lifelong Maintenance.
Product Display

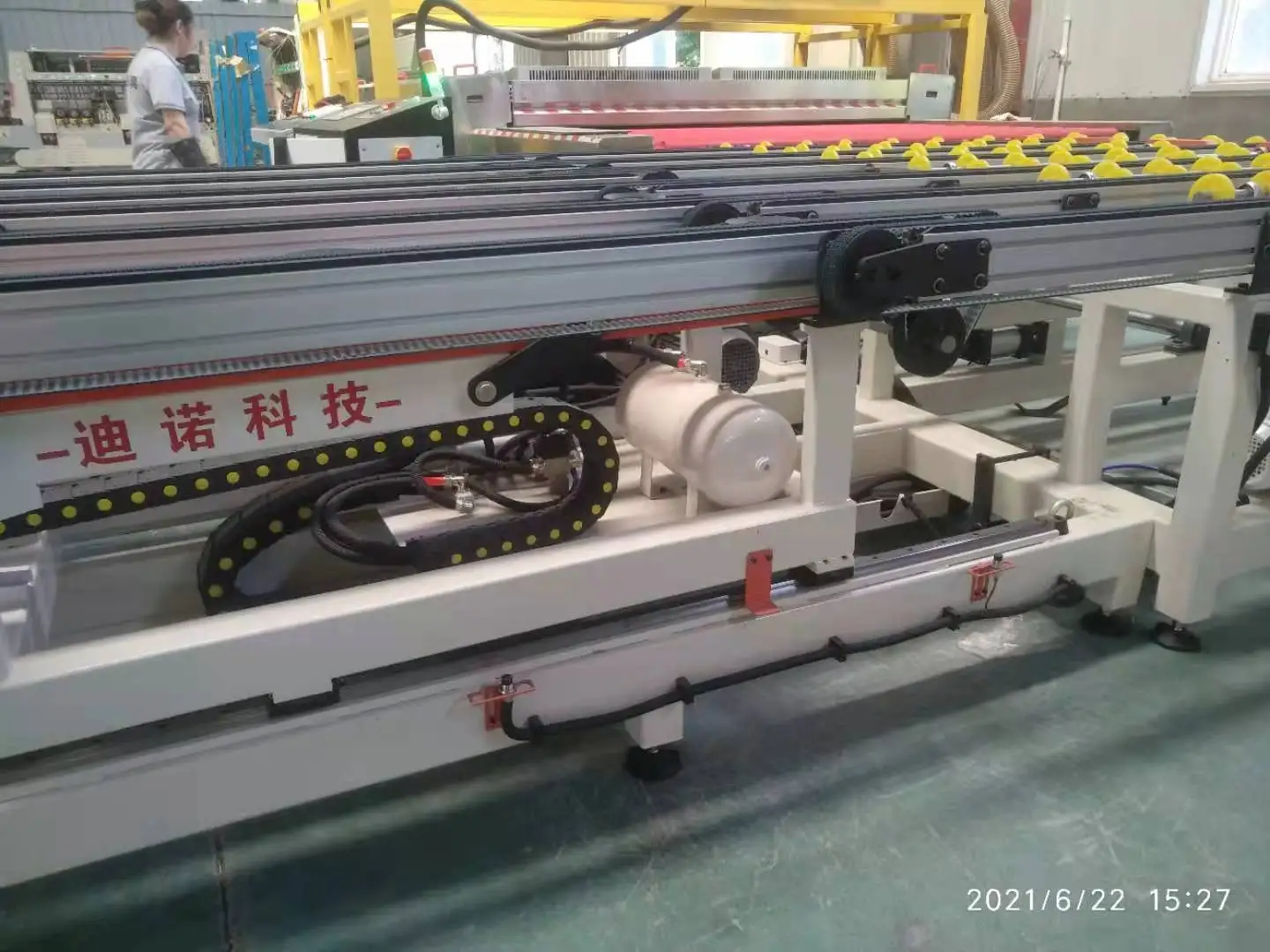

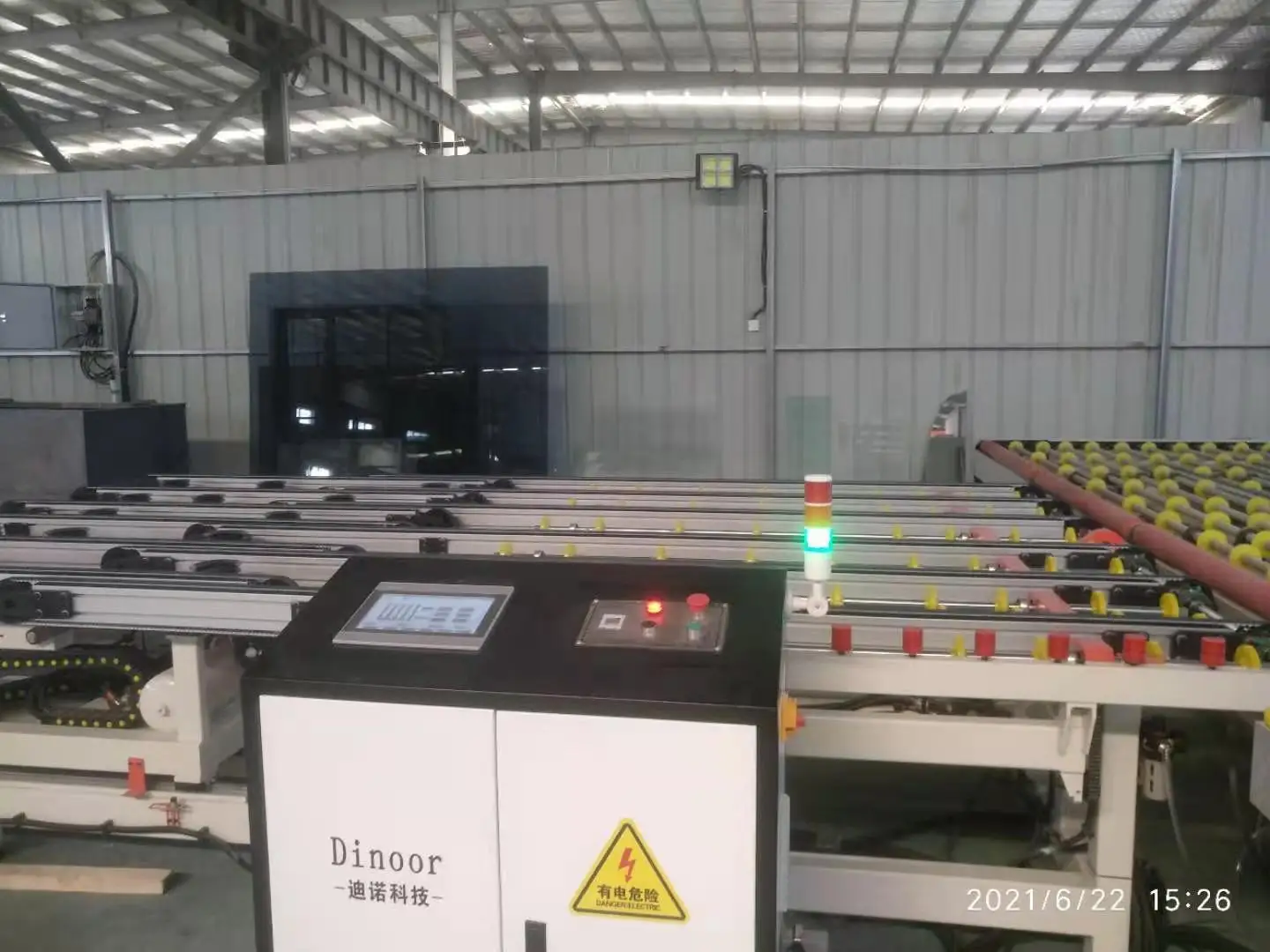

DN-SXP2520 Automatic Glass Loading Machine
Product advantage
1.Adopting OMRON PLC, full-automatic intelligent loading →safety and productivity.
2.Intelligent automatic identification of glass size.
3.The transmission motion accurately controlled by the servo motors avoid the glass collision phenomenon
4.Can be matched with glass edging, washing, tempering, silver mirror production line.
2.Intelligent automatic identification of glass size.
3.The transmission motion accurately controlled by the servo motors avoid the glass collision phenomenon
4.Can be matched with glass edging, washing, tempering, silver mirror production line.
Key Components | Brands |
PLC | OMRON JAPAN |
Frequency Converter | INOVANCE CHINA |
10 inch Touch Screen | MCGS CHINA |
Servo Motor | INOVANCE/XINJIE CHINA |
Photo Cell | OMRON JAPAN |
Proximity Switch | OMRON JAPAN |
Pneumatic Control Valve | AirTAC CHINA |
Pressure sensor | CKD JAPAN |
Air suction and deflation valve | CKD JAPAN |
Vacuum Pump | VALUE CHINA |
Suction Cup | Premium Silicone |
Product Details
Parameters
Technical Parameters of DN-SXP 2520 Automatic Glass Loading Machine | ||||||||
Model | DN-SXP 2520 | |||||||
Max. Loading Glass Size | 2500 mm x 2000 mm | |||||||
Min. Loading Glass Size | 360 mm x 660 mm | |||||||
Glass Thickness | 4-12 mm | |||||||
Maximum Loading Speed | 4-5 pcs/min | |||||||
Maximum Loading Glass Weight | 250 KG | |||||||
Dimension | 4390 mm x 2390 mm x 900 mm | |||||||
Conveyor Speed | 0~60 m/min （Adjustable） | |||||||
Glass Loading Depth From Glass Rack | 850 mm | |||||||
Flip Arms | 5 | |||||||
Loading Position | Double Stations | |||||||
Air Source | 0.5~0.8 Mpa | |||||||
Vacuum Pressure | -70~90 Kpa | |||||||
Table Height | 900±20 mm | |||||||
Votage | 380V/50HZ | |||||||
Power | 6.5 KW | |||||||
General needs: In containers, to be packed with standard packing-materials which is suitable for long-distance sea freight shipping.
Special needs: If you want a customized packaging service, we are very pleased to serve you.
Special needs: If you want a customized packaging service, we are very pleased to serve you.
FAQ
Q: Are you Original Equipment Manufacturer ?
A: Yes, we are professional Original Equipment Manufacturer and we honestly welcome you to our factory to check the quality.
Q: Can you make the product as per client's requirement?
A: Yes, we can make customized orders according your special needs. Any individual appealis welcome here.
Q: how about your service ?
A:
A: Yes, we are professional Original Equipment Manufacturer and we honestly welcome you to our factory to check the quality.
Q: Can you make the product as per client's requirement?
A: Yes, we can make customized orders according your special needs. Any individual appealis welcome here.
Q: how about your service ?
A:
1. We will reply your message in 1 hour from Ali-trade manager and within 8 hours if by email.
2. We can send professional engineer to your working site for equipment installation, adjustment, operation training and
repairing.
3. 24 hours online after-sales service
Q: How can you guarantee the quality or any warranty?
A: we provide 1 year warranty and lifelong maintenance for all our customers.
2. We can send professional engineer to your working site for equipment installation, adjustment, operation training and
repairing.
3. 24 hours online after-sales service
Q: How can you guarantee the quality or any warranty?
A: we provide 1 year warranty and lifelong maintenance for all our customers.
About Us
Luoyang DISAI Mechanical Equipment Co., Ltd is a professional high-tech enterprise which is engaged in glass cutting equipment design, R&D, manufacturing, sales and after-sales service. With high R&D level and mature manufacturing technologies in the field of automatic glass cutting equipment, our company has been booming rapidly in the world glass processing industry.
