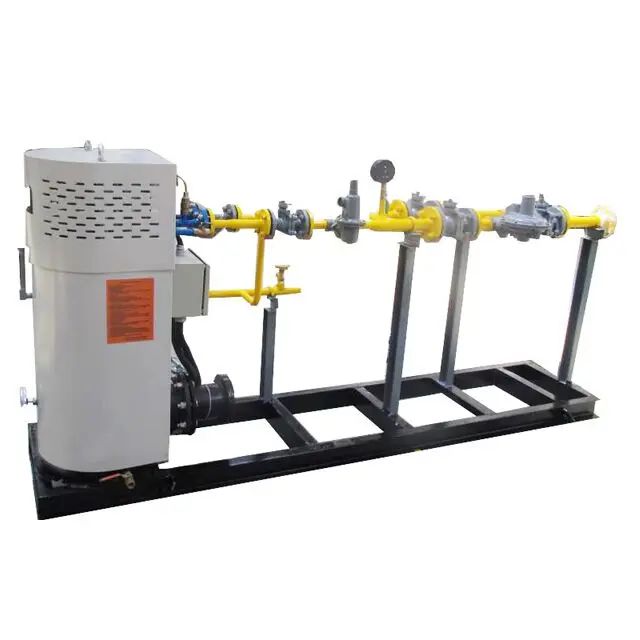

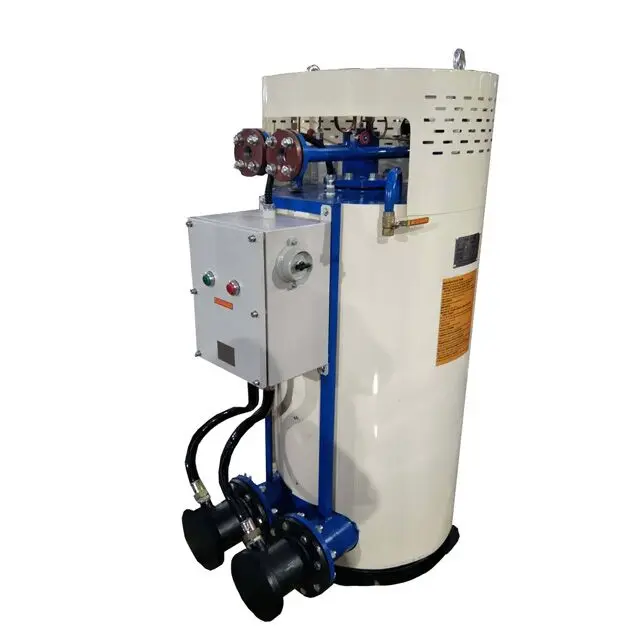

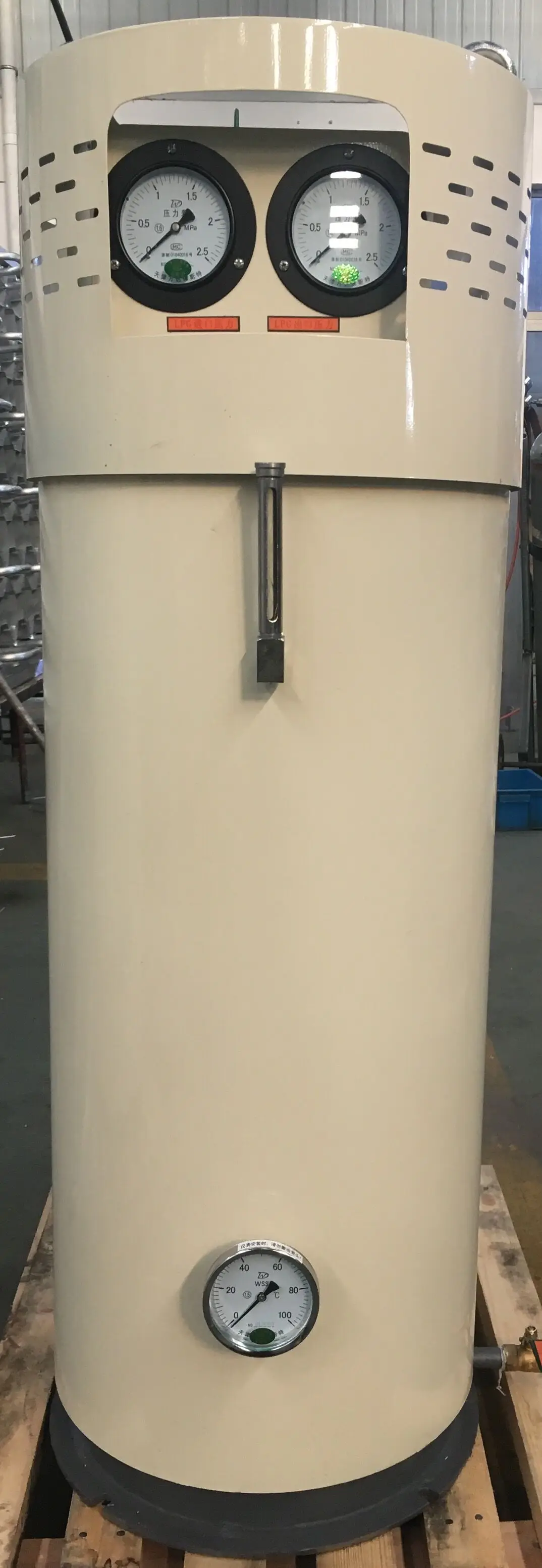

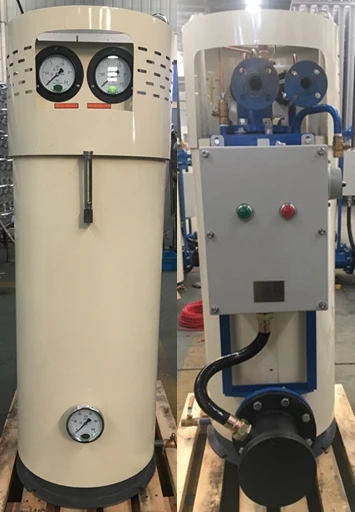

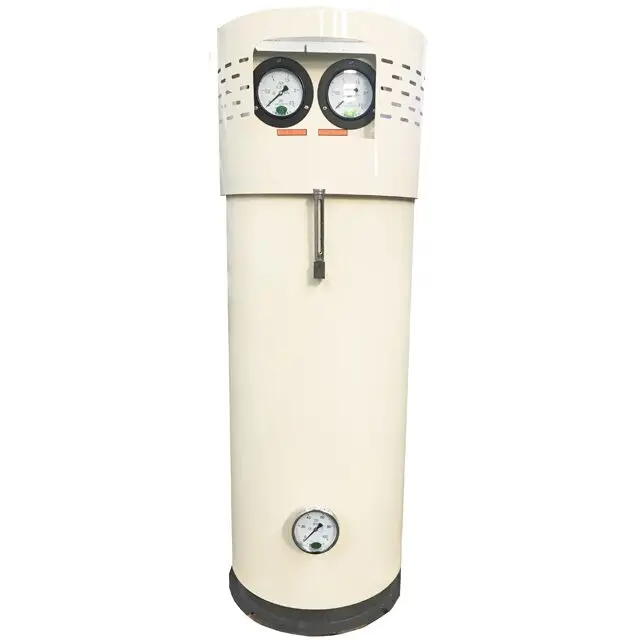

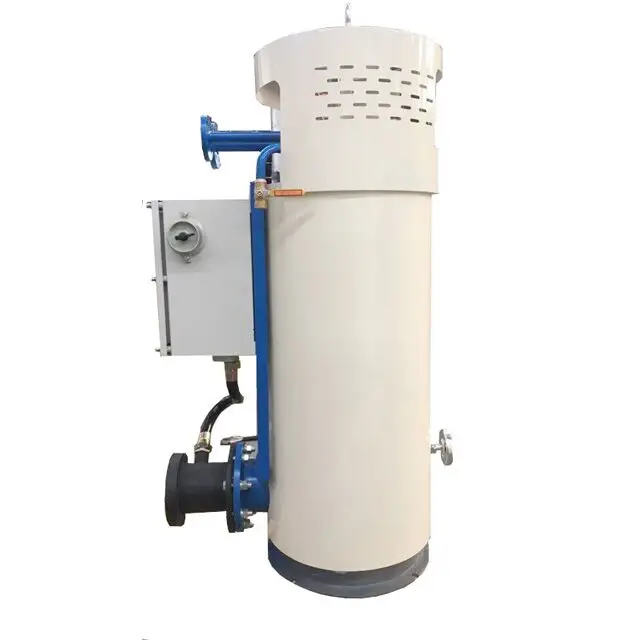

500Kg/h LPG Electronic Vaporizer Water Bath Evaporator

LPG vaporizer is a safe, reliable automatic heat exchange equipment, it can be liquefied petroleum gas through full heat exchange so that the gasification rate is higher than the natural gasification, to the user's need Stable flow and pressure.

Lpg vaporizer technical specification
Name	YD-50	YD-100	YD-150	YD-200	YD-300	YD-400	YD-500
Vaporization capacity	50Kg/h	100Kg/h	150Kg/h	200Kg/h	300Kg/h	400Kg/h	500Kg/h
Power voltage	~380V	~380V	~380V	~380V	~380V	~380V	~380V
Power	8KW	15KW	23KW	30KW	46KW	60KW	75KW
Max Working pressure	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa
Working temperature	60±2.5℃	60±2.5℃	60±2.5℃	60±2.5℃	60±2.5℃	60±2.5℃	60±2.5℃
opening pressure of safety valve	1.8 MPa	1.8 MPa	1.8 MPa	1.8 MPa	1.8 MPa	1.8 MPa	1.8 MPa
Heat exchange medium	water	water	water	water	water	water	water
Inlet size	DN15	DN20	DN20	DN25	DN25	DN25	DN25
Outlet size	DN20	DN25	DN25	DN25	DN40	DN40	DN50
weight	110Kg	110 Kg	150 Kg	180 Kg	240 Kg	280Kg	320 Kg

1.The device uses electricity as the heating source, and the water is indirectly heated by the heat transfer medium to liquid liquefied petroleum gas.The equipment has good air tightness.

2.The equipment has the characteristics of high automation control, convenient operation and safe and reliable.The automatic control part adopts the imported intelligent PI D temperature controller, which has the work indicator and various safety chain control devices.Including anti - liquid measures, overheating and power - off protection function.

3.The device is disabled in the form of siphon exhaust, which can completely eliminate the residue in the vaporizer.
