Комплект шагового двигателя Nema34 с замкнутым контуром нм кодировщиком источником питания и контроллером


Поделиться:


Цена:105,00 $ - 128,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 133.78 $* 136.70 $*
Jul-16-2025 108.2 $* 110.56 $*
Jun-16-2025 131.27 $* 134.10 $*
May-16-2025 130.14 $* 133.46 $*
Apr-16-2025 104.94 $* 106.66 $*
Mar-16-2025 128.9 $* 131.92 $*
Feb-16-2025 127.42 $* 130.48 $*
Jan-16-2025 126.1 $* 129.22 $*

Характеристики

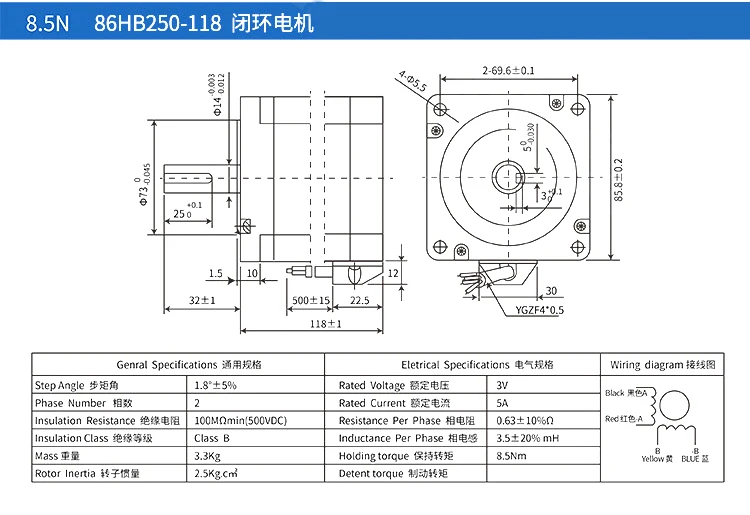

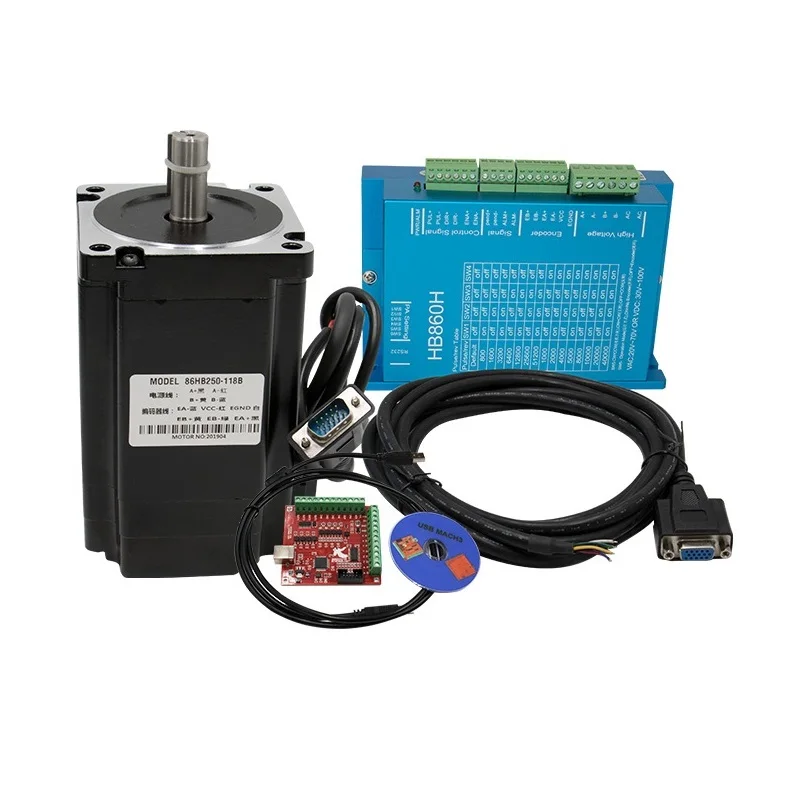

Nema34 8.5Nm closed loop stepper motor kit with encoder and power supply and mach3 controller


Details Images




Product Paramenters








Model No
Step Angle
Rated Current(A)
Resistance (Ω±10%)
Holding Torque(N.m)
Inductance (mH±20%)
Motor Length(mm)
Encoder Resolution (PPR)
Motor Weight(Kg)
86HSE4N
1.8°
6
0.45
4.5
3.7
82
1000
2.65
86HSE8N
1.8°
6
0.44
8.5
3.7
118
1000
4
86HSE12N
1.8°
6
0.45
12.5
3.7
156
1000
5.65

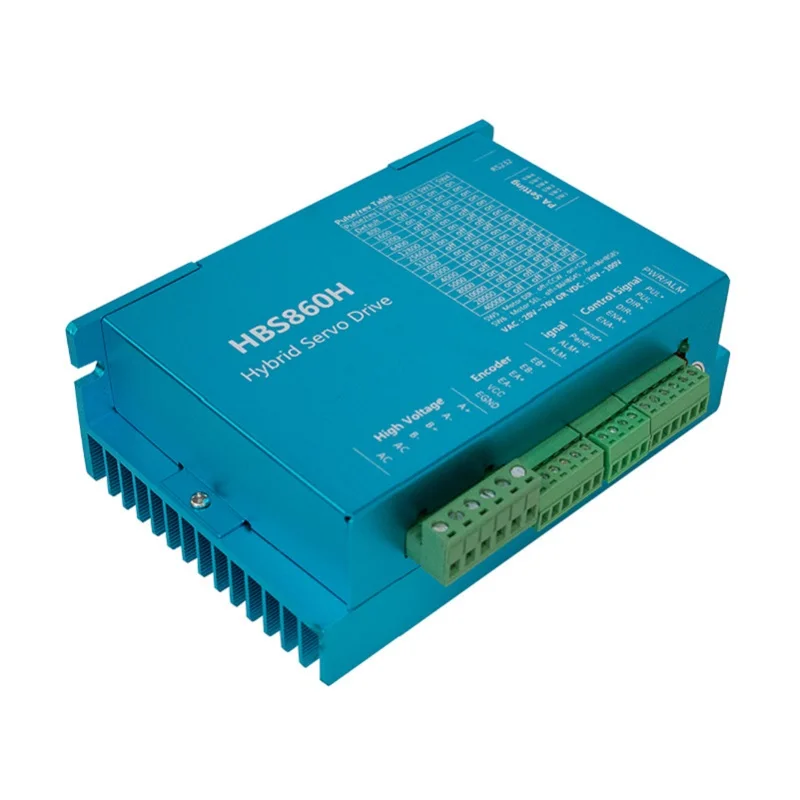

HB860H Driver




Specification:
Item Type: Stepper Motor Drive Supply Voltage: DC24-110V or AC18-80V Driving Current: 2.4-7.2A Subdivision

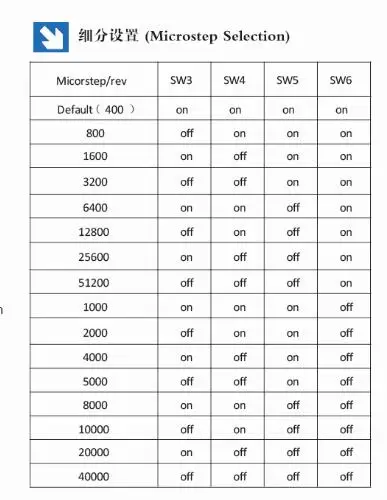

Progress: 2-200 subdivision optional Optically Isolated Signal Input Motor Noise Optimization Can drive any 2-phase, 34-phase
hybrid stepping motor below 7.2A 20KHz chopping frequency










Product Advantages


Packing List

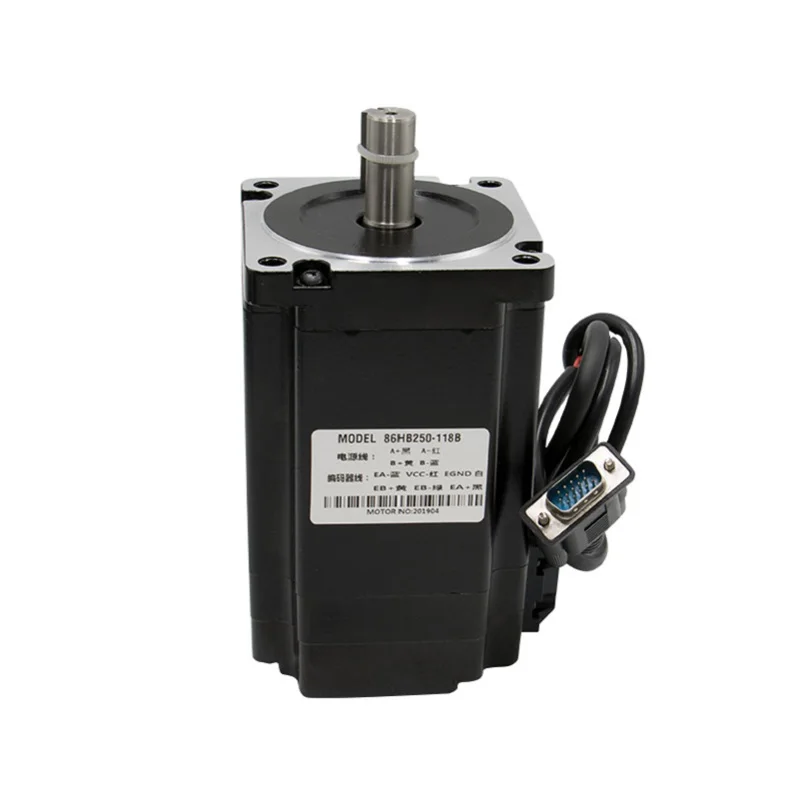

1*4.5Nm 86 closed loop stepper motor
1*HB830H driver

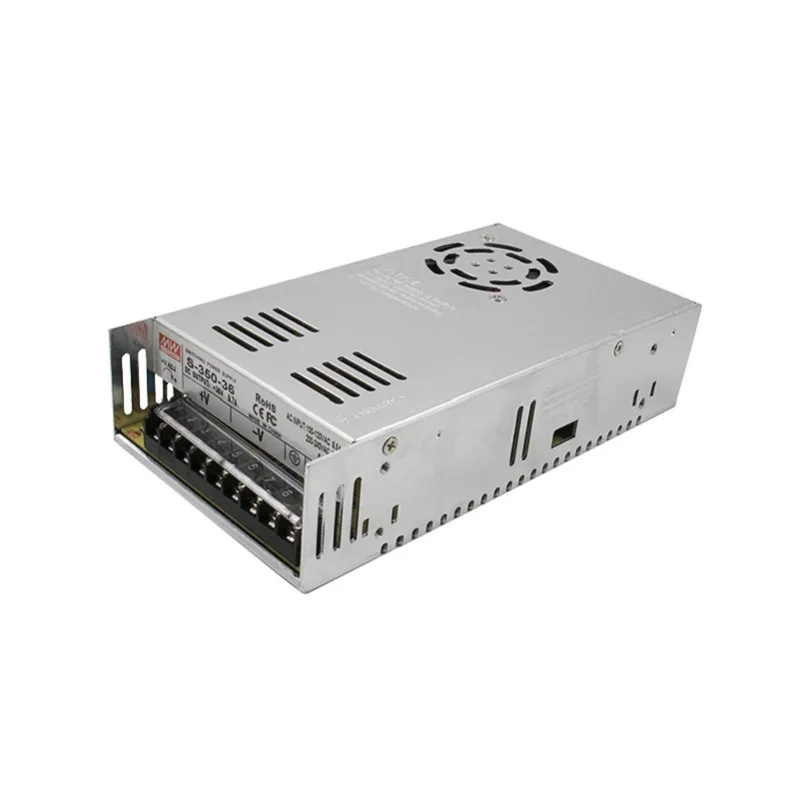

1*60V power supply
1*Controller
1*3m Encoder cable
Packing List
1*8.5Nm 86 closed loop stepper motor 1*HB830H driver
1*60V power supply
1*Controller
1*3m Encoder cable
Packing List
1*8.5Nm 86 closed loop stepper motor 1*HB830H driver
1*60V power supply
1*Controller
1*3m Encoder cable




Product packaging


1. Inner Packing: Waterproof packing with cling film and cardboard surrounded.
Each case is lined with foam plastics in order to protect the goods against press.
We promose the products must be well protected against dampness, moisture, rust and shock.
2. As per the clients requirements.





Company Profile
