Гидравлическая стальная труба ZD60NC конусная сварочная Концевая формовочная
- Категория: Tube End Forming Machines >>>
- Поставщик: Zhangjiagang,Liye,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.15 $* | 0.21 $* |
| Aug-16-2025 | 0.61 $* | 0.64 $* |
| Jul-16-2025 | 0.49 $* | 0.63 $* |
| Jun-16-2025 | 0.47 $* | 0.93 $* |
| May-16-2025 | 0.11 $* | 0.12 $* |
| Apr-16-2025 | 0.80 $* | 0.33 $* |
| Mar-16-2025 | 0.20 $* | 0.65 $* |
| Feb-16-2025 | 0.92 $* | 0.91 $* |
| Jan-16-2025 | 0.1 $* | 0.9 $* |
Характеристики
Product Description

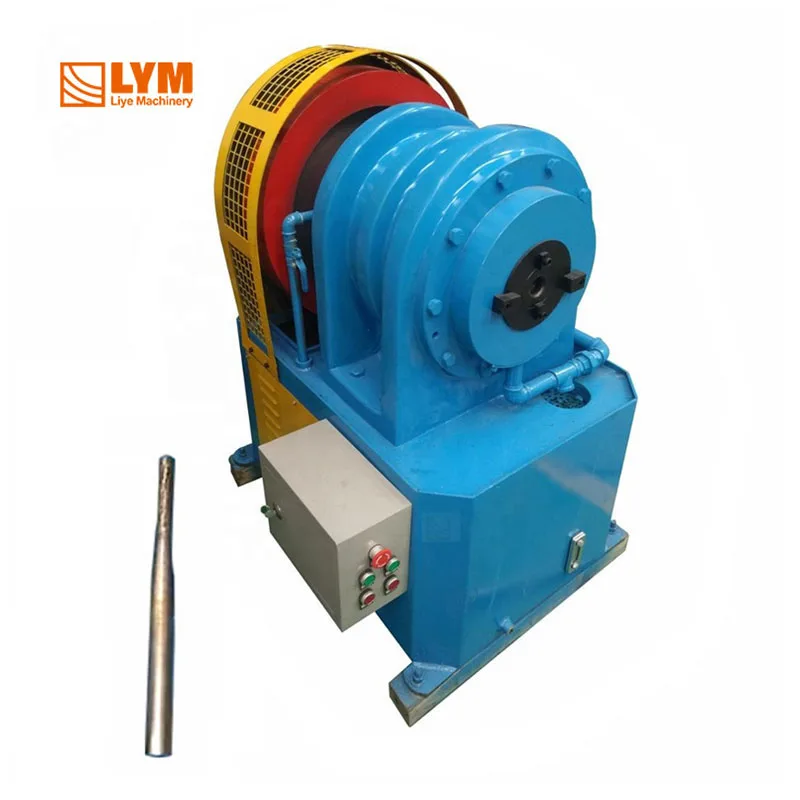

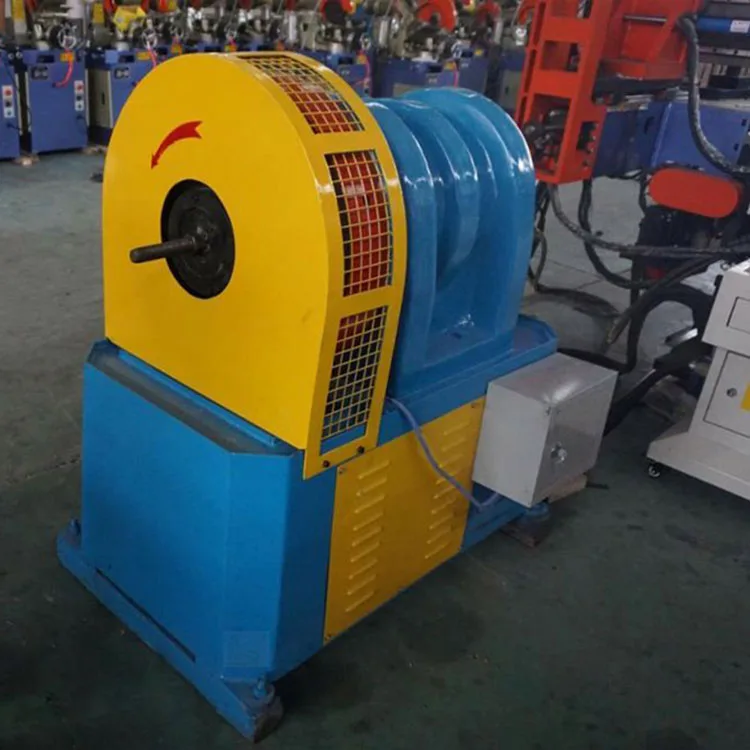

ZD60NC Hydraulic steel tube taper swage pipe end forming machine
Specification:
| ZD Taper pipe end forming machine | ||||
| Specification/model | Taper pipe end forming machine | |||
| Main specifications | Unit | ZD50NC | ZD60NC | ZD80NC |
Maximum applicable pipe diameter x thickness | mm | Φ50*2 | Φ60*2.5 | Φ80*3 |
| Once shaping pipe ability | mm | 300 or support customized | 300 or support customized | 300 or support customized |
| Time of molding | s | 7-30 | 10-40 | 20-60 |
| Amount of die mold open and close | mm | 50 | 50 | 50 |
| Motor power | kw | 7.5 | 11 | 15 |
| Oil pressure motor power | kw | 4 | 5.5 | 7.5 |
| Measurement size of machine | mm | 2500*800*1500 | 3200*900*1600 | 3300*1000*1800 |
| Weight of machine | kg | 1300 | 2000 | 3200 |
PackingShipping
Company Information
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the "Company") is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
Parts brand
FAQ
Q1 What a Liye machinery main product is?
The main products include 9 series and over 100 models, i.e. pipe machining line pipe cutter pipe bender
pipe end forming machine, chamfering machine, gear grinding machine, niveting machine, arc machine
and bending press.
Q2 Why can we trust Founding mechanical technology?
1.All of our products have passed CE, TUV, ISO quality cerification
2.0ur products have been exported so far been more than 80 countries
3.This site is written by the Department of Mechanical Technology Founding how to choose the type of
article bender http:/www zjgly.net/en/xxzn.html)
Q3 When did you set up?
We specialize in the production of pipe processing machinery has reached 16 years, starting in
2008 to developthe intemational market.
Q4 Where is your factory?
Zhangjiagang City, Jiangsu Province, from Shanghai airport only two hours
Q5 Where is your ADVANTAGE?
1. In good faith-based, professiona skills,excellent quality
2 We have been committed to the development of new products, equipment canbe customized according to
needs
3. Strict management system and perfect after-sales service
If you are interested in our products Click here to send us a message
