30m 3/h в наличии кислорода генераторная установка медицинский кислородный генератор цена фабрики Китая для продажи oxigen растений медицинские Завод
- Категория: Gas Generation Equipment >>>
- Поставщик: Olymtech,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.54 $* | 0.56 $* |
| Aug-18-2025 | 0.79 $* | 0.64 $* |
| Jul-18-2025 | 0.23 $* | 0.2 $* |
| Jun-18-2025 | 0.99 $* | 0.61 $* |
| May-18-2025 | 0.74 $* | 0.68 $* |
| Apr-18-2025 | 0.37 $* | 0.77 $* |
| Mar-18-2025 | 0.60 $* | 0.15 $* |
| Feb-18-2025 | 0.93 $* | 0.2 $* |
| Jan-18-2025 | 0.66 $* | 0.83 $* |
Характеристики
Model | Gas production | Air consumption | Imported | Output | Dimension |
HBF093-1 | 1 | 0.2 | DN15 | DN15 | 800*650 *1720 |
HBF093-2 | 2 | 0.4 | DN15 | DN15 | 950*950 *1500 |
HBF093-3 | 3 | 0.6 | DN15 | DN15 | 1050*900 *1865 |
HBF093-5 | 5 | 1 | DN20 | DN15 | 1450*900 *1825 |
HBF093-10 | 10 | 2 | DN32 | DN15 | 1450*900 *1825 |
HBF093-15 | 15 | 3 | DN40 | DN25 | 1800*950 *1940 |
HBF093-20 | 20 | 4 | DN40 | DN25 | 1850*1025 *2100 |
HBF093-25 | 25 | 5 | DN50 | DN25 | 2000*1050 *2210 |
HBF093-30 | 30 | 6 | DN50 | DN25 | 2000*1050 *2530 |
HBF093-50 | 50 | 10 | DN65 | DN25 | 2200*1250 *2720 |
HBF093-60 | 60 | 12 | DN65 | DN40 | 2250*1300 *2850 |
HBF093-80 | 80 | 16 | DN80 | DN40 | 2350*1550 *3060 |
HBF093-100 | 100 | 20 | DN100 | DN40 | 2500*1600 *3330 |
HBF093-120 | 120 | 24 | DN100 | DN40 | 2600*1700 *3670 |
HBF093-150 | 150 | 30 | DN150 | DN40 | 4700*1500 *2980 |
HBF093-180 | 180 | 36 | DN200 | DN40 | 4700*1600 *3370 |
HBF093-200 | 200 | 40 | DN200 | DN40 | 5000*1600 *3330 |
HBF093-240 | 240 | 48 | DN200 | DN50 | 5200*1700 *3670 |
HBF093-300 | 300 | 60 | DN250 | DN50 | 5900*1600 *4520 |
Principle
Pressure swing adsorption (PSA) oxygen generator uses molecular sieve as adsorbent.
The principle of pressure adsorption and depressurization desorption is adopted to adsorb nitrogen from air, then produce oxygen gas.
The principle of pressure adsorption and depressurization desorption is adopted to adsorb nitrogen from air, then produce oxygen gas.
Specifications
Oxygen flow rate: 1 ~ 150Nm3/h (under standard state)
Oxygen purity: 93±3% (national standard)
Oxygen pressure: 0.01 ~ 0.5mpa (gauge pressure, stable and adjustable)
Oxygen dew point: - 40 ℃ ~ - 60 ℃ (atmospheric dew point)
Oxygen purity: 93±3% (national standard)
Oxygen pressure: 0.01 ~ 0.5mpa (gauge pressure, stable and adjustable)
Oxygen dew point: - 40 ℃ ~ - 60 ℃ (atmospheric dew point)
Advantages
A unique lotus air distributor is installed at the bottom of the adsorber, which avoids the impact of high-pressure air flow on the molecular sieve and prolongs the service life of the molecular sieve.
At the same time, the gas diffusion is uniform, which greatly improves the service efficiency of the molecular sieve and reduces the energy consumption.
At the same time, the gas diffusion is uniform, which greatly improves the service efficiency of the molecular sieve and reduces the energy consumption.
Internal structure diagram
Special air diffusion equipment is set inside the adsorption tower. Firstly, compressed air enters the neck with cyclone equipment, through the alumina ceramic ball specially used for diffusion (using the spherical shape and hardness of the ceramic ball), the gas flows in the shape of "s" during diffusion.
Then, through the double-layer stainless steel wire mesh and the activated molecular sieve, it can fully contact with the carbon molecular sieve. which not only greatly reduces the impact force of gas on carbon molecular sieve, also makes the gas more uniform in the adsorption process, which is conducive to improving the oxygen production efficiency and the service life of the molecular sieve.
Then, through the double-layer stainless steel wire mesh and the activated molecular sieve, it can fully contact with the carbon molecular sieve. which not only greatly reduces the impact force of gas on carbon molecular sieve, also makes the gas more uniform in the adsorption process, which is conducive to improving the oxygen production efficiency and the service life of the molecular sieve.
Advanced loading theold ensures the service life of the equipment
The molecular sieve is loaded by "Snowstorm" method, so that the distribution of carbon molecular sieve is uniform without dead angle, and it is not easy to be powdered;
the adsorption tower is equipped with multi-stage split gas distribution equipment and automatic compression equipment of molecular sieve cylinder. Ensure the adsorption performance and compression state of molecular sieve, and effectively extend the service life of carbon molecular sieve.
Molecular Sieve
Choosing high quality and high efficient molecular sieve to ensure maximum energy saving, power saving, and low air consumption ratio.
High efficiency molecular sieve is an important step to ensure low air consumption ratio. We use the molecular sieve, which has the characteristics of strong hardness, difficult to powder, high recovery, long service life (up to 10 years). It has the best capacity and stability in China.
High efficiency molecular sieve is an important step to ensure low air consumption ratio. We use the molecular sieve, which has the characteristics of strong hardness, difficult to powder, high recovery, long service life (up to 10 years). It has the best capacity and stability in China.

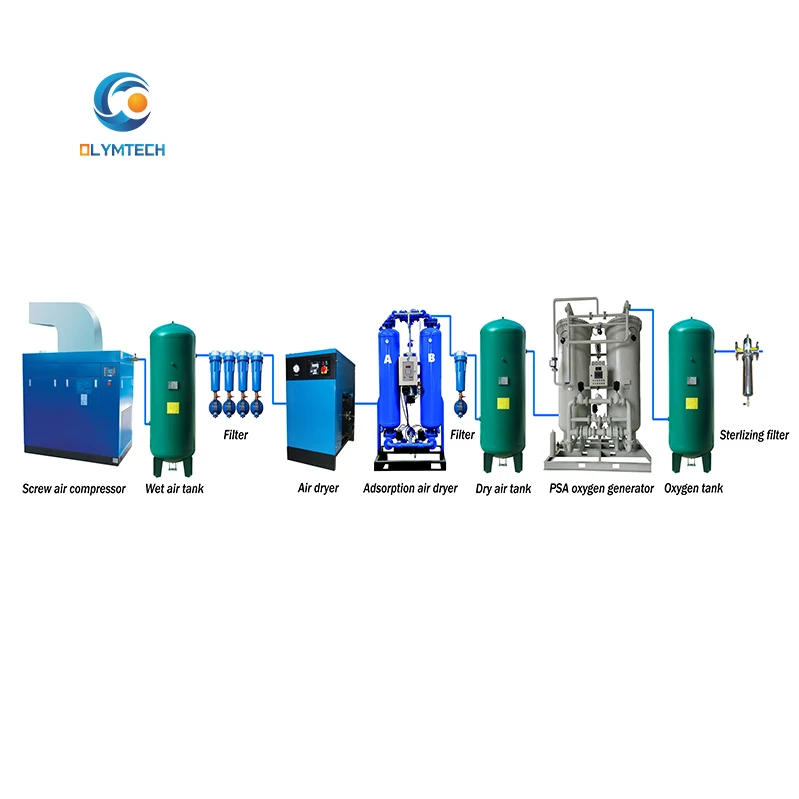

Oxygen generatior system flow chat
Recommend Products-Air Compressors
Rich experience in Medical inductry
Export hundreds of plants to Hospital
Cooperation with famous enterprises
Company Profile
Olymtech Group
A professional oxygen generator, nitrogen generator factory.
Certificate
Packing & Delivery
FAQ
Q1: Why customer choose us?
O: Olymtech Technology Development Co, Ltd is a professional manufacturer for air compressor and after treatment equipment. We have more than 20 years experience in producing and exporting air compressor, air dryer and air filter.
Q2: Are you a manufacturer or trading company?
O: Our factory is located in Guangdong China, we have research and develop center, advanced processing equipment, professional technicians, rich experience workers and after-sales team to offer good quality products and good service to our customers. We also can provide you the OEM&ODM service.
Q3: What's your delivery time?
O: Generally 10 days, if urgently order, pls contact our sales in advance
Q4: How long is your air compressor warranty?
O: One year for the whole machine when the compressor leave our factory.
Q5: How long could your air compressor be used?
O: Generally, more than 10 years
Q6: What's payment term?
O: T/T, L/C, Paypal and etc. Also we could accept USD, RMB, Euro and other currency (Pls contact our sales for more information
Q7: How about your customer service?
O: 24 hours on-line service available
Q8: How about your after-sales service?
O: 1. Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service
3. World wide agents and after service available
