OC-SDJ тоннель с жидким азотом Мгновенный машина быстрой заморозки
US $20000-$100000
Замороженный тоннель для замораживания овощей hitree/туннель глубокой замораживания/машина
- Категория: Freezing Equipment >>>
- Поставщик: Hitrees,(hainan),Industries,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.91 $* | 0.12 $* |
| Aug-18-2025 | 0.1 $* | 0.38 $* |
| Jul-18-2025 | 0.62 $* | 0.94 $* |
| Jun-18-2025 | 0.55 $* | 0.26 $* |
| May-18-2025 | 0.81 $* | 0.94 $* |
| Apr-18-2025 | 0.94 $* | 0.53 $* |
| Mar-18-2025 | 0.84 $* | 0.57 $* |
| Feb-18-2025 | 0.19 $* | 0.9 $* |
| Jan-18-2025 | 0.21 $* | 0.88 $* |
Характеристики
FEATURES AT A GLANCE
Main features:
1.Single belt for crust hardening applications
2.Fast and efficient cooling with multiple level conveyor belts
3.Belts can operate independently at various speeds or on a cascade principle
4.Low maintenance with a fully accessible stainless steel design
5.Design provides rapid freezing with lowest power consumption
6.Adjustable air speed for controlled processing of light and delicate products
7.Full freezing up to 1500 kg/hr
8.Cost effective alternative to running a cryogenic nitrogen tunnel freezer
2.Fast and efficient cooling with multiple level conveyor belts
3.Belts can operate independently at various speeds or on a cascade principle
4.Low maintenance with a fully accessible stainless steel design
5.Design provides rapid freezing with lowest power consumption
6.Adjustable air speed for controlled processing of light and delicate products
7.Full freezing up to 1500 kg/hr
8.Cost effective alternative to running a cryogenic nitrogen tunnel freezer
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAMESEASY MAINTENANCE
SIMPLE CONTROLVERSATILITY
EXTENDING UNDERCARRIAGE
PRODUCT SPECIFICATIONS
The specifications of the TF100 Tunnel Freezer
NO. | ITEM | CONTENT |
1 | Equipment Type | Tunnel Freezer TF100 |
2 | Belt Type | Stainless steel material |
3 | Overall Dimension | 7340mm*1440mm*2100mm L*W*H |
4 | Belt Width | 1000mm |
5 | Tunnel Passable Height | 100mm |
6 | Inlet Device Length | 600mm |
7 | Outlet Device Length | 600mm |
8 | Inlet & Outlet Device Height | 830mm |
9 | Defrosting Method & Interval | By Water every 12 hours |
10 | Refrigeration Consumption | 17 KW (+40 degree C/-40 degree C) |
11 | Evaporating Area | 180 square meters |
12 | Compressor Model | ITALY FRASCOLD 2Z25-84.42Y |
13 | Refrigeration Capacity | 17.34 KW (+40 degree C/-40 degree C) |
14 | Refrigerant | R507a/R404a/R22 |
15 | Condensing Type | Air cooled |
16 | Installed Power for tunnel freezer | 2.75KW |
17 | Installed Power for Compressor System | 13.03KW |

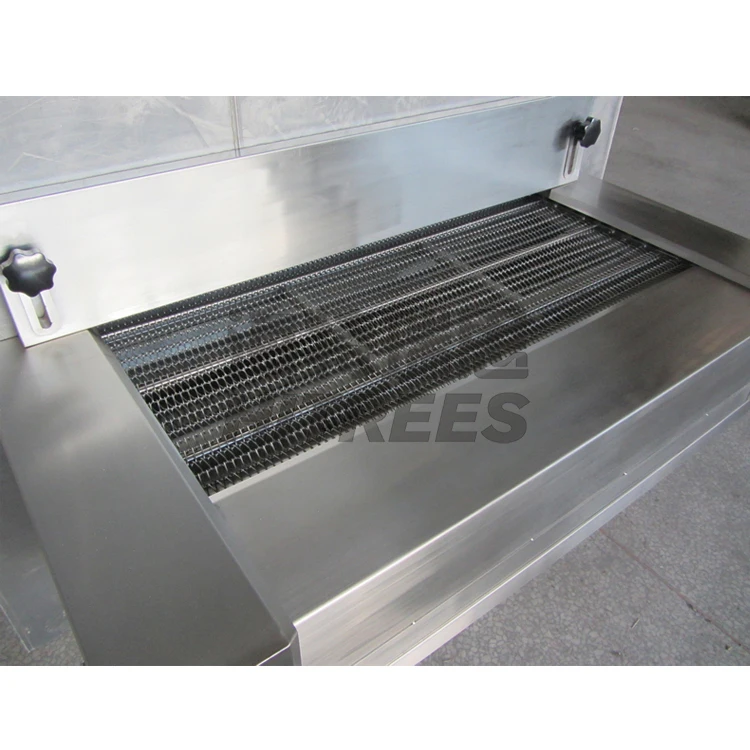

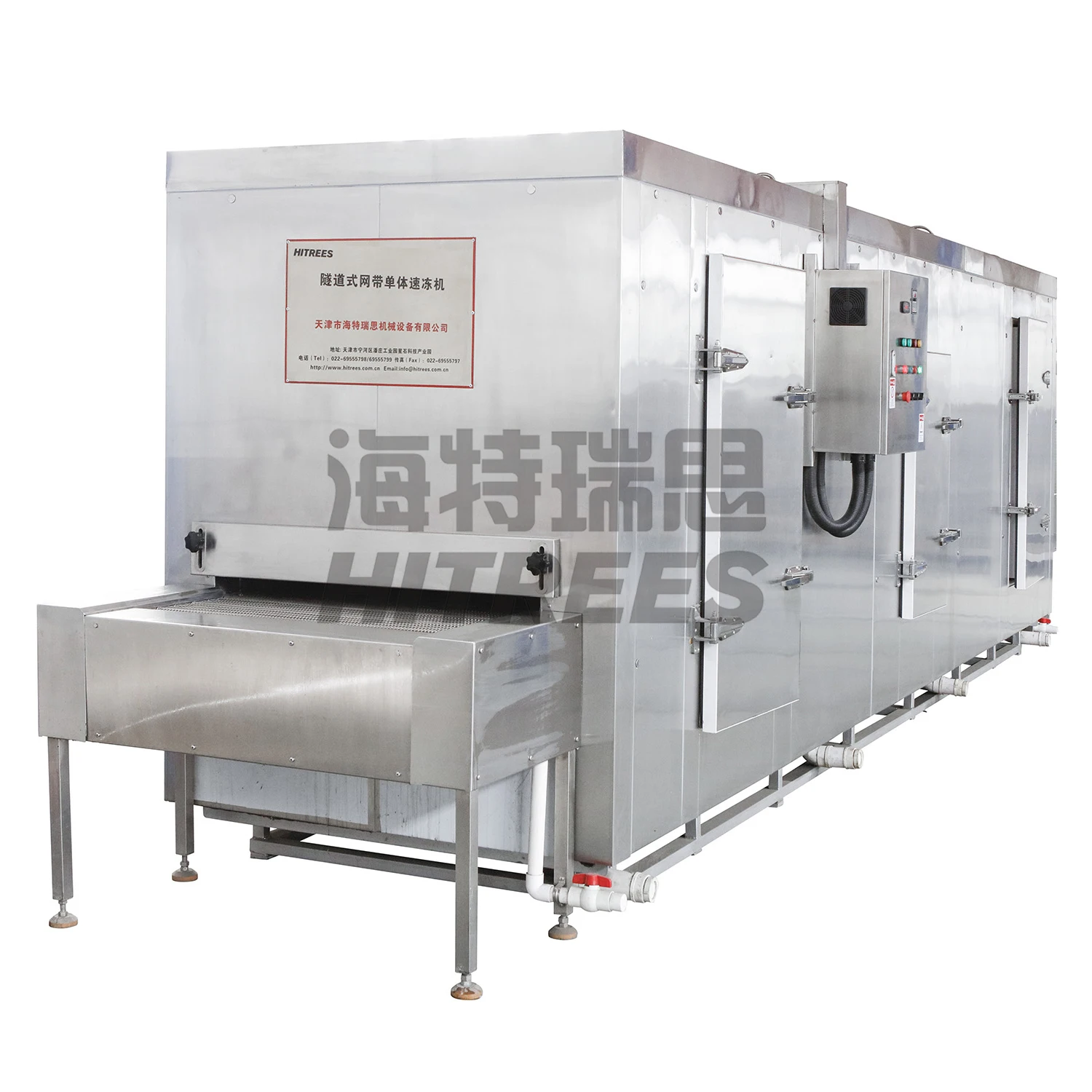

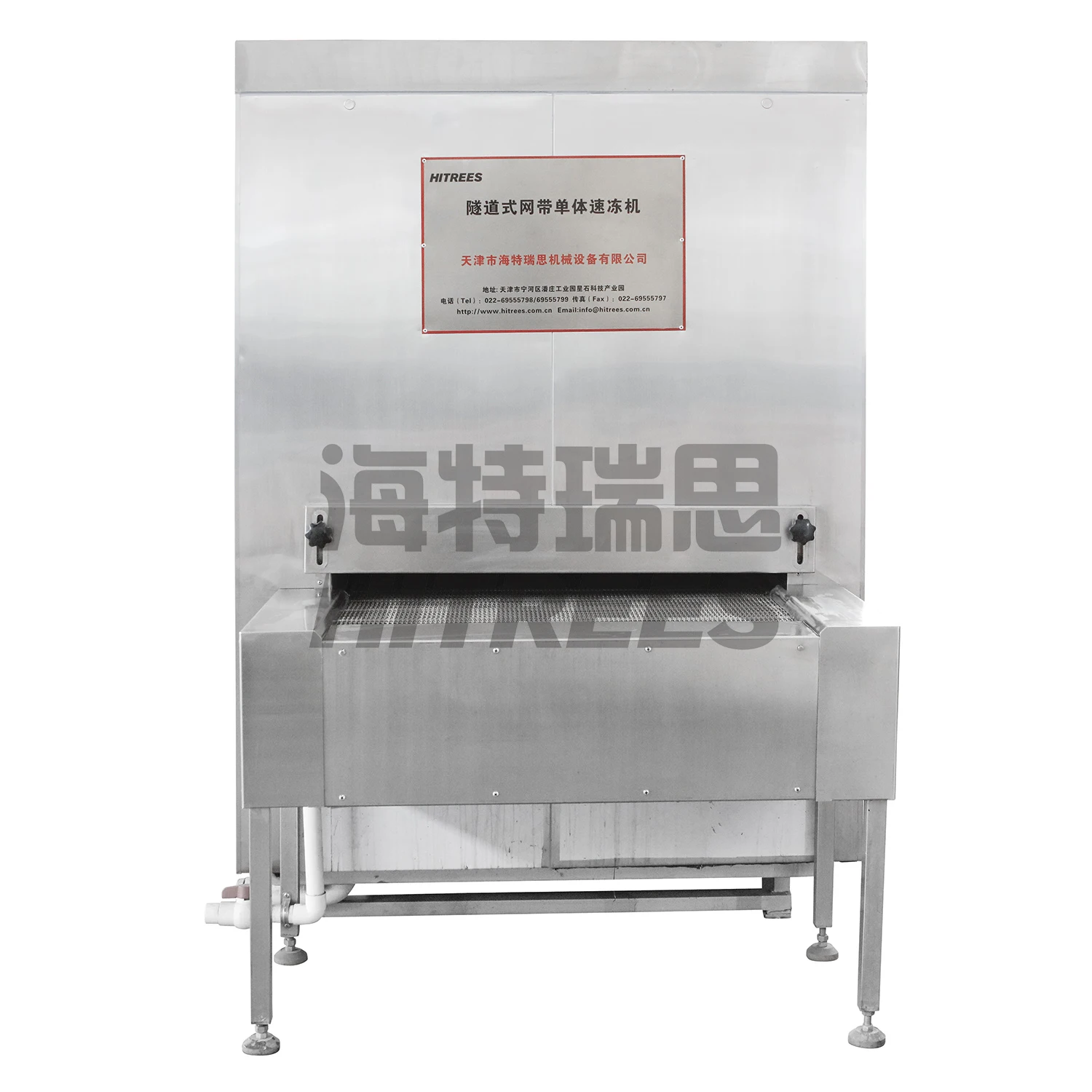

Details Images
Main Components
1. Stainless steel conveyor belt;
2. Sandwich PUF panels 150mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
3. Doors are equipped with frame heating device;
4.Aluminum evaporators, different fin pitches;
5.Axial fans: stainless steel air box, aluminum blades;
6.Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of
cabinet through stainless steel draining pipes;
7. The inlet device, outlet device and all structure parts are made of stainless steel;
8.Control panel is made of stainless steel;
9. Schneider or Siemens electric components;
10.SEW speed reducer.
2. Sandwich PUF panels 150mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
3. Doors are equipped with frame heating device;
4.Aluminum evaporators, different fin pitches;
5.Axial fans: stainless steel air box, aluminum blades;
6.Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of
cabinet through stainless steel draining pipes;
7. The inlet device, outlet device and all structure parts are made of stainless steel;
8.Control panel is made of stainless steel;
9. Schneider or Siemens electric components;
10.SEW speed reducer.

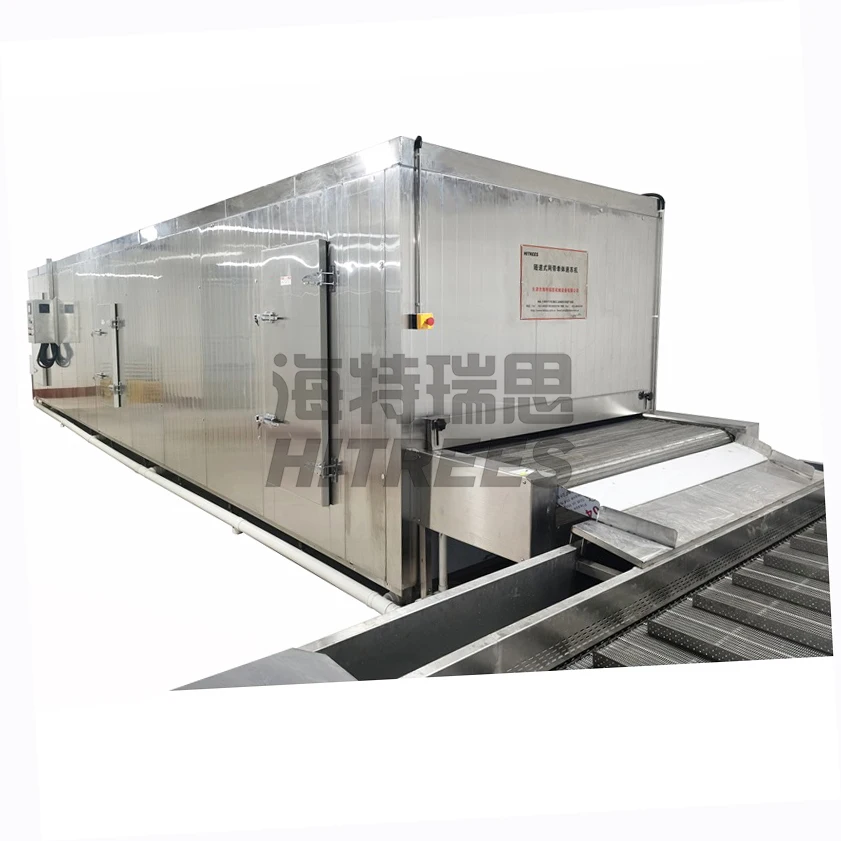

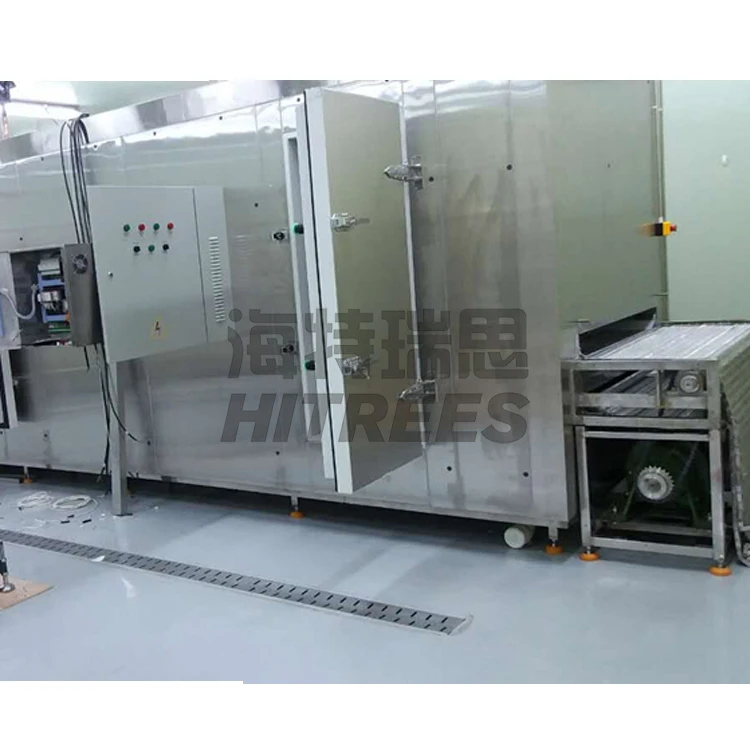

Successful Project
Project in South Korea
Project in USA
Project in Mexico
Please click here to send the inquiry
https://message.alibaba.com/msgsend/contact.htm?spm=a2700.details.cordpanyb.dmessage.5ccf54cfRfVjUN&action=contact_action&domain=1&id=1600138204398&id_f=IDX1vfpO872OzSmhJV5AI1m06erEhYEAFe5jVFYjPQntnepVgT-qxB5ioZarKDuZ34LE&mloca=main_en_detail&tracelog=tracedetailfeedback&umidToken=B0d780126dbe13c74dd9d68cd0b5b1b64
Company Profile
introduction:
We specialized to produce machines for food industry,include cooling & freezing equipment,bakery equipment,kitchen equipment,ice cream machines,processing lines for meat,dumplings,fishes,shrimps,fruits and vegetables,candies,chocolates and snack foods.Besides,we also provide site installation and commissioning services, and craft consultation services.
Our machines have been exported to North America,South America, Europe,Australia,Africa,Southeast Asia and the Middle East areas.Our technicians have been sent to Mexico,Canada,Zambia,Costa Rica,United States,South Korea and many other countries for machines’installation and commissioning.
We have well-educated sales staff who can communicate with you efficiently by English.We have experienced engineers who can design machines exactly according to your special requirement.We have well-trained after-sales staff who can listen to your feedback carefully and help you in time if you have any question.
Machines' quality and service help us get a good reputation among our clients all over the world.We are engaged in providing not only individual equipment,but also the whole production line and processing crafts.Contact us today for more information.
Customer Photos
FAQ
Q1: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q2: What's the lead time？
A: According to the order quantity, small order usually need 40-45 days, big order need negotiation.
Q3: What's your warranty terms?
A: We supply 12 months warranty time.
Q4: What's your payment terms?
A: We receive L/C D/A D/P T/T Western Union MoneyGram
A: Yes, ODM & OEM are welcomed.
Q2: What's the lead time？
A: According to the order quantity, small order usually need 40-45 days, big order need negotiation.
Q3: What's your warranty terms?
A: We supply 12 months warranty time.
Q4: What's your payment terms?
A: We receive L/C D/A D/P T/T Western Union MoneyGram
