Миниатюрная сушилка для лабораторий сублимационная
- Категория: Vacuum Drying Equipment >>>
- Поставщик: ZHEJIANG,LEADTOP,PHARMACEUTICAL,MACHINERY,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.74 $* | 0.71 $* |
| Aug-16-2025 | 0.89 $* | 0.47 $* |
| Jul-16-2025 | 0.42 $* | 0.82 $* |
| Jun-16-2025 | 0.52 $* | 0.96 $* |
| May-16-2025 | 0.91 $* | 0.61 $* |
| Apr-16-2025 | 0.17 $* | 0.14 $* |
| Mar-16-2025 | 0.75 $* | 0.73 $* |
| Feb-16-2025 | 0.22 $* | 0.29 $* |
| Jan-16-2025 | 0.21 $* | 0.2 $* |
Характеристики
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Attention:
1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information,please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 --- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information,please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 --- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
Freeze dryer is widely applied in pharmaceutical industry, biotechnology industry , biological science industry, materials science industry, chemical industry, food and agriculture industry etc. it is used to produce vaccines, drugs and permanently store biological tissues/organs.

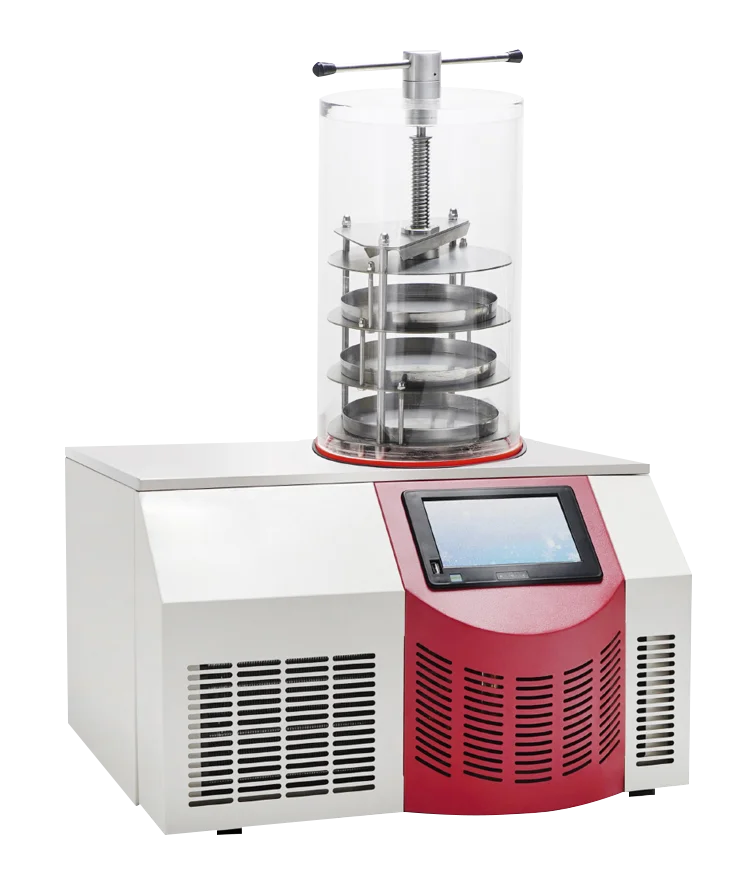

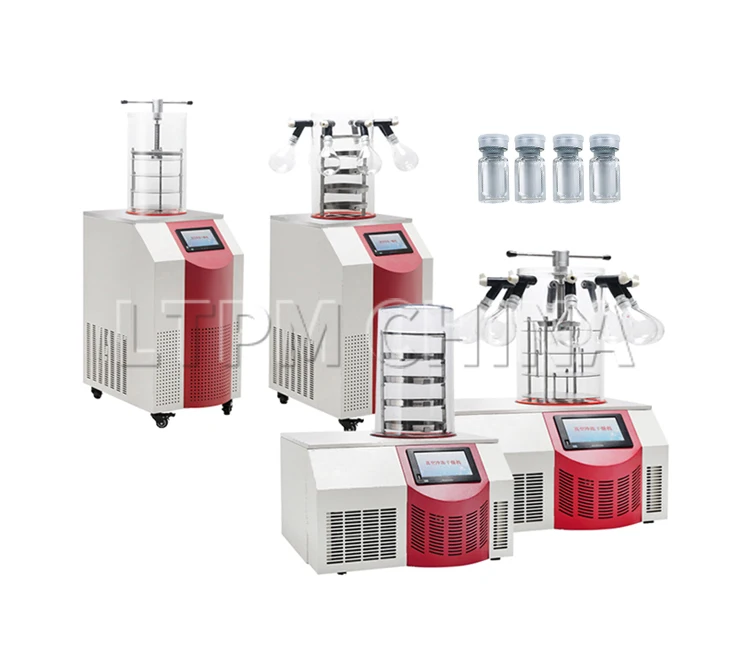

LTDG-CX Series freeze dryer is specialized designed for small batch test in laboratory.The Bench Top and Console freeze dryers are with advanced design and occupies smaller area.
Technical Parameters
Model | LTDG-10S | LTDG-10T | LTDG-10P | LTDG-10PT | |||
Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | Standard stoppering | |||
chamber with 8 port manifold | |||||||
Final condenser temp (℃) | -55 | -55 | -55 | -55 | |||
Vacuum Degree (Pa) | <10 | <10 | <10 | <10 | |||
Condenser volume (L) | 9 | 9 | 9 | 9 | |||
Freeze drying area (m2) | 0.12 | 0.09 | 0.12 | 0.09 | |||
Ice condenser capacity (Kg/24h) | 3 | 3 | 3 | 3 | |||
Qty of shelf | 4 | 3 | 4 | 3 | |||
Material loading capacity/shelf (ml) | 300 | 300 | 300 | 300 | |||
Material loading capacity (ml) | 1200 | 900 | 1200 | 900 | |||
Freeze drying time (h) | 24 | 24 | 24 | 24 | |||
Manifold | / | / | 8 pieces | 8 pieces | |||
USB Interface | Y | Y | Y | Y | |||
Drying Chamber(standard) | Transparent acrylic | ||||||
Vacuum Pump | Speed: 2L/S | ||||||
Control System | Microprocessor, touch screen | ||||||
Power supply (V/Hz) | 220V/50Hz,60Hz | ||||||
Exterior dimension (WxDxH mm) | 582*541*374/684 | ||||||
Penicillin bottle Φ22 | 260 | 195 | |||||
Penicillin bottle Φ16 | 480 | 360 | |||||
Penicillin bottle Φ12 | 920 | 690 | |||||
LTDG-10S LTDG-10T LTDG-10P LTDG-10PT
Model | LTDG-12S | LTDG-12T | LTDG-12P | LTDG-12PT | |||
Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | Standard stoppering | |||
chamber with 8 port manifold | |||||||
Final condenser temp (℃) | -55 OR -80 | -55 | -55 | -55 | |||
Vacuum Degree (Pa) | <10 | <10 | <10 | <10 | |||
Condenser volume (L) | 9 | 9 | 9 | 9 | |||
Freeze drying area (m2) | 0.12-0.18 | 0.09 | 0.12-0.18 | 0.09 | |||
Ice condenser capacity (Kg/24h) | 4 | 3 | 3 | 3 | |||
Qty of shelf | 4 | 3 | 4 | 3 | |||
Material loading capacity/shelf (ml) | 300 | 300 | 300 | 300 | |||
Material loading capacity (ml) | 1200 | 900 | 1200 | 900 | |||
Freeze drying time (h) | 24 | 24 | 24 | 24 | |||
Manifold | / | / | 8 pieces | 8 pieces | |||
USB Interface | Y | Y | Y | Y | |||
Drying Chamber(standard) | Transparent acrylic | ||||||
Vacuum Pump | Speed: 2L/S | ||||||
Control System | Microprocessor, touch screen | ||||||
Power supply (V/Hz) | 220V/50Hz,60Hz | ||||||
Exterior dimension (WxDxH mm) | 582*541*374/684 | ||||||
Penicillin bottle Φ22 | 260 | 195 | |||||
Penicillin bottle Φ16 | 480 | 360 | |||||
Penicillin bottle Φ12 | 920 | 690 | |||||
LTDG-12S LTDG-12T LTDG-12P LTDG-12PT
Model | LTDG-18S | LTDG-18T | LTDG-18P | LTDG-18PT | |||
Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | Standard stoppering | |||
chamber with 8 port manifold | |||||||
Final condenser temp (℃) | -55 OR -80 | -55 | -55 | -55 | |||
Vacuum Degree (Pa) | <10 | <10 | <10 | <10 | |||
Condenser volume (L) | 23 | 9 | 9 | 9 | |||
Freeze drying area (m2) | 0.18-0.27 | 0.135 | 0.18-0.27 | 0.135 | |||
Ice condenser capacity (Kg/24h) | 6 | 3 | 3 | 3 | |||
Qty of shelf | 4 | 3 | 4 | 3 | |||
Material loading capacity/shelf (ml) | 450 | 300 | 300 | 300 | |||
Material loading capacity (ml) | 1800 | 1350 | 1800 | 1350 | |||
Freeze drying time (h) | 24 | 24 | 24 | 24 | |||
Manifold | / | / | 8 pieces | 8 pieces | |||
USB Interface | Y | Y | Y | Y | |||
Drying Chamber(standard) | Transparent acrylic | ||||||
Vacuum Pump | Speed: 2L/S | ||||||
Control System | Microprocessor, touch screen | ||||||
Power supply (V/Hz) | 220V/50Hz,60Hz | ||||||
Exterior dimension (WxDxH mm) | 582*541*374/684 | ||||||
Penicillin bottle Φ22 | 350 | 270 | |||||
Penicillin bottle Φ16 | 740 | 555 | |||||
Penicillin bottle Φ12 | 1320 | 990 | |||||
LTDG-18S LTDG-18T LTDG-18P LTDG-18PT
If you have other models that need to be consulted, you can send an inquiry to us！
Product Highlights
Humanized Design
7" colorful touch panel, can display the product samples temperature, cold trap temperature and vacuum etc in digital and curve.
Touch panel with tilt design conforms to ergonomics and operate more comfortably.
Optional for gas interface: can inject inert gas
Optional for Cold trap electrical heating defrost function Optional for rack heating which is help to test in production Eutectic point testing, it can have sublimation temperature
Optional for Cold trap electrical heating defrost function Optional for rack heating which is help to test in production Eutectic point testing, it can have sublimation temperature
Accessories
Related Products
Company Introduction
Our Company
China Ruian City LeadTop Pharmaceutical Machinery Co., LTD (LTPM) is recognized as a major pharmaceutical equipment manufacturer and supplier. Our company is founded in Ruian, China, with a base of 18 years of prior experience in the pharmaceutical industry.
This has allowed us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines at competitive prices.
This has allowed us to expand our business in a well-planned manner. We now offer a comprehensive whole production line of quality pharmaceutical machines at competitive prices.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Cooperation
More than 200 companies around the world have had close cooperation with us
Our Certificates
ISO, CE, SGS, BV Certified Company.
Client Feedback
Basically, customers who have worked with us will give us a good review
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
