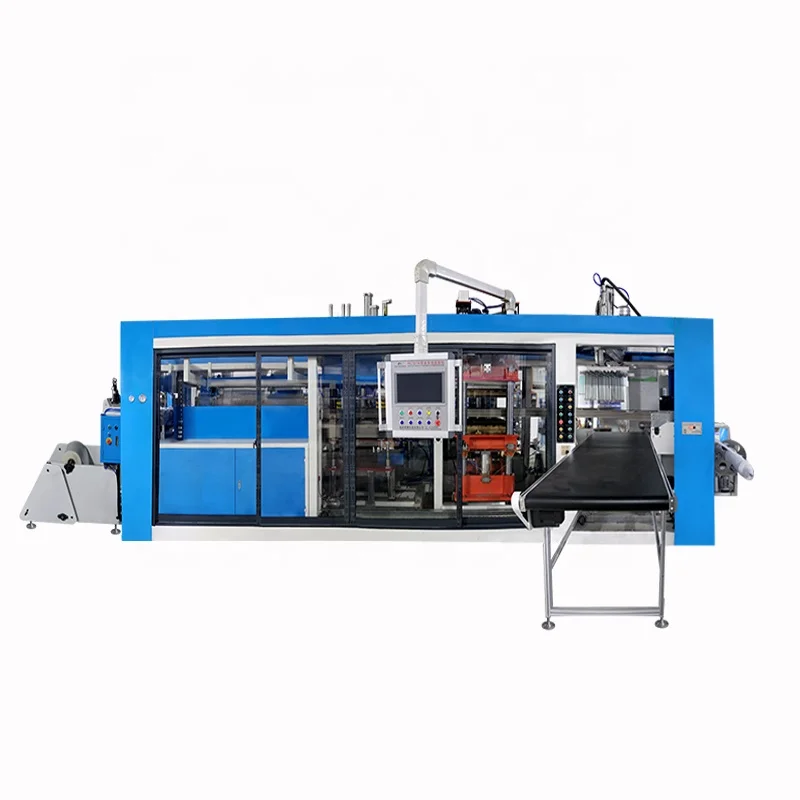

Машина для производства пластиковых косметических лотков высокоскоростная вакуумная Термоформовочная с управлением
- Категория: Plastic Vacuum Forming Machines >>>
- Поставщик: Wenzhou,Daba,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 78540.0 $* | 82467.61 $* |
| Aug-15-2025 | 77880.26 $* | 81774.12 $* |
| Jul-15-2025 | 65340.79 $* | 68607.47 $* |
| Jun-15-2025 | 76560.26 $* | 80388.61 $* |
| May-15-2025 | 66660.8 $* | 69993.15 $* |
| Apr-15-2025 | 75240.91 $* | 79002.7 $* |
| Mar-15-2025 | 74580.26 $* | 78309.63 $* |
| Feb-15-2025 | 73920.65 $* | 77616.74 $* |
| Jan-15-2025 | 73260.44 $* | 76923.8 $* |
Характеристики
Product Description
Application Area:

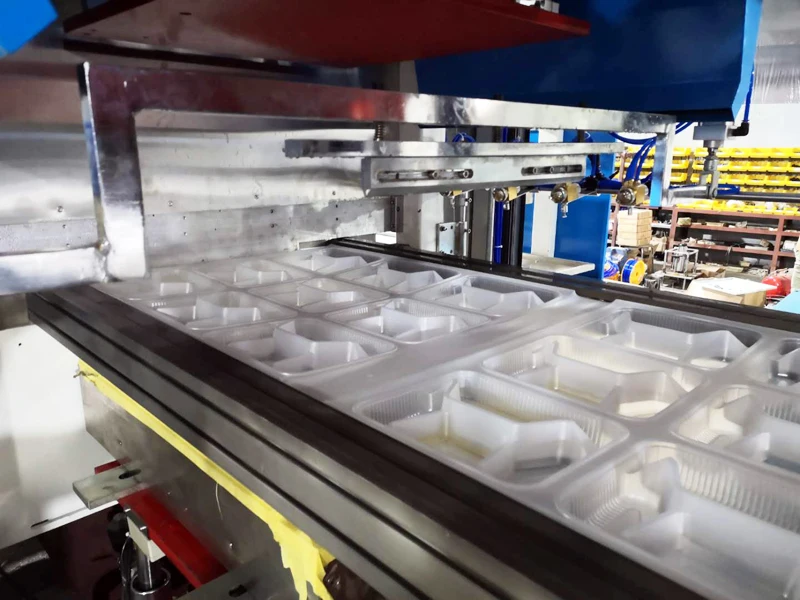

This machine is suitable for forming HIPS, PS, PP, PVC, PET, sheet that can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, egg tray, mobile phone tray & other blister tray.
Specification
No. | item | value |
1 | Max Forming area | 720*760mm |
2 | Material | PET,APET,PP,PS,PVC,ABS |
3 | Material thickness | 0.2-1.8mm |
4 | Forming height | 0-80mm |
5 | Production speed | 200-600times/hour |
6 | Mould-up times | 1 or 2 times(free to install) |
7 | Mould-up move | Electromotion |
8 | Eject-die | Shake to mould-down |
9 | Overall power consumption | 25kw/hr |
10 | Vacuum pump power | 4.0 KW/150m³ |
11 | Servo motor | 3kw |
12 | Power | 380V 50HZ |
13 | Air consumption | 6.5kg/cm 1000-1500Liter /min |
14 | Chiller power | 3HP |
15 | Overall diameter | (L)9200*(W)2850*(H)2660mm |
16 | Weight | 9200kg |
Packing & Delivery
Company Profile
FAQ
Q：What's your delivery date?
A：Usually finish the production within 45 days after received your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T with 30% in advance and 70% before shipment. Also we could accept L/C at sight.
Q: How many days will the finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from the day when finished installation.
Q: How could we do after one year warranty period?
A: We provide 1 year warranty. Within the warranty period, we provide free machine parts and repair service but not including shipping cost if it is not caused by human factors. After 1 year, we provide lifetime service with affordable charge.
Q: How many worker do we need to operate those machines?
A: Usually one machine needs 1-2 operators.
Q: Could you supply raw materials?
A: We can help you to order the raw materials and arrange the shipment together with machines.
