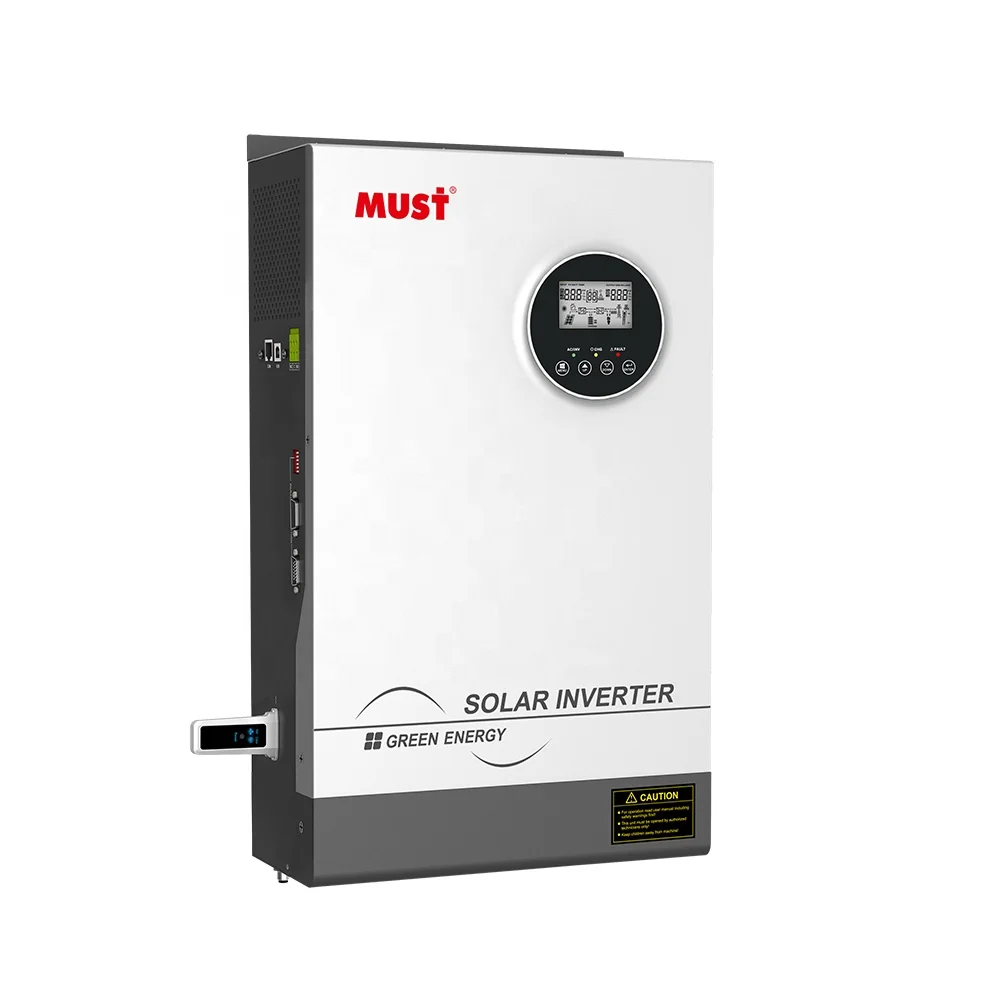

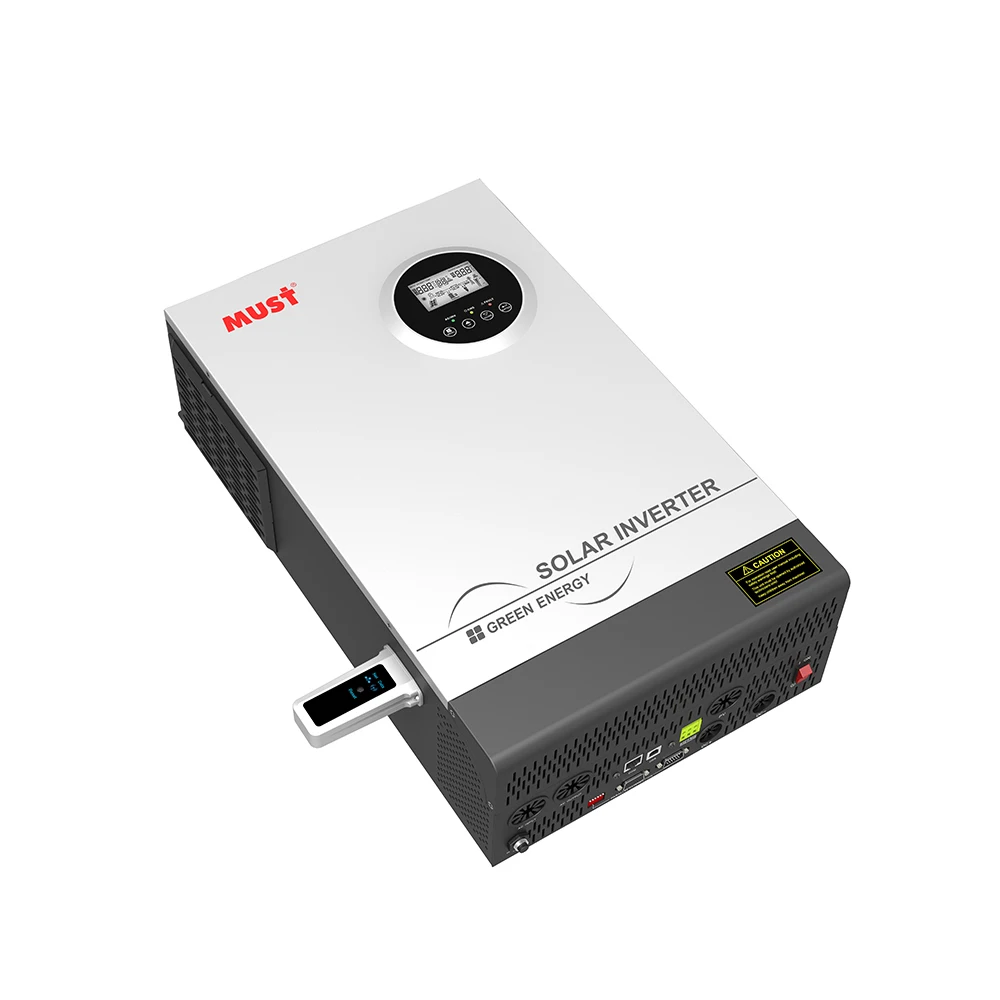

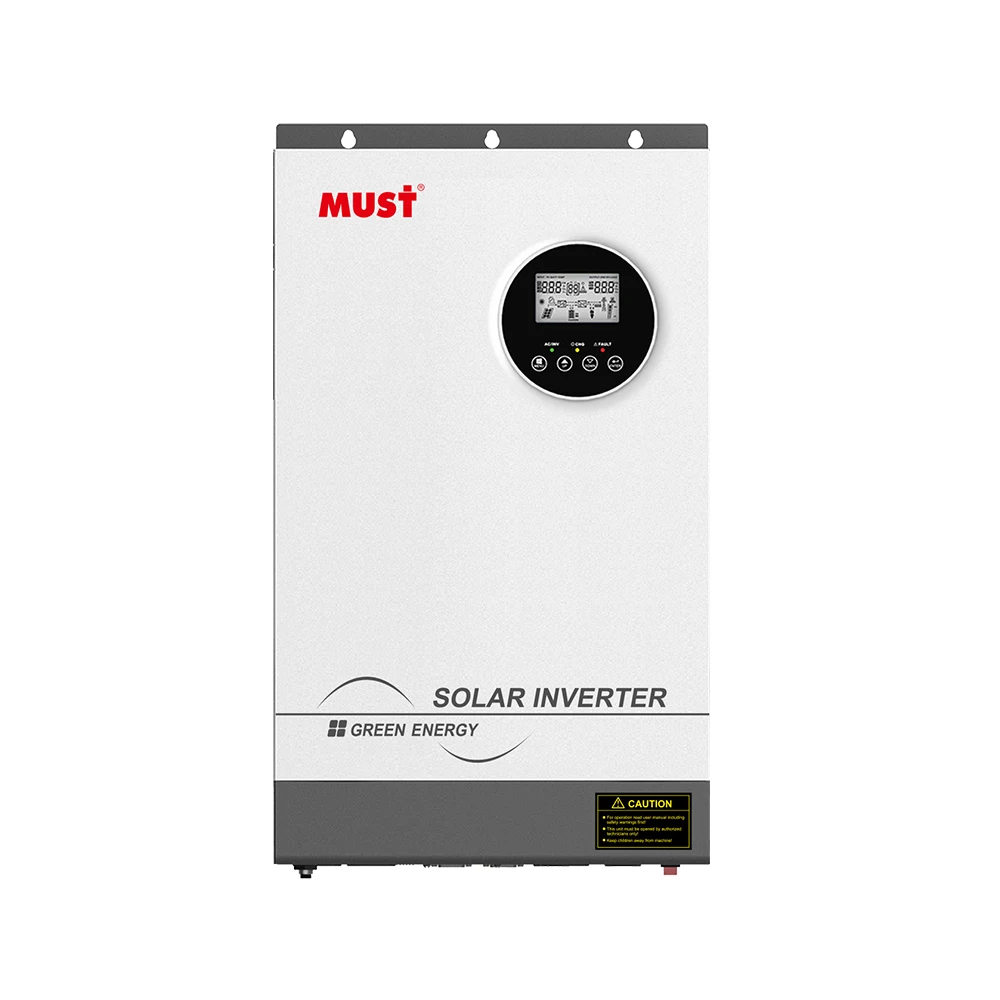

Инвертор PV1800 PRO 5200 Вт 48 в MPPT 80A солнечная энергетическая система 5000 PV для
- Категория: Solar Inverter >>>
- Поставщик: Must,Energy,(Guangdong),Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.28 $* | 0.42 $* |
| Aug-15-2025 | 0.24 $* | 0.79 $* |
| Jul-15-2025 | 0.99 $* | 0.9 $* |
| Jun-15-2025 | 0.92 $* | 0.85 $* |
| May-15-2025 | 0.27 $* | 0.7 $* |
| Apr-15-2025 | 0.72 $* | 0.7 $* |
| Mar-15-2025 | 0.59 $* | 0.88 $* |
| Feb-15-2025 | 0.3 $* | 0.21 $* |
| Jan-15-2025 | 0.97 $* | 0.89 $* |
Характеристики
inverter solar energy power system 5000w PV solar system for govenment

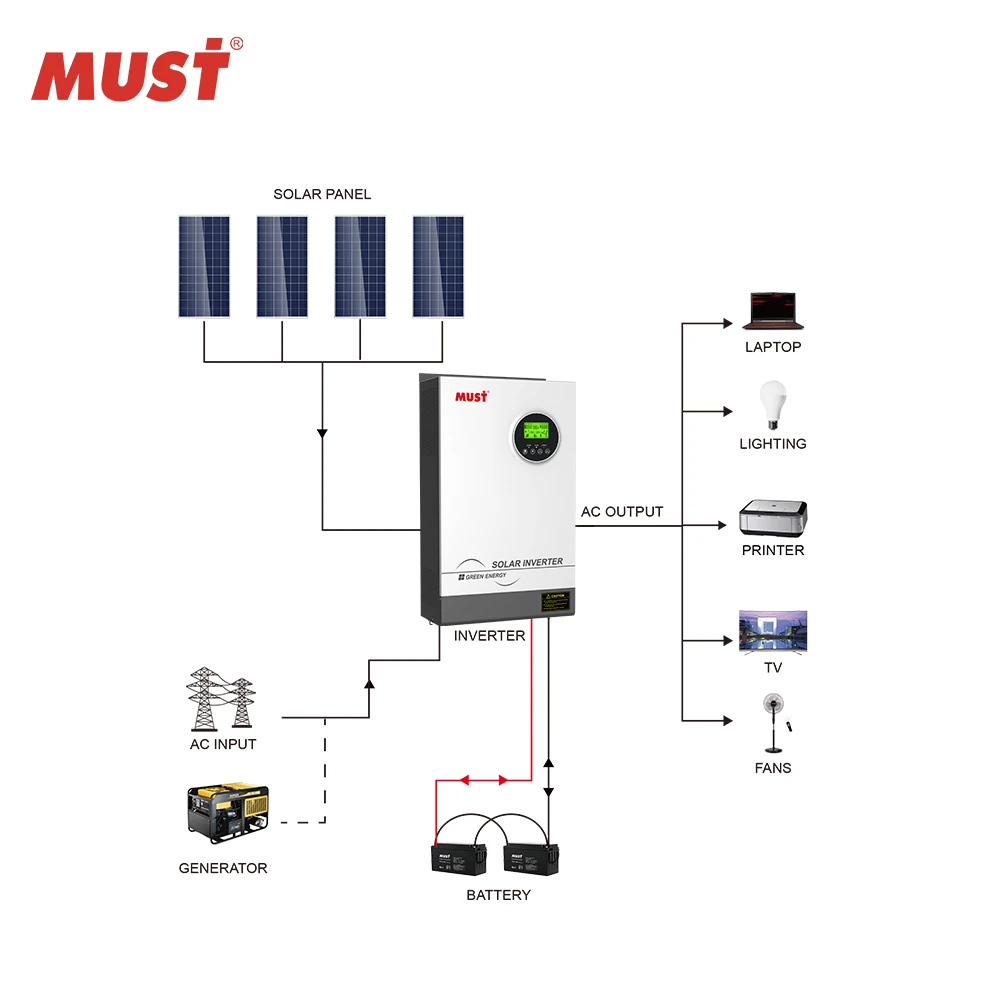

PV1800 VHM is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
PV1800 PRO 5200W 48V MPPT 80A inverter solar energy power system 5000w PV solar system for govenment
Feature
1. Pure sine wave solar inverter
2. Output power factor 1
3. High PV input voltage range up to 145V
4. Built-in 80A MPPT solar charger
5. Battery equalization function to optimize battery performance and extend lifecycle
6. Built-in anti-dusk kit for harsh environment
Technical Specificat
| MODEL | PV18-2024 VHM | PV18-3024 VHM | PV18-3048 VHM | PV18-4048 VHM | PV18-5048 VHM | PV18-5548 VHM |
|---|---|---|---|---|---|---|
| Nominal Battery System Voltage | 24VDC | 48VDC | ||||
| INVERTER OUTPUT | ||||||
| Rated Power | 2000W | 3000W | 3000W | 4000W | 5000W | 5500W |
| Surge Power | 4000W | 6000W | 6000W | 8000W | 10000W | 11000W |
| Waveform | Pure sine wave | |||||
| AC Voltage Regulation (Batt.Mode) | (220VAC ~ 240VAC)±5% | |||||
| Inverter Efficiency (Peak) | 93% | |||||
| Transfer Time | 10ms(For Personal Computers)20ms(For Home Appliance) | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers); 90~280VAC(For Home Appliances); 184~253VAC(VDE4105) | |||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | |||||
| BATTERY | ||||||
| Normal voltage | 24VDC | 48VDC | ||||
| Floating Charge Voltage | 27VDC | 54VDC | ||||
| Overcharge Protection | 31VDC | 60VDC | ||||
| SOLAR CHARGER&AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 145VDC | |||||
| PV Array MPPT Voltage | 30~130VDC | 64~130VDC | ||||
| Standby Power Consumption | 2W | |||||
| PV Input Power | 1440W/1920W | 2880W/3840W | ||||
| Maximum Solar Charge Current | 60/80A | |||||
| Maximum Effciency | 98% | |||||
| Maximum AC Charge Current | 20/30A | 60A | ||||
| Maximum Charge Current | 80A | 120/140A | ||||
| MECHANICAL SPECIFICATION | ||||||
| Machine Dimensions (W*H*D)(mm) | 272*355*100 | 297.5*468*125 | ||||
| Package Dimensions (W*H*D)(mm) | 540*395*241 | 638*395*241 | ||||
| Net Weight(kg) | 10 | 11 | 13.3 | |||
| Gross Weight(kg) | 11.7 | 12 | 16.4 | |||
| OTHER | ||||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||
| Operating Temperature | 0°C -55°C | |||||
| Storage Temperature | -15°C -60°C | |||||
*Products specifications are subject to change without further notice
Product Description
Packaging & Shipping
Company Information
Certifications
Our Services
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
