Warthog-01S/детскй 4-колесный малых средних и больших собак УГВ на платформе разные размеры
- Категория: >>>
- Поставщик: Shanghai,Zosn,Hydraulic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.90 $* | 0.0 $* |
| Aug-15-2025 | 0.44 $* | 0.43 $* |
| Jul-15-2025 | 0.71 $* | 0.33 $* |
| Jun-15-2025 | 0.25 $* | 0.68 $* |
| May-15-2025 | 0.49 $* | 0.41 $* |
| Apr-15-2025 | 0.51 $* | 0.88 $* |
| Mar-15-2025 | 0.59 $* | 0.84 $* |
| Feb-15-2025 | 0.99 $* | 0.53 $* |
| Jan-15-2025 | 0.68 $* | 0.79 $* |
Характеристики

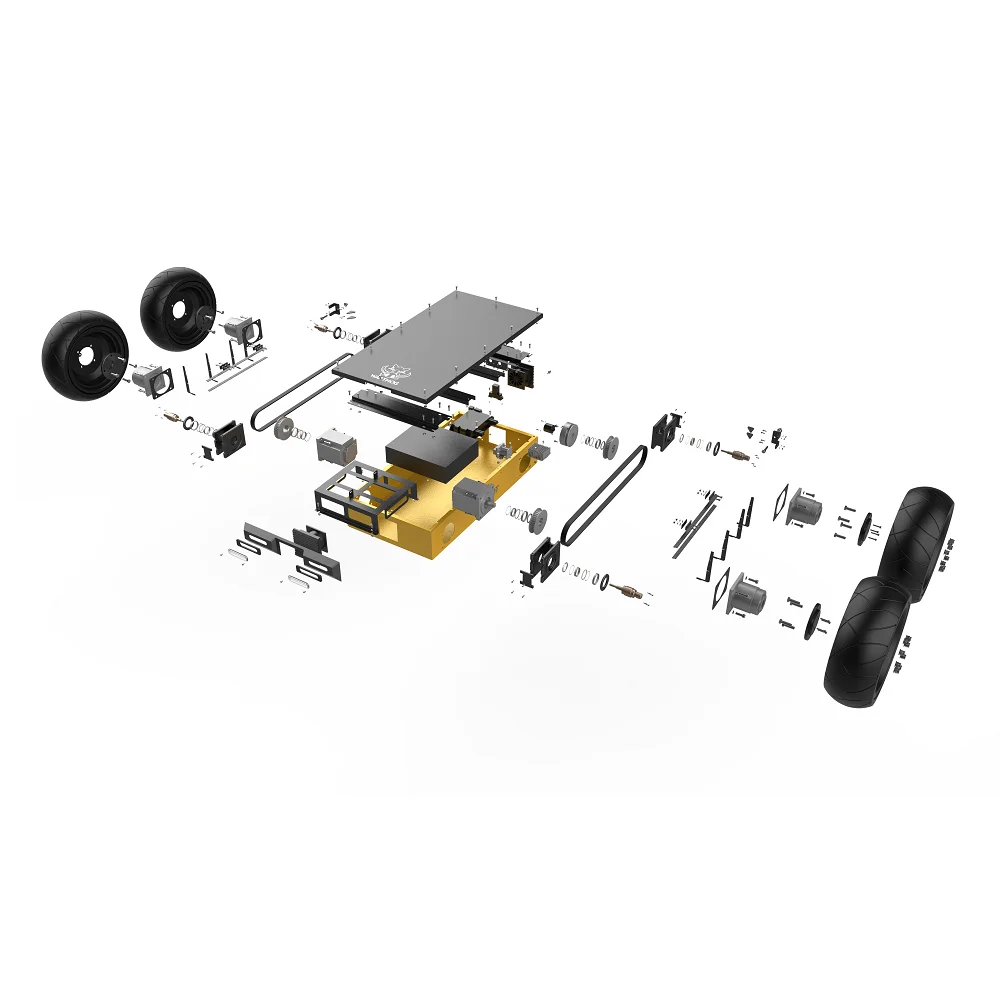

Details Images
Products Description

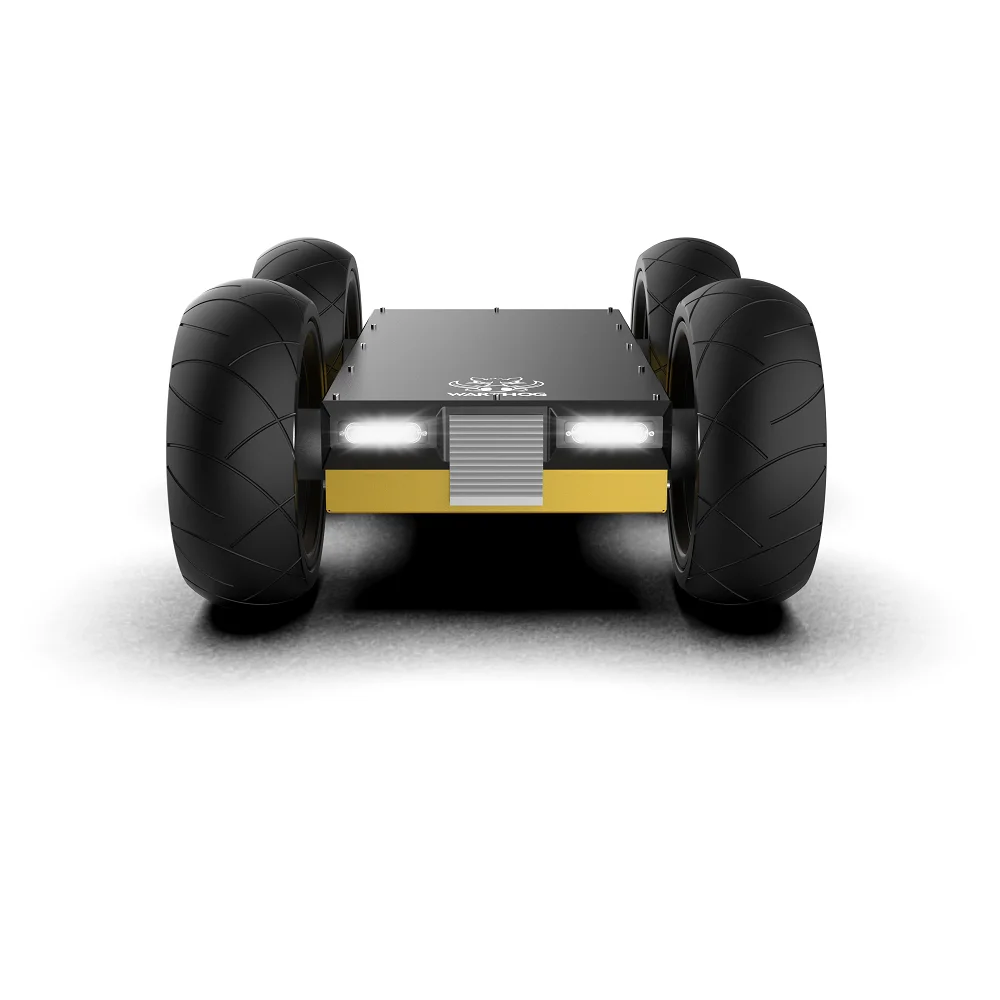

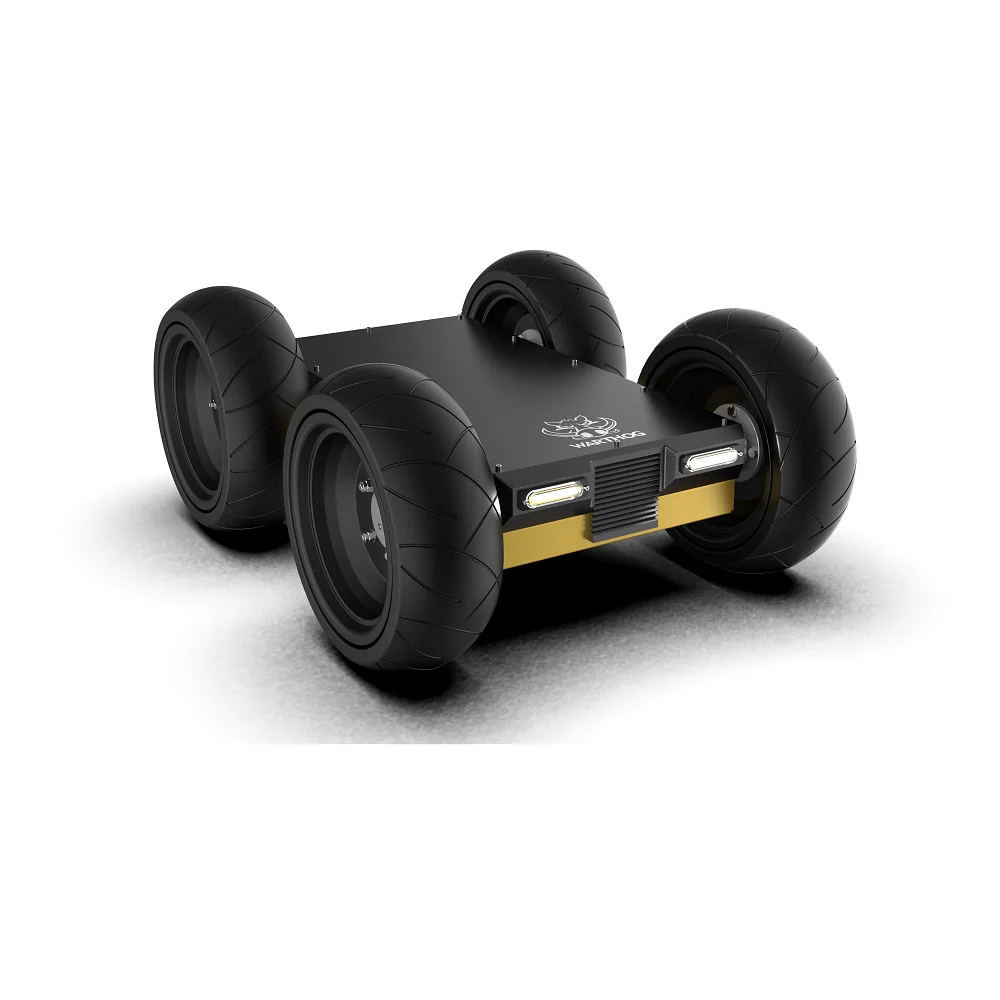

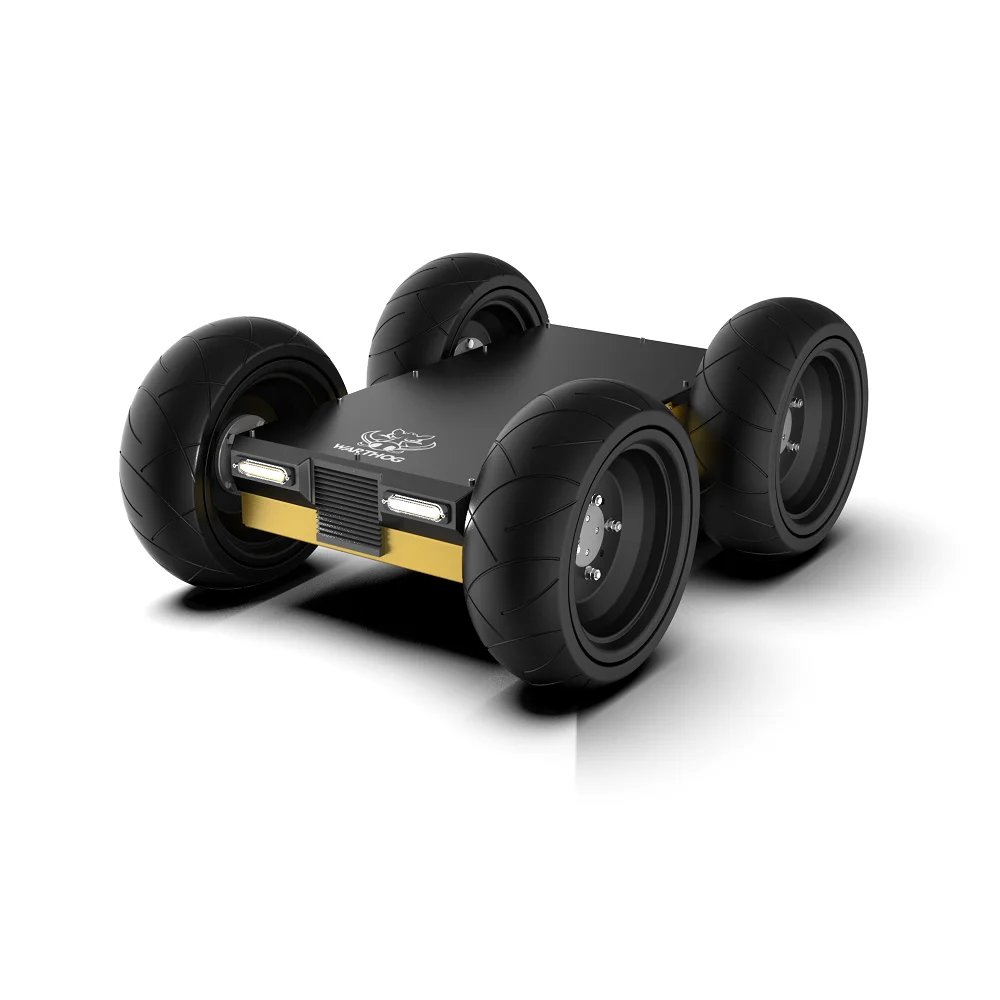

Warthog-02M wheeled robot chassis has a variety of customizable configurations, which can be competent for various working conditions. It is equipped with four groups of shock absorption and independent suspension structure, which greatly improves the stability and load of the whole vehicle. W02M adopts differential steering mode, which makes steering simple. W02M also uses explosion-proof tires to reduce the body weight and avoid maintenance. This chassis is especially suitable for outdoor operation.
ITEM | Warthog-02-M | ITEM | Warthog-02-M |
Size | 931*654*465mm | Operation Speed | 0~9.8KM/H |
Self-weight | 122KG | SurfaceTreatment | Black Blasting |
Main Material | 304SS steel/ Alloy | IP Code | IP64 |
Ground Clearance | 150mm | Max Load | 100KG |
Steering | Differential Steering | Max Crossing | 350mm |
Max Over-obstacle | 100mm | Max Climbing | 30° |
Tire Diameter | 310mm | Motor | 48V DC Brushless |
Rated Torque | 64NM | Gear Ratio | 1:22.325 |
Configuration List
Product | QTY | Product | QTY |
Robot chassis | 1 | RC Controller & Receiver | 1 |
Control driver | 1 | Robot Antenna | 1 |
Li-po battery | 1 | Battery Charger | 1 |
Paper Instructions | 1 | Tool box | 1 |
Controlling System
Controller Specifications
Receiver
Function of transmitter
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Aero basic
•V tail •Twin Aileron Servos
•Elev-flap mix •Twin Elevator Servos
•air brake •Snap roll
•Gyro mixing
Glider (3 wing model: 1A+1F/2A+2F/1A+2F)
•V tail •Twin Ailerons
•Elevon •Butterfly
•Offset
•5 flight conditions (normal, start, flying, distance, landing)
•IDLE- DOWN (ACRO), THR-CUT (ACRO HELI) (engine shut off), and MOTOR CUT (GLID) setups to allow
precise engine/motor control for taxi and landings.
•15 model type memory
•New stick design with improved feel, adjustable length and tension.
•Triple rates available by setting dual rates to 3-position switches.
•Eight SWITCHES, 3 DIALS and 2 SLIDERS; completely assignable in most applications.
•Trainer system includes the“functional” (FUNC) setting, which allows the student to use the AT9’s mixing,
helicopter, and other programming functions even with a 4-channel buddy box. (Optional trainer cord required.)
•AT9 transmitter features airplane friendly switch layout, with the trainer switch at the left hand (Mode 2), and a
notched throttle to minimize throttle changes with rudder input. Defaults to ACRO model type.
•AT9 transmitter features helicopter-friendly switch layout, with idle-up and throttle hold switches at the left hand,
and a smooth, ratchet-less (unsprung) throttle for perfect hovering. Defaults to HELI(H-1 swash plate type)
model type
Helicopter (8 swashplate types, including CCPM )
• 3 Idle Ups • Throttle and Pitch Curves per Condition
• Revo. Mixing • Gyro Mixing including Separate Settings per Condition
• Delay • Governor Mixing
Aircraft:
• ATTITUDE (Normal, attitude, GPS, hover, F/S, Aux)
• Throttle curve
• Mix programmable
•V tail •Twin Aileron Servos
•Elev-flap mix •Twin Elevator Servos
•air brake •Snap roll
•Gyro mixing
Glider (3 wing model: 1A+1F/2A+2F/1A+2F)
•V tail •Twin Ailerons
•Elevon •Butterfly
•Offset
•5 flight conditions (normal, start, flying, distance, landing)
•IDLE- DOWN (ACRO), THR-CUT (ACRO HELI) (engine shut off), and MOTOR CUT (GLID) setups to allow
precise engine/motor control for taxi and landings.
•15 model type memory
•New stick design with improved feel, adjustable length and tension.
•Triple rates available by setting dual rates to 3-position switches.
•Eight SWITCHES, 3 DIALS and 2 SLIDERS; completely assignable in most applications.
•Trainer system includes the“functional” (FUNC) setting, which allows the student to use the AT9’s mixing,
helicopter, and other programming functions even with a 4-channel buddy box. (Optional trainer cord required.)
•AT9 transmitter features airplane friendly switch layout, with the trainer switch at the left hand (Mode 2), and a
notched throttle to minimize throttle changes with rudder input. Defaults to ACRO model type.
•AT9 transmitter features helicopter-friendly switch layout, with idle-up and throttle hold switches at the left hand,
and a smooth, ratchet-less (unsprung) throttle for perfect hovering. Defaults to HELI(H-1 swash plate type)
model type
Helicopter (8 swashplate types, including CCPM )
• 3 Idle Ups • Throttle and Pitch Curves per Condition
• Revo. Mixing • Gyro Mixing including Separate Settings per Condition
• Delay • Governor Mixing
Aircraft:
• ATTITUDE (Normal, attitude, GPS, hover, F/S, Aux)
• Throttle curve
• Mix programmable
Why Choose Us
Reliable
Our office located in Shanghai China, welcome to visit us and do on site inspection any time. During Covid-19 period, we support on line factory visit and video meeting.
Professional
We have 2 production center and a 24-person engineer team with more than 2000 sucessful projects experience. We establish service teams for all of our customers to make sure each project's efficiency.
Best servise
We believe high quality and good servise makes good products. So we established a perfect pre-sale, sale and after-sale service mechanism. For all products we provide on-line or on-site pre-sale training and 1 year free warranty, lifetime maintenance to eliminate all customer concerns.
FAQ
1. Are you factory or only company?
We have factory to produce all kinds of chassis and complete solutions, such as firefighting robot, inspection robot, boat cleaning robot, etc. And attracted by our sufficient customer servise experience, we also authorised as general agency for some other brands.
2. Can you provide samples?
Due to the high cost and large volume for each model, we are sorry for not provide samples. But we support on site and the 3rd party inspection before delivery. Thanks for understanding.
3. How about the price and quality?
All of our products and accessories experience strict quality control process. We make sure all products we provide are newest model not eliminated stock ones.And we aims to provide the lowest price but with the best quality and service.
4. What payment term and how long the payment period?
T/T, 30%-50 deposit, balance before shipment after receiving our OQC report. We ask for 100% payment before shipment for new customers, for our A level customers we offer special payment period to help ease financial pressure.
5. How about the shipment?
Our packing meets international shipment standard.
We can quote the price base on FOB, CIF & CNF with sea shipping or air as you like, you can choose our forwarder or yours accordingly.
If Certificate of Country of Origion were needed, please let us know in advance.
We can quote the price base on FOB, CIF & CNF with sea shipping or air as you like, you can choose our forwarder or yours accordingly.
If Certificate of Country of Origion were needed, please let us know in advance.
