Барабанная сушилка с циклонным пылесборником и вентилятором
- Категория: Drum Drying Equipment >>>
- Поставщик: Gongyi,Hengchang,Metallurgical,Building,Material,Equipments,Plant
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.63 $* | 0.17 $* |
| Aug-16-2025 | 0.61 $* | 0.0 $* |
| Jul-16-2025 | 0.10 $* | 0.83 $* |
| Jun-16-2025 | 0.30 $* | 0.76 $* |
| May-16-2025 | 0.56 $* | 0.92 $* |
| Apr-16-2025 | 0.43 $* | 0.77 $* |
| Mar-16-2025 | 0.65 $* | 0.32 $* |
| Feb-16-2025 | 0.10 $* | 0.11 $* |
| Jan-16-2025 | 0.85 $* | 0.92 $* |
Характеристики

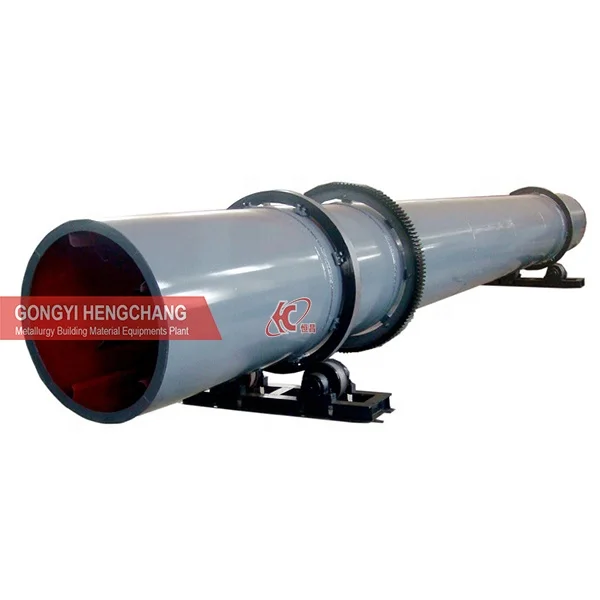

Small Capacity 2t/H Iron Powder Rotary Drum Dryer with Cyclone Dust Collector and Fan
The Rotary Drier is widely used in the field of building materials, metallurgies, chemical industry, cement and so on.
(price for rotary drum dryer / rotary drum dryer capacity / rotary drum dryer drum dryer)
The Rotary Drier is widely used in the field of building materials, metallurgies, chemical industry, cement and so on. It can dry slag, coal powder, mining powder, clay, sand, limestone and so on. It is made of rotary body, lifting blade, driving device, supporting device etc. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation.
It is a drying machine used to dispose masses of materials. Single drum dryer is widely used in the field of building materials, metallurgies, chemical industry, cement and so on. it can dry slag, coal powder, mining powder, clay, sand, limestone and so on.
It is made into rotary body, lifting blade, driving device, supporting device etc. It adopt the reasonable operation parameters and it also reduce the coal and power consumption by more than 10- 15% increases the output by more than 10- 15% compared with the
general dryers.
It is made into rotary body, lifting blade, driving device, supporting device etc. It adopt the reasonable operation parameters and it also reduce the coal and power consumption by more than 10- 15% increases the output by more than 10- 15% compared with the
general dryers.
(price for rotary drum dryer / rotary drum dryer capacity / rotary drum dryer drum dryer)
Product Technologies
Working principle
1.The material first goes into the inside drum, because there are the spiral shape boards fixed in the drum, when the dryer make rotary working, the spiral shape board will stir the material and make the material do movement.
2.When the material reaches the right side of the drum, it will go into the second drum for further drying.
3.The same working principle, the material then goes into outside drum, during the drying working process, the material will make three times drying, so the material can be dried completely in this process.
2.When the material reaches the right side of the drum, it will go into the second drum for further drying.
3.The same working principle, the material then goes into outside drum, during the drying working process, the material will make three times drying, so the material can be dried completely in this process.
Spec. (Dia.x Length mm) | Volume(m³) | Capacity (t/h) | Gradient(%) | Highest Inlet Air Temperature(℃) | Rotate Speed(r/min) | Main Motor(kw) |
Φ600x6000 price for rotary drum dryer | 1.7 | 0.5-1.5 | 3~5 | 700~800 rotary drum dryer drum dryer | 3~8 rotary drum dryer capacity | 3 |
Φ800x8000 | 4.1 | 0.8-2.0 | 3~5 | 700~800 | 3~8 | 4 |
Φ800x10000 | 5.1 | 0.8-2.5 | 3~5 | 700~800 | 3~8 | 4 |
Φ1000x10000 | 7.9 | 1.0-3.0 | 3~5 | 700~800 | 3~8 | 7.5 |
Φ1000x12000 | 9.4 | 1.2-3.2 | 3~5 | 700~800 | 3~8 | 11 |
Φ1200x8000 | 9 | 1.9-2.4 | 3~5 | 700~800 | 3~8 | 7.5 |
Φ1200x10000 | 11.3 | 2.2-3.0 | 3~5 | 700~800 | 3~8 | 7.5 |
Φ1200x12000 | 13.6 | 2.4-3.2 | 3~5 | 700~800 | 3~8 | 7.5 |
Φ1500x12000 | 21.2 | 4.5-5.7 | 3~5 | 700~800 | 2~6 | 15 |
Φ1500x14000 | 24.7 | 5.3-6.6 | 3~5 | 700~800 | 2~6 | 15 |
Φ1500x16000 | 26.5 | 5.7-7.1 | 3~5 | 700~800 | 2~6 | 15 |
Φ1800x12000 | 30.5 | 6.5-8.1 | 3~5 | 700~800 | 2~6 | 18.5 |
Φ1800x14000 | 35.6 | 7.6-9.5 | 3~5 | 700~800 | 2~6 | 18.5 |
Φ1800x16000 | 40.7 | 7.8-10.2 | 3~5 | 700~800 | 2~6 | 18.5 |
Φ2000x18000 | 56.5 | 8.4-12.3 | 3~5 | 700~800 | 1.5~6 | 22 |

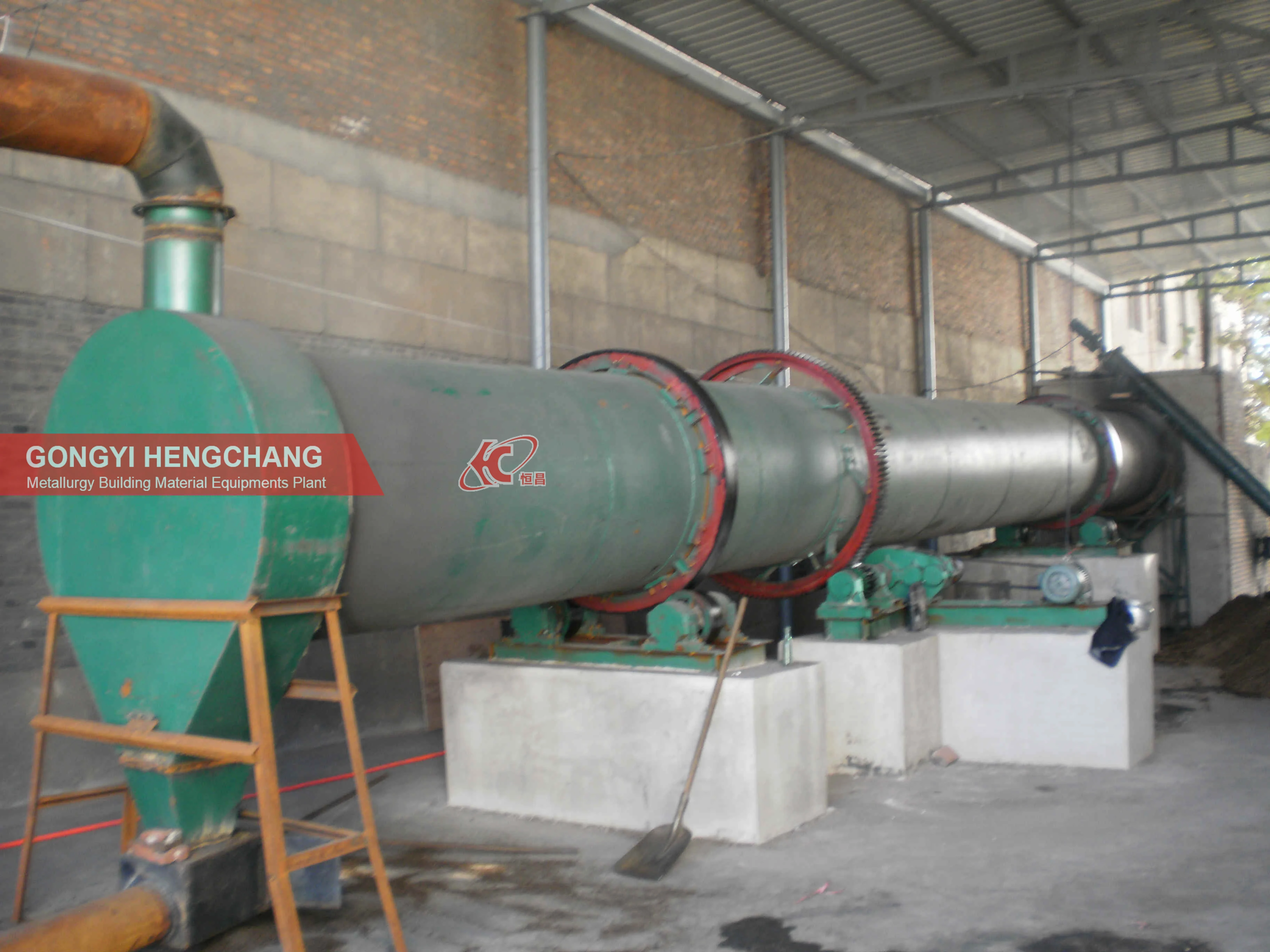

The Customer Site
Company Information
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Customer Visit & Our Service
1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for
clients;
clients;
2.Services during the sale:
Respect clients, devote ourselves to improving the total value of clients: 1.Pre-check and accept products ahead of delivery;
2.Help clients to draft solving plans;
3.After-sale services:
Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...

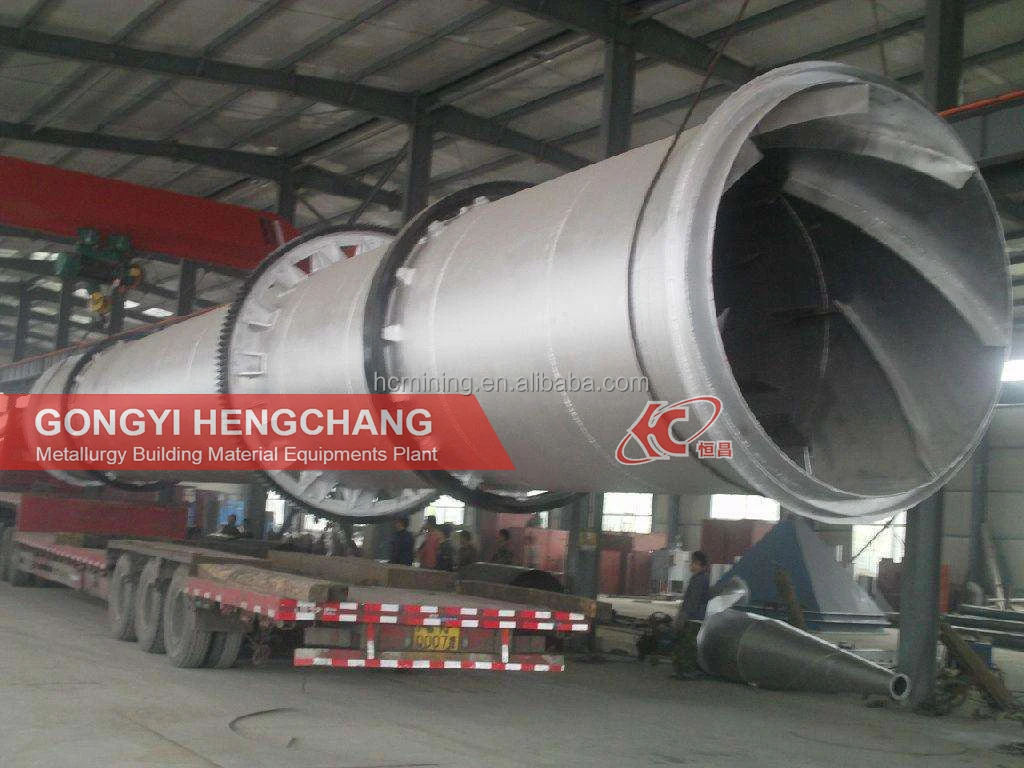

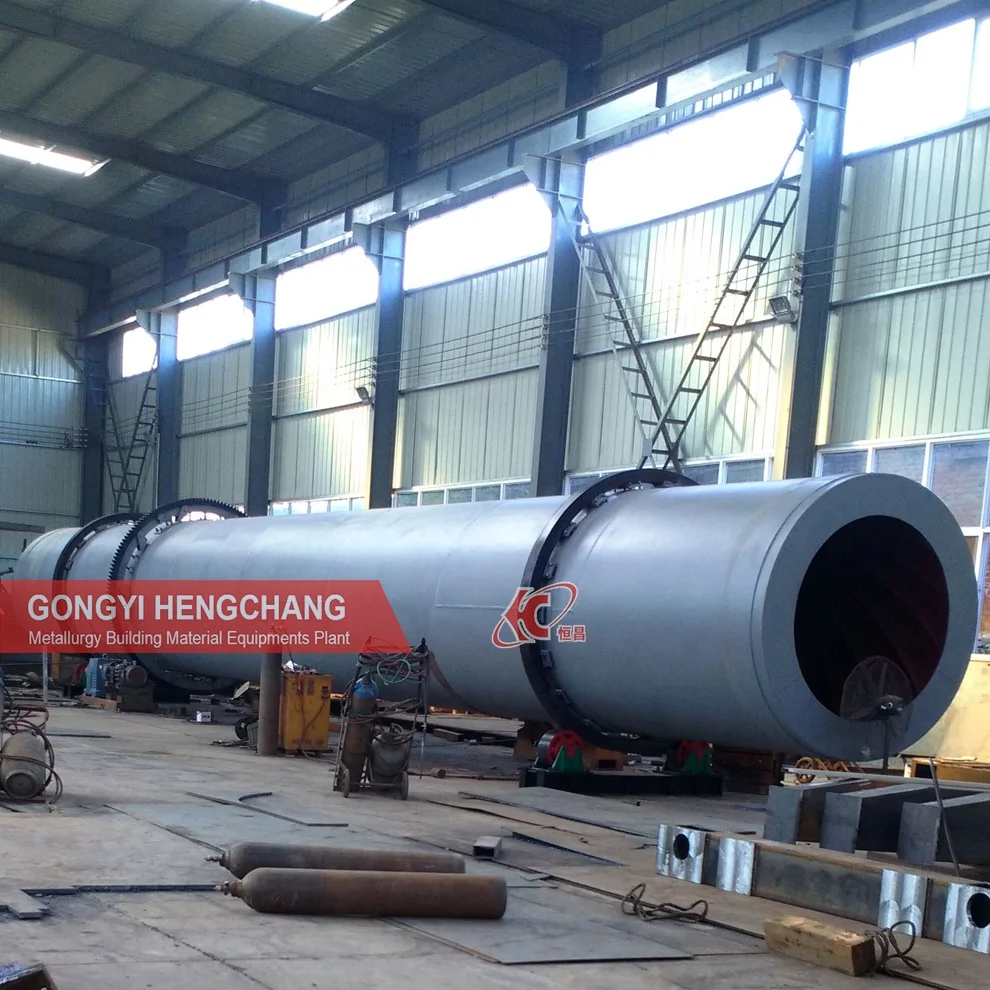

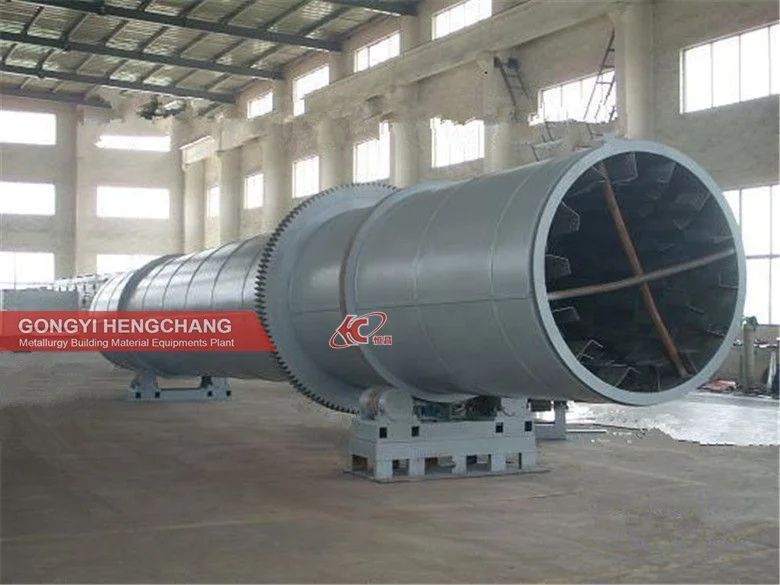

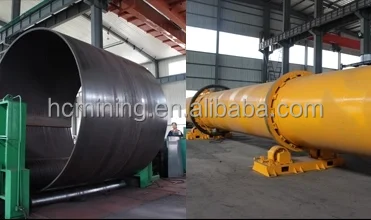

Our Workshop
We are a real manufacturer, not a trading company. We have the best after-sales service. The complete set of markene production is produced by ourselves, without the need to buy different machine connection product lines from different manufacturers.
Packing and delivery
Packaging Details: Standard export packing, Spare parts in wooden case, big machines loaded in container,large machines use nude packing, cover with plastic cloth. We export through QingdaoPort, also can be nominated by customer. We have superior cargo agent to arrange thesea shipment for each client, competitive price, secure transportation.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 10 to 20 working days.
FAQ
Q: Why we believe in Gongyi hengchang company?
A:1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time
A: The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign the contract,
pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q: what will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should i do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
