Однолучевой мостовой кран
US $5000-$20000
Lh тип электрической тележкой мобильный подъемник двухбалочный мостовой кран 25 тонный
- Категория: Bridge Cranes >>>
- Поставщик: Henan,Lantu,Mechanical,and,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.37 $* | 0.72 $* |
| Aug-16-2025 | 0.82 $* | 0.93 $* |
| Jul-16-2025 | 0.78 $* | 0.86 $* |
| Jun-16-2025 | 0.94 $* | 0.59 $* |
| May-16-2025 | 0.49 $* | 0.98 $* |
| Apr-16-2025 | 0.39 $* | 0.30 $* |
| Mar-16-2025 | 0.28 $* | 0.4 $* |
| Feb-16-2025 | 0.34 $* | 0.45 $* |
| Jan-16-2025 | 0.40 $* | 0.78 $* |
Характеристики

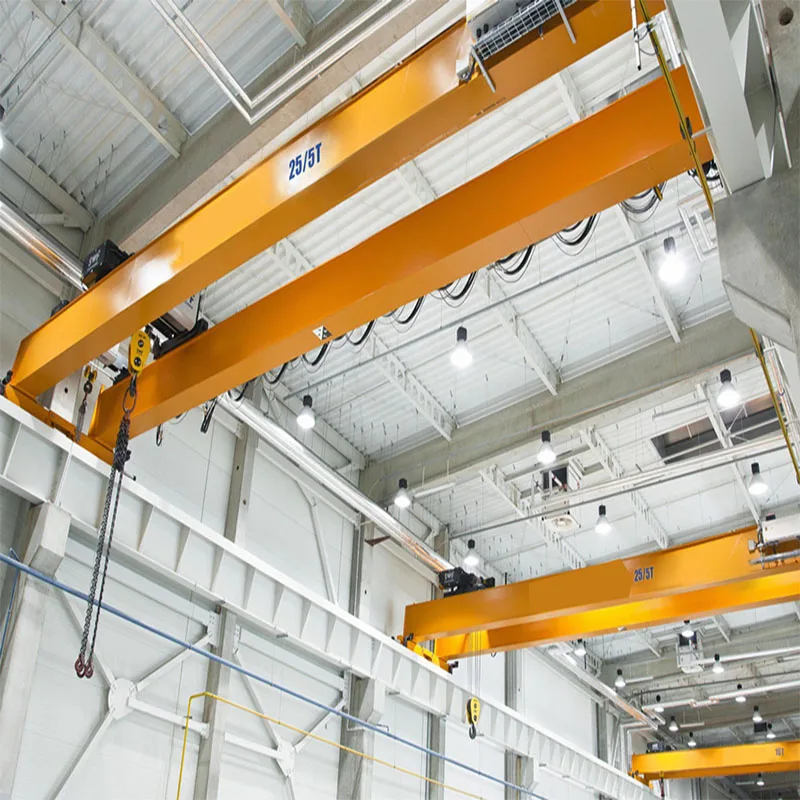

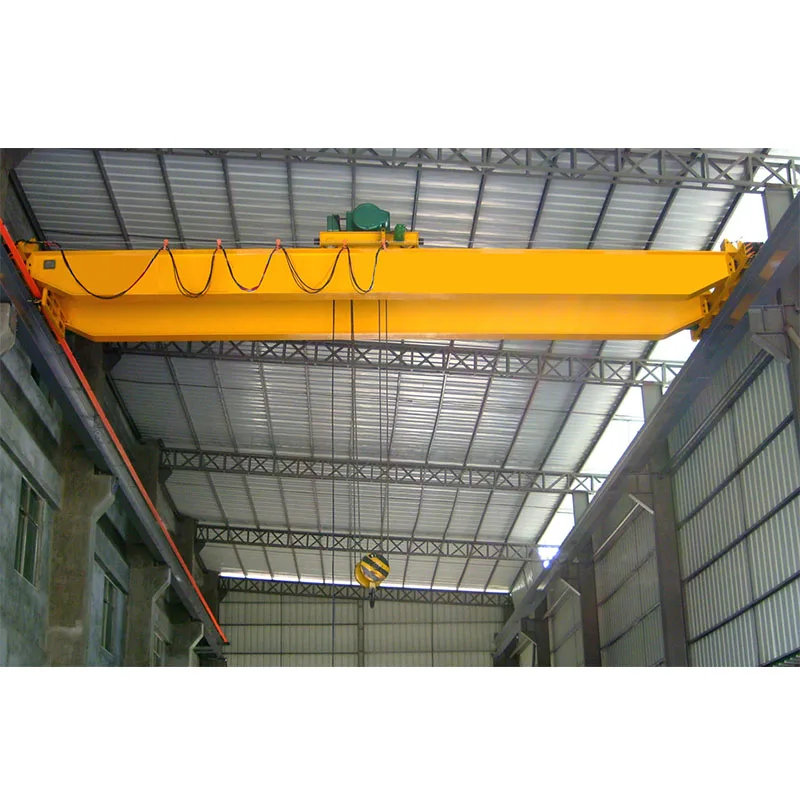

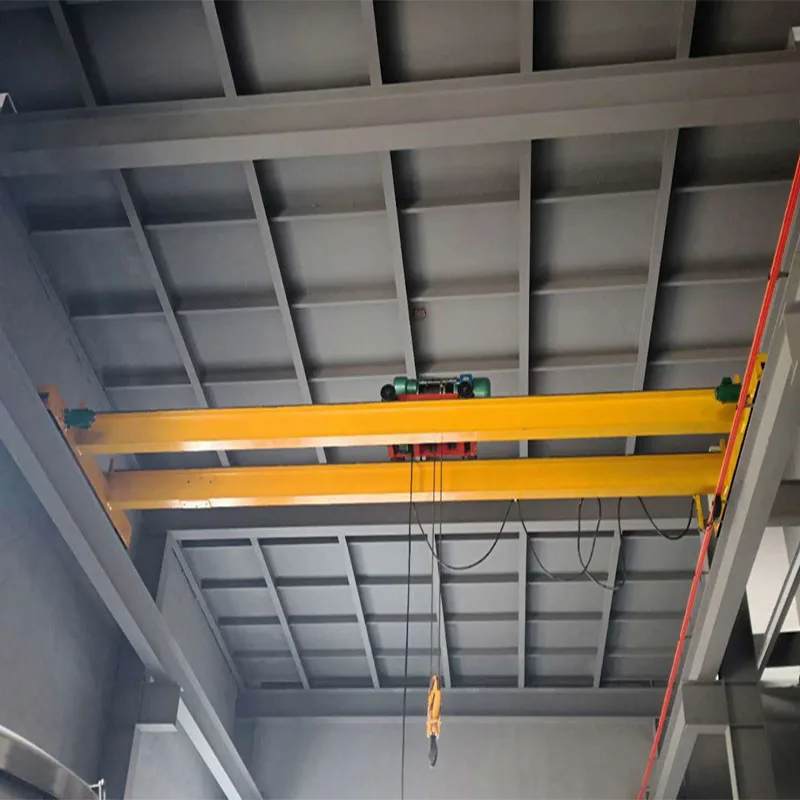

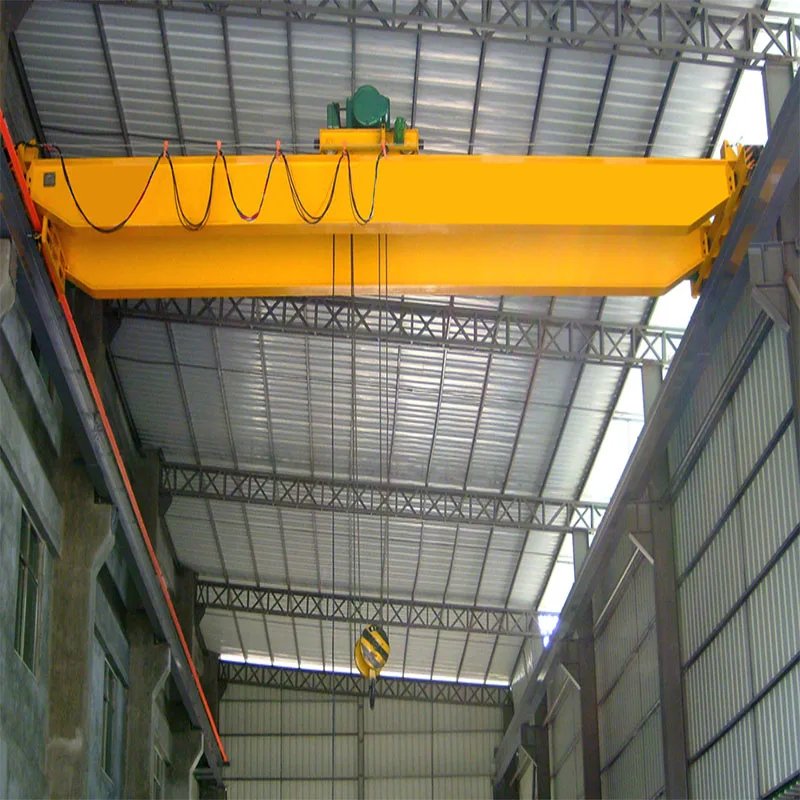

LH type electric hoist double beam crane is traveling on fixed support, the frame adopts box-type welding mechanism, and it used together with CD1 or MD1 model wire rope electric hoist as a complete set, It is an mid-duty class crane, the capacity from 3 tons to 20 tons. The span is 10.5-31.5m. Working class is A3~A4. Working temperature is -20°to 45°centigrade.
This type crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible,explosive to corrosives environment. The control method is ground remote control or control cabin control.
item | value |
Feature | Bridge Crane |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Other |
After Warranty Service | Video technical support, Field maintenance and repair service |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1.5 years |
Core Components | others |
Condition | New |
Max. Lifting Height | Other |
Span | 7.5-31.5/customization |
Place of Origin | China |
Henan | |
Brand Name | LANTU |
Warranty | 1.5 years |
Video technical support | |
Weight (KG) | 5000kg |
Color | Optional |
Running speed of cart (m/min) | 40-120 |
Trolley running speed (m/min) | 20-40 |
Motor power (KW) | Calculate according to tonnage and speed |
Electric hoist type | hoisting mechanism |
Lifting speed (m/min) | 1m-15m |
Lifting height (m) | 6m-30m customization |
Working level | A3-A7 |
power supply | 380V 50HZ/customization |
Wheel diameter (mm) | Based on tonnage |
Title goes here.
1.It has beautiful box-typed welded main girders. Computer optimized design for main girders with good performance and light
weight;
weight;
2.Compact structure, light weight and high lifting height;
3. high working effiency;
4. smooth movement &comfortable
operation;
5. convenient maintenance & aesthetic painting;
6. especially suitable for shipping work;
7. customized: design and manufacture according to your request.；
8.It's widely used in workshops, metallurgy, warehouses and assembly shops etc.
3. high working effiency;
4. smooth movement &comfortable
operation;
5. convenient maintenance & aesthetic painting;
6. especially suitable for shipping work;
7. customized: design and manufacture according to your request.；
8.It's widely used in workshops, metallurgy, warehouses and assembly shops etc.
