Характеристики
Products Description
Photoelectric control NEMA Socket 3PIN
Conforms to ANSI/NEMA standard, Long lasting
* Follows industry standards
* high temperature resistant housing and effective sealing.
* Maximum Electrical Ratings: 480V, 15A
* Robust twist lock contacts for a reliable power interconnect
* No electrician required, simple installation
Conforms to ANSI/NEMA standard, Long lasting
* Follows industry standards
* high temperature resistant housing and effective sealing.
* Maximum Electrical Ratings: 480V, 15A
* Robust twist lock contacts for a reliable power interconnect
* No electrician required, simple installation
Product Pictures
Specification
Model | OPT301 |
Standard | ANSI C136.10 & UL773 |
Cable | UL1015 14AWG/16AWG |
Rated Voltage | 480V (105-480V) |
Frequency | 50-60HZ |
Rated Load | 15A/1000W/1800VA |
Operating Temperature | -40℃ -70℃ |
Related Humidity | 99% |
Insulation | 300V/60HZ/1min |
Housing | Bakelite |
Accessory | Silicon Gasket |
Related Products

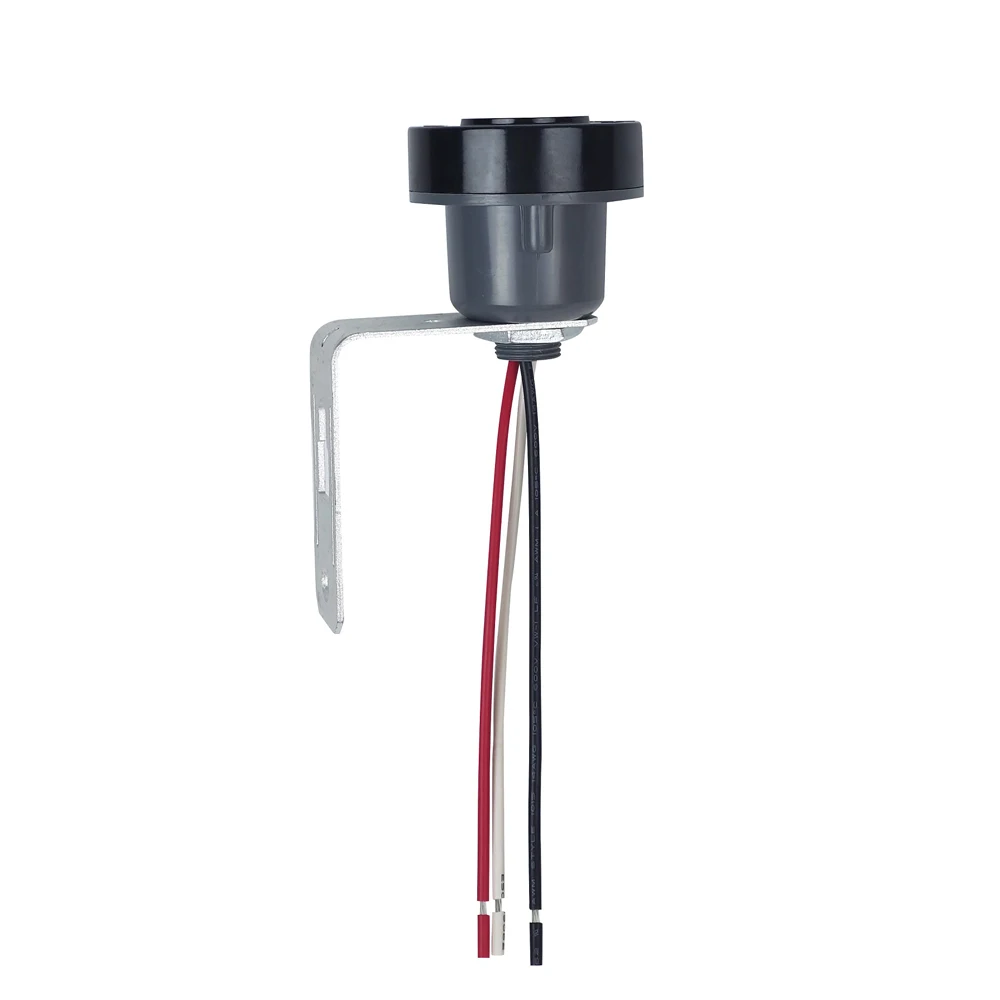

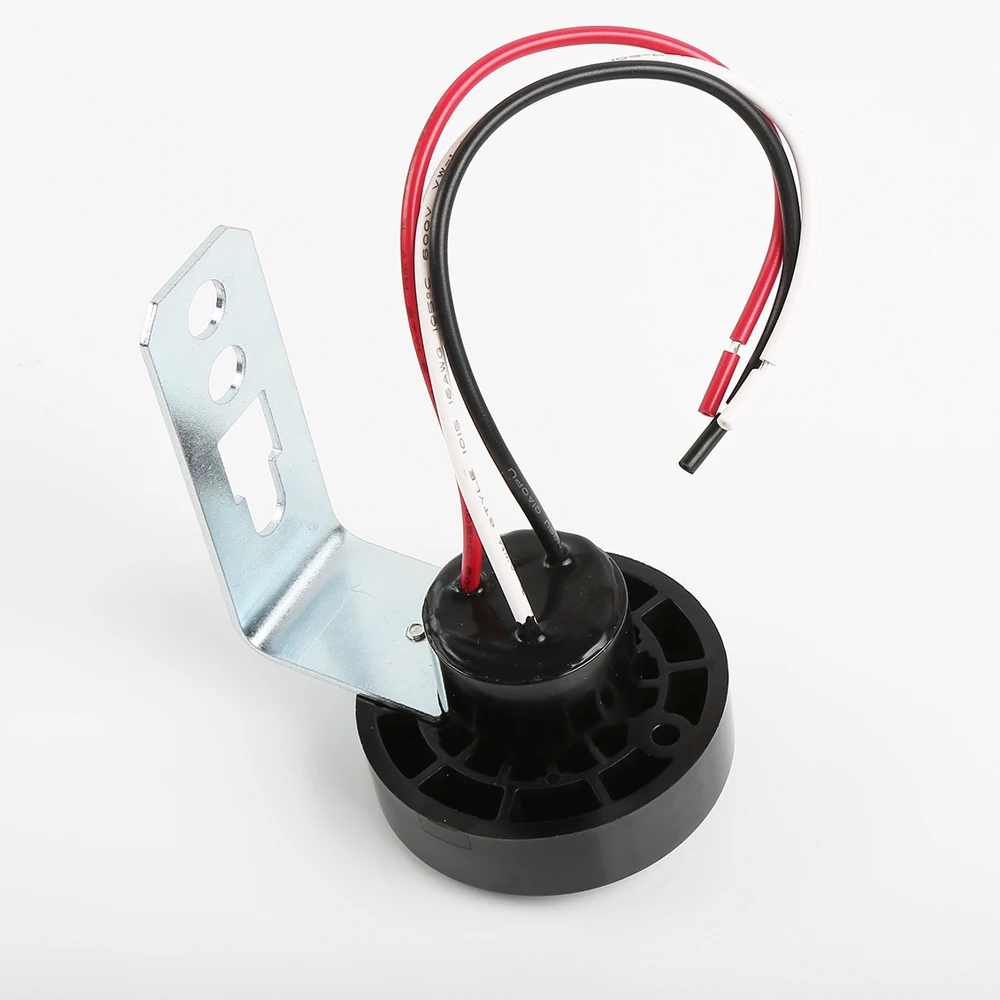

NEMA Socket 3 pin with bracket
* Easy Installation
* sealing sealant at the bottom, better waterproof
* sealing sealant at the bottom, better waterproof
* Equiped with Photocell can meet IP66/IP67
* Good quality, competitive price
NEMA Socket 3 pin with waterproof cover bracket
* Easy Installation
* Waterproof cover* Good quality, competitive price
Installation Instructions
NEMA socket 3 pin installation
* The electrical connection of the light control unit should be performed with the power supply disconnected.
* When installing the spin-lock optical controller, simply insert the large pin into the large jack of the spinlock light control
block and rotate it clockwise about 15 degrees to stop. Remove, the first counter-clockwise rotation of about 15 degrees to the
bit, pull up to remove.
* The outdoor lighting with a lock light control seat, if not to use the light control mode, you can use spin-locking short-circuit cap instead of light control, then the lamp can be controlled by ordinary switch; if temporarily use lamps, you can use spinlock Open cap instead.
* outdoor light with a wired optical controller, if the temporary use of light-controlled way on duty, you can use the appropriate way to cover their photographic eyes, this time by the general lighting control switch.
* When installing the spin-lock optical controller, simply insert the large pin into the large jack of the spinlock light control
block and rotate it clockwise about 15 degrees to stop. Remove, the first counter-clockwise rotation of about 15 degrees to the
bit, pull up to remove.
* The outdoor lighting with a lock light control seat, if not to use the light control mode, you can use spin-locking short-circuit cap instead of light control, then the lamp can be controlled by ordinary switch; if temporarily use lamps, you can use spinlock Open cap instead.
* outdoor light with a wired optical controller, if the temporary use of light-controlled way on duty, you can use the appropriate way to cover their photographic eyes, this time by the general lighting control switch.
