CE CB утвержденный IP66 Zhaga корпус
- Категория: Dimmers >>>
- Поставщик: Wenzhou,Weituo,Precision,Mould,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.35 $* | 0.43 $* |
| Aug-17-2025 | 0.2 $* | 0.15 $* |
| Jul-17-2025 | 0.11 $* | 0.1 $* |
| Jun-17-2025 | 0.41 $* | 0.1 $* |
| May-17-2025 | 0.31 $* | 0.30 $* |
| Apr-17-2025 | 0.41 $* | 0.31 $* |
| Mar-17-2025 | 0.47 $* | 0.43 $* |
| Feb-17-2025 | 0.18 $* | 0.17 $* |
| Jan-17-2025 | 0.91 $* | 0.56 $* |
Характеристики
Products Description
Zhaga controller is an easily installable wireless device for remote control of LED luminaires. Device is equipped with zhaga book 18 compliant connector and controls the luminaire through DALI or DALI-2 interface. Modern and small design makes it excellent fit to various street lighting modules.
* DALI-2 interface to add more addresses on a single DALI network
* Luminaire intensity control
* Customizable dimming profiles
* Configurable ON/OFF switching
* Multicast support
* Simple push-and-twist lock installation
* DALI-2 interface to add more addresses on a single DALI network
* Luminaire intensity control
* Customizable dimming profiles
* Configurable ON/OFF switching
* Multicast support
* Simple push-and-twist lock installation
Product Pictures

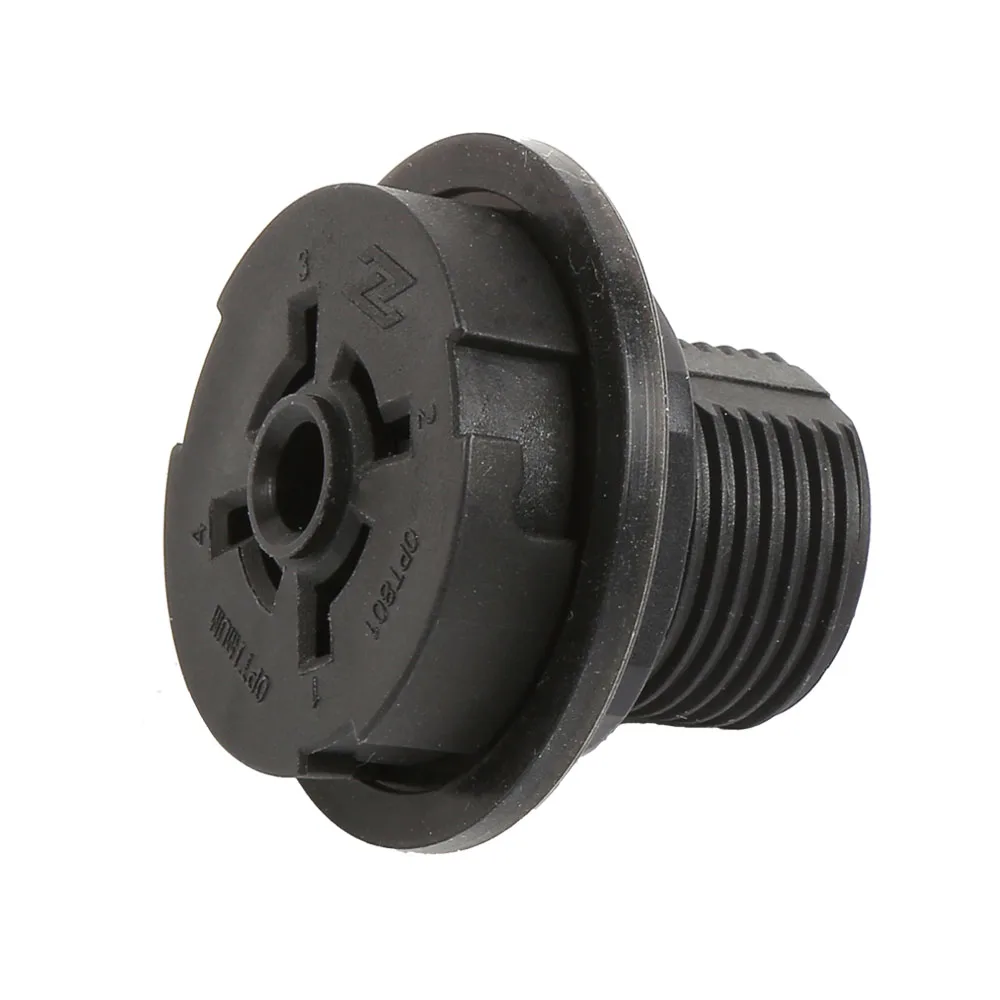

Zhaga controller Enclosure

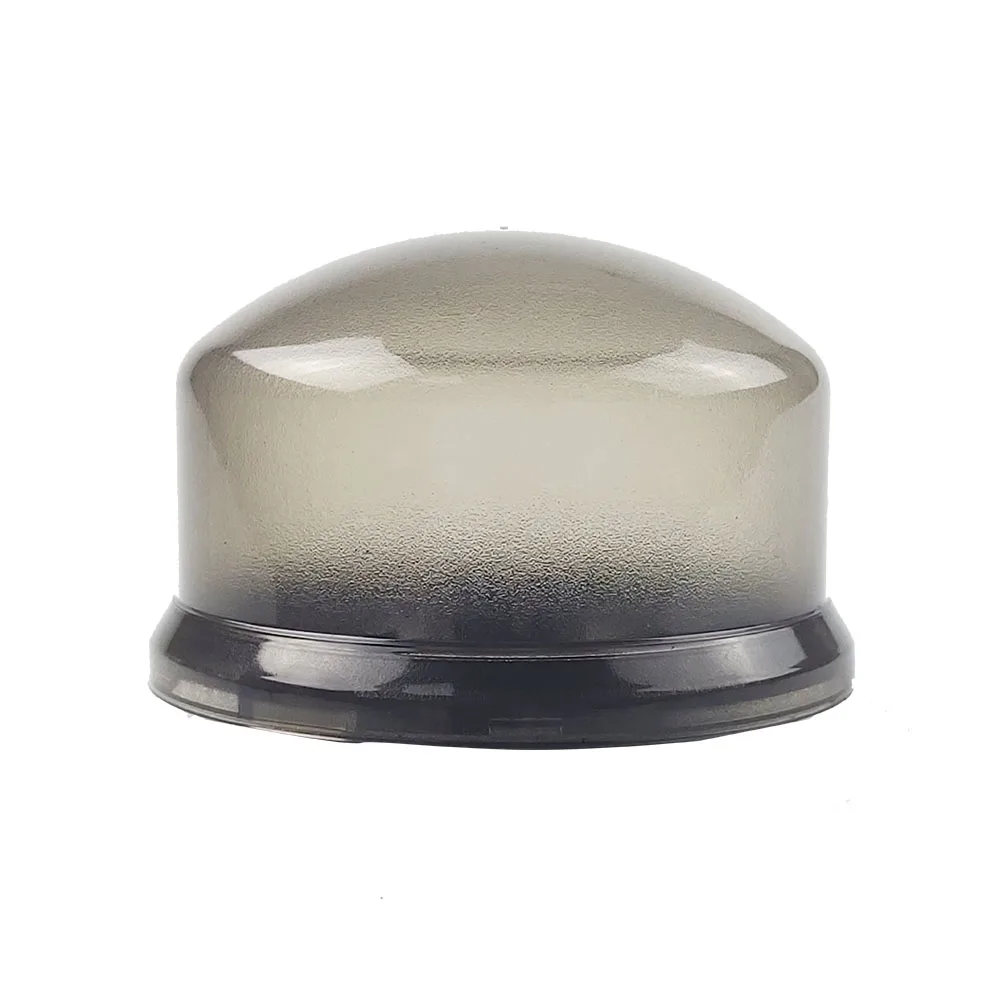

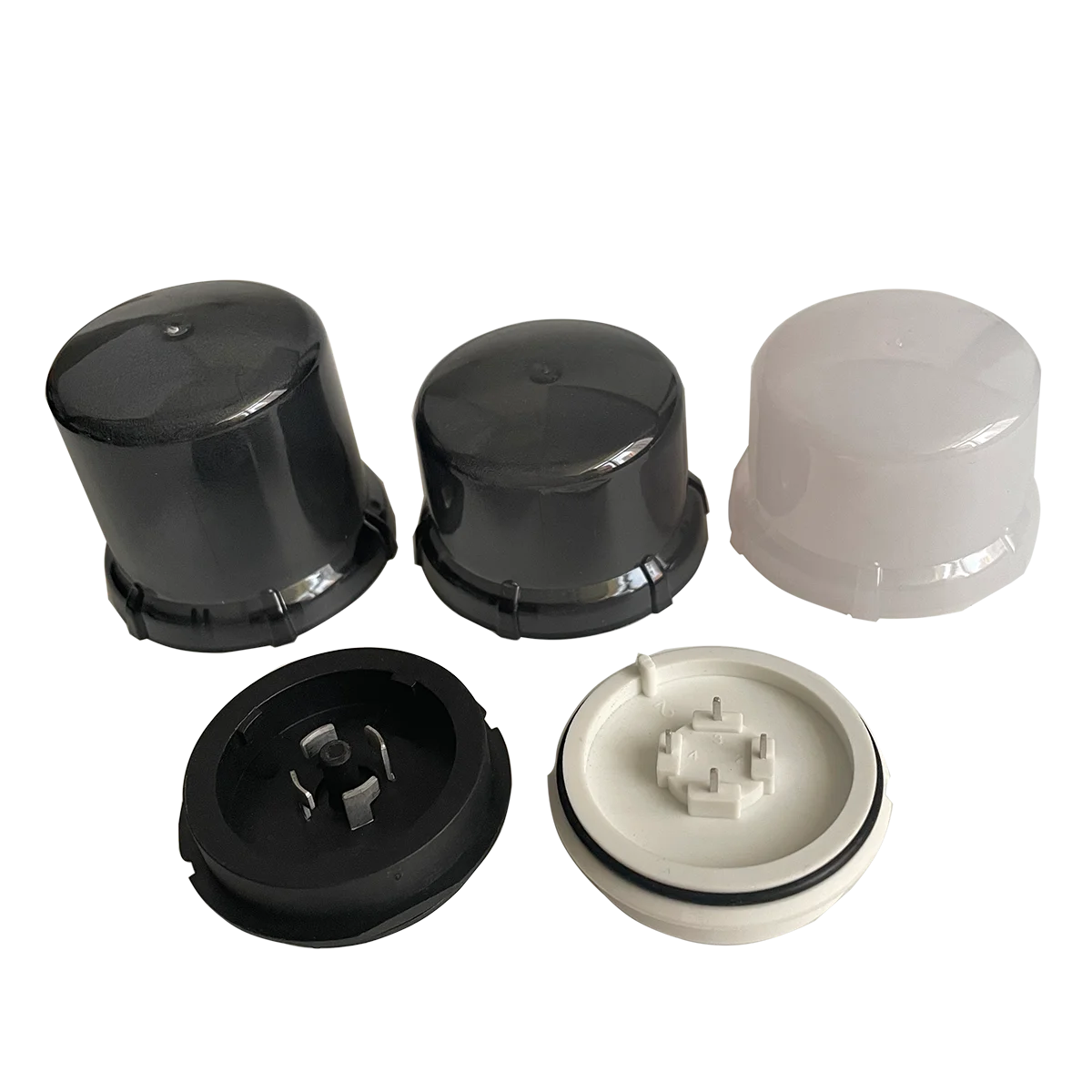

Zhaga Controller base with vent, PC cover
Product Specification
Model | OPT-801 |
Standard | Zhaga book 18 |
Contacts Rating | Contacts Rating |
Dielectric withstand | 10kv to mounting surface |
4 Pin Contacts | Pin 1: 24VDC Pin 2: DALI- Pin 3: DALI+ Pin 4: General I/O |
IP Rating | IP66 |
Housing Material | High Temperature Resistance Polybutylene Terephthalate |
Acessory | Silicon Gasket, Mounting Nut |
Recommend Products

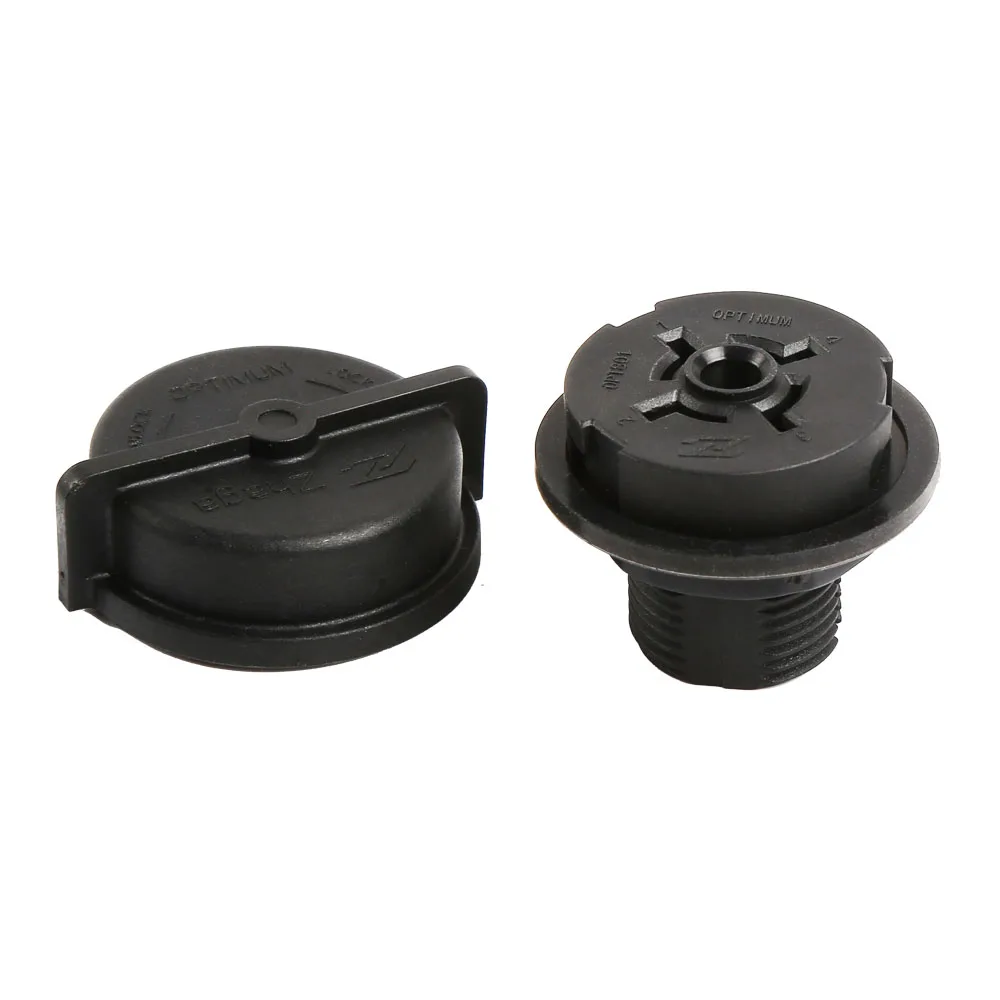

ZHAGA Receptacle with sealing cap, Mounting Nut
