Сервосистема пластиковый стакан для бумаги трафаретная печатная машина
- Категория: Screen Printers >>>
- Поставщик: Luen,Cheong,Printing,Equipment,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 4591.23 $* | 4683.76 $* |
| Jul-19-2025 | 3723.97 $* | 3797.68 $* |
| Jun-19-2025 | 4519.7 $* | 4609.6 $* |
| May-19-2025 | 4483.84 $* | 4573.20 $* |
| Apr-19-2025 | 3579.78 $* | 3651.49 $* |
| Mar-19-2025 | 4410.98 $* | 4498.11 $* |
| Feb-19-2025 | 4374.2 $* | 4461.76 $* |
| Jan-19-2025 | 4338.78 $* | 4425.99 $* |
Характеристики
Product Description
Servo system PLC touch screen fan-shaped screen printing machine
The machine screen frame is a fan-shaped screen frame. It is very suited for cone cups, round cups printing. The fan-shaped screen printing machine has one servo system, a PLC touch screen.
Features:
Japan SMC solenoid valve | Panasonic Servo Motor |
Airtac cylinder | Xinjie PLC control panel |
1. Using international famous brand pneumatic components, the controller performance is stable and reliable. The machine body adopts alloy die-casting parts, and the fan-shaped tooling also adopts wear-resistant shaft sleeve. The whole machine is light and strong, and the system is stable.
2. Foot pedal and touch screen control switch, simple and convenient operation.
3. Fan-shaped tooling and ordinary tooling can be replaced according to the product, easy to replace, "one machine with dual use".
4. The product rotation is controlled by a Panasonic servo motor, which can rotate to the point, and add a color sensor(customizable) to accurately register the color.
2. Foot pedal and touch screen control switch, simple and convenient operation.
3. Fan-shaped tooling and ordinary tooling can be replaced according to the product, easy to replace, "one machine with dual use".
4. The product rotation is controlled by a Panasonic servo motor, which can rotate to the point, and add a color sensor(customizable) to accurately register the color.
Specifications
Model number: LC-350F |
Product appearance: Round/Cone |
(Round)Max. Printing diameter: 100mm |
(Round)Max printing arc length: L: 250mm |
Printing Speed: 1400 PC/H |
Air consumption: 30 litre/min 6bar |
Voltage power: AC220V±10% 50/60Hz |
Machine Size: 1100*980*1480mm |
Machine Weight: 200kg |
Power: 650W |

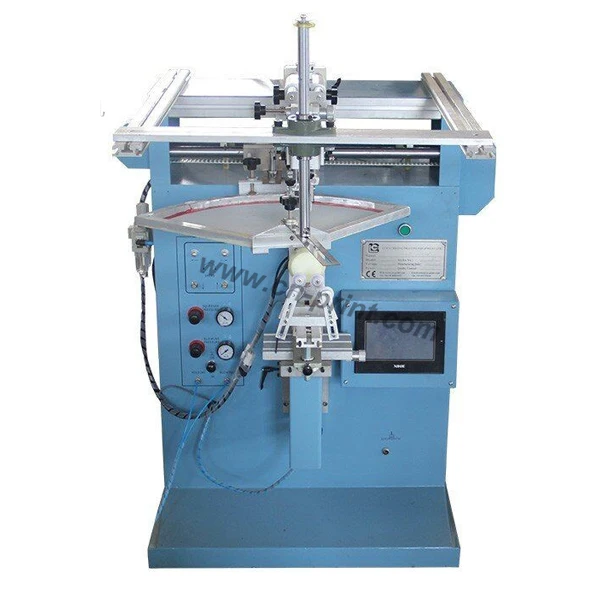

Machine Photos
fan-shaped screen frame
