ЧПУ автоматический стальной стержень арматурный гибочный
- Категория: Rebar Cutting Machine >>>
- Поставщик: Shandong,Rayman,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 21182.44 $* | 22241.54 $* |
| Aug-17-2025 | 21004.57 $* | 22054.35 $* |
| Jul-17-2025 | 17622.67 $* | 18503.84 $* |
| Jun-17-2025 | 20648.85 $* | 21680.42 $* |
| May-17-2025 | 17978.46 $* | 18877.59 $* |
| Apr-17-2025 | 20292.66 $* | 21307.16 $* |
| Mar-17-2025 | 20114.28 $* | 21120.55 $* |
| Feb-17-2025 | 19936.25 $* | 20933.88 $* |
| Jan-17-2025 | 19758.30 $* | 20746.13 $* |
Характеристики
Get more
Products Description

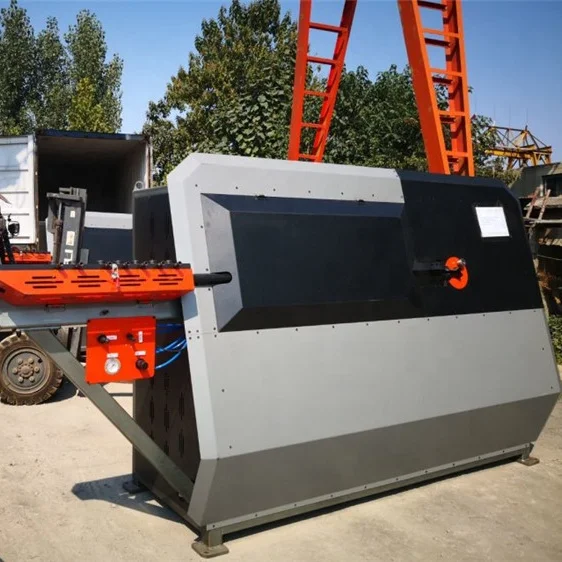

CNC Stirrup Machine
The equipment uses a control system with a touch screen, which can automatically complete the feeding, straightening, bending and cutting of steel bars. It is widely used in the construction industry and steel bar production enterprises.
1.This bending machine adopts servo controlling system;
2.Automatically accomplish the functions of rebar's feeding, straightening,bending and cutting etc.;
3.Max bending diameter of rebar is 12mm;
4.Continuously bend various stirrup of plane figure;
5.Widely used in construction industry and rebar manufacturing enterprise;
6.High efficiency and accurate processing precision.
2.Automatically accomplish the functions of rebar's feeding, straightening,bending and cutting etc.;
3.Max bending diameter of rebar is 12mm;
4.Continuously bend various stirrup of plane figure;
5.Widely used in construction industry and rebar manufacturing enterprise;
6.High efficiency and accurate processing precision.
Automat Stirrup bender machine | ||
Processing range of a single steel | Level I round steel 6-12mm | |
Level III thread steel 6-12mm | ||
Processing range of double steels | Level I round steel 6-10mm | |
Level III thread steel 6-8mm | ||
Processing efficiency | 1440 pcs/hour | |
Max. Bending angel | ±180° | |
Max. Feeding speed | 2000mm/s | |
Max. Bending speed | 1000 (°/s) | |
Ground clearance of bending spindle | 1120mm | |
Stirrup side length | 130--1800mm | |
Average electric power consumption | 5kw/h | |
Total capacity | 30kw | |
Bending Sample

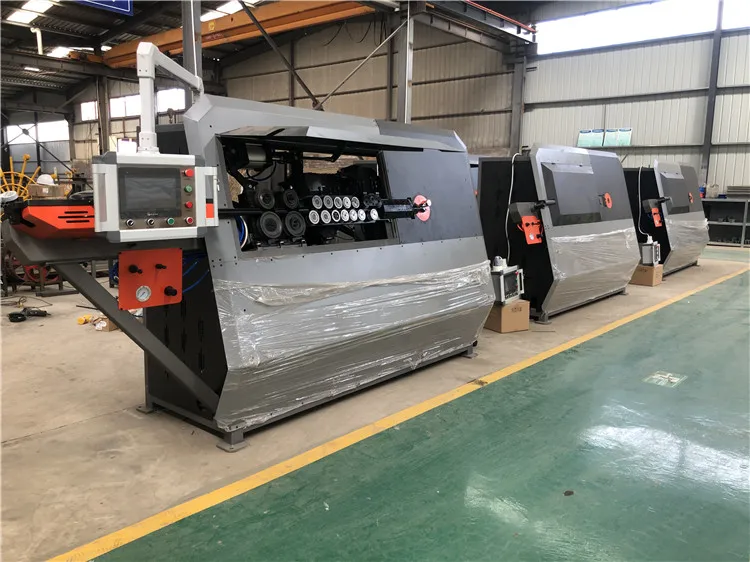

Details Images
Packing
