Пластиковых одноразовых пищевых контейнеров делая машину чаша контейнер для еды из полипропилена упаковочная коробка вынуть Автоматическая Термоформовочная
- Категория: Plastic Vacuum Forming Machines >>>
- Поставщик: Ruian,City,Litai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.11 $* | 0.53 $* |
| Aug-16-2025 | 0.89 $* | 0.56 $* |
| Jul-16-2025 | 0.41 $* | 0.67 $* |
| Jun-16-2025 | 0.5 $* | 0.23 $* |
| May-16-2025 | 0.14 $* | 0.70 $* |
| Apr-16-2025 | 0.19 $* | 0.96 $* |
| Mar-16-2025 | 0.12 $* | 0.34 $* |
| Feb-16-2025 | 0.90 $* | 0.61 $* |
| Jan-16-2025 | 0.19 $* | 0.32 $* |
Характеристики
Product Paramenters
Model | TTF-400A |
Forming Area | 400mm x 300 mm |
Forming Depth (Max.) | 60mm |
Sheet thickness | 0.2-2.0mm |
Forming Speed (Max.) | 35times/min |
Air pressure | 0.6-0.8mpa |
Air consumption | 2.0 m³/min |
Water consumption | 0.7 m³/h |
Sheet width (Max.) | 430mm |
Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
Used power | 29Kw |
Rated power | 58Kw |
Heating power | 50.4Kw |

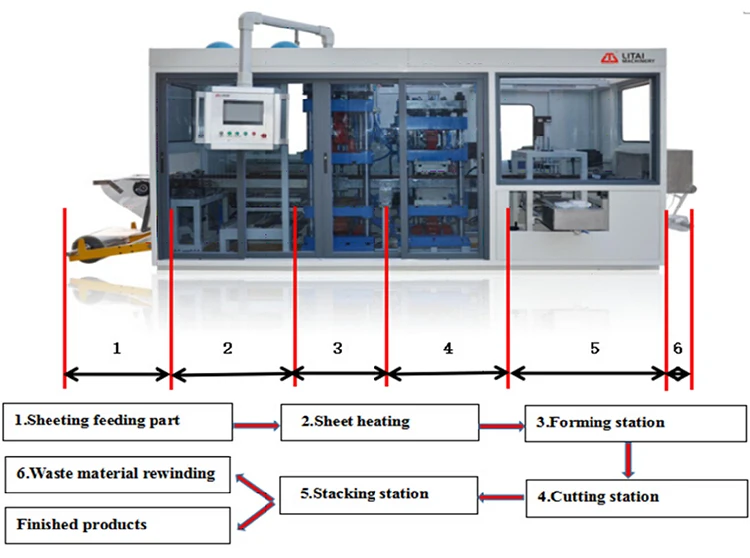

Procedure | Forming-cutting-stacking |
Dimension | L6000*W4000*H2500mm |
Weight | About 5.2T |
MAIN ELECTRICAL COMPONENTS | ||
MAIN PARTS | BRAND | |
Filter | CKD (Japan) | |
Forming valve | MAC (USA) | |
Temperature control module | WEST (UK) | |
Proximity switch | ROCKWELL (USA) | |
AC contactor\\Circuit breaker\\Button | SCHNEIDER (France) | |
Intermediate relay | IDEC (Japan) | |
Intermediate Relay Base | OMRON (Japan) | |

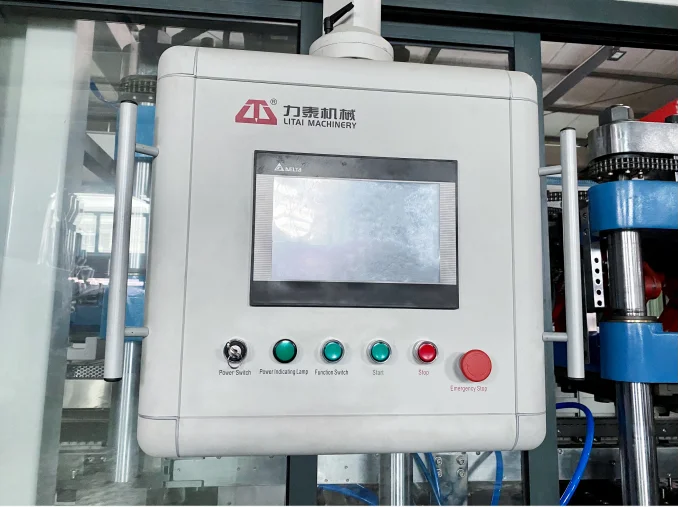

PLC\\Touch screen\\Servo motor\\Air switch | Detla (Taiwan) | |

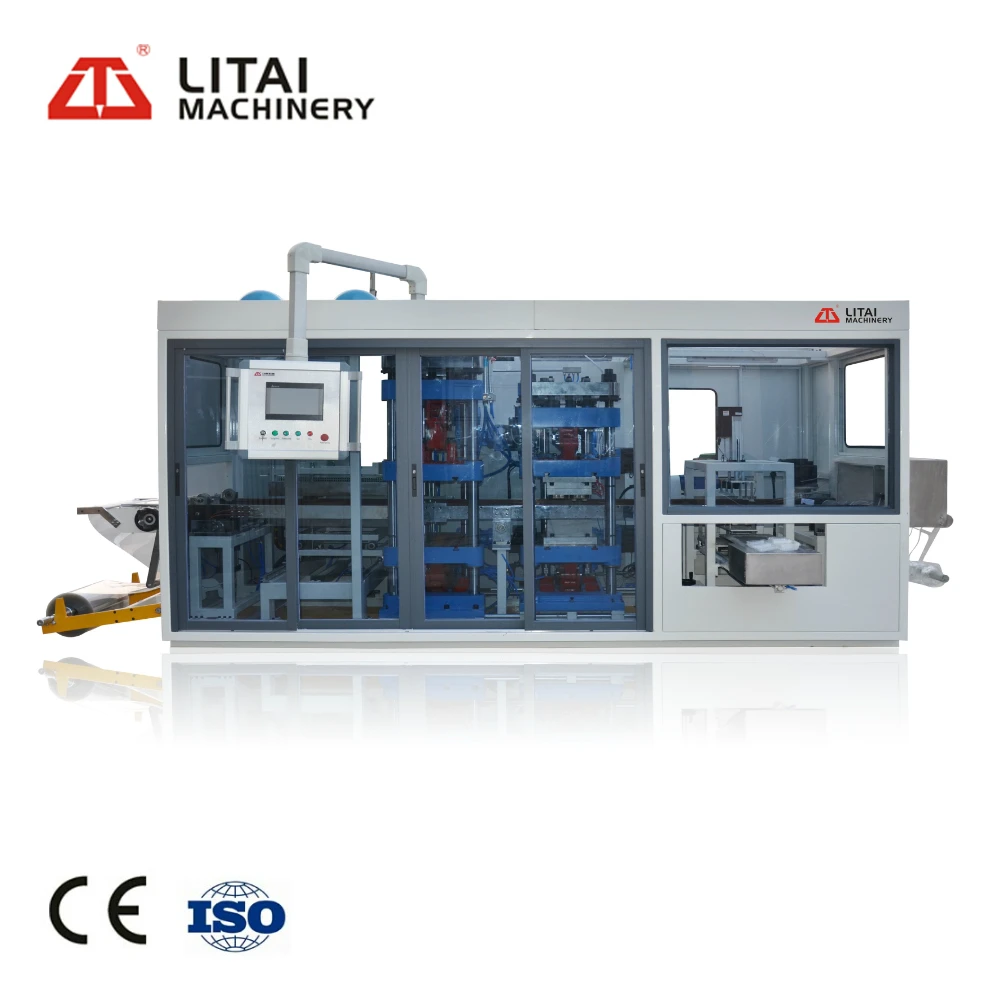

Product display
APPLICATION
machine combines forming, cutting, and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality.
Products Description
SUMMARY OF MACHINE

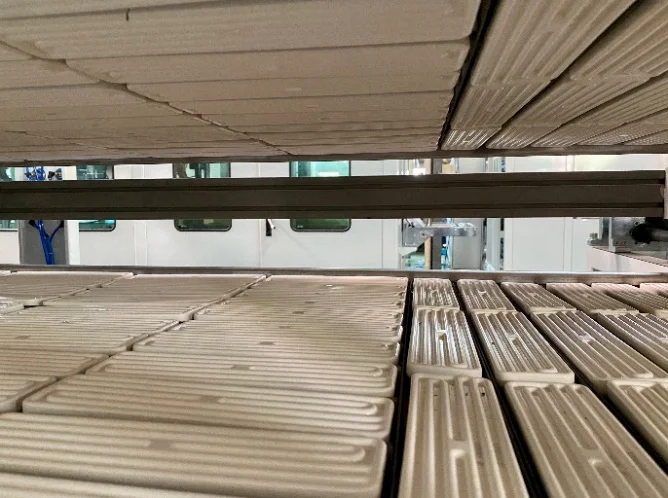

2. Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
3. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
4. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.
5. Each servo motor has overload protection for machine’s overworking.
6. Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
There is an alarm function of the sliding doors.
