Характеристики
Product Description

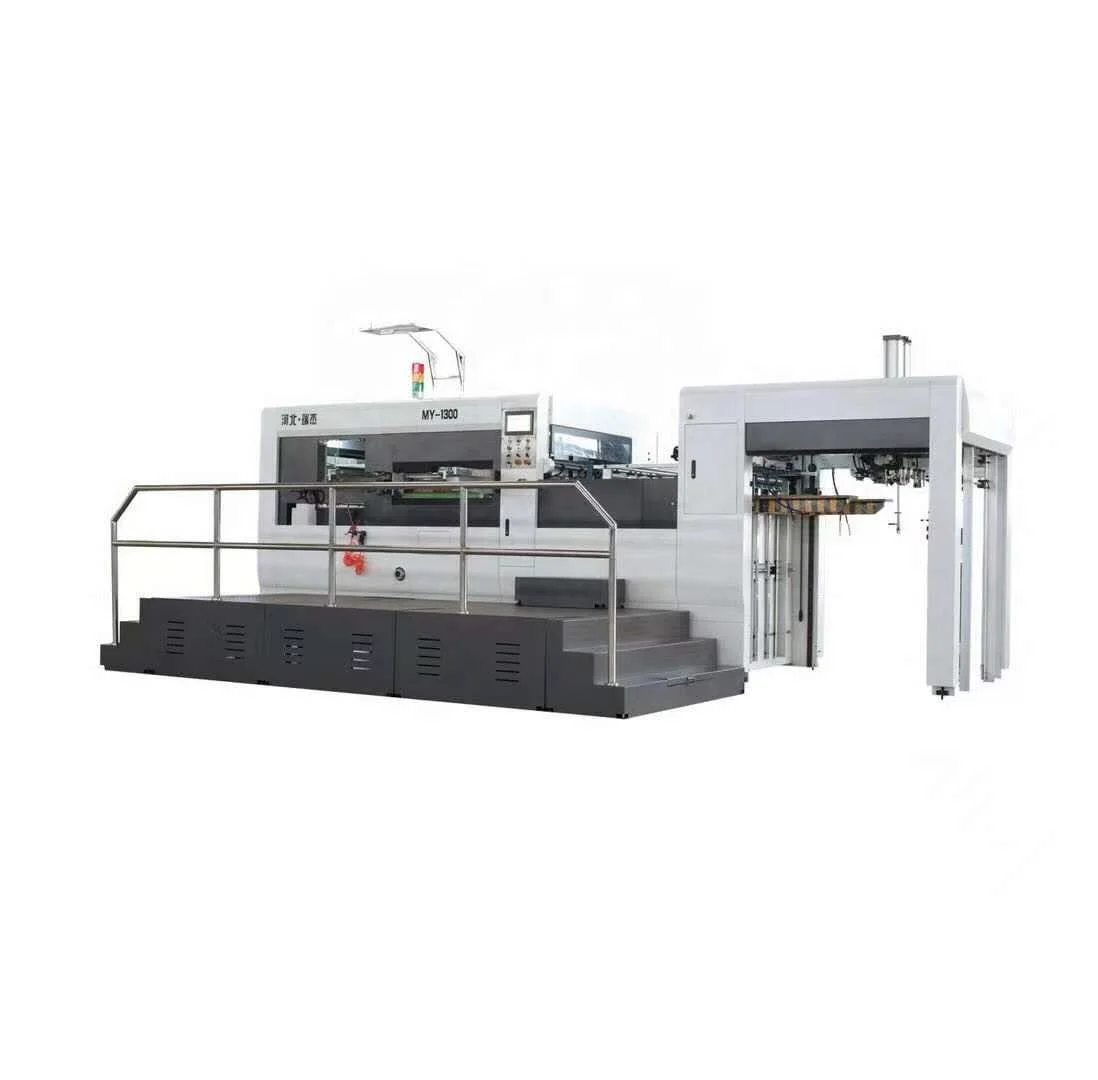

Automatc die cuting &creasing machine
(Option:Size from 800-1650)
This machine is main equipment for paper ,
carton,trademarks and all kinds of paper packing products die cuting.
Option: feeder system.
Waste removal system.
Non-stop delivery system.
Secondary calibration positioning
system
Specification
Model | MY-1500 | ||
Die cutting type | Pressed flat die cutting(Lower side is movable while upper side is unmovable) | ||
Max paper transmitting size | 1510*1120mm | ||
Min paper transmitting size | 450*500mm | ||
Max die cutting size | 1490*1100mm | ||
Min gripper size | 8mm | ||
Max die cutting pressure | 400N/cm² | ||
Paper processed | Ivory board | 0.1-0.3mm | |
Corrugated board | Less than 8mm | ||
Die cutting precision | ±0.1mm | ||
Max die cutting speed | 4600sheets/h | ||
Max feeding pile height | 1400mm(above the level) | ||
Min feeding pile height | 1250mm(above the level) | ||
Total power | 18kw | ||
Total weight | 19.5T | ||
Overall size | 6870*2398*2356mm (Not including the pedal) | ||
Lead edge feeder syatem:
Non-pressure paper transmitting structure makes the color carton no-scratch; Anchuan servo system provide ufficient energy constantly, makes the paper transmitting more smoothly; Four axes motion controller collect the rotation angle of host timely, makes the machine high precision transmitting whenever machine speed up or down by inspection and detecting and rectify the photoelectric.
Non-pressure paper transmitting structure makes the color carton no-scratch; Anchuan servo system provide ufficient energy constantly, makes the paper transmitting more smoothly; Four axes motion controller collect the rotation angle of host timely, makes the machine high precision transmitting whenever machine speed up or down by inspection and detecting and rectify the photoelectric.
Front guide: The overall swing front swinging side guide have a small impact on the paper edge, high positioning precision, with four sets of precision fiber switch(Taiwan Riko brand) to check paper in place and avoid paper wasting.
Side guide: You can choose side guide based on different products, no need to replace components, easy and quickly to adjust
Side guide: You can choose side guide based on different products, no need to replace components, easy and quickly to adjust
Diecutting part and Delivery system
Diecutting chase fixed accurately by pneumatic lock system
Diecutting plate is putted in and out by air floating device
Electric clutch system of main chain can assure the chain steady when it is stopped at high speed
Main chain and assist chain is lubricated periodically controlled by PLC
Diecutting plate is putted in and out by air floating device
Electric clutch system of main chain can assure the chain steady when it is stopped at high speed
Main chain and assist chain is lubricated periodically controlled by PLC

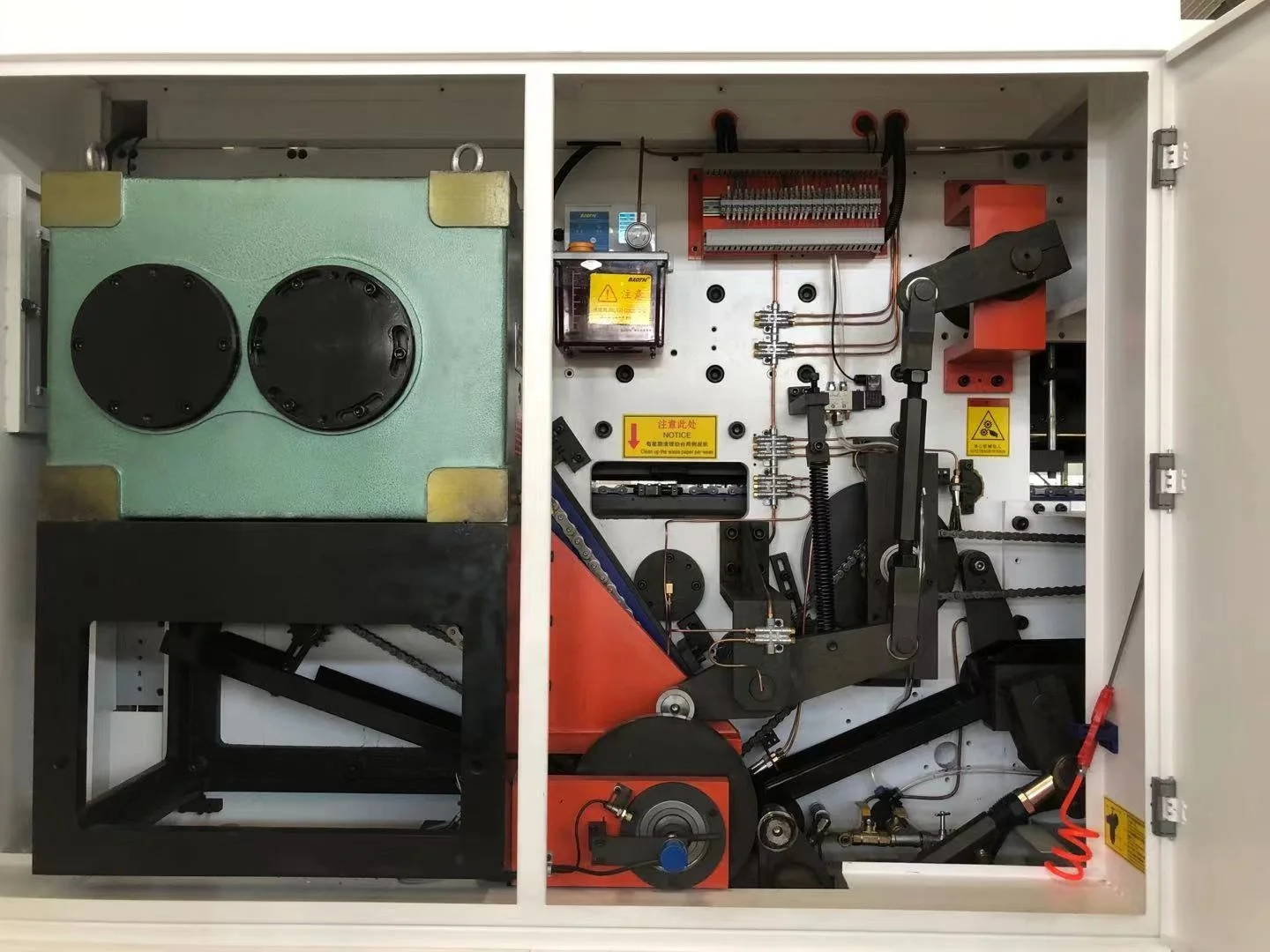

Main body
Long life, low noise, brake quickly with strong driving force. It is nstalled according to European exported standard.
The main RENOLD chain is imported from Britain that has a minimum error of lenath, high tensile and anti-wear.
Long life, low noise, brake quickly with strong driving force. It is nstalled according to European exported standard.
The main RENOLD chain is imported from Britain that has a minimum error of lenath, high tensile and anti-wear.
Taiwan Intermittence and Renold Chain
Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI
Patented design shock absorption system can prolong the life of main body and increase the pressure
The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack
Patented design shock absorption system can prolong the life of main body and increase the pressure
The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack
PLC Control System
PLC is adopted in electronic control system.There are various safe guarding devies that when accident occurs,it
will give an alarm by sound and light and shutdown automatically to protect sfety of man and machine.
will give an alarm by sound and light and shutdown automatically to protect sfety of man and machine.
Samples
Certification
Packing & Delivery
Standard package with 40ft container
