Новые насадки из карбида вольфрама для
- Категория: Cleaning Equipment Parts >>>
- Поставщик: Jinan,Junda,Industrial,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 29.23 $* | 30.25 $* |
| Aug-15-2025 | 28.71 $* | 29.31 $* |
| Jul-15-2025 | 24.53 $* | 25.57 $* |
| Jun-15-2025 | 28.93 $* | 29.86 $* |
| May-15-2025 | 24.44 $* | 25.63 $* |
| Apr-15-2025 | 27.72 $* | 28.63 $* |
| Mar-15-2025 | 27.19 $* | 28.51 $* |
| Feb-15-2025 | 27.22 $* | 28.7 $* |
| Jan-15-2025 | 27.71 $* | 28.56 $* |
Характеристики

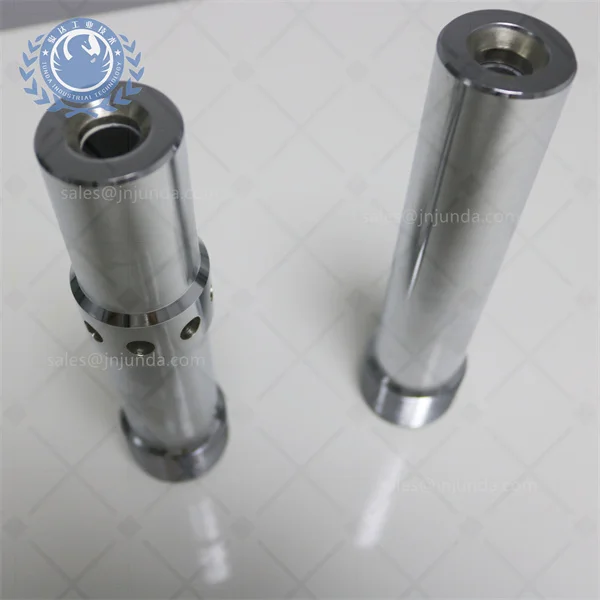

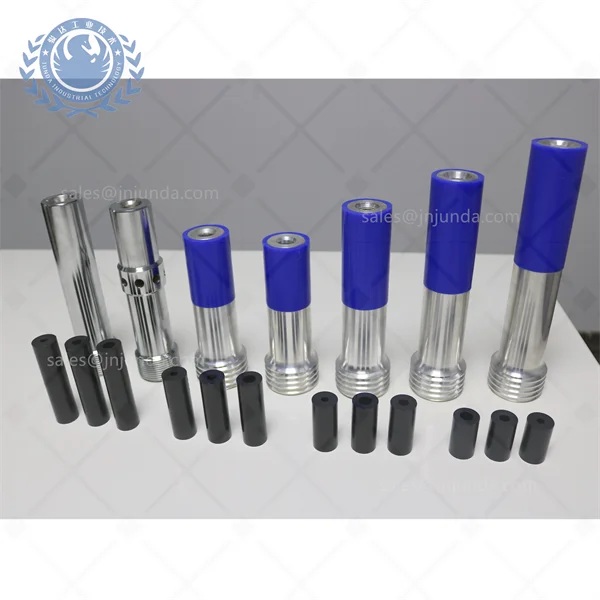

Sandblasting Nozzle
Wear-resistant Venturi blasting nozzles made of Silicon carbide/boron carbide (B4C).
Service life: up to 1000 h. Cover: Aluminum/Polyurethane protector.
Service life: up to 1000 h. Cover: Aluminum/Polyurethane protector.
Thread: Aluminum, 50 mm for NHP nozzle holder. Entry size: 25mm
Product name | Boron carbide sand blasting nozzle |
materials | boron carbide |
The available sand sand | steel shot, black aluminum oxide, white aluminum oxide, brown aluminum oxide, glass sand, silicon carbide, glass beads, plastic granules. |
The nozzle shape | venturi nozzle |
Density | ≥ 2.46 g/cm3 |
Bending strength | ≥400 Mpa |
performance: | high corrosion resistance |

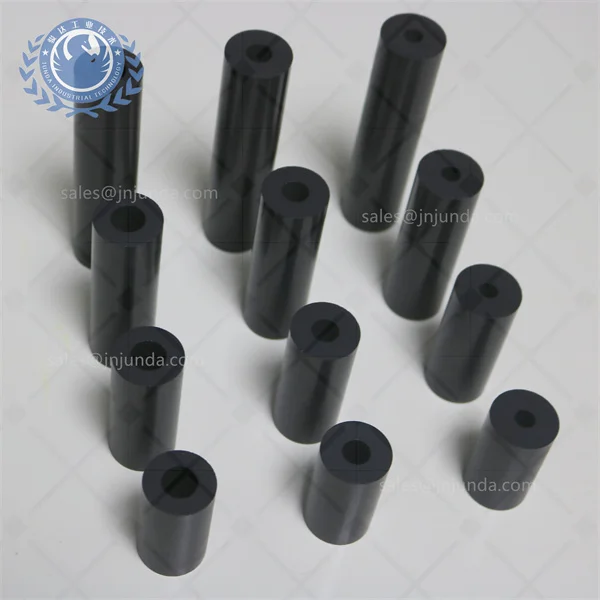

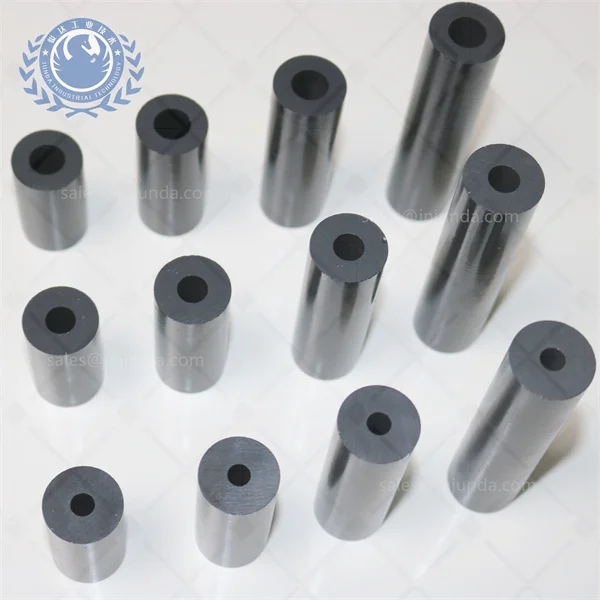

Boron carbide sand blasting nozzle
Boron carbide sand blasting nozzle is made of boron carbide material and formed by straight hole and Venturi hot pressing. It has been widely used in sand blasting and shot blasting equipment because of its high hardness, low density, high temperature resistance, good wear resistance and corrosion resistance.
Boron carbide nozzle characteristics：
1. Longer service life. Boron carbide nozzle has the longest life for sand blasting and shot
peening.
peening.
2. Lower cost: the service life outlast tungsten carbide by 3 times
3. To reduce down time.
4. To maintain efficiency.
Density | 2.40-2.65 g/cm3 | Compressive strength | 4100 Mpa |
Elastic modulus | 510 Gpa | Fracture toughness | 4.5-7.0 Mpa.m1/2 |
Knoop Hardness | 3300 | Coefficient of thermal expansion | 4.5x106 |
Flexural strength | 400-650 M | Thermal Conductivity | 29 m0k |
PRODUCT SPECIFICATIONS
Item | Mozel | Size | Material |
1 | JD12-22-53ZT | 12*22*53 | B4C/SIC |
2 | JD9.5-22-53ZT | 9.5*22*53 | B4C/SIC |
3 | JD7-15-35ZT | 7*15*35 | B4C/SIC |
4 | JD6-15-52ZT | Φ6*Φ15*52 | B4C/SIC |
5 | JD8-15-52ZT | Φ8*Φ15*52 | B4C/SIC |
6 | JD6-20-35ZT | Φ6*Φ20*35 | B4C/SIC |
7 | JD8-20-35ZT | Φ8*Φ20*35 | B4C/SIC |
8 | JD10-20-35ZT | Φ10*Φ20*35 | B4C/SIC |
9 | JD6-20-45ZT | Φ6*Φ20*45 | B4C/SIC |
10 | JD8-20-45ZT | Φ8*Φ20*45 | B4C/SIC |
11 | JD10-20-45ZT | Φ10*Φ20*45 | B4C/SIC |
12 | JD6-20-60ZT | Φ6*Φ20*60 | B4C/SIC |
13 | JD8-20-60ZT | Φ8*Φ20*60 | B4C/SIC |
14 | JD10-20-60ZT | Φ10*Φ20*60 | B4C/SIC |
15 | JD6-20-80ZT | Φ6*Φ20*80 | B4C/SIC |
16 | JD8-20-80ZT | Φ8*Φ20*80 | B4C/SIC |
17 | JD10-20-80ZT | Φ10*Φ20*80 | B4C/SIC |
18 | JD6-175XD | Φ6*175 | B4C/SIC |
19 | JD8-175XD | Φ8*175 | B4C/SIC |
20 | JD10-175XD | Φ10*175 | B4C/SIC |
21 | JD12-175XD | Φ12*175 | B4C/SIC |
22 | JD6-175XS | Φ6*175 | B4C/SIC |
23 | JD8-175XD | Φ8*175 | B4C/SIC |
24 | JD10-175XS | Φ10*175 | B4C/SIC |
25 | JD12-175XS | Φ12*175 | B4C/SIC |
26 | JD4.8-140CD | Φ4.8*140 | B4C/SIC |
27 | JD6.4-140CD | Φ6.4*140 | B4C/SIC |
28 | JD7.9-145CD | Φ7.9*145 | B4C/SIC |
29 | JD9.5-170CD | Φ9.5*170 | B4C/SIC |
30 | JD11-195CD | Φ11*195 | B4C/SIC |
31 | JD12.7-220CD | Φ12.7*220 | B4C/SIC |
32 | JD6.4-135CS | Φ6.4*135 | B4C/SIC |
33 | JD7.9-155CS | Φ7.9*155 | B4C/SIC |
34 | JD9.5-170CS | Φ9.5*170 | B4C/SIC |
35 | JD11-215CS | Φ11*215 | B4C/SIC |
36 | JD125-230CS | Φ12.5*230 | B4C/SIC |
VR
Q1:What’s the delivery time?
A : 5-10 work days after receiving client’s payment
Q2: What’s package?
A: wooden box packaging
Q3: Do you have any timely technology supports?
A: we have a professional technology supporting team for your timely services. We prepare the technical documents for you, also
you can contact us by telephone, online chat (whats, skype, phone).
Q4: What’s the payment method?
A: T/T, WESTERN UNION, MONEY GRAM,LC...
Q5: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact
within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
A : 5-10 work days after receiving client’s payment
Q2: What’s package?
A: wooden box packaging
Q3: Do you have any timely technology supports?
A: we have a professional technology supporting team for your timely services. We prepare the technical documents for you, also
you can contact us by telephone, online chat (whats, skype, phone).
Q4: What’s the payment method?
A: T/T, WESTERN UNION, MONEY GRAM,LC...
Q5: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact
within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
