Высококачественная автоматическая высокоскоростная плоская машина для резки и сгибания картонных коробок
- Категория: Packaging Forming Machines >>>
- Поставщик: Cangzhou,Lighten,Import,&,Export,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 69020.61 $* | 72471.78 $* |
| Aug-15-2025 | 68440.13 $* | 71862.3 $* |
| Jul-15-2025 | 57420.13 $* | 60291.72 $* |
| Jun-15-2025 | 67280.18 $* | 70644.3 $* |
| May-15-2025 | 58580.70 $* | 61509.80 $* |
| Apr-15-2025 | 66120.1 $* | 69426.68 $* |
| Mar-15-2025 | 65540.63 $* | 68817.89 $* |
| Feb-15-2025 | 64960.3 $* | 68208.32 $* |
| Jan-15-2025 | 64380.66 $* | 67599.87 $* |
Характеристики
Product Description

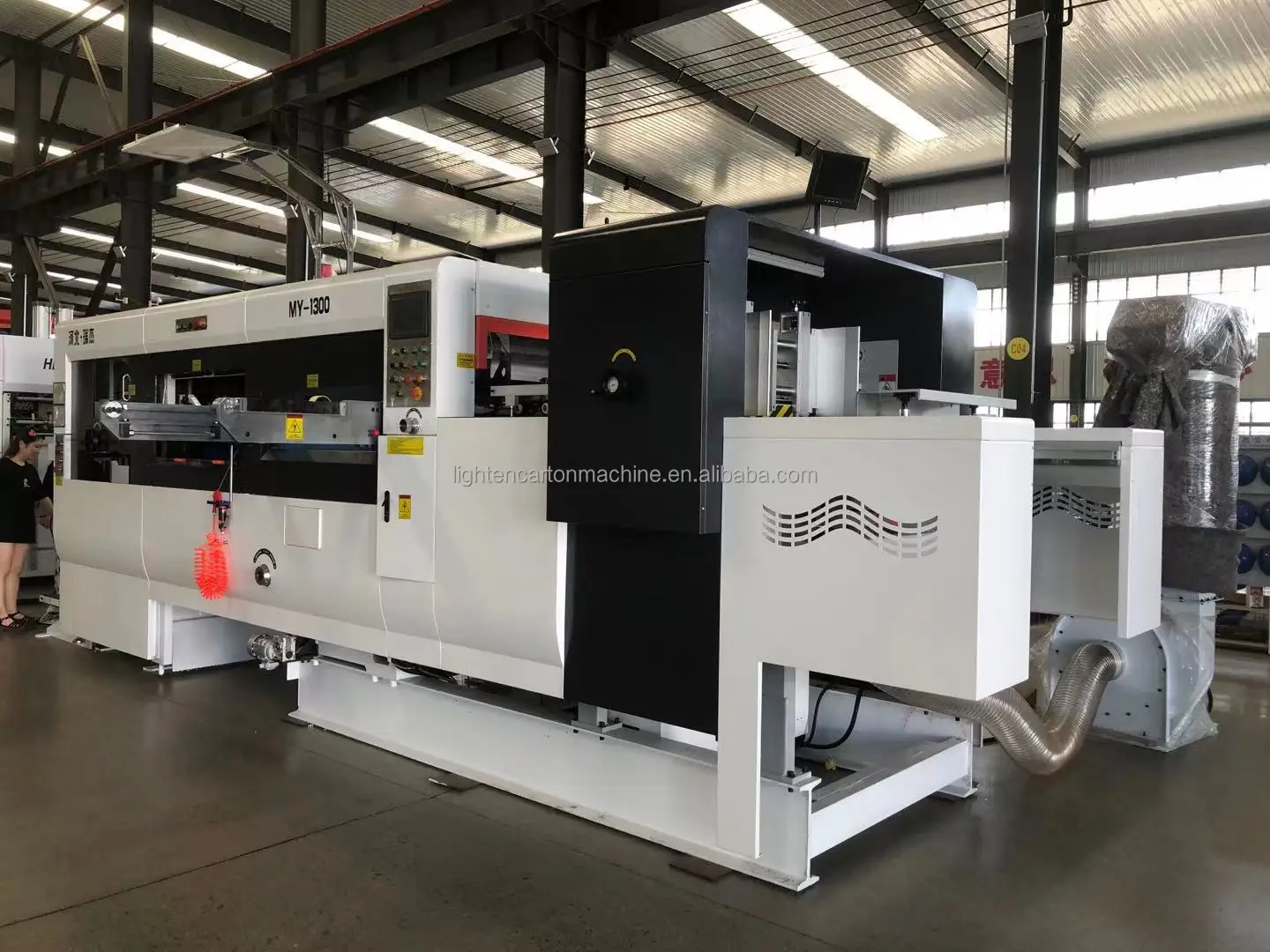

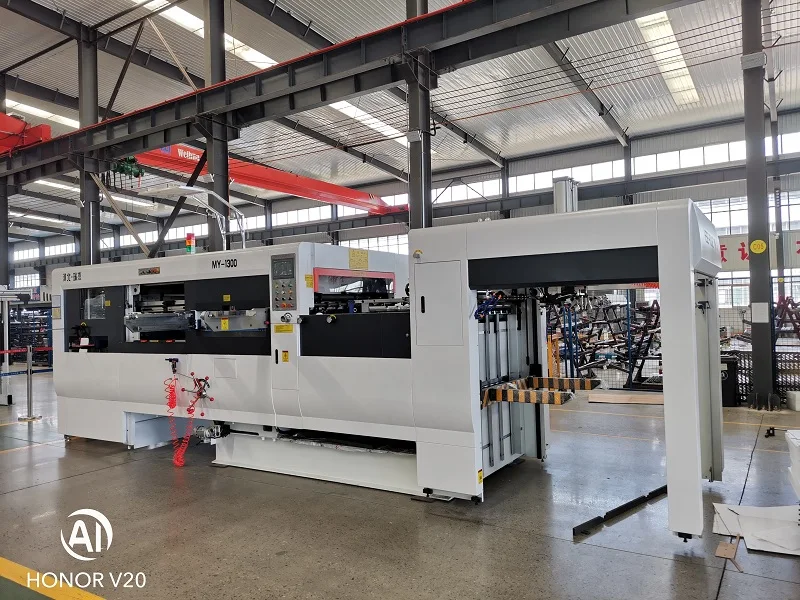

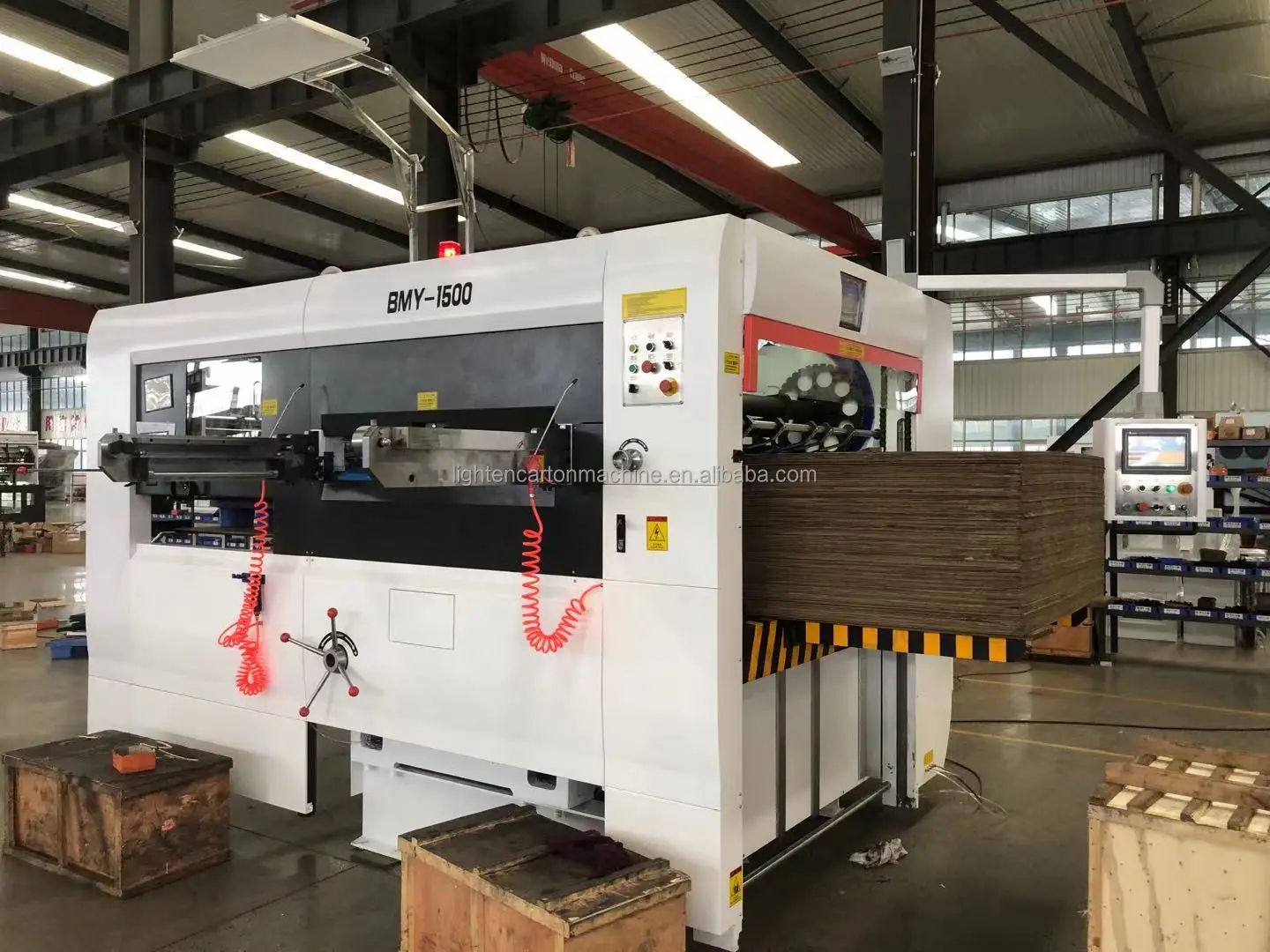

Automatc die cuting &creasing machine
(Option:Size from 800-1650)
This machine is main equipment for paper ,
carton,trademarks and all kinds of paper packing products die cuting.
Option: feeder system.
Waste removal system.
Non-stop delivery system.
Secondary calibration positioning
system
Specification
Model | MY-1500 | ||
Die cutting type | Pressed flat die cutting(Lower side is movable while upper side is unmovable) | ||
Max paper transmitting size | 1510*1120mm | ||
Min paper transmitting size | 450*500mm | ||
Max die cutting size | 1490*1100mm | ||
Min gripper size | 8mm | ||
Max die cutting pressure | 400N/cm² | ||
Paper processed | Ivory board | 0.1-0.3mm | |
Corrugated board | Less than 8mm | ||
Die cutting precision | ±0.1mm | ||
Max die cutting speed | 4600sheets/h | ||
Max feeding pile height | 1400mm(above the level) | ||
Min feeding pile height | 1250mm(above the level) | ||
Total power | 18kw | ||
Total weight | 19.5T | ||
Overall size | 6870*2398*2356mm (Not including the pedal) | ||
Lead edge feeder syatem:
Non-pressure paper transmitting structure makes the color carton no-scratch; Anchuan servo system provide ufficient energy constantly, makes the paper transmitting more smoothly; Four axes motion controller collect the rotation angle of host timely, makes the machine high precision transmitting whenever machine speed up or down by inspection and detecting and rectify the photoelectric.
Non-pressure paper transmitting structure makes the color carton no-scratch; Anchuan servo system provide ufficient energy constantly, makes the paper transmitting more smoothly; Four axes motion controller collect the rotation angle of host timely, makes the machine high precision transmitting whenever machine speed up or down by inspection and detecting and rectify the photoelectric.
Front guide: The overall swing front swinging side guide have a small impact on the paper edge, high positioning precision, with four sets of precision fiber switch(Taiwan Riko brand) to check paper in place and avoid paper wasting.
Side guide: You can choose side guide based on different products, no need to replace components, easy and quickly to adjust
Side guide: You can choose side guide based on different products, no need to replace components, easy and quickly to adjust
Diecutting part and Delivery system
Diecutting chase fixed accurately by pneumatic lock system
Diecutting plate is putted in and out by air floating device
Electric clutch system of main chain can assure the chain steady when it is stopped at high speed
Main chain and assist chain is lubricated periodically controlled by PLC
Diecutting plate is putted in and out by air floating device
Electric clutch system of main chain can assure the chain steady when it is stopped at high speed
Main chain and assist chain is lubricated periodically controlled by PLC
Main body
Long life, low noise, brake quickly with strong driving force. It is nstalled according to European exported standard.
The main RENOLD chain is imported from Britain that has a minimum error of lenath, high tensile and anti-wear.
Long life, low noise, brake quickly with strong driving force. It is nstalled according to European exported standard.
The main RENOLD chain is imported from Britain that has a minimum error of lenath, high tensile and anti-wear.
Taiwan Intermittence and Renold Chain
Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI
Patented design shock absorption system can prolong the life of main body and increase the pressure
The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack
Patented design shock absorption system can prolong the life of main body and increase the pressure
The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack
PLC Control System
PLC is adopted in electronic control system.There are various safe guarding devies that when accident occurs,it
will give an alarm by sound and light and shutdown automatically to protect sfety of man and machine.
will give an alarm by sound and light and shutdown automatically to protect sfety of man and machine.
Samples
Certification
Packing & Delivery
Standard package with 40ft container
Company Profile
We are a Factory-Owed professional carton machinery export company. Located in China northern Carton machinery manufacturing base --- Dongguang County, Hebei Province.
Lighten machinery devote to provide the most suitable and reasonable carton machinery combine solutions for client from different countries. Combine the best quality machinery manufactures and provide high value machinery and professional export services.
Based on manufacturing factory in northern China, which has more than 30 years experience, we have powerful design and installation engineer team, our factory is the biggest carton machinery manufacture in northern China, machinery sells to more than 100 countries and regions in the world. Quality passed ISO 9001-2008 international standard and CE quality standard. Already setup overseas branch office in several countries in order to provide the best and most convenient services.
Lighten machinery devote to provide the most suitable and reasonable carton machinery combine solutions for client from different countries. Combine the best quality machinery manufactures and provide high value machinery and professional export services.
Based on manufacturing factory in northern China, which has more than 30 years experience, we have powerful design and installation engineer team, our factory is the biggest carton machinery manufacture in northern China, machinery sells to more than 100 countries and regions in the world. Quality passed ISO 9001-2008 international standard and CE quality standard. Already setup overseas branch office in several countries in order to provide the best and most convenient services.
FAQ
1. who are we?
We are based in Hebei, China, start from 2018,sell to Mid East(25.00%),South America(20.00%),Eastern Europe(20.00%),Africa(15.00%),Southeast Asia(10.00%),North America(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern Asia(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Corrugated Cardboard Production Line,Carton Box Making Line,Box Printing Forming Machine,Automatic Die Cutting Machine
4. why should you buy from us not from other suppliers?
Factory related carton machinery import & export company, based on 35 years experience in providing complete and A to Z carton machinery solutions according to different customer situations and requriements. reliable quality and good service on site.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic,French,Russian,Italian
We are based in Hebei, China, start from 2018,sell to Mid East(25.00%),South America(20.00%),Eastern Europe(20.00%),Africa(15.00%),Southeast Asia(10.00%),North America(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern Asia(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Corrugated Cardboard Production Line,Carton Box Making Line,Box Printing Forming Machine,Automatic Die Cutting Machine
4. why should you buy from us not from other suppliers?
Factory related carton machinery import & export company, based on 35 years experience in providing complete and A to Z carton machinery solutions according to different customer situations and requriements. reliable quality and good service on site.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic,French,Russian,Italian
Contact information
Mobile/Whatsapp/Wechat:
0086 18513640900
Email: colin@lightenmachine.com
Facebook: Colin Zhang
Professional carton machine manufacturer&exporter
---30 Year experience --- CE&ISO certificate
Email: colin@lightenmachine.com
Facebook: Colin Zhang
Professional carton machine manufacturer&exporter
---30 Year experience --- CE&ISO certificate
