Фабрика по производству услуг OEM Китай микро проволока скользящее кольцо
- Категория: Electrical Contacts and Contact Materials >>>
- Поставщик: Shanghai,Matech,Machinery,Manufacture,Corporation,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.97 $* | 0.45 $* |
| Aug-15-2025 | 0.29 $* | 0.81 $* |
| Jul-15-2025 | 0.80 $* | 0.5 $* |
| Jun-15-2025 | 0.61 $* | 0.39 $* |
| May-15-2025 | 0.47 $* | 0.39 $* |
| Apr-15-2025 | 0.58 $* | 0.51 $* |
| Mar-15-2025 | 0.92 $* | 0.32 $* |
| Feb-15-2025 | 0.57 $* | 0.65 $* |
| Jan-15-2025 | 0.63 $* | 0.73 $* |
Характеристики

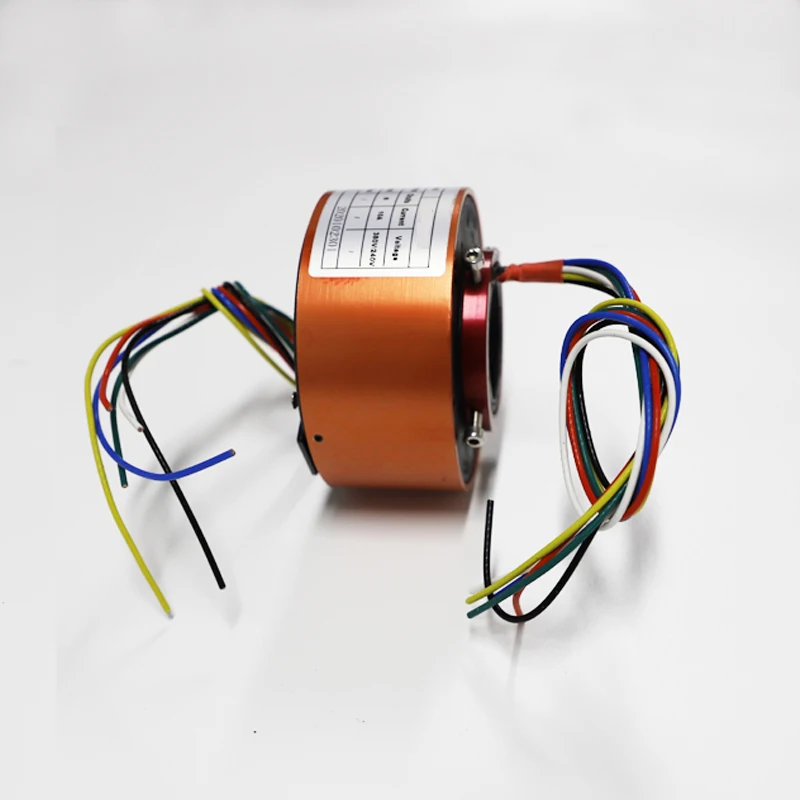

Through hole slip ring also called hollow slip ring with centre hole,it could be applied to any devices where requires to transmit power and signals when need 360° roating.
Product Description
Features:
1.Standard, off-the-shelf
2.Support power,signals transmitting
3.Advanced multi-point contact brush technology ensures reliable contact with low friction;
4.Gold plated ring and Gold alloy brush
5.Metal housing for better protection;
6.Integrated structure design, easy installation.
7.Customizations acceptable for circuits no. , current& voltage based on standard models;
8.Designed for through bore hydraulic or pneumatic rotating shaft installation.
2.Support power,signals transmitting
3.Advanced multi-point contact brush technology ensures reliable contact with low friction;
4.Gold plated ring and Gold alloy brush
5.Metal housing for better protection;
6.Integrated structure design, easy installation.
7.Customizations acceptable for circuits no. , current& voltage based on standard models;
8.Designed for through bore hydraulic or pneumatic rotating shaft installation.
Specification
Product Name: | |||||||
Model | length | Rated Current | Total No.of Circuits | ||||
Model | length | power(10A、15A) | signal（2A) | ||||
SPR100200-6P | 93.5 | 6 | -- | 6 | |||
SPR100200-10S | 113.5 | -- | 10 | 10 | |||
SPR100200-12P | 96.5 | 12 | -- | 12 | |||
SPR100200-6P/10S | 143.5 | 6 | 10 | 16 | |||
SPR100200-20S | 163.5 | -- | 20 | 20 | |||
SPR100200-18P | 153.5 | 18 | -- | 18 | |||
SPR100200-12P/10S | 173.5 | 12 | 10 | 22 | |||
SPR100200-6P/20S | 193.5 | 6 | 20 | 26 | |||
SPR100200-30S | 213.5 | -- | 30 | 30 | |||
SPR100200-24P | 183.5 | 24 | -- | 24 | |||
SPR100200-18P/10S | 203.5 | 18 | 10 | 28 | |||
SPR100200-12P/20S | 233.5 | 12 | 20 | 32 | |||
SPR100200-6P/30S | 243.5 | 6 | 30 | 36 | |||
SPR100200-40S | 273.5 | -- | 40 | 40 | |||
SPR100200-30P | 213.5 | 30 | -- | 30 | |||
SPR100200-24P/10S | 233.5 | 24 | 10 | 34 | |||
SPR100200-18P/20S | 253.5 | 18 | 20 | 38 | |||
SPR100200-12P/30S | 273.5 | 12 | 30 | 42 | |||
Custom Options
Current,rated voltage,rated speed，temperature，Luton,shell material and color，shape size，special wire，wire length，direction of export，protection grade，terminal type
Max 96 Circuits available on request
TECHNICAL ARAMETERS
Electrical Data | Value | ||
Power | Signal | ||
Nominal Voltage: | 380VAC | 240VAC/VDC | |
Insulation Resistance: | ≥1000MΩ/500VDC | ≥500MΩ/500VDC | |
Conductor Size: | AWG16 Tin-plated Teflon or PVC insulation Wires | AWG16 Tin-plated Teflon insulation wires | |
Conductor Length: | Standard 300mm | ||
Insulation strength: | 500VAC@50Hz 60s | ||
Electrical Noise: | <0.01Ω | ||
Mechanical data | Value |
Working Speed | 0-800rpm(or higher) |
Working Temperature | -20℃-+80℃ or -40℃-+80℃ |
Working Humidity | 60%RH or higher |
Contact Material | Noble Metal |
Casting Material | Industrial Metal |
Operating Torque | 0.1N/m for 6 rings, the torque increases with each 6 rings |
Protection Class | IP51 |
Fully meet the 360-degree unrestricted rotation of power, control and digital signal mixed transmission;Using advanced fiber brush technology, maintenance-free, no lubricating oil;Multi-point contact in each link, low contact pressure, low noise and low contact wear, long service life; standardized, modular design, complete product specifications, and can tailor the products required by customers.

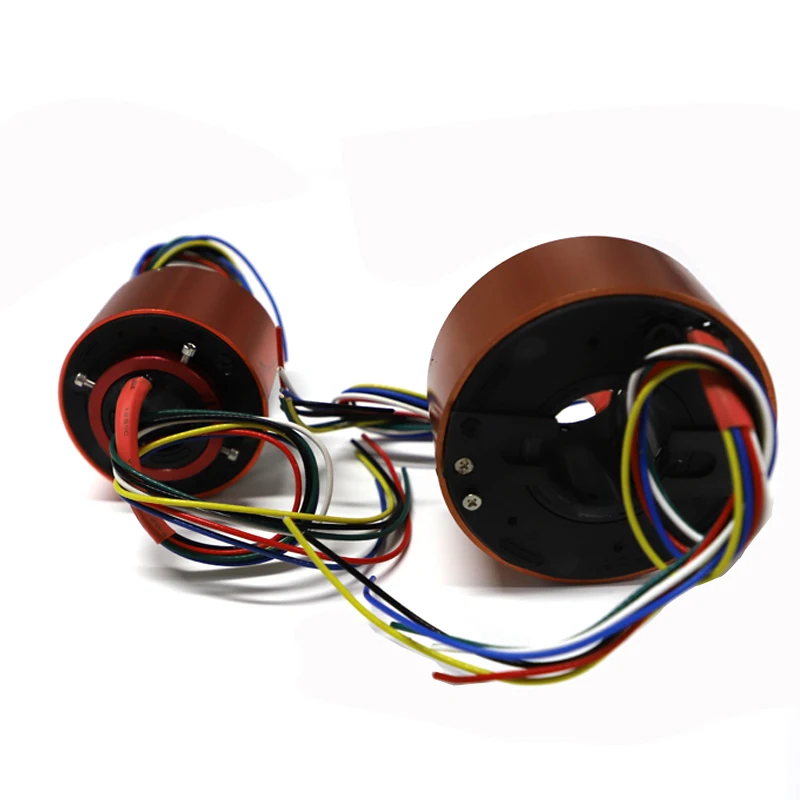

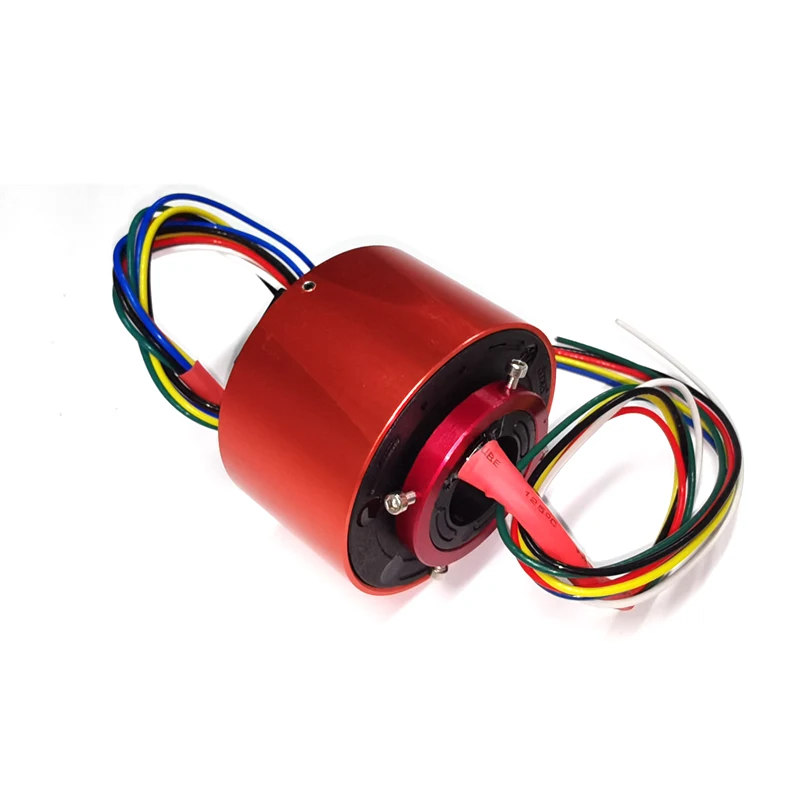

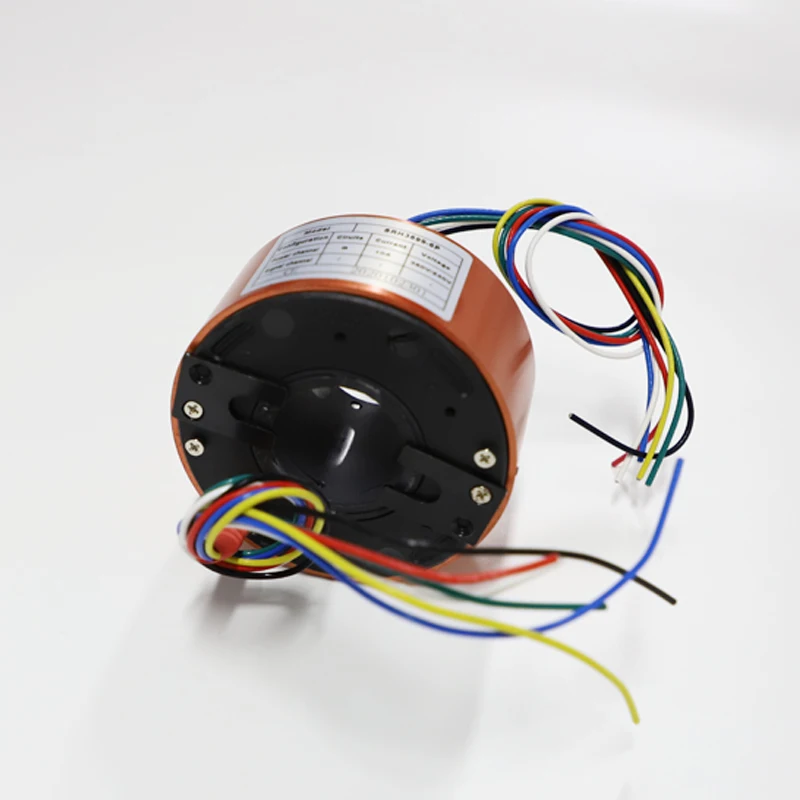

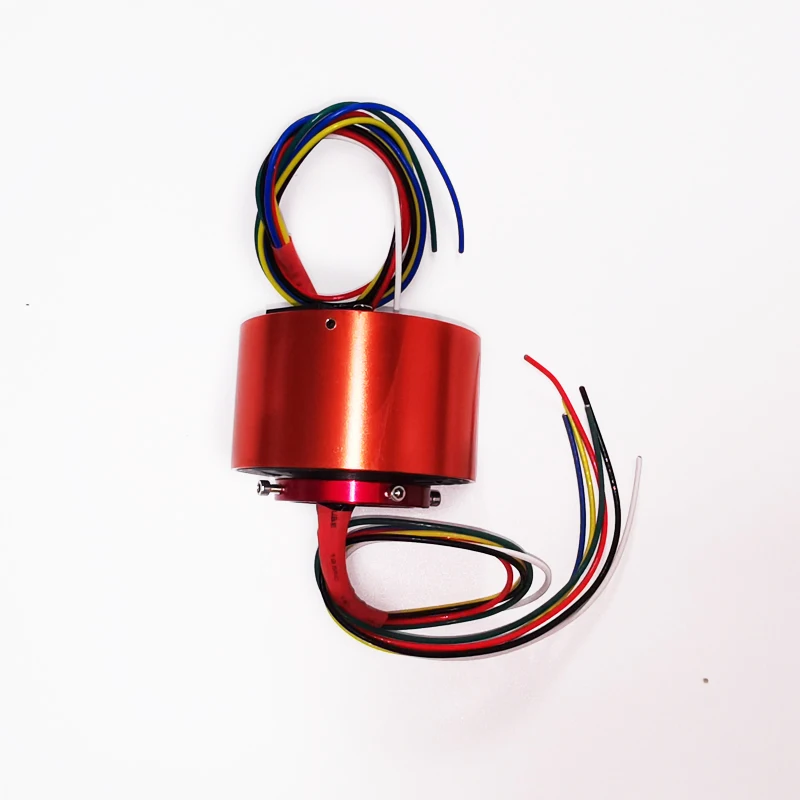

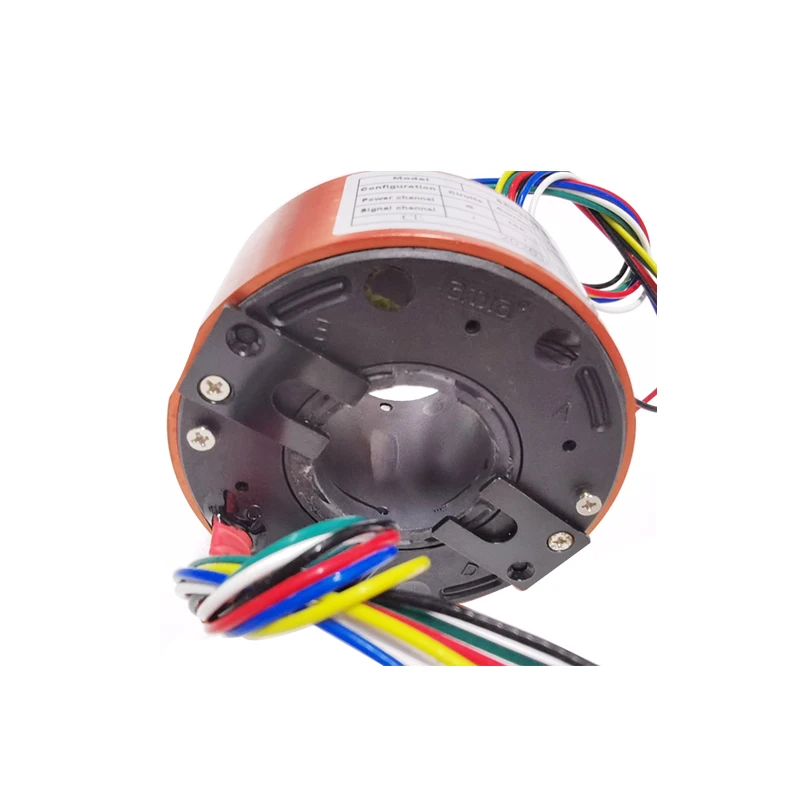

Details Images
Outline Dimension
Typical Applications:
Industrial machine-machining centers,rotary index table,heavy equipment turrets，cable reesl,test equipment，packaging equipment，palletizing machines,magnetic cluth,process equipment,raotary sensors，emergency lighting，robitcs;exibit display equipment,medical equipment
Installation Instructions
Company Profile
Shanghai Matech Machinery Manufacturing Co. Ltd with brand of SAFEPOWER , New Development slip rings & rotary joints manufacturing, performing in aerospace and military applications.
These products are developed for high performance environments and flexible requirements.
Typical applications include camera systems, robotics, packaging machines, medical equipment and a wide range of automation systems.we have experience with a wide variety of designs and applications.
Mounting options include, but are not limited to, end-of-shaft, over-the-shaft and inside-the-shaft mounting. slip rings are manufactured using the highest quality materials available including solid coin silver rings, gold-gold contact, graphite and silver brushes, stainless steel, and aluminum alloys.
Safepower uses state of the art CNC machines to manufacture all of our parts and an experienced workforce to assemble each slip ring.
Customer Photos
Packaging & Shipping
FAQ
Q1.What technical data should be provided for our customized slip ring model.
A:If you want to costomize the special slip ring model, you need provide details as below:
a.operatring speed(RPM)
b.the type of installation
c.outline size
d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings
f.the signal type and related parameters(very important)
g.operating temperature h.IP(sealing requirements)
b.the type of installation
c.outline size
d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings
f.the signal type and related parameters(very important)
g.operating temperature h.IP(sealing requirements)
Q2.How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,15 to 40 days for complex customized porducts.
Q3: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q4: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q5: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,We also can supply much higher revolutions as your special requirement.
