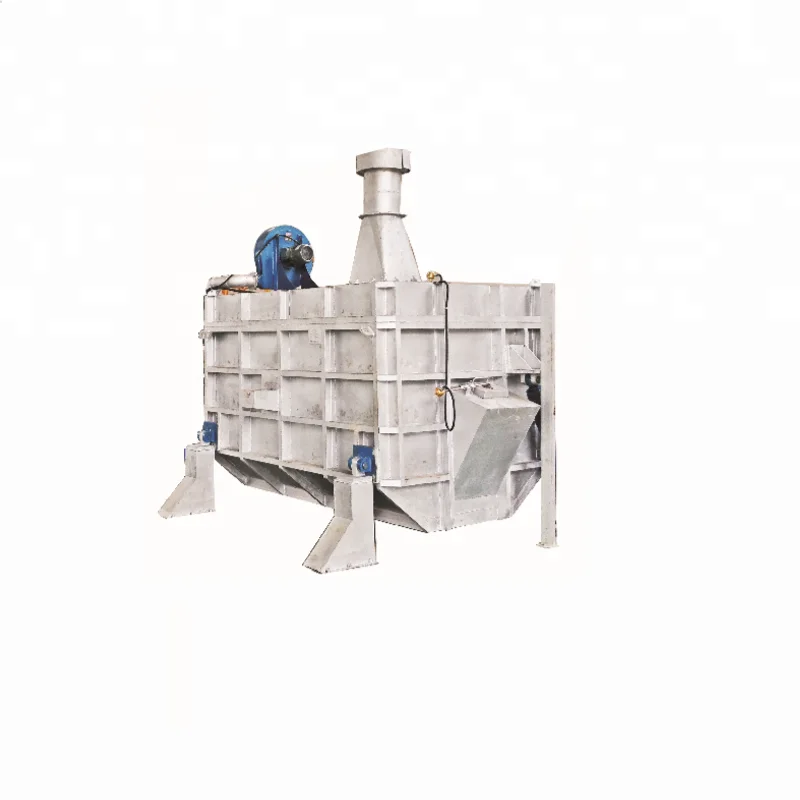

Scrap Copper Brass Reverberatory Copper Melting Furnace Crucible Furnace

PRODUCTS DESCRIPTION

Product Application

The diesel fired reverberatory type copper melting furnace has a compact structure for melting. The melting pool is formed by once-forming casting material, which has a high strength and a long service life. The furnace employs famous burner brand, which has functions of automatic ignition and temperature control. The furnace also has over-temperature alarm device. reverberatory type furnace for melting copper

reverberatory type furnace for melting copper reverberatory type furnace for melting copper

SPECIFICATION FOR Diesel Fired Reveratory Type Furnace For Copper Melting
Furnace parameter	Model	CX-RJT-3000
		Melting pool capacity	3000kg copper
		Melting rate	about 1500kg/hour (at continuous working status)
		Power	220V, ±10%, 50HZ ( or customized)
		Rated working temperature	1150℃ (atmosphere temperature)
		Temperature uniformity	±20℃ (copper liquid)
Fuel	Type	Diesel
		Calorific value	9600Kcal/kg
		Consumption	45kg/ton copper
Furnace lining	Castable material	860AC and 84ACX (Allied Mineral Product)
Furnace lining		Heat preservation material	high-alumina bricks
Burning system	Burner	SINON
		Burning controller	Honeywell
		Combustion-supporting fan	Domestic
		Temperature controller	Taisee
Temperature control	Automatic temperature control flame switch
		over-temperature alarm
		flame-out protection

Detailed Images

Main Features

Name: Lining Building
Brand: Allied Mineral Product (Tianjin) Co., Ltd

The castable material is 860AC and 84ACX, which has the advantages of high strength, non-adhering with molten zinc, easiness to be cleaned, and long service life.

Aluminum Melting Furnace 2 Tons

Machine Parts

Name: Discharging chute
The chute is used for discharging the zinc solution out of the furnace.

Aluminum Melting Furnace 2 Tons

RELATED PRODUCTS

COMPANY PROFILE

WUXI WONDERY TRADING CO., LTD. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.

CUSTOMER PRAISE

CERTIFICATION

PRODUCT PACKAGING

FAQ

1. What is the power supply of the industrial furnace?

The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation from us?

The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3. What is the payment term?

The payment term is 40% down payment, and 60% before delivery (T/T mode).

4. What is the delivery time?

The delivery time of the machine is 15-30 days after receipt of down payment.
