TD1024/3 FINCM 2021 новые изобретения тяжелая буровая машина из цементированного карбида для буровой
- Категория: Drilling Machines >>>
- Поставщик: Shandong,Fin,Cnc,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.88 $* | 0.38 $* |
| Aug-16-2025 | 0.84 $* | 0.79 $* |
| Jul-16-2025 | 0.20 $* | 0.34 $* |
| Jun-16-2025 | 0.18 $* | 0.99 $* |
| May-16-2025 | 0.28 $* | 0.85 $* |
| Apr-16-2025 | 0.54 $* | 0.82 $* |
| Mar-16-2025 | 0.63 $* | 0.36 $* |
| Feb-16-2025 | 0.64 $* | 0.23 $* |
| Jan-16-2025 | 0.10 $* | 0.44 $* |
Характеристики
Product Description

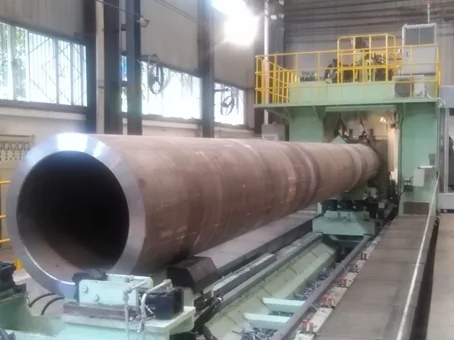

Outer diameter of processing header | φ190-φ1020mm |
Maximum drilling wall thickness | 160mm |
Maximum length of processing header | 24m |
Minimum hole end distance | 200mm |
Maximum weight of workpiece | 30t |
Dimensional accuracy of drilling | IT8-IT9 |
Surface roughness of drilling | ≤12.5μm |
Spindle servo motor power | 37Kw |
Maximum counterbore diameter | φ120mm |
Drilling spindle taper hole | BT50 |
Lateral movement speed of drilling head | 1000mm/min |
Spindle ram stroke | 400mm |
Big skateboard trip | 300mm |
Longmen drive mode | Dual drive |

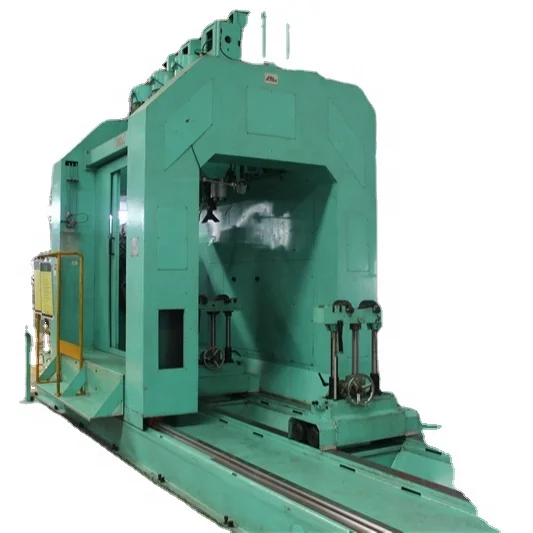

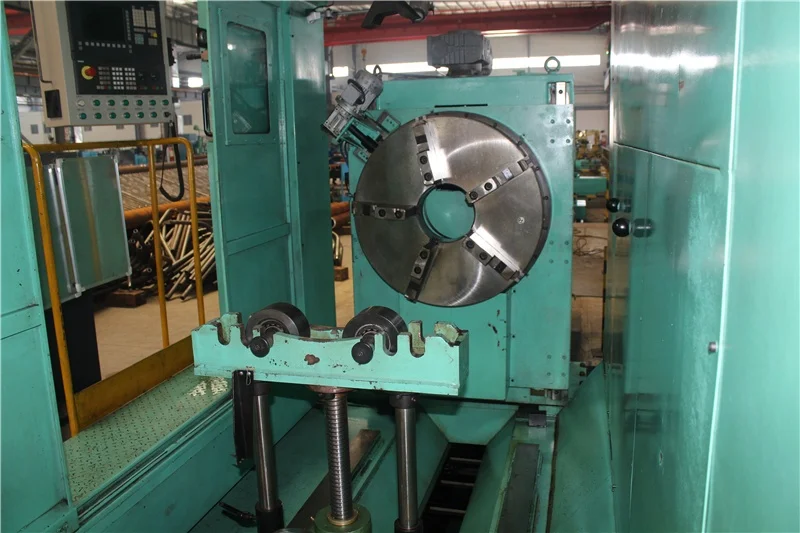

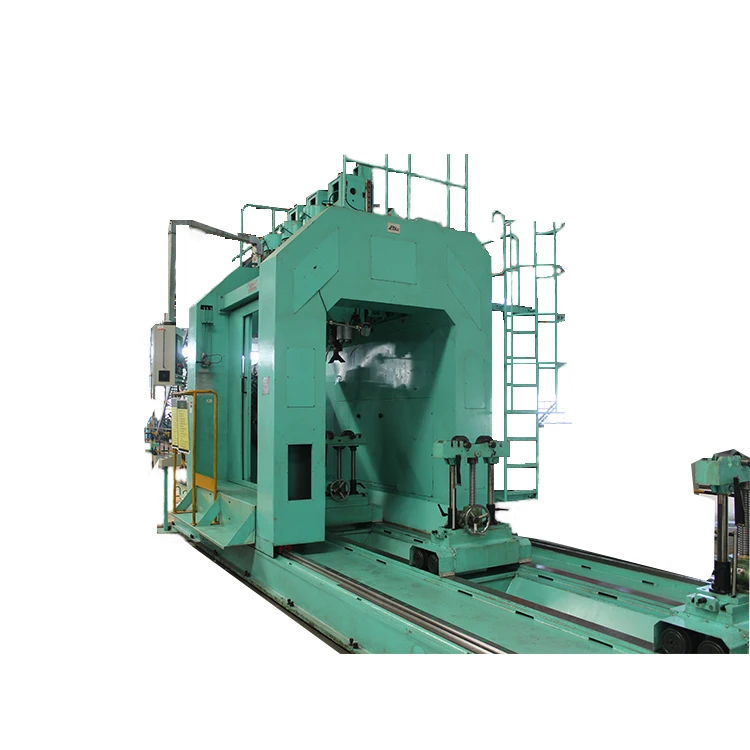

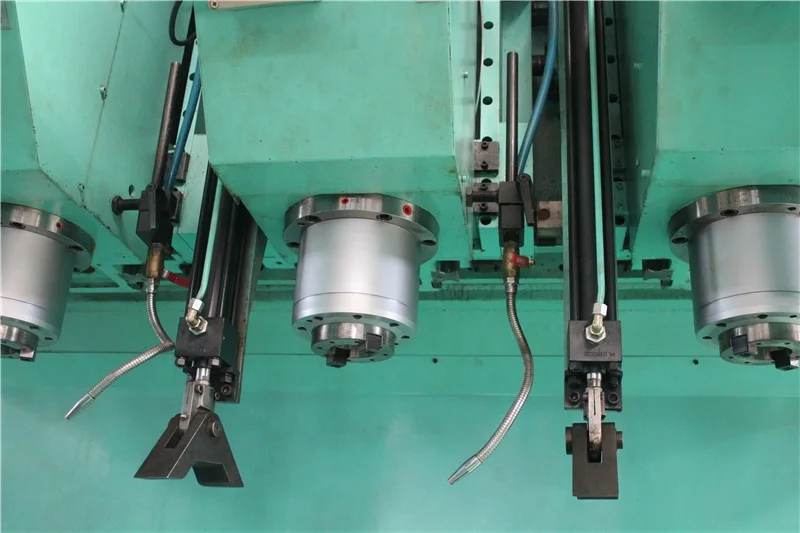

The machine tool consists of a base, a gantry, a large slide plate, a three-axis drilling head, a numerical control indexing head, an automatic detection device, a pressing device, a follow-up support, a fixed support, end support, end clamping, chip removal and cooling system, It is composed of automatic lubrication, hydraulic system, pneumatic system and electrical system.
The special combined tool used by this machine tool (machine-clamped special compound tool, combined structure of the cutter body and the blade) can complete the processing of through-holes and basin-shaped holes at one time. Although the structure and shape of the tool and the shank are customized, the blades used are all standard products, and the cutting parameters can refer to the use values of the corresponding blades.
