Горизонтальная Машина Для Сушки Осадка Сточных Вод
US $15000-$350000
Энергосберегающий крахмал соль двойное моющее средство конус роторная барабанная Вакуумная
- Категория: Rotary Drying Equipment >>>
- Поставщик: Sino,Pharmaceutical,Equipment,Development,(Liaoyang),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 14637.92 $* | 15369.94 $* |
| Aug-16-2025 | 14514.83 $* | 15240.72 $* |
| Jul-16-2025 | 12177.43 $* | 12786.99 $* |
| Jun-16-2025 | 14268.35 $* | 14981.44 $* |
| May-16-2025 | 12423.48 $* | 13044.23 $* |
| Apr-16-2025 | 14022.63 $* | 14723.51 $* |
| Mar-16-2025 | 13899.80 $* | 14594.58 $* |
| Feb-16-2025 | 13776.99 $* | 14465.55 $* |
| Jan-16-2025 | 13653.36 $* | 14336.7 $* |
Характеристики
Product Description

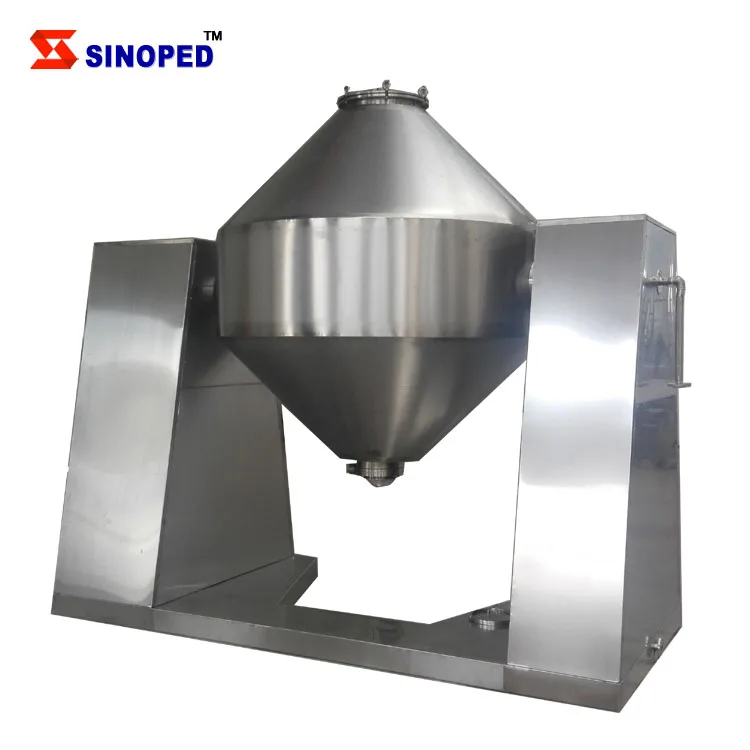

SZG Series Double Taper Vacuum Drier is a new generation drying device developed by our factory on the basis of combining the technology of same products. It has two connecting ways, i.e. Pulley or chain. Therefore it is stable in operation. The special design guarantees two shafts realize good concentricity. Heat medium and vacuum system all adapt reliable machinery seal or rotating joint made from abroad. On the basis, we also developed SZG-A. It can carry out steeples speed change and constant temperature control.As a special factory in drying industry, we provide hundreds of set to customers for their use. As for working medium, it may be high temperature conduction heat oil or middle temperature steam. For drying the adhesive raw material, the factory has designed specially a stirring plate for you.

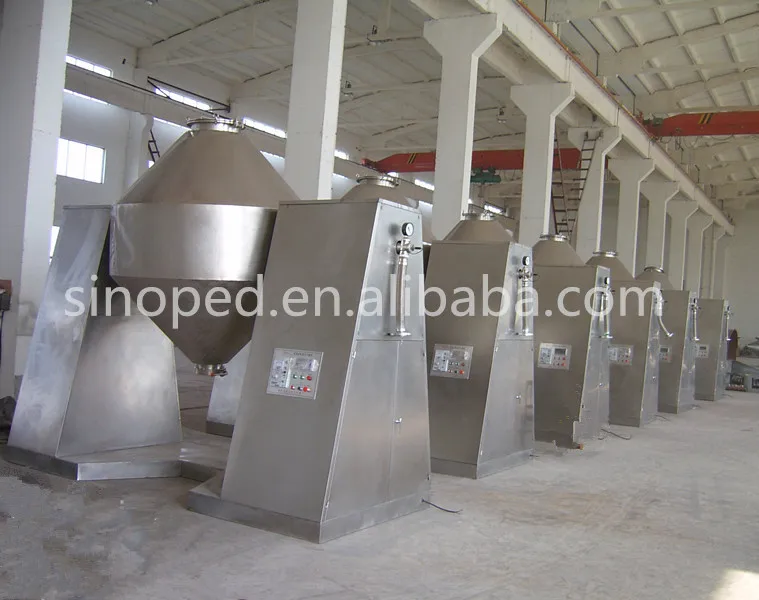

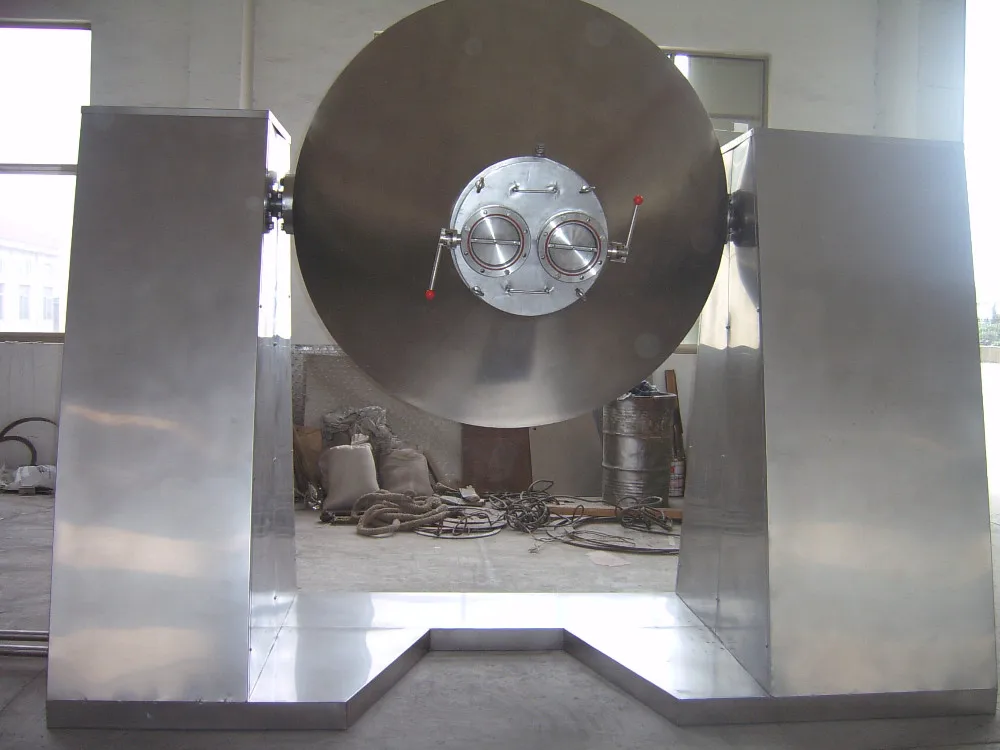

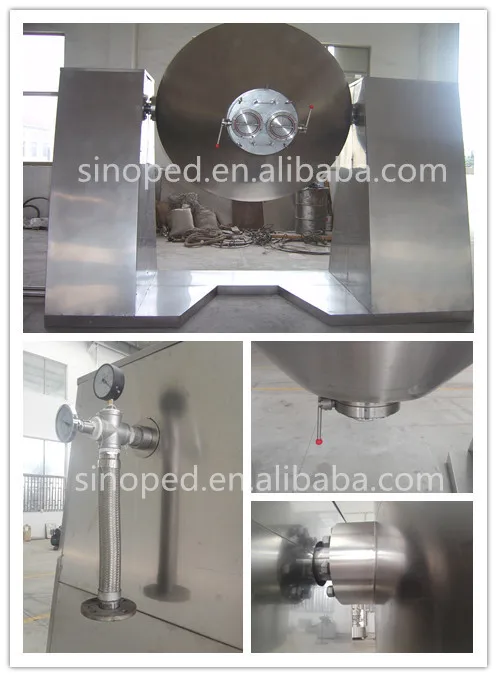

Detailed Images
Principles
○ Let heat source (for example, low pressure steam or heat conduct oil) pass through the sealed jacket. The heat will be
transmitted to raw material to be dried through inner shell;
transmitted to raw material to be dried through inner shell;
○ Under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. The purpose of reinforced drying can e realizd;
○ The raw material exists at the state of vacuum. The drop of team pressure makes the moisture (solvent) at the surface of raw material become saturation and will evaporate. The solvent will be discharged through vacuum pump an drecovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can be realized within a short time.
○ The raw material exists at the state of vacuum. The drop of team pressure makes the moisture (solvent) at the surface of raw material become saturation and will evaporate. The solvent will be discharged through vacuum pump an drecovered in time. The inner moisture (solvent) of raw material will infiltrate, evaporate and discharge continuously. The three processes are carried out unceasingly and the purpose of drying can be realized within a short time.
Technical Parameters
Item | Type | ||||||||||||||||
Name | Unit | 100 | 350 | 750 | 1000 | 1500 | 2000 | 3000 | 4500 | ||||||||
Total volume | L | 100 | 350 | 750 | 1000 | 1500 | 2000 | 3000 | 4500 | ||||||||
Working volume | L | ≤50 | ≤175 | ≤375 | ≤500 | ≤750 | ≤1000 | ≤1500 | ≤2250 | ||||||||
Heating area | ㎡ | 1.16 | 2 | 3.5 | 4.61 | 5.58 | 7.5 | 9.6 | 13.8 | ||||||||
Speed | rpm | 6 | 4 | 4 | |||||||||||||
Power | kw | 0.75 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 | ||||||||
Height of rotating frame | mm | 1810 | 2090 | 2500 | 2665 | 2915 | 3055 | 3330 | 4210 | ||||||||
Total weight | Kg | 550 | 900 | 1200 | 1300 | 1500 | 2000 | 3000 | 4000 | ||||||||
Design pressure inside tank | Mpa | -0.09~0.096 | |||||||||||||||
Design Dressure inside jacket | Mpa | ≤0.3 | |||||||||||||||
Product Applications
It is suitable for the raw materials that need to concentrate, mix and dry at low temperature (for example, biochemistry products in chemical, pharmaceutical and foodstuff industries. Particularly it is suitable for the raw materials that are easy to oxidize, volatilize and have strong heat sensitive and toxic and not permitted to destroy its crystal in drying.
Company Profile
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are glass-lined reactors, fermentors, centrifuges, granulators, mixers, dryers, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines, cartoners and rollers.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as India, Indonesia, Pakistan, Thailand, Vietnam,Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are glass-lined reactors, fermentors, centrifuges, granulators, mixers, dryers, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines, cartoners and rollers.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as India, Indonesia, Pakistan, Thailand, Vietnam,Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.
