Автоматическая Стальная Сетчатая сварочная машина аппарат для точечной сварки с ЧПУ точечный
- Категория: Wire Mesh Making Machines >>>
- Поставщик: Shanghai,Trintfar,Intelligent,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2380.89 $* | 2499.44 $* |
| Aug-19-2025 | 2360.9 $* | 2478.9 $* |
| Jul-19-2025 | 1980.31 $* | 2079.10 $* |
| Jun-19-2025 | 2320.31 $* | 2436.56 $* |
| May-19-2025 | 2020.71 $* | 2121.36 $* |
| Apr-19-2025 | 2280.92 $* | 2394.25 $* |
| Mar-19-2025 | 2260.36 $* | 2373.59 $* |
| Feb-19-2025 | 2240.0 $* | 2352.77 $* |
| Jan-19-2025 | 2220.50 $* | 2331.77 $* |
Характеристики
Product Description

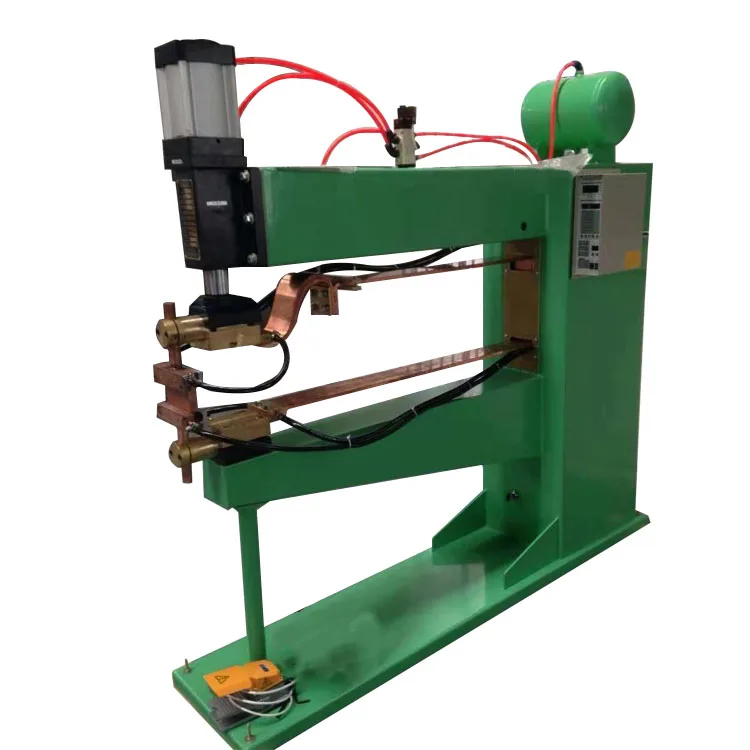

TRINTFAR This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the workpieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.
Support the proofing of welding products.Customized service: We can design and develop welding machines according to your requirements. We have many welding design cases, including automatic welding production lines. We are an efficient and capable OEM supplier.
Feature:
* The special design of one body tube cylinder can guarantee the welding stability and velocity
* Multi-pass water cooling system make sure the reliability of long time working.
* Spot and projection welding functions.
* Computer control system with steady-voltage and current, Multi-Time Discharge(MTD], can satisfy various working requirements
with ease.
* Can weld iron, copper, aluminum
* Multi-pass water cooling system make sure the reliability of long time working.
* Spot and projection welding functions.
* Computer control system with steady-voltage and current, Multi-Time Discharge(MTD], can satisfy various working requirements
with ease.
* Can weld iron, copper, aluminum
Item Model | DN-25 | DN-35 | DN-50 | DN-75 | DN-100 | DN-150 | DN-200 |
Rated capacity KVA | 25 | 35 | 50 | 75 | 100 | 150 | 200 |
Rated Primary voltage V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Rated frequency Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Maximum welding input KVA | 38 | 54 | 70 | 146 | 216 | 340 | 450 |
Rated duty cycle % | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Arm length mm | 340 | 380 | 380 | 380 | 380 | 450 | 450 |
Maximun compression N | 2500 | 4700 | 4700 | 7300 | 7300 | 12000 | 12000 |
Electrode stroke mm | 60 | 80 | 80 | 80 | 80 | 100 | 100 |
Welding capability Low carbon steel mm | 2.0+2.0 | 2.5+2.5 | 3.0+3.0 | 4.0+4.0 | 4.5+4.5 | 5.0+5.0 | 6.0+6.0 |
Related Products
Company Introduction
TRINTFAR in 1995, Trintfar is a high-tech enterprise of automatic welding equipment integrating scientific research, development, manufacturing and sales. As a national high-tech enterprise, after more than 20 years of unremitting efforts,
TRINTFAR has many cutting-edge welding technology products, including medium frequency, high frequency inverter resistance welding machine, numerical control resistance welding, laser welding equipment, automobile welding production line, welding robot integrated system, high speed steel drum seam welding machine, etc.
It is not only used in major automobile manufacturing and parts manufacturing enterprises, but also in aerospace, home appliance manufacturing, high-speed rail, low-voltage electrical appliances and other industries. The innovative team, excellent product design, advanced technology and reliable quality have made the TRINTFAR brand a reputation as a "reliable partner" in the welding equipment market at home and abroad.
TRINTFAR has many cutting-edge welding technology products, including medium frequency, high frequency inverter resistance welding machine, numerical control resistance welding, laser welding equipment, automobile welding production line, welding robot integrated system, high speed steel drum seam welding machine, etc.
It is not only used in major automobile manufacturing and parts manufacturing enterprises, but also in aerospace, home appliance manufacturing, high-speed rail, low-voltage electrical appliances and other industries. The innovative team, excellent product design, advanced technology and reliable quality have made the TRINTFAR brand a reputation as a "reliable partner" in the welding equipment market at home and abroad.
