40 кг/ч автоматическая машина для производства витой колючей проволочной
- Категория: Wire Mesh Making Machines >>>
- Поставщик: Hebei,Dapu,Import,&,Export,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 4736.3 $* | 4973.19 $* |
| Aug-19-2025 | 4696.70 $* | 4931.24 $* |
| Jul-19-2025 | 3940.79 $* | 4137.16 $* |
| Jun-19-2025 | 4617.94 $* | 4848.28 $* |
| May-19-2025 | 4020.31 $* | 4221.31 $* |
| Apr-19-2025 | 4537.84 $* | 4764.41 $* |
| Mar-19-2025 | 4497.81 $* | 4722.80 $* |
| Feb-19-2025 | 4458.18 $* | 4681.80 $* |
| Jan-19-2025 | 4418.10 $* | 4639.87 $* |
Характеристики
40 Kg/h automatic twisted barbed wire mesh making machine

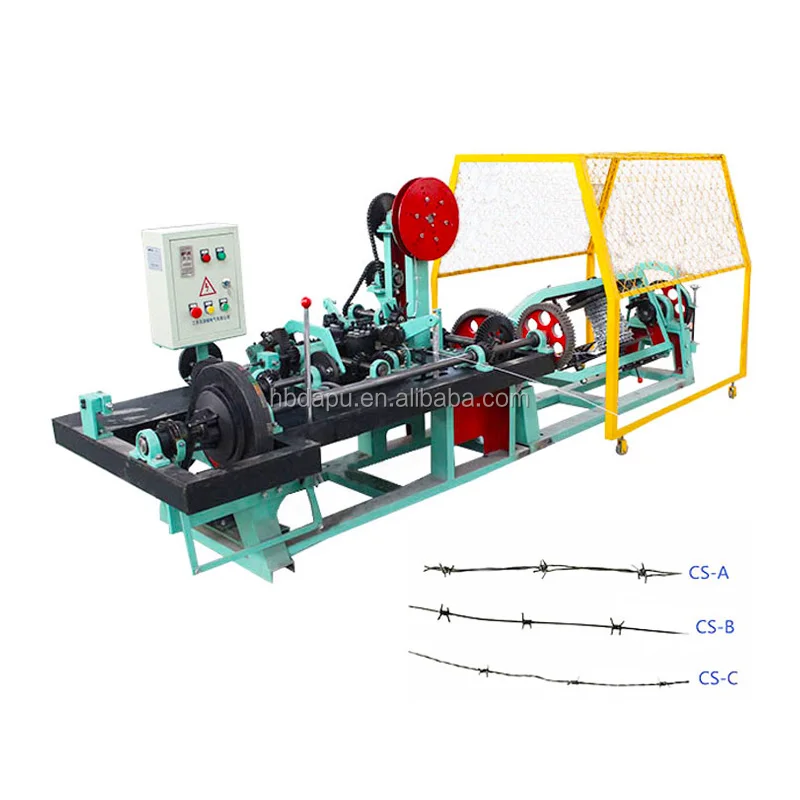

CS-A Barbed wire machine
CS-B Barbed wire machine
CS-C Barbed wire machine
Technical Parameters
Items | CS-A | CS-B | CS-C |
Main wire Diameter | 1.5-3.0mm (Max.800MPA) | 2.0-3.0mm (Max.1700MPA) | 1.6-2.8mm (Max.1300MPA) |
Barbed wire diameter | 1.6-2.8mm (Max.700MPA) | 1.6-2.8mm (Max.700MPA) | 1.4-2.8mm (Max.700MPA) |
Barbed space | 3”, 4”, 5” | 4”, 5” | 4”, 5” |
Motor power | 2.2kw | 2.2kw | 2.2kw |
Twisted number | 3-5 |
| 7 |
Raw material | Galvanized wire or PVC coated wire. | Galvanized wire | Galvanized wire |
Production | 70kg/h, 25 meters/minute | 40kg/h, 18 meters/minute | 50kg/h, 18 meters/minute |
Total weight | 1200KG | 1000KG | 1000KG |
Dimension | 1950×950×1300mm | 3100×1000×1150mm | 3100×1000×1150mm |
1760×550×760mm |
Attention: we can design the machine according to your wire diameter,wire raw materials and wire barbed.
Advance Technologies
1. Manually installation, Easy to set up;
2. Steel cover on the driving shaft for safe operation;
3. Saving materials and high capacity;
4. Counter to count the number of barbs and calculate the length of barbed wire.
5. Button switches and leveler to start and stop the machine easily.
6. Quick and easy roll extraction from the machine.
7. Guiding system to avoid wire snarls.
2. Steel cover on the driving shaft for safe operation;
3. Saving materials and high capacity;
4. Counter to count the number of barbs and calculate the length of barbed wire.
5. Button switches and leveler to start and stop the machine easily.
6. Quick and easy roll extraction from the machine.
7. Guiding system to avoid wire snarls.
Packaging & Shipping
Certifications
Ralated products
 |  |  |
| Concertina razor wire machine | Chain link fence machine | Expanded metal mesh machine |
Company Information
FAQ
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the barbed wire machine?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
