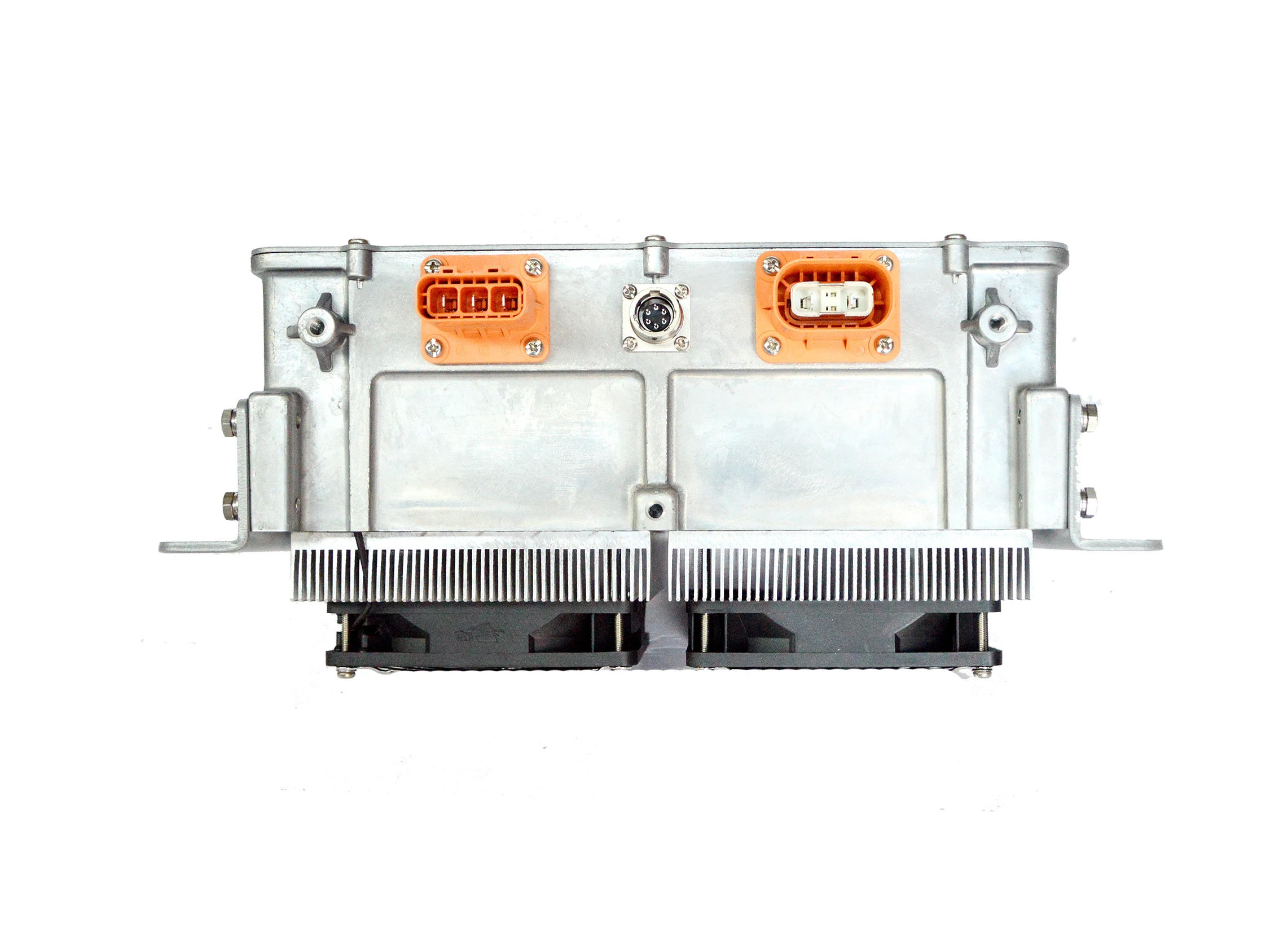

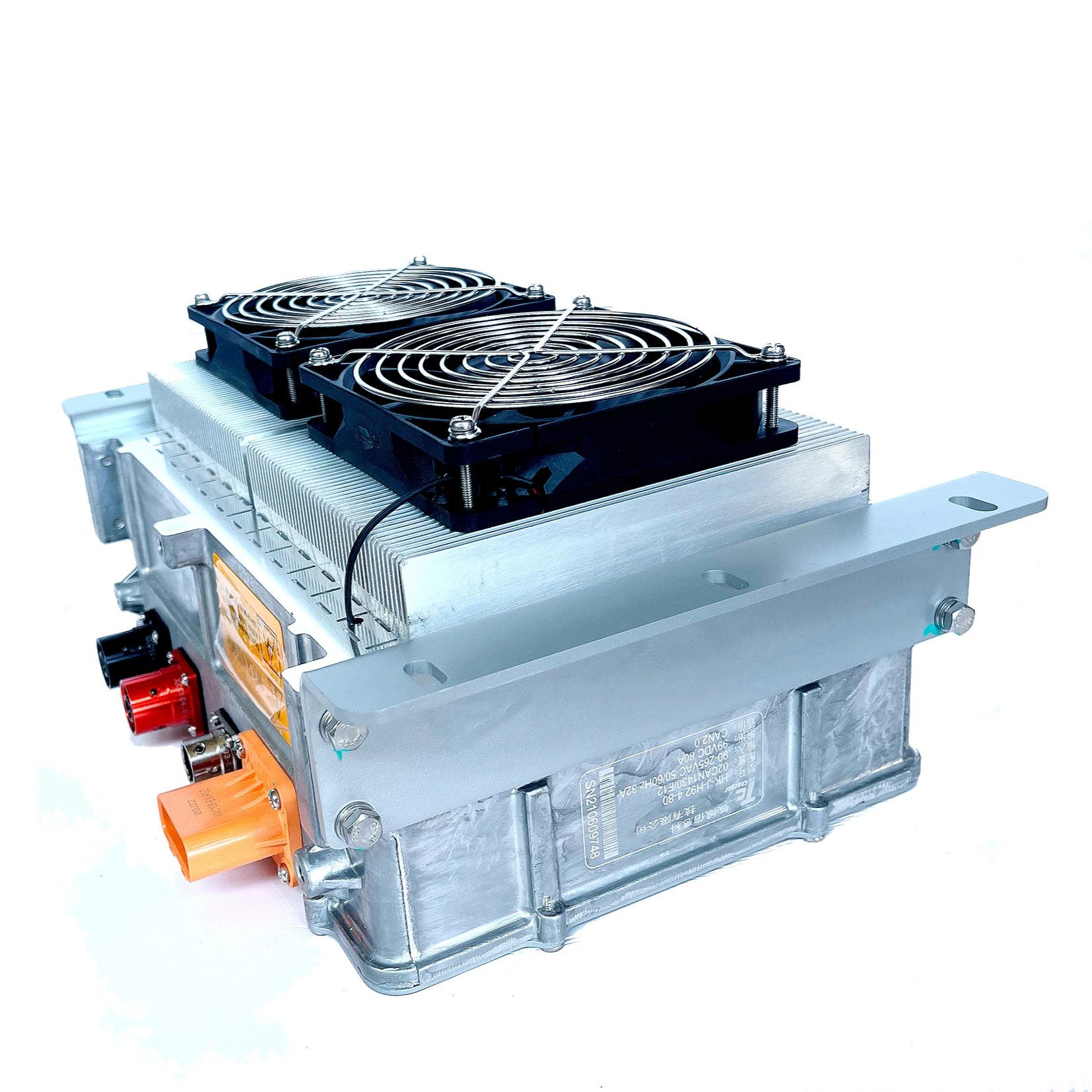

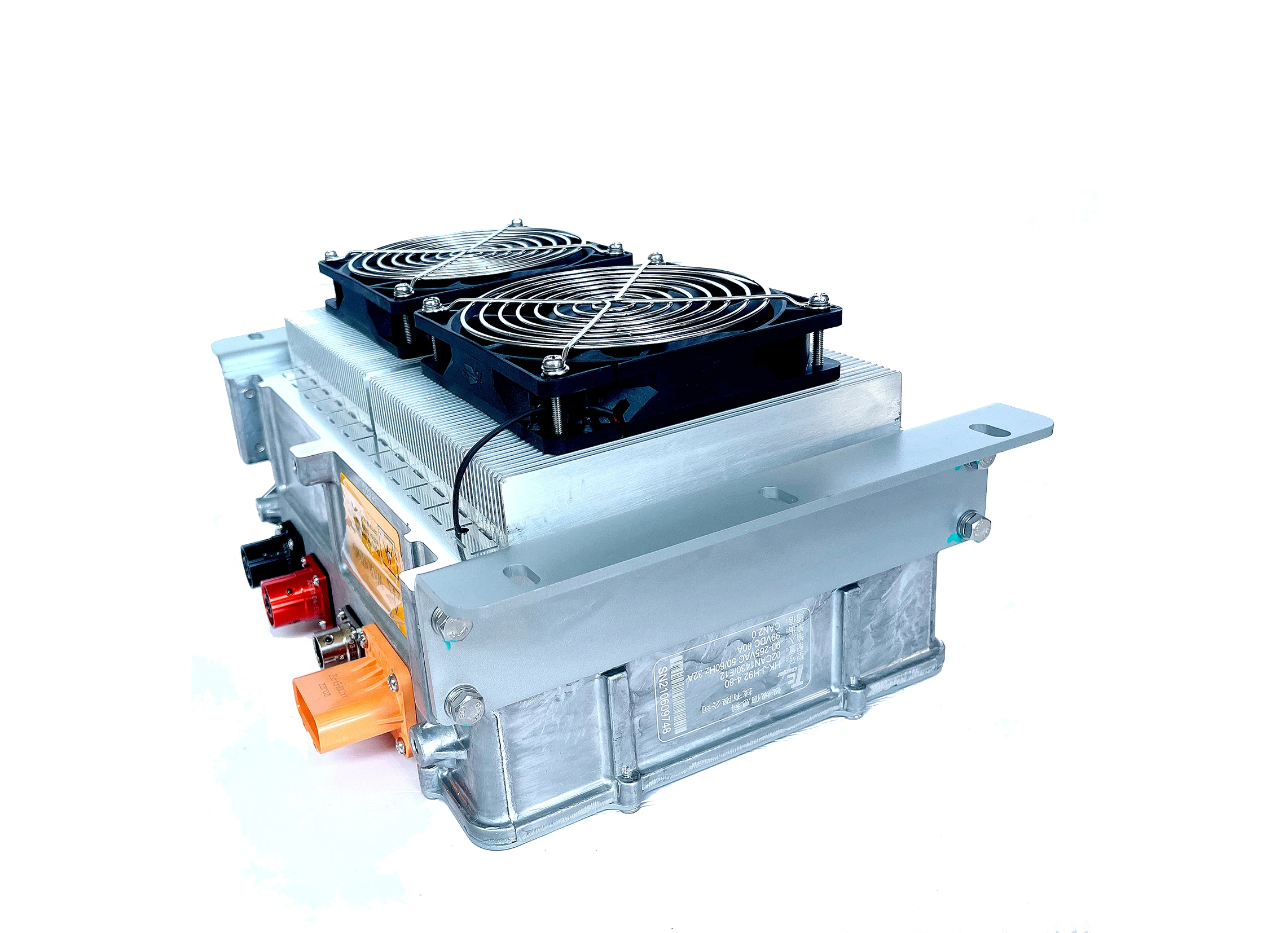

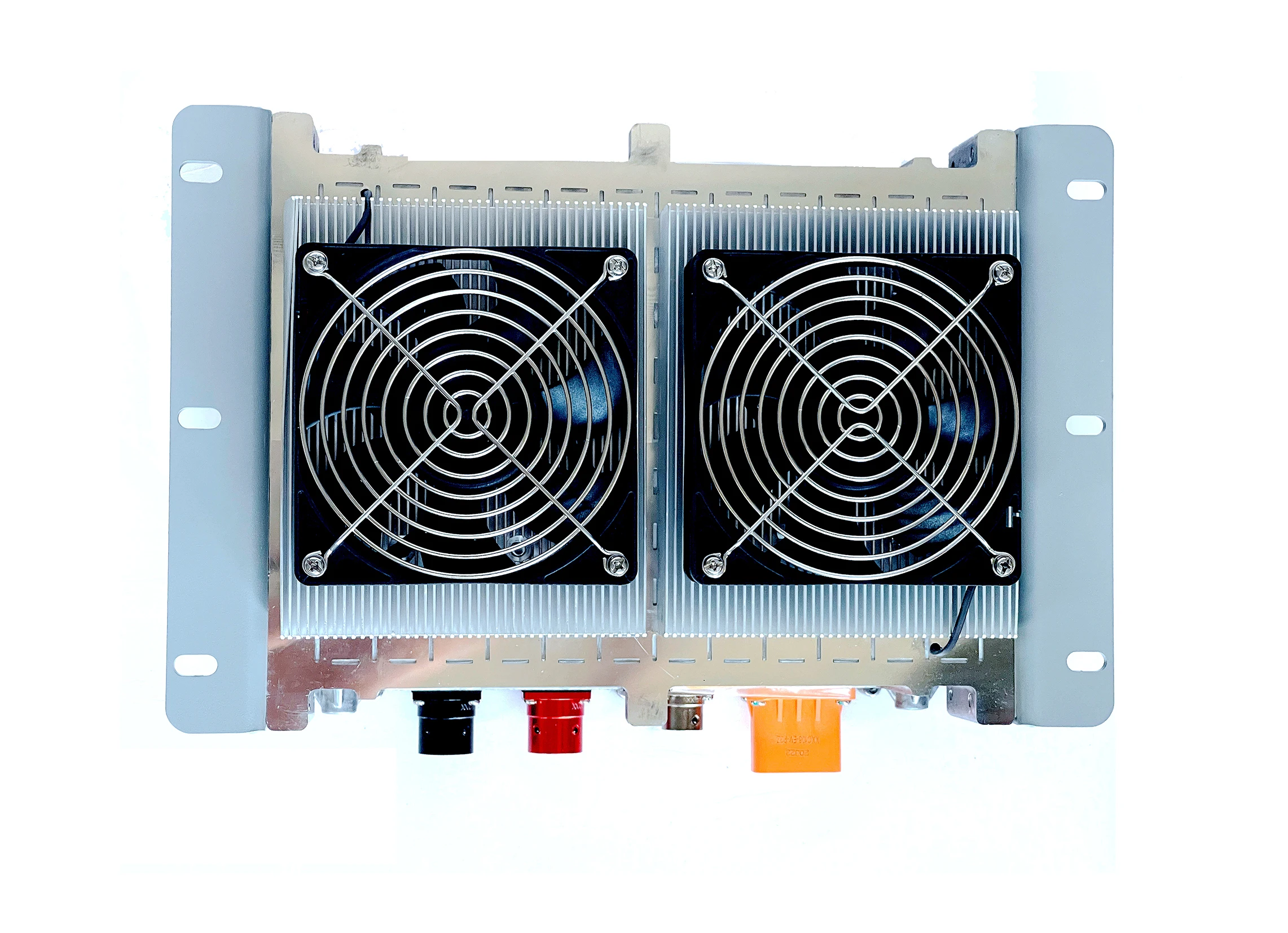

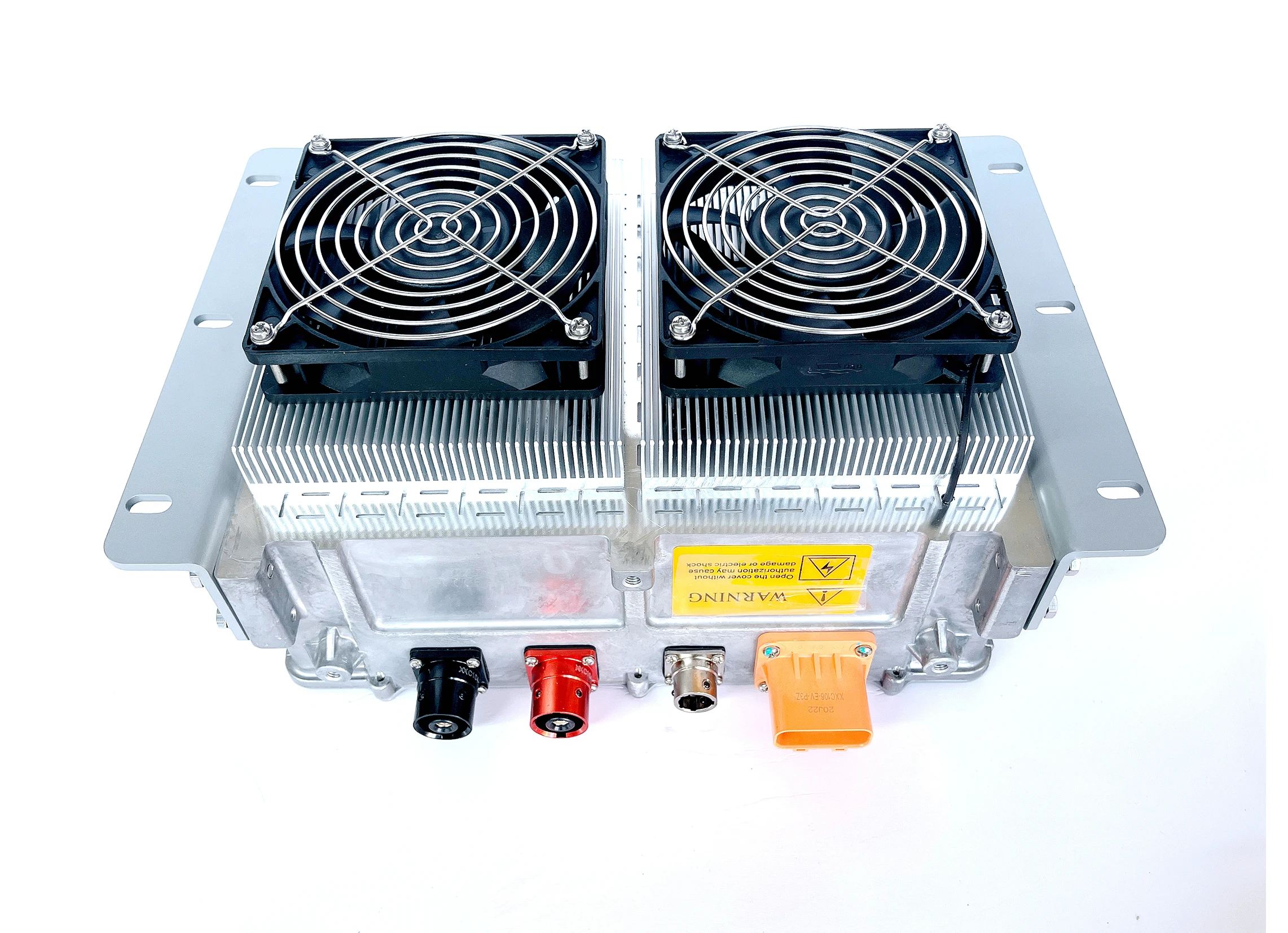

Автомобильное зарядное устройство высокой устойчивости 6 кВт бортовое для

Автомобильное зарядное устройство высокой устойчивости 6 кВт бортовое для

Категория: On Board Chargers >>>
Поставщик: Jinan,Juyuantong,New,Energy,Technology,Co.,Ltd.

Цена:850,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	1012.78 $*	1063.89 $*
Aug-16-2025	1003.92 $*	1053.33 $*
Jul-16-2025	842.45 $*	884.15 $*
Jun-16-2025	986.54 $*	1035.48 $*
May-16-2025	859.95 $*	902.37 $*
Apr-16-2025	969.56 $*	1017.19 $*
Mar-16-2025	961.42 $*	1009.95 $*
Feb-16-2025	952.8 $*	1000.16 $*
Jan-16-2025	944.75 $*	991.96 $*

Характеристики

Specification

Hardware	DC output Voltage Range	Max Output Current	Lead Acid Battery Charger Model	Lithium Battery Charger Model
48V80A	18-68VDC	80A	HK-J-48-80	HK-J-H66-80
72V80A	25-99VDC	80A	HK-J-72-80	HK-J-H99-80
96V64A	34-132VDC	64A	HK-J-96-64	HK-J-H132-64
144V46A	50-198VDC	46A	HK-J-144-46	HK-J-H198-46
312V20A	110-440VDC	20A	HK-J-312-20	HK-J-H440-20
540V12A	170-650VDC	12A	HK-J-540-12	HK-J-H650-12

Features
	CC Accuracy	±2%
		Ripple Voltage Coefficient	5%
Low Voltage Output	Output Mode	CV
		Output Voltage	13.8V/27.6V
		CV Accuracy	±1%
		Nominal Current	5A
		Max Current	5.5A±0.5A
		CC Accuracy	±2%
		Ripple Voltage Coefficient	1%
CAN Communic ation	CAN Communication	Optional
		Baud Rate	125Kbps、250Kbps、500Kbps
		Terminal Resistance	NO

Product Description

Overview

HK-J series 6.6KW charger was specially designed, by Hangzhou Tiecheng Info&Tech Co., Ltd for supplying the electricity for electric vehicle’s power battery, on the basis of the national standards for the charger. This product has the advantages of not only only high efficiency, small size, high stability, long lifespan, but also high protection grade, and high reliability and complete protection function, etc. It’s definitely an ideal charging power supply for f electric vehicles.
This charger has built-in heat-sensing device and can automatic recover through the thermal protection. Fully sealed potting process and up to IP67 protection level ensures no causing trouble in any complex environment.

Main Feature

Main Feature：Fully Sealed，Enforce air Cooling（Module Optional） Reliable working under -35℃- +85℃
Internal temperature sensor
Shut off inside temperature over 90°C IP67 Protection Level
Working well in immersion shortly

Packing & Delivery

1).Packaging
On the packing box, there are product name, product part number, product brand, product type, production number and name of manufacturer; In packing box, along with the technical documents, it includes packing list, quality certificate, product specification.
2).Transportation
Suitable for cars, boats, aircraft, transportation. The products have to be prevented against sunshine and moisture and in a civilized transportation.
3).Storage
Product should be stored in the packing box when it is not used and be maintained in a 5 ℃ to 40℃ clean, dry and well-ventilated environment. It should not be stored together with chemicals, acid and alkali substances etc,. Should avoid storing in the sun, fire, water and avoid storing with corrosive substances. The storage period is 2 years (from the inventory date of the factory). After the 2 years of storage period, the products should still comply with the provisions of the relevant standards.

Company Profile

Jinan Juyuantong New Energy Technology Co., Ltd. was established in 2013 with a registered capital of 10 million yuan.?It is a comprehensive company dedicated to the research and development and promotion of new energy auto parts. The company has always been committed to scientific and technological innovation, guided by customer needs, and focused on serving customers. A number of automobile manufacturers and special vehicle companies have carried out joint development cooperation.
The company has thirty-five technical R & D personnel, two charger assembly lines, and more than 20 complete equipments for experiments, testing and aging equipment.?The company has new energy division, foreign trade division, manufacturing center, and R & D center.

FAQ

Can I get the pre-production sample ?
A：Sure, it is welcome, we will send you sample, after you confirm.
When you ship my order?
A:Normally 3-5 days after receiving your payment, but it can be negotiated based on order qty.
How do you ship the goods?
A:DHL, UPS, FedEx or TNT, Airline and sea shipment are also available.
When can i get the price?
A:Within 24 hours. Once receive your inquiry we'll offer you as soon as possible, so don't hesitate to contact us.
