Zeroone DC 12-19V Цифровая вывеска 4K OPS PC M121 Поддержка Intel Skylake-U Core 6360U CPU OEM
- Категория: Barebone System >>>
- Поставщик: Shenzhen,Zeroone,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.18 $* | 0.74 $* |
| Aug-19-2025 | 0.56 $* | 0.54 $* |
| Jul-19-2025 | 0.9 $* | 0.11 $* |
| Jun-19-2025 | 0.39 $* | 0.70 $* |
| May-19-2025 | 0.24 $* | 0.14 $* |
| Apr-19-2025 | 0.81 $* | 0.4 $* |
| Mar-19-2025 | 0.90 $* | 0.37 $* |
| Feb-19-2025 | 0.79 $* | 0.53 $* |
| Jan-19-2025 | 0.0 $* | 0.36 $* |
Характеристики
Shenzhen ZerooneTechnology Co., LTD
Zeroone is the Intel IoT Solutions Alliance member with domestic excellent R&D engineers, project management personnel and perfect
manufacturing service system which was founded in 2009.
Our products includes MINI ITX motherboard, NANO ITX motherboard, 3.5 inch motherboard, OPS motherboard, ARM motherboard, firewall motherboard, Mini PC, Industrial PC. Also we support OEM and ODM.
Product Description

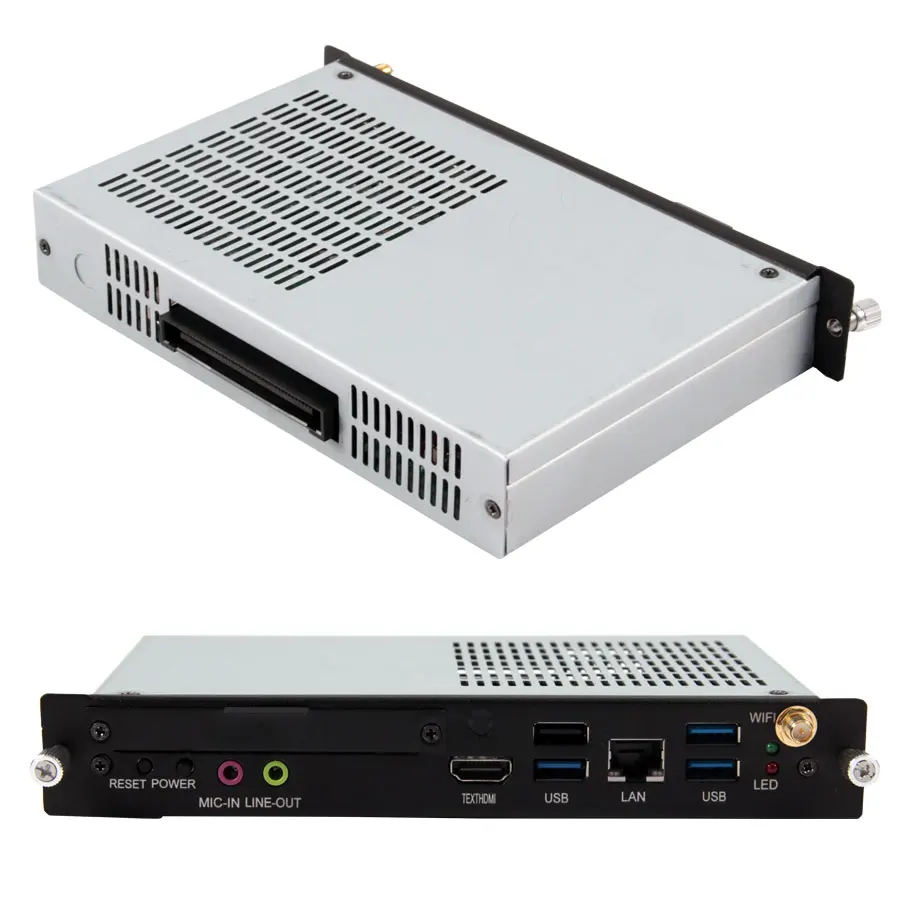

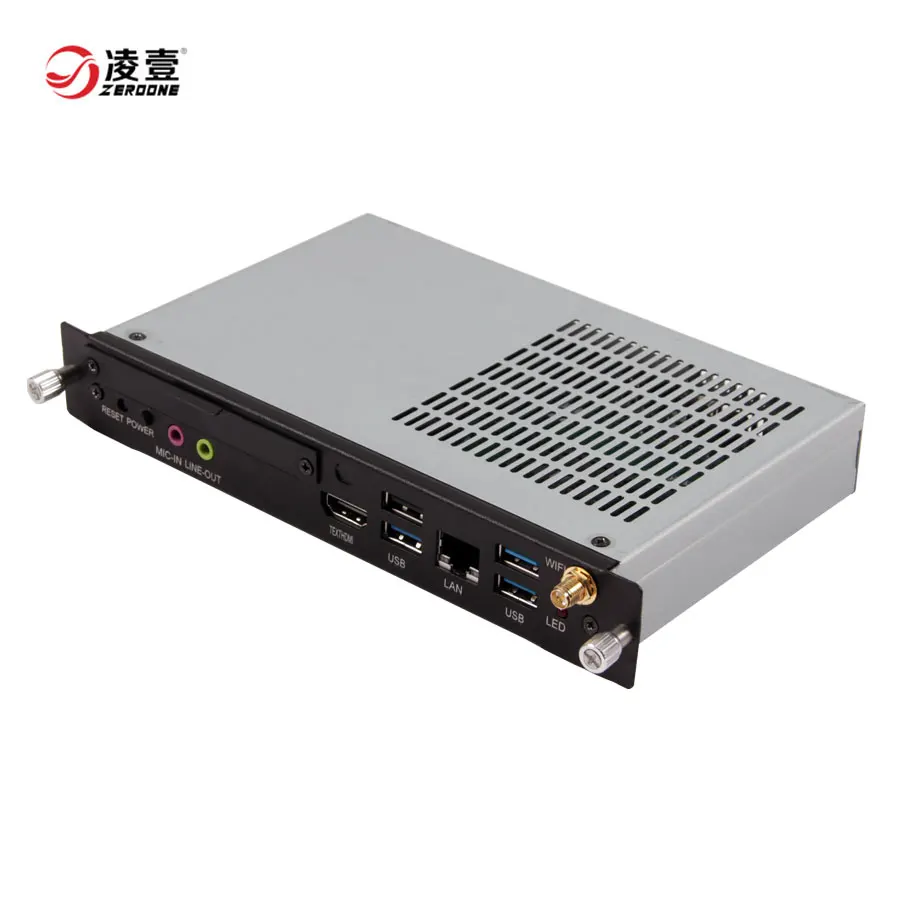

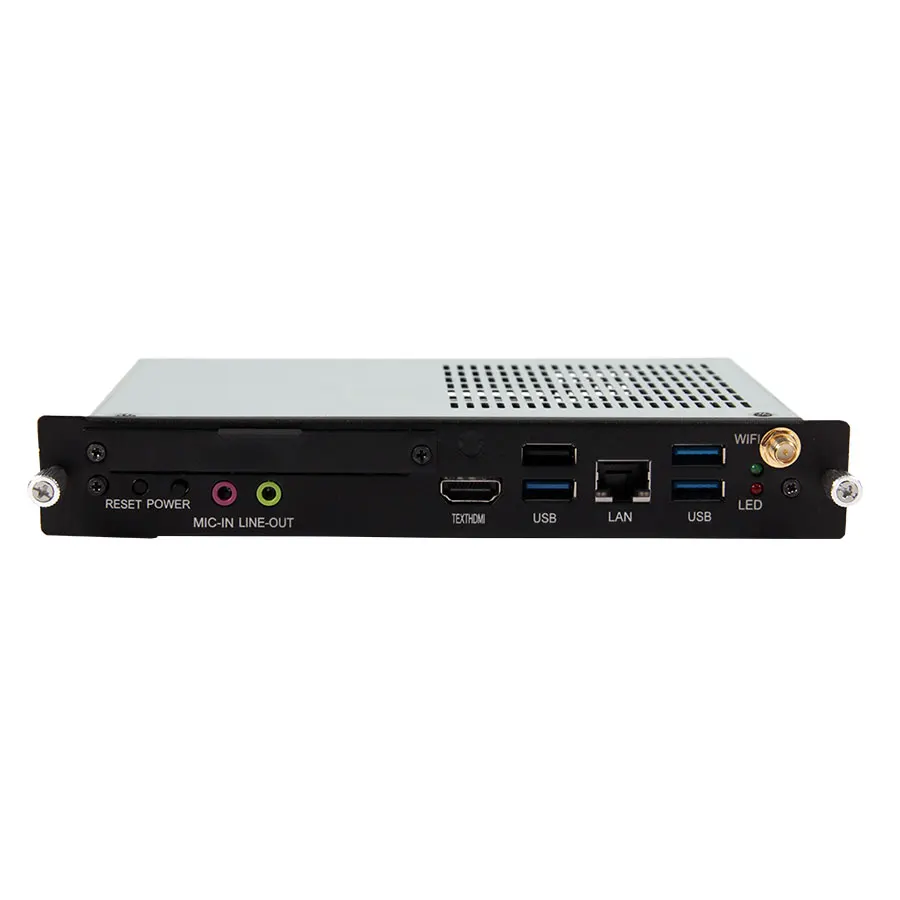

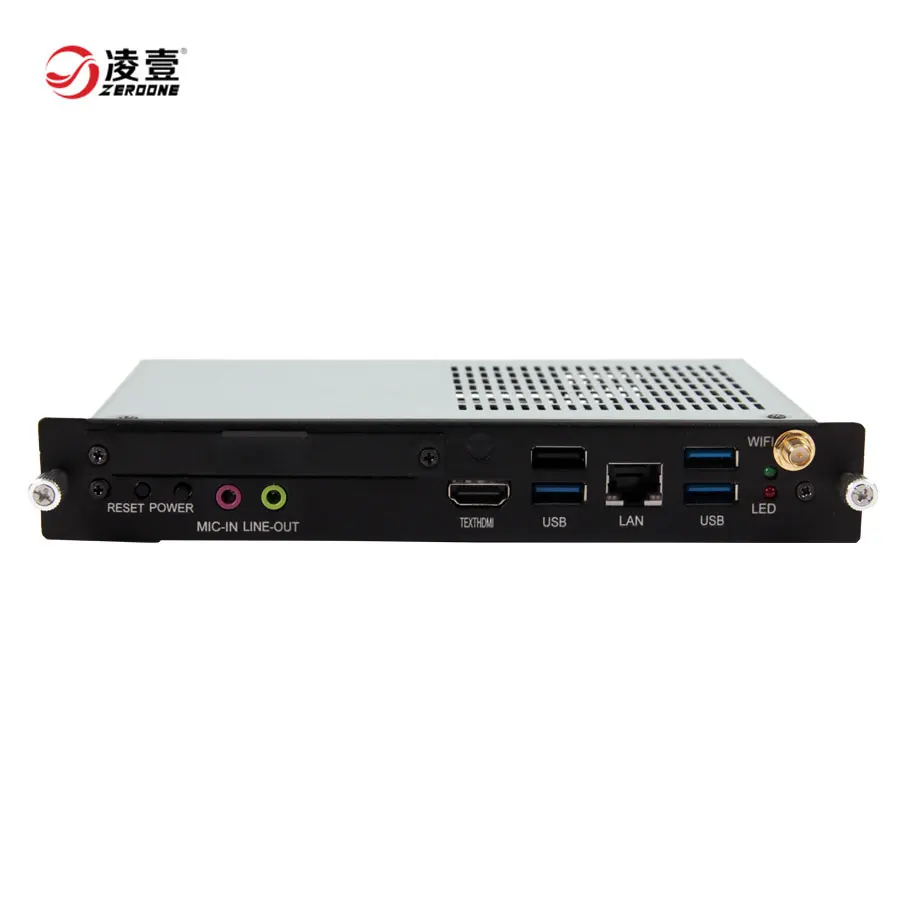

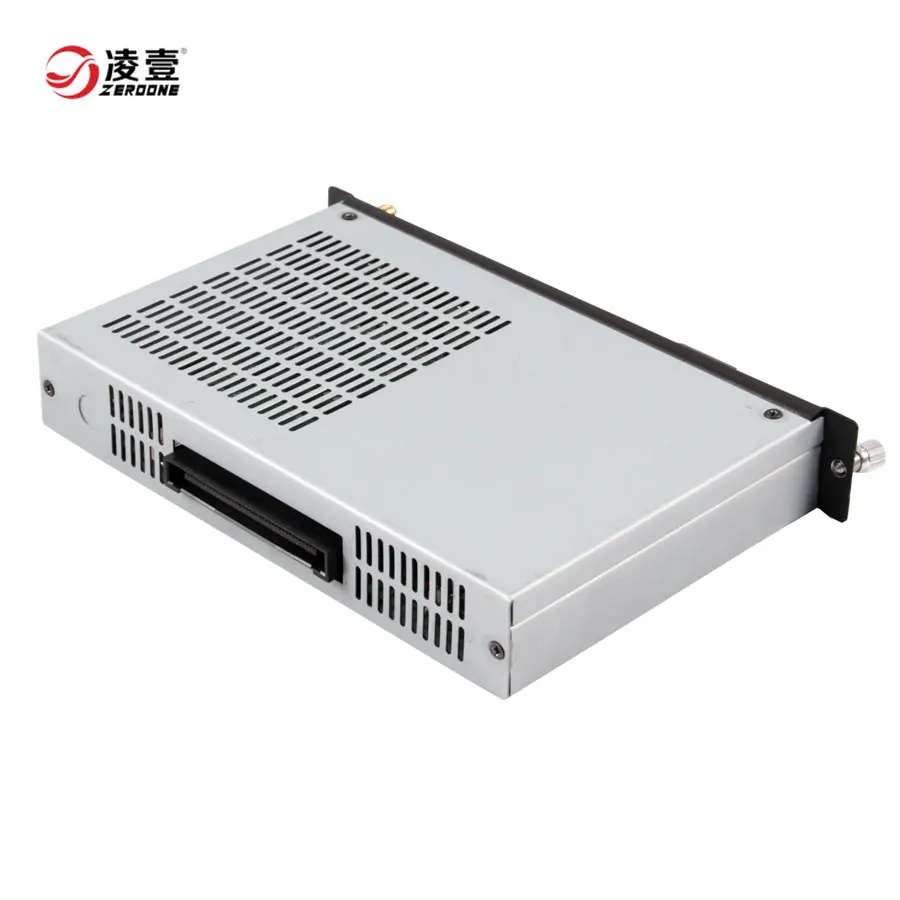

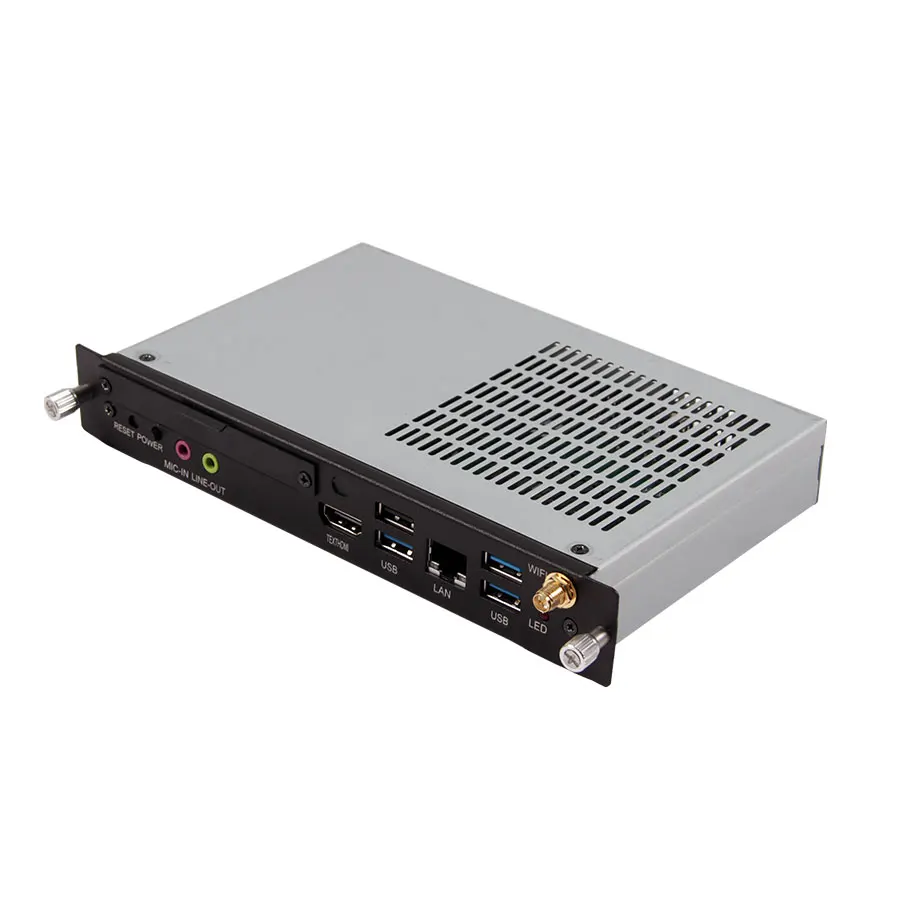

OPS PC+OPS-6360UT Motherboard
OPS M121 With OPS-6360UT motherboard | ||||
Processor | CPU | Support Intel®6/7th skylake-U/Kabylake-U Series CPU | ||
Chipset | SOС | |||
BIOS | AMI 64Mbit, support write protection, diskless start, network wake up, power on, timing start, watchdog remote switch machine intelligent identification | |||
Memory | Capacity | 1x SO-DIMM DDR4 2133MHz Max.16GB (Optional) | ||
Storage | Connector | 1xSATA （for 2.5”SSD）SATA3.0 1xM.2 M Key（NGFF SATA3.0） | ||
Display | GPU | Built in Intel HD Graphics VGA/HDMI synchronous/asynchronous display 1*VGA, 1*HDM1 | ||
I/O HDMI1.4 | 1xHDMI；resolution ratio can reach to 4096x2160@30Hz | |||
OPS HDMI2.0 | resolution ratio can reach to 4096x2160@60Hz | |||
Network | Chip | 1 x Intel I219 10/100/1000M（Onboard RJ45） | ||
WIFI | 1 x M.2 Key A for WIFI+BT | |||
I/O | USB | 1 x USB2.0 3 x USB3.0 | ||
LAN | 1*RJ45 | |||
Socket | 1* DC 1*OPS | |||
LED | 1*Power LED 1*HDD LED | |||
Button | 1* Power Button 1*RESET 1 x Ghost | |||
Audio | 1*LINE-OUT&1*MIC-IN(Realtek ALC662) | |||
Power | Input | DC 12V-19V | ||
Watchdog | output | System reset | ||
Interval | 255 level timing interval | |||
Power | Size | 180X120*30 MM | ||
Operating System | Version | Windows 7 / windows10 / Linux (Optional) | ||
Operating Environment | Temperature | 0~60℃；-20~70℃ | ||
Humidity | 5%-90% Non-condensing | |||
Application Fields
Schools, Restaurants, Hotels, Shopping malls,
Corporate meetings, Government affairs and other areas of information release applications.
