WTL 3215 7pF SMD 32 768 кГц Настройка вилок кристалл
- Категория: Passive Components >>>
- Поставщик: WTL,International,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.28 $* | 0.49 $* |
| Aug-19-2025 | 0.30 $* | 0.21 $* |
| Jul-19-2025 | 0.19 $* | 0.23 $* |
| Jun-19-2025 | 0.28 $* | 0.66 $* |
| May-19-2025 | 0.83 $* | 0.40 $* |
| Apr-19-2025 | 0.97 $* | 0.35 $* |
| Mar-19-2025 | 0.22 $* | 0.83 $* |
| Feb-19-2025 | 0.3 $* | 0.66 $* |
| Jan-19-2025 | 0.58 $* | 0.91 $* |
Характеристики
Process Flow chart
Tuning Fork Crystal, Series WX1

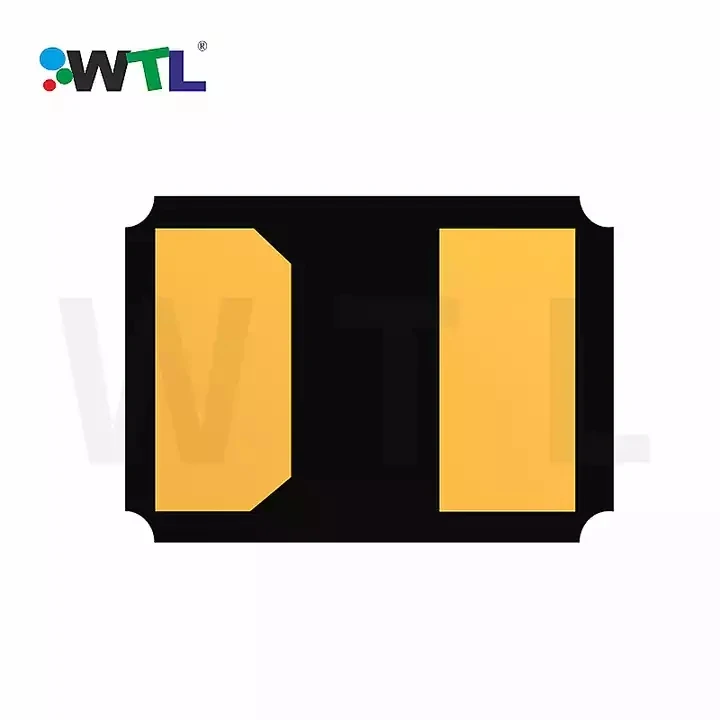

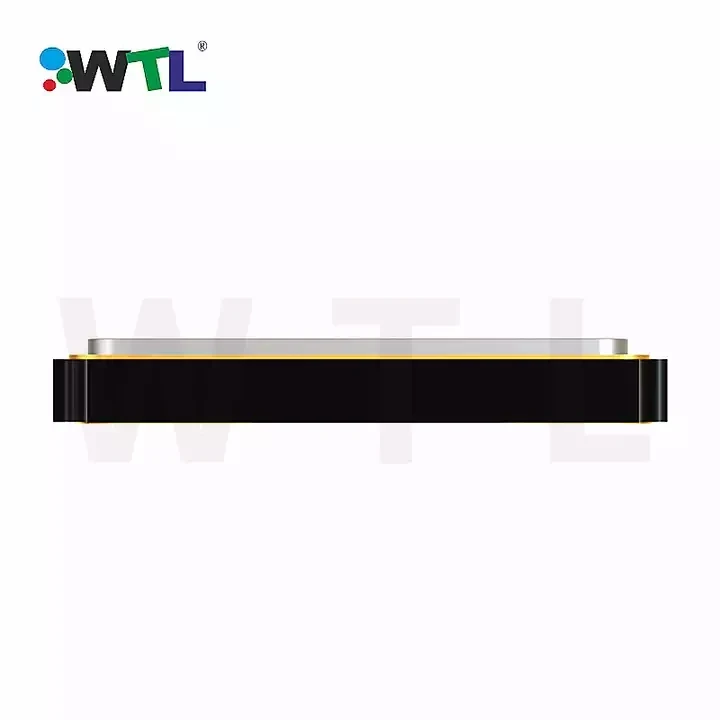

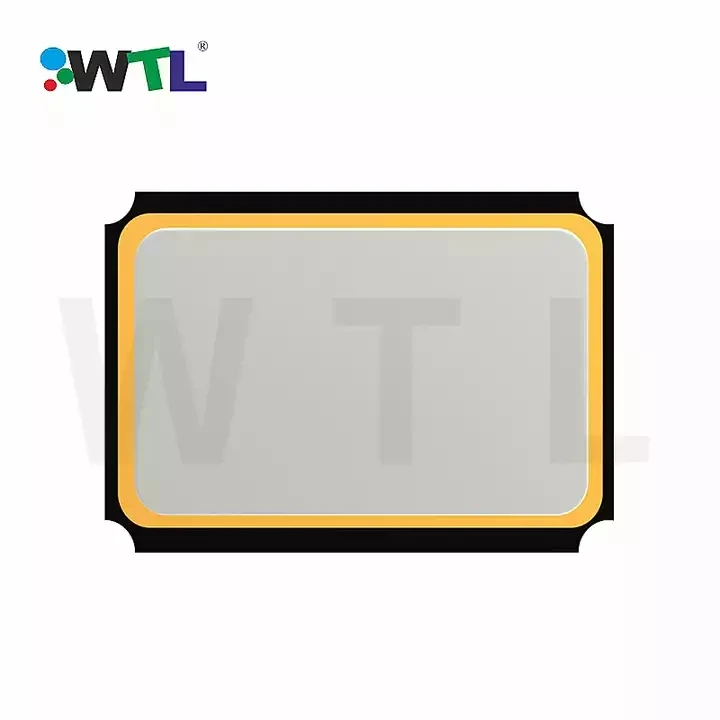

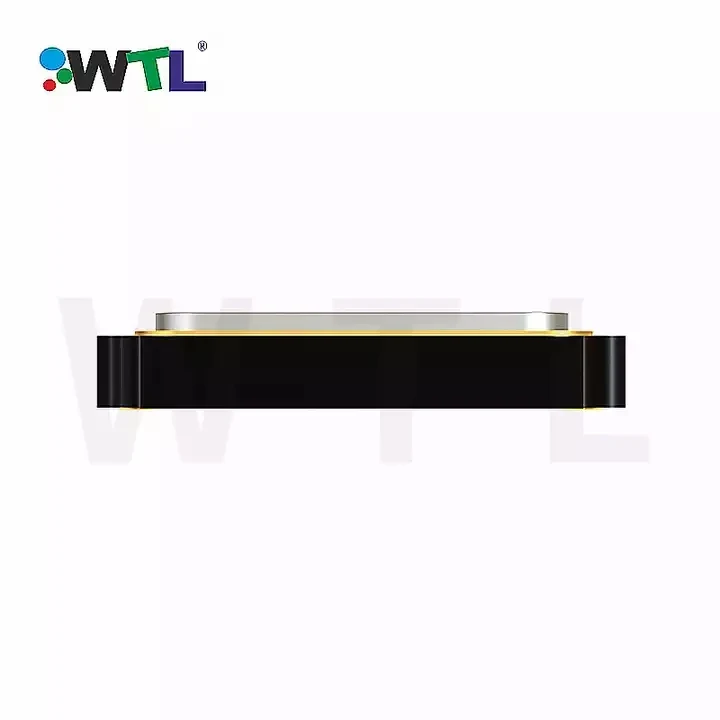

3.2 x 1.5 x 0.75 mm SMD Package
![Page28-WX1]()
Features
1.Ultra small size 3.2*1.5*0.75 mm
2.High reliability environmental performance
3.High frequency stability and high precision
4.Designed for automatic mounting and reflow soldering
5.RoHS Compliant / Pb Free
Electrical Specifications
| Item | Specifications |
| Frequency | 32.768KHz |
| Load Capacitance (CL) | 7pF |
| Frequency Tolerance( at 25°C ) | ±20ppm |
| Operating Temperature Range | -40~+85°C |
Turnover Temperature | 25 ± 5°C |
Frequency Temperature Curve | (-0.033±10%) x 10 -6/°C 2 |
Equivalent Series Resistance (ESR) max. | 50kΩ |
| Drive Level (Typical) | 0.1μW |
Drive Level(Max) | 1.0μW |
| Shunt Capacitance( C0) | 1.0pF Typ. |
Insulation Resistance | More than 500Mohms at DC100V |
| Storage Temperature Range | -55~+125°C |
| Aging @25 °C 1st Year (Max) | ±3 ppm/year |
Dimension(mm)
Our Advantages
1.Established: Year 2012
2.Full range of frequency components, there are up to 158 product types, including:
Quartz Crystal, Watch Crystal, Saw(ceramic) Resonator&Filter, OSC, TCXO,VCXO,VC-TCXO,OCXO and Dielectric Antenna etc.
3. Complete quality system including:
a)IQC,IPQC,FQC,OQC,QA,
b)Whole ERP system control,
c)ISO9001,ISO14001,
d)RoHS &SGS,meet the export standards of EU.
4. The professional team Such as:
a)365 days online serivce,
b)Solid knowledge of English language,support you solving quality problems,
c)Professional operating global Courier,
d)Graduated from the domestic or overseas foreign trade university,
e)Perfect training system,all team members have to be trained before working.
5.Over 72 Countries and Regions, 27 Distributors
Benefits for you if we cooperate
1.PCB VS Crystal Matching Test for Free
2.FAE Support
3.Provide A Full Set of Reliability Lab
4.Door to Door Service
5.Global 180 Days Return
6.Custom-made Frequencies Due to we have our own Wafer Production Line
