Поддержка индивидуальных спецификаций 36 в 48 22 А контроллер Kt для скутеров и велосипедов контроль двигателя постоянного
- Категория: Motor Controllers >>>
- Поставщик: ShenZhen,ZhongYiLong,Electronic,Technology,Co,.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.62 $* | 0.41 $* |
| Aug-16-2025 | 0.82 $* | 0.70 $* |
| Jul-16-2025 | 0.83 $* | 0.2 $* |
| Jun-16-2025 | 0.63 $* | 0.48 $* |
| May-16-2025 | 0.17 $* | 0.67 $* |
| Apr-16-2025 | 0.88 $* | 0.31 $* |
| Mar-16-2025 | 0.25 $* | 0.97 $* |
| Feb-16-2025 | 0.70 $* | 0.38 $* |
| Jan-16-2025 | 0.71 $* | 0.73 $* |
Характеристики
Product Paramenters
SPECIFICATION | ||
Size | ||
Rated voltage | DC 36V/ DC 48V/ DC60V/DC 64V/ DC 72V .ETC | |
Rated power | 350W-450W-500W-800W-1000W-1500W | |
Low voltage protection | 18A-25A-30A-35A-40A-45A | |
Standby power consumption | ＜5mA | |
Housing materials | Aluminium alloy | |
Water proof | IPX6 | |
Motor matching | Sensored Motor/ | |
Display matching | LED display/LCD display | |
FUNCTIONS&FEATURES | ||
Super low noise | Reduce the motor torque ripple to minimum ;Achieve vehicle noise -Free vibration -Free and Comfortable riding feeling (Imitation torque ) | |
High efficiency | Field oriented control (FOC)Sine -Wave driving technology allows higher system efficiency ,Lower heat loss and longer riding mileage. | |
Multiple protections | Over-current protection ,Over voltage /Under voltage protection ,Overhead protection runaway protection ,Short-Circuitprotection ,Phase wire disconnect protection ,Blockage protection . | |
Flexible configurations | All the functions of the controller depend on the needs of customers | |
Product certification | CE ROHS ISO 3C | |
36V/48V 350WController

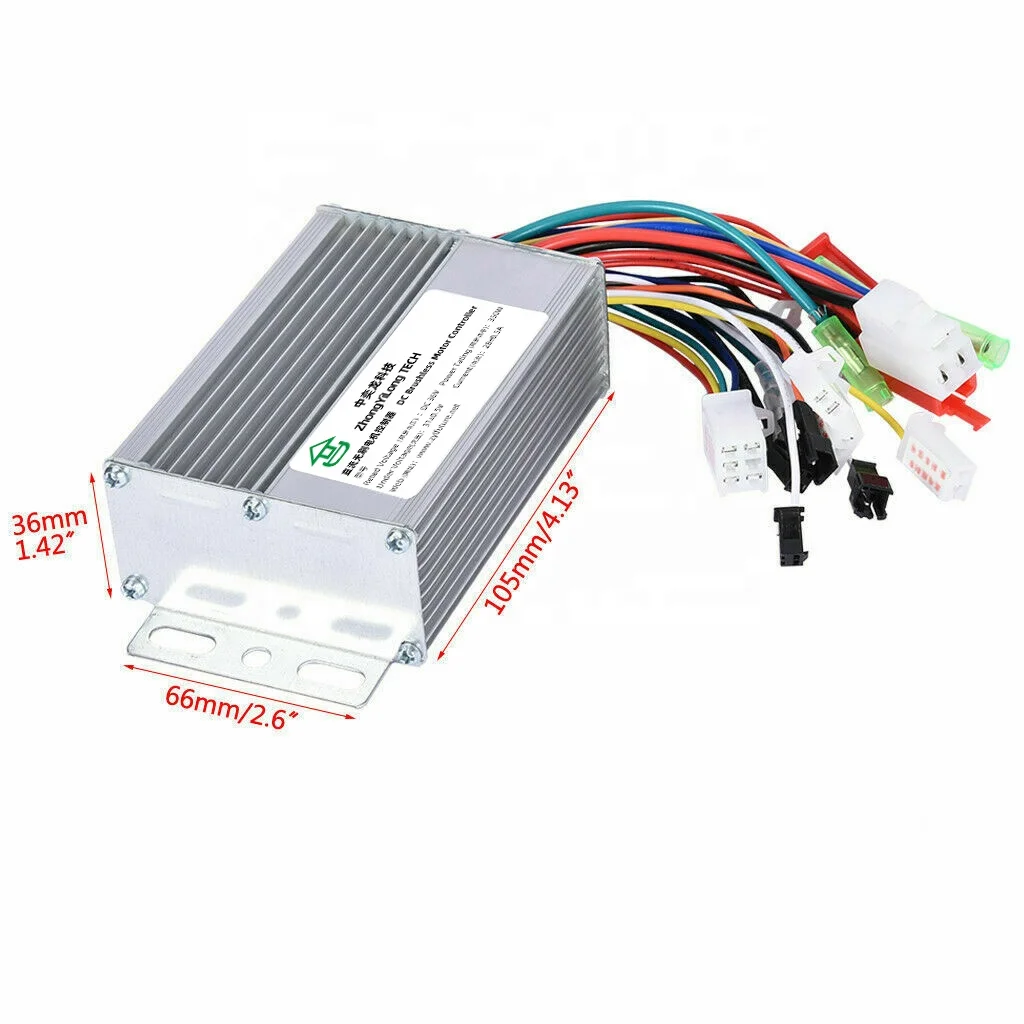

● Product size:10.5x7x3.5cm
● Voltage：36V / 48V
● power：350W
● MOS: 6
● Current：18A±1A
● Undervoltage：automatic
● Function：
Three-speed / Cruise / Anti-theft / EABS
Three-speed / Cruise / Anti-theft / EABS
450WController
● Product size:12x8x4cm
● Voltage：36V / 48V/64
● power：450W
● MOS: 9
● Current：25±1A
● Undervoltage：automatic
● Function：
Three-speed / Cruise / Anti-theft / EABS /Reversing
500WController
● Product size:15x8x4cm
● Voltage：
36V / 48V/ 60/64/72
● power：500W
● MOS: 12
● Current：30±1A
● Undervoltage：automatic
● Function：
Three-speed / Cruise / Anti-theft / EABS /Reversing
800WController
● Product size:18x8x4cm
● Voltage：
36V / 48V/ 60/64/72
● power：800W
● MOS: 12
● Current：35±1A
● Undervoltage：automatic
● Function：
Three-speed / Cruise / Anti-theft / EABS /Reversing
● power：800W
● MOS: 12
● Current：35±1A
● Undervoltage：automatic
● Function：
Three-speed / Cruise / Anti-theft / EABS /Reversing
1000WController
● Product size:23x8x4cm
● Voltage：
36V / 48V/ 60/64/72
● power：1000W
● MOS: 18
● Current：42±1A
● Undervoltage：automatic
● Function：
Three-speed / Cruise / Anti-theft / EABS /Reversing
● power：1000W
● MOS: 18
● Current：42±1A
● Undervoltage：automatic
● Function：
Three-speed / Cruise / Anti-theft / EABS /Reversing
1500WController
● Product size:23x8x4cm
● Voltage：
36V / 48V/ 60/64/72
● power：1000W
● MOS: 21
● Current：45±1A
● Undervoltage：automatic
● Function：
Three-speed / Cruise / Anti-theft / EABS /Reversing
● power：1000W
● MOS: 21
● Current：45±1A
● Undervoltage：automatic
● Function：
Three-speed / Cruise / Anti-theft / EABS /Reversing

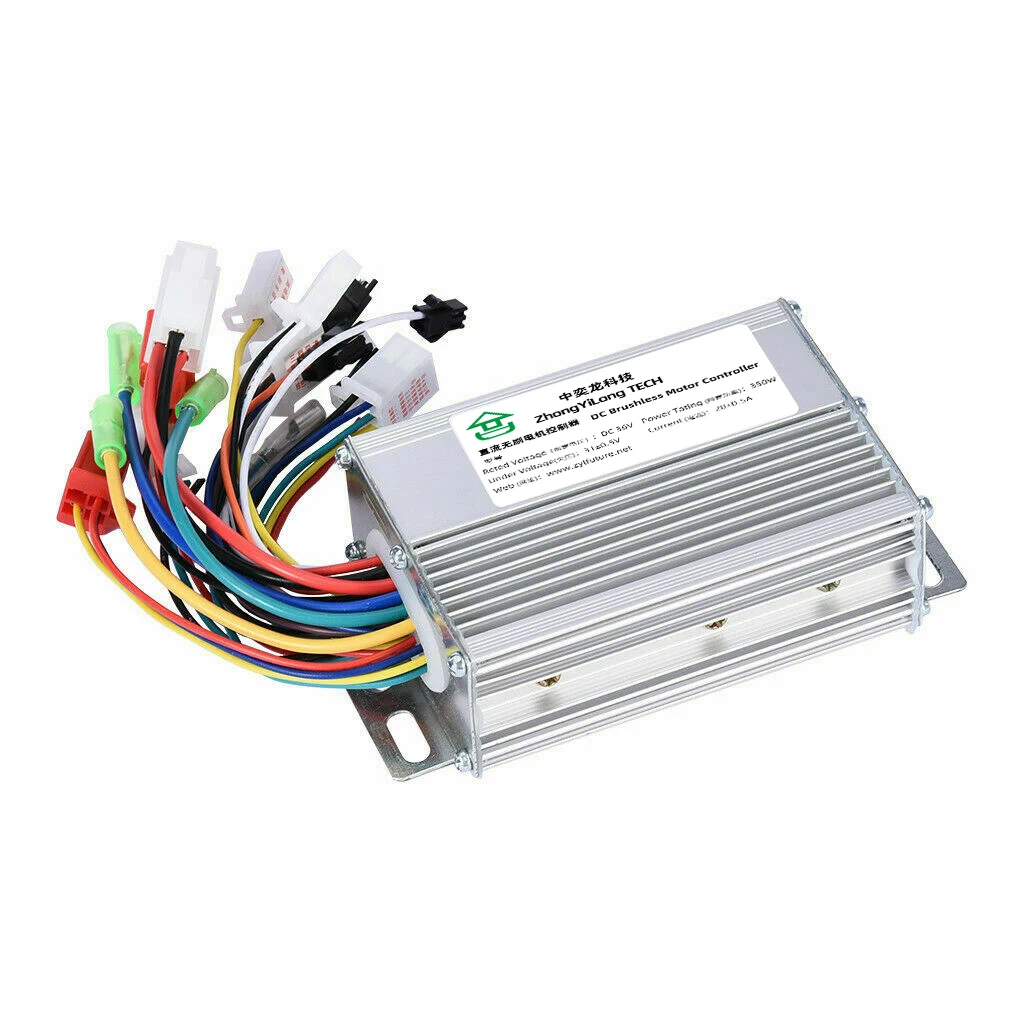

Product Features:
1. The controller shell is made of aluminium alloy with groove design, which can protect the inner circuit and good for heat dissipation to avoid thermal overloading.
2. This item is a brushless motor controller, it can provide steady speed and sensitive control of braking and direction changes. Sine wave controller works smoothly and silently.
3. The wires and interfaces are durable, and ensure low malfunction of long time use.

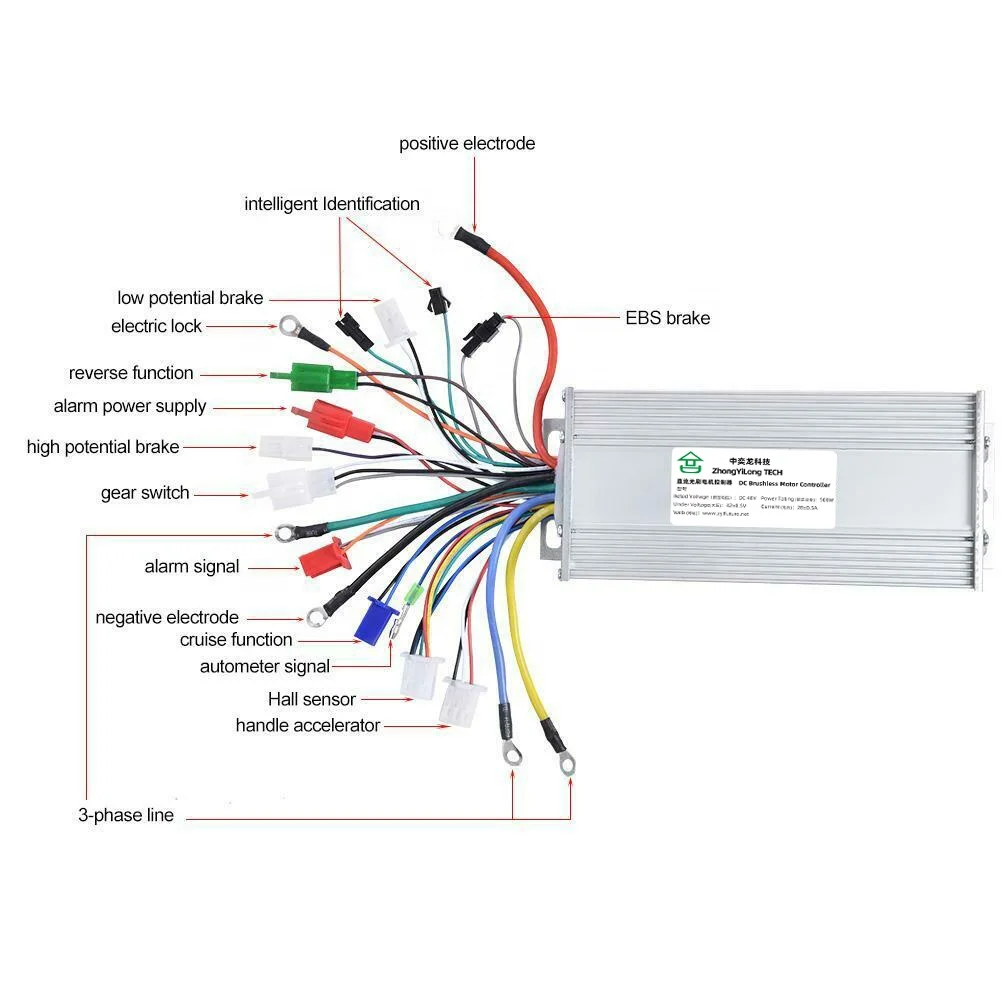

4. The interfaces have instruction labels on them for your easy installation.
5. Suitable for electric bicycles, scooter, etc.
