Характеристики

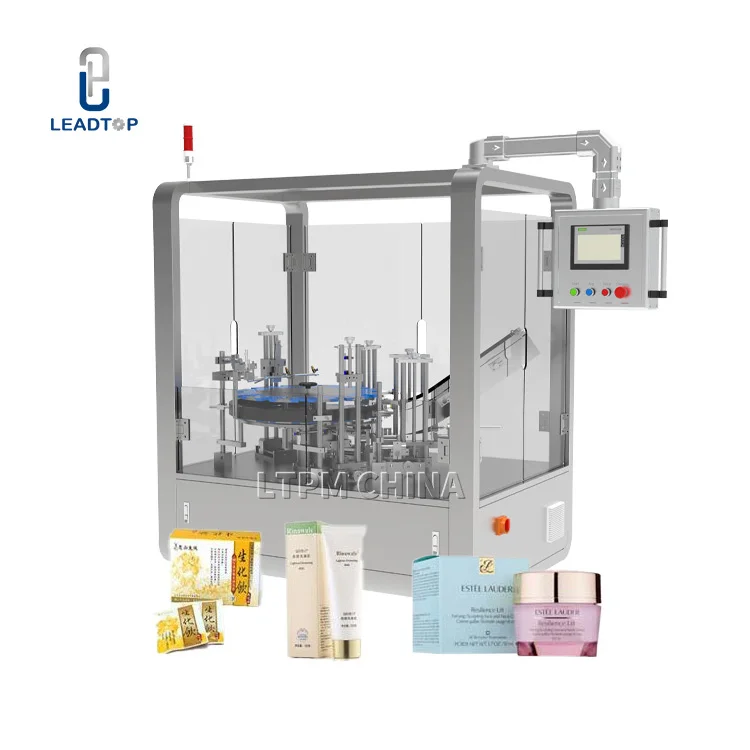

Automatic Vertical Cartoning Machine (box folding→filling→packing) It is specially design to automatic pack small quantities’ multi size box. With low cost and only require small area.
The whole equipment is made of stainless steel 304, made of aluminum alloy with anode treatment. Rust proof long service life and easily clean.
The whole equipment is made of stainless steel 304, made of aluminum alloy with anode treatment. Rust proof long service life and easily clean.
Product application：
This machine is applicable for cylinder-shaped, tubular and Irregular shape products. And it is used for cosmetic, bottles,blister packs, pouches, sachets or tube etc. packing into square box.
( There are more products that can be packaged than the ones in the picture. )
( There are more products that can be packaged than the ones in the picture. )
Data
Model | ZH-50 |
Packing speed | 20-50 Cartons/min |
Carton size range | L(40-310)*W(12-185)*H(12-132) mm |
Carton gram requirements | 135-350g/m3 |
Motor power | 2.5KW |
Power supply | Three phase 380V 50Hz |
Machine noise | ≤80dB |
Air pressure | 0.5-0.8 Mpa |
Air consumption | 150L/min |
Dimension | 1590*1380*1832mm |
Weight | 650Kg |
Warranty | 5 years |
Features
-1. The equipment adopts advanced PLC control with touch screen operation function, and the production speed can be adjusted at will without adjusting any other parameters.
-2. Advanced electrical control system: the imported encoder is used to control the electrical centralized, which is convenient to use and simple to operate.
-3. The first carton feeding system in China, which realizes the function of adding new carton without stopping the machine.
-4. This equipment can be connected with the front-end liquid filling machine, aluminum-plastic packaging machine, pillow packaging machine and other packaging machines, and realize fully automatic work. The back end can be connected to the labeling machine, strapping machine, heat shrinking machine and three-dimensional packaging machine.
-5. Available optional functions: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc.
-2. Advanced electrical control system: the imported encoder is used to control the electrical centralized, which is convenient to use and simple to operate.
-3. The first carton feeding system in China, which realizes the function of adding new carton without stopping the machine.
-4. This equipment can be connected with the front-end liquid filling machine, aluminum-plastic packaging machine, pillow packaging machine and other packaging machines, and realize fully automatic work. The back end can be connected to the labeling machine, strapping machine, heat shrinking machine and three-dimensional packaging machine.
-5. Available optional functions: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc.
Product Details
Touch screen
Advanced Siemens PLC control with touch screen operation function.
Turntable
The product will automatically drop into box via star wheel and conveyor.
Access to the box
Carton feeding system, which realizes the function of adding new carton without stopping the machine.
Open box
Station adjusting screw
Available optional functions: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc.
Instruction feeding station
Station adjusting screw
It can be adjusted according to the size of the box
Air tank
Make the air pressure more stable
low air pressure alarm
When the air pressure is unstable, an alarm is given
Circuit board
Advanced electrical control system: the imported encoder is used to control the electrical centralized, which is convenient to use and simple to operate.
Solenoid valve
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Our Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Q1: How many different sealing type of cartoner?
A: Mainly two different types: Glue Sealing and Folding sealing.
Q2: What kind of product can cartoner machine pack?
A: Blister strip, Soft Alu Strip, Glass Bottle, Plastic Bottle, Soap, Bulb,etc. any kinds of product which can be packed into
small box under our machine range.
Q3: How many different models we have?
A: we have different models according to different production capacity which are 50box/min, 100boxes/min, 200boxes/min, 300boxes/min, 400boxes/min
Q4: Can the cartoner machine connected with different inner packaging machinery?
A: Yes, the cartoner machine can connect to filling machine, blister packing machine, pillow type packing machine, tube filling machine, etc.
Q5: What is the maintainance period of cartoner machine?
A: Every three month the operator should do the lubrication and system checking on the mechanical system and electrical system. According to our Maintanance Manual, the operator can do it easily.
Q6: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q7: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q8: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q9: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
A: Mainly two different types: Glue Sealing and Folding sealing.
Q2: What kind of product can cartoner machine pack?
A: Blister strip, Soft Alu Strip, Glass Bottle, Plastic Bottle, Soap, Bulb,etc. any kinds of product which can be packed into
small box under our machine range.
Q3: How many different models we have?
A: we have different models according to different production capacity which are 50box/min, 100boxes/min, 200boxes/min, 300boxes/min, 400boxes/min
Q4: Can the cartoner machine connected with different inner packaging machinery?
A: Yes, the cartoner machine can connect to filling machine, blister packing machine, pillow type packing machine, tube filling machine, etc.
Q5: What is the maintainance period of cartoner machine?
A: Every three month the operator should do the lubrication and system checking on the mechanical system and electrical system. According to our Maintanance Manual, the operator can do it easily.
Q6: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q7: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q8: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q9: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
