DW210 цифровой зажим на земле Измеритель сопротивления земли/зажим тестер


Поделиться:


Цена:197,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 250.16 $* 255.37 $*
Jul-16-2025 203.43 $* 207.97 $*
Jun-16-2025 246.75 $* 251.64 $*
May-16-2025 244.89 $* 249.94 $*
Apr-16-2025 195.58 $* 199.7 $*
Mar-16-2025 240.52 $* 245.59 $*
Feb-16-2025 238.86 $* 243.60 $*
Jan-16-2025 236.80 $* 241.54 $*

Характеристики



Products Description

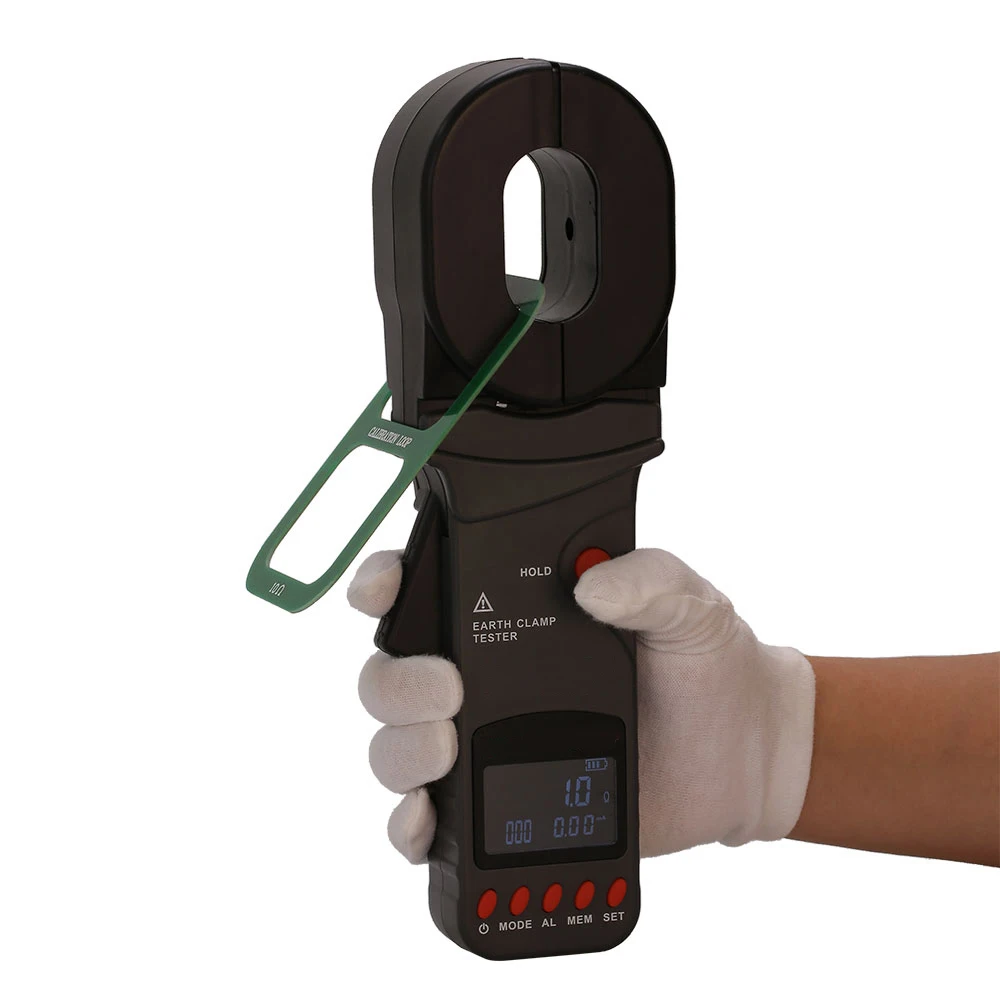

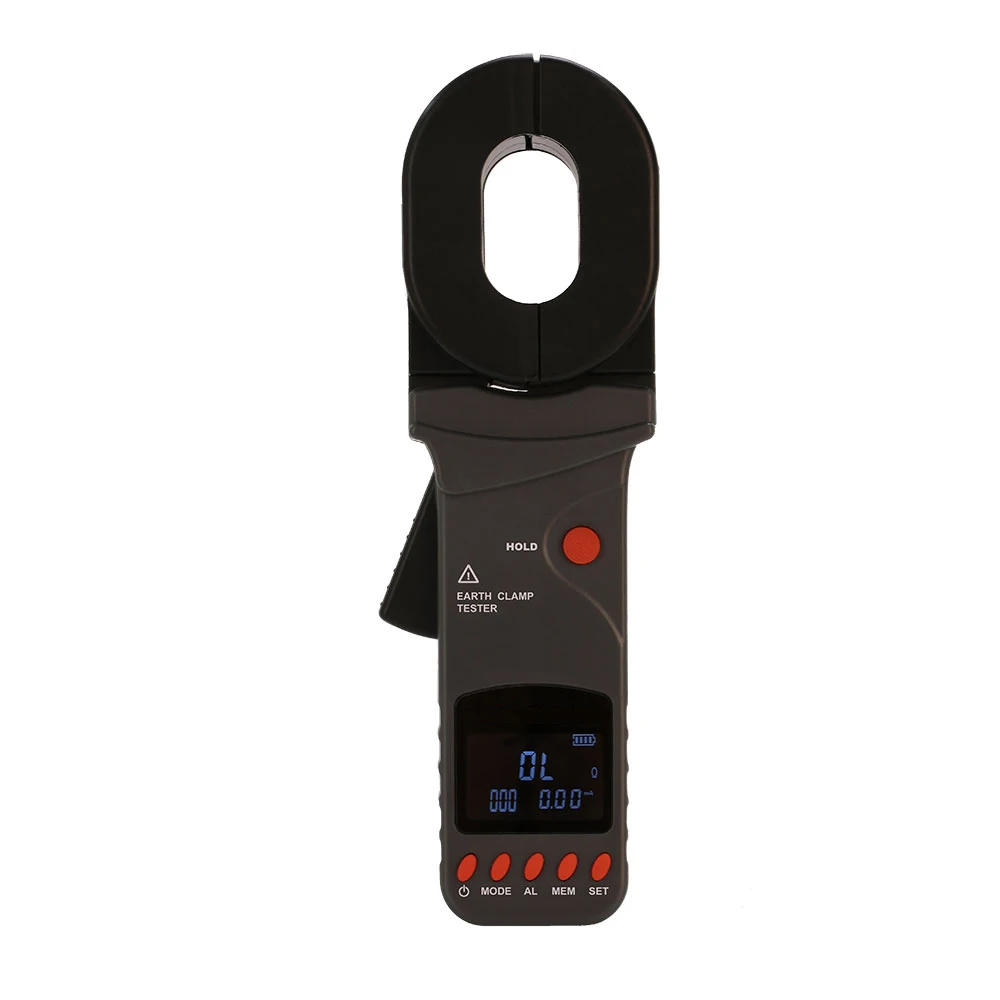

Clamp ground resistance tester
New black screen design, high-end luxury
Fast self - check function, no waiting
Adopt fast filtering technology, strong anti-jamming ability



Newly designed jaws
No gap and high precision jaws, long life of the jaws, the opening size of the jaws is 32mm


High precision output is easy to apply
Applicable to electrolytic electricity, mobile phone notebook maintenance, PCB aging test, DC motor motor test, battery charging and other scenarios


Product Paramenters


Model contrast
Model
DW210A
DW210
DW210B
DW210C
Resistance range
0.01 Ω-200 Ω
0.010Ω-500 Ω
0.01 Ω-1200 Ω
0.010Ω-12000Ω
Type
The practical
Basic type
Explosion-proof type
More functional
Resistance resolution
0.001 Ω
0.001Ω
0.001 Ω
0.001 Ω
Current range
NO
NO
NO
0.00mA-20A
Current resolution
NO
NO
NO
0.01mA

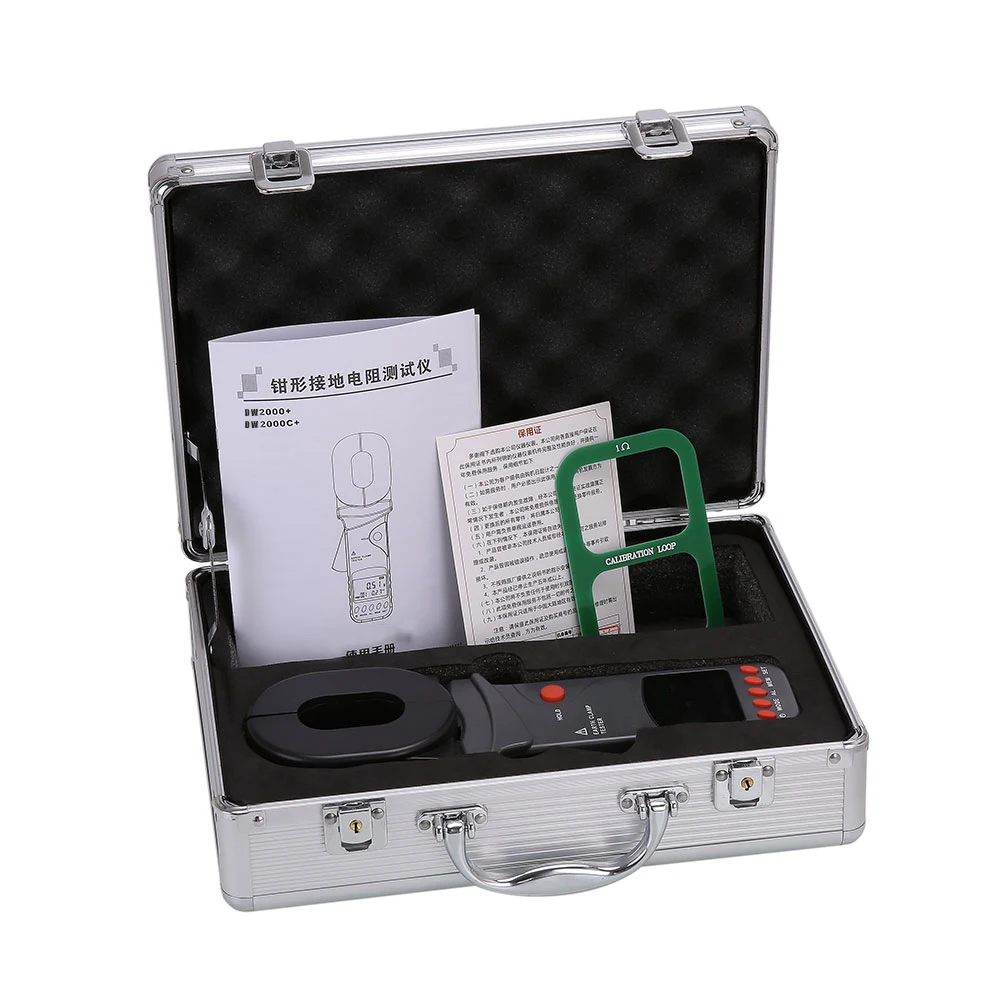

Accessories
instrument
1PC
Instrument box
1
The calibration ring
1
Instrument battery
4 units of No. 5 dry battery
Manual, certificate
1SET
Type specification
Type
DW210
The resistance range
0.01Ω- 500Ω
genre
Basic type
Resistive resolution
0.001Ω
Current range
not have
Technical Specification
Function
Ground resistance test, loop resistance test, leakage current test
Accuracy
Ground resistance accuracy:±1%±0.01Ω
Accuracy of current:±2%±1mA
Power Supply
DC6V Alkaline Dry Battery (1.5V LR6 X 4)
Measurement Method
Mutual induction
Clamp Diameter
55mmx32mm
Ω + A synchronous display
 Ω + A screen
Display Mode
4-digit LCD display, black screen design
LCD Dimension
46mm×29mm

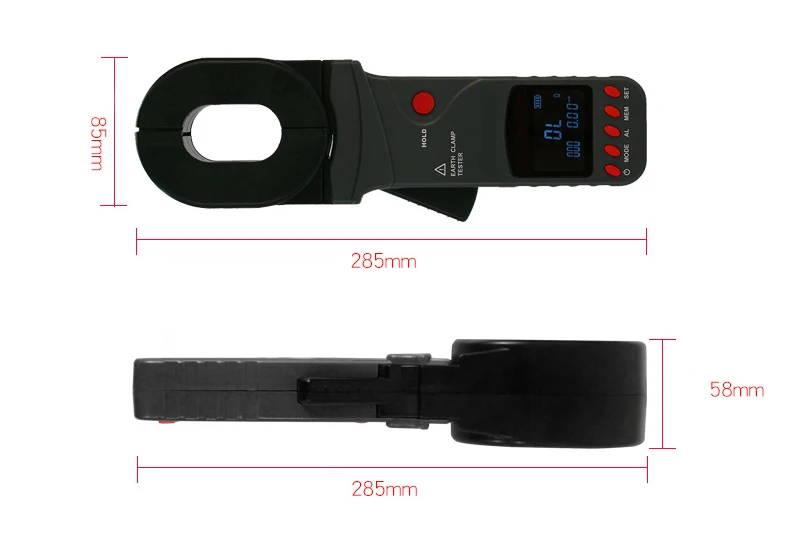

Meter Dimension
283mm×83mm×56mm
Sampling Speed
About 2 times/second
Data Storage
300 Groups, the symbol “MEM” gives indication, “FULL” mark will flash to indicate the memory has been full
Data Review
"MR" symbol indication when reviewing data
Overflow Display
Exceed measurement range overflow function: “OL ” symbol display
Test Method
Clamp CT, Integral Method
Interference Test
Automatic identify interference signal, "NOISE" symbol indication when the interference current is large
Alarm Function
Alarm when the measured value exceeds the alarm setting value
Battery Voltage
Real-time display of battery power, reminding timely charging when battery voltage is low
Automatic shut-down
"APO" instruction, automatic shutdown after 5 minutes boot
Power Consumption
50MA Max
Weight
Instrument: 1183g (with battery)
Working Temperature and Humidity
-10°C~40C; below 80% rh
Storage temperature and humidity
- 20 ℃ ~ 60 ℃; Below 70% rh
Insulation Resistance
20Ω or more (500V between circuit and outside)
Pressure Resistance
AC 3700V/rms(between circuit and outside)
external magnetic field
<40A/m
The external electric field
<1V/m
Suitable for Safety Regulations
IEC61010-1(CAT III 300V, CAT IV 150V, Pollution Degree 2); IEC61010-031; IEC61557-1 (grounding resistance)


Details Images










Field application




Multipoint earthing system










Company Profile


Shenyang Dawan Technology Co., Ltd.
Founded in 2011, Shenyang Dawan Technology Co., Ltd. develops and produces all kinds of measuring instruments and meters in China and sells them all over the world. The company can provide OEM and ODM services. The company's infrared thermal imager and non-contact infrared thermometer and other products have been widely used in various industries and around the world. At the same time, the company is also acting as an agent of famous instruments and meters in China and the world, doing import and export trade and services for China and other countries. The company has a trading company in Hong Kong, offices and R & D centers in Beijing and Shenzhen. It can do R & D, design, production, sales and service of non-standard and special instruments. The company adheres to the business philosophy of "professionalism, integrity, service and cooperation" and wholeheartedly provides users with the best quality products and services. We are willing to cooperate with colleagues from all walks of life around the world for common development!




FAQ


1. Are your company a trading one or a factory?
Factory + trade (integration)
OEM is also acceptable for us.

2. How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.

3. What’s the delivery term?
Most of the time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making a special
arrangement for you.

4. Do you accept customization service?
Yes, of course, we can not only offer standard machines but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

5. Can we visit your factory before the order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange a hotel and pick up you from the airport.

6.How about the packing for the machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.

7. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.

8.How to install and use the product
The product is shipped with operating instructions and video of the English version.
