Ультратонкий сжатый точечный лазерный модуль ATOMSTACK M40 40 Вт Модернизированный лазерной гравировки с фиксированным фокусом для лазерного
- Категория: Laser Equipment Parts >>>
- Поставщик: Shenzhen,Ssjy,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 227.21 $* | 232.60 $* |
| Jul-19-2025 | 184.62 $* | 188.92 $* |
| Jun-19-2025 | 224.68 $* | 228.93 $* |
| May-19-2025 | 222.98 $* | 226.21 $* |
| Apr-19-2025 | 177.48 $* | 181.14 $* |
| Mar-19-2025 | 218.81 $* | 222.74 $* |
| Feb-19-2025 | 217.78 $* | 221.99 $* |
| Jan-19-2025 | 215.2 $* | 219.47 $* |
Характеристики
Product Description
Feature:
1.It can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.

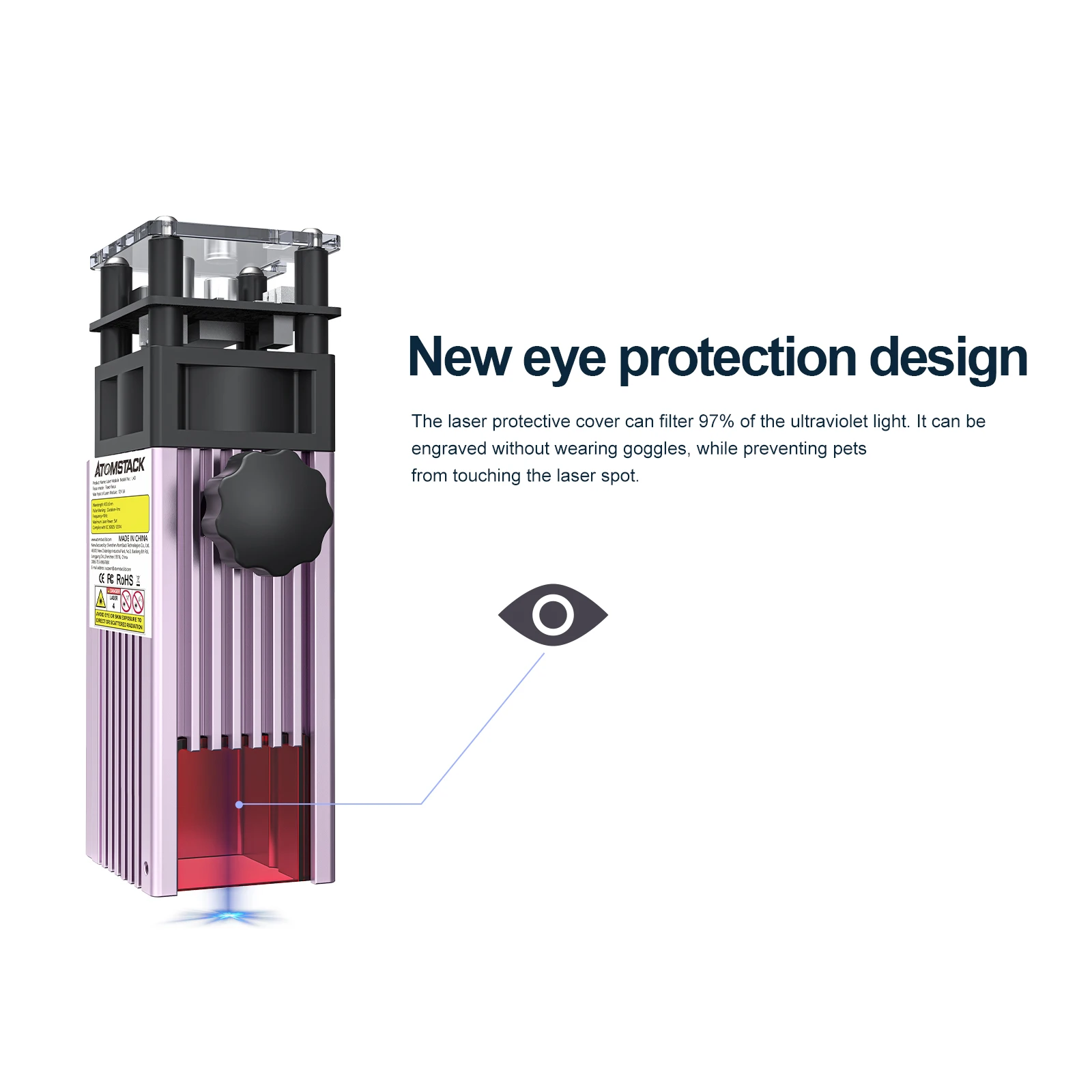

2.Laser protective cover: The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time prevent pets from grabbing the laser spot.
3. Made of aluminum, strong and durable.
4.Fixed focus laser, no need to focus.
5. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.
6.Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife.
7.Cutable material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.
1.It can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2.Laser protective cover: The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time prevent pets from grabbing the laser spot.
3. Made of aluminum, strong and durable.
4.Fixed focus laser, no need to focus.
5. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.
6.Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife.
7.Cutable material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.

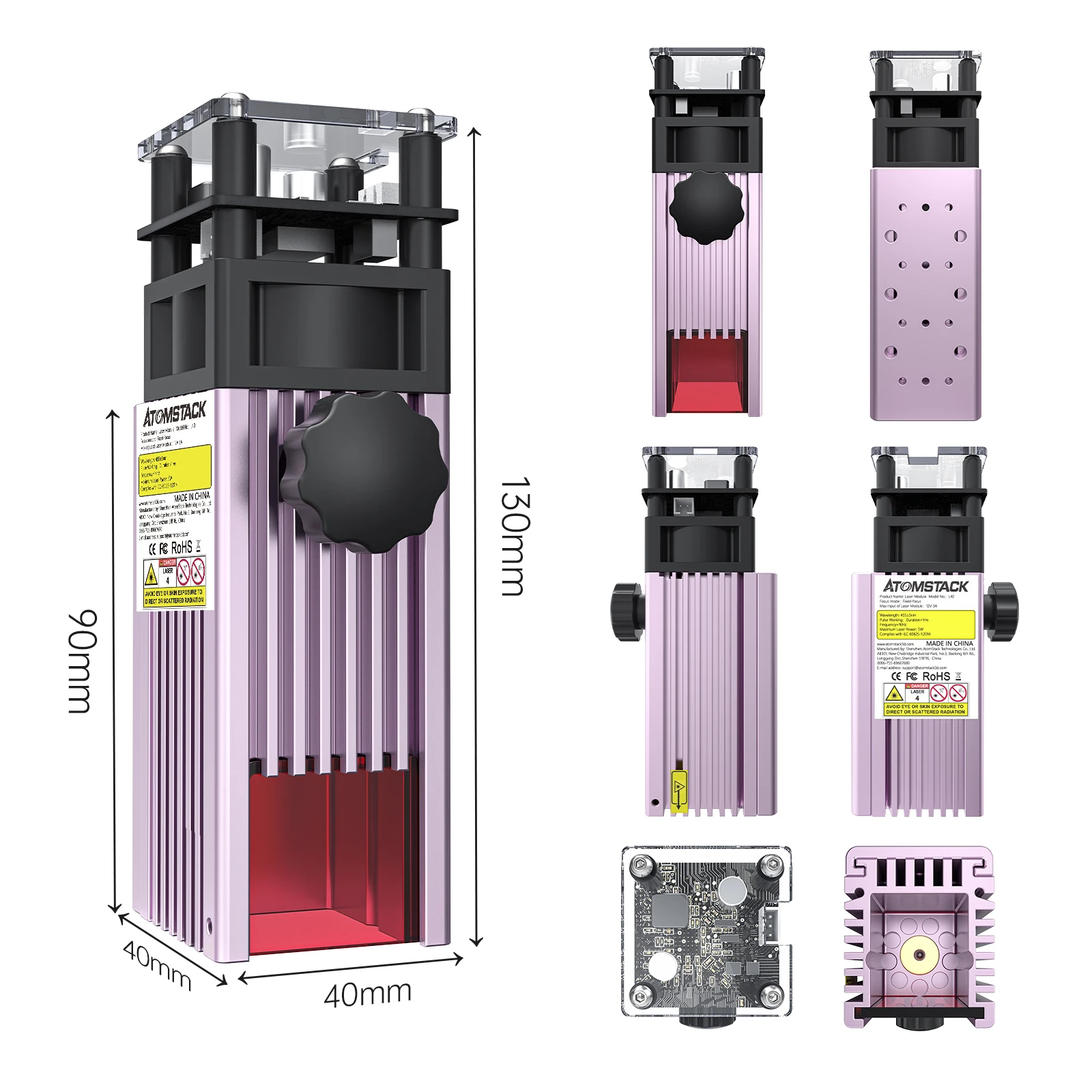

Product Name | 450 laser |
Product Number | L40 |
Specification Model | 40*40*102mm |
Housing size | 40*40*55mm |
Circuit Board Size | 40*40mm |
Circuit Board | 12V/PWM modulation board |
Wire Rod | 22# 2P2.54 terminal reverse wire 80mm |
Optical Lens | φ10/glass |
Fan | 12V |
Product Material | Aluminum 6061 anode/copper H59 |
Product Net Weight | 196g |
Optical Parameters:
TC=25℃
Items | Symbol | Min | Typ | Max | Unit | Condition |
Optical Output Power | Po | 5 | / | 5.5 | W | 12V Power |
Working current | Iop | / | 1.6 | 1.8 | A | |
Operating Voltage | Vop | / | 12 | / | V | / |
Laser Wavelength | λp | 450 | 455 | 460 | nm | / |
Electric Power | Wl | / | 19.2 | 21.6 | W | / |
Laser Beam Mode | Spot | Working Mode | Pulse work |
Lightspot Size | 30mm＜1mm | Working Temperature | 0℃~70℃ |
Divergence Angle | / | Storage Temperature | -40℃~85℃ |
Working Time | 10000H | Enclosure Polarity | / |
Payment and Transpor
Shipping Ways:
By Express—Door to Door
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the most economical way to reduce shipping cost
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the most economical way to reduce shipping cost
carton box
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(50.00%),Eastern Europe(50.00%),South America(40.00%),Southeast Asia(40.00%),Western Europe(40.00%),Southern Europe(30.00%),Domestic Market(30.00%),Oceania(10.00%),Mid East(10.00%),Central America(10.00%),South Asia(10.00%),Africa(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser engraving machine,3D printer,3d printing material,PlA 3d filaments,washable resin
4. why should you buy from us not from other suppliers?
our company specializing in the production of laser engraving machines, 3D printers, PLA consumables, washing resins and other printer peripheral products etc and has mature sales channels, supply chains and core key technologies.Factory direct sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2014,sell to North America(50.00%),Eastern Europe(50.00%),South America(40.00%),Southeast Asia(40.00%),Western Europe(40.00%),Southern Europe(30.00%),Domestic Market(30.00%),Oceania(10.00%),Mid East(10.00%),Central America(10.00%),South Asia(10.00%),Africa(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser engraving machine,3D printer,3d printing material,PlA 3d filaments,washable resin
4. why should you buy from us not from other suppliers?
our company specializing in the production of laser engraving machines, 3D printers, PLA consumables, washing resins and other printer peripheral products etc and has mature sales channels, supply chains and core key technologies.Factory direct sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
