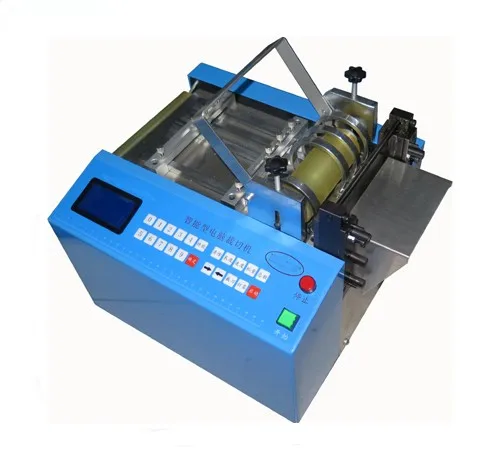

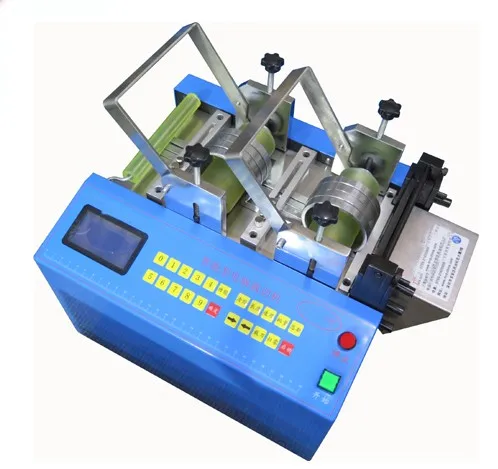

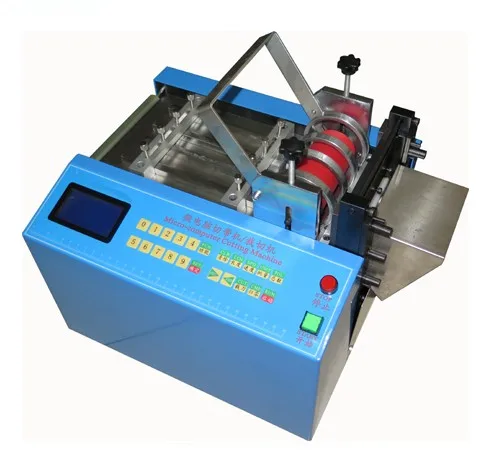

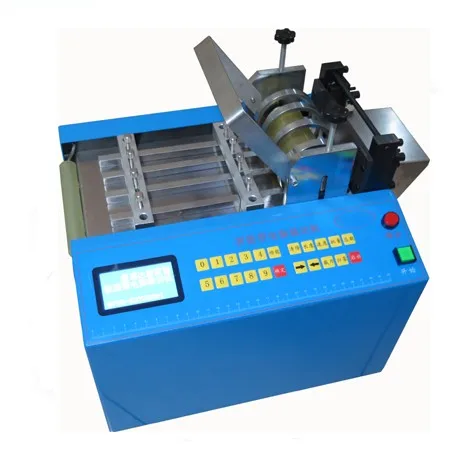

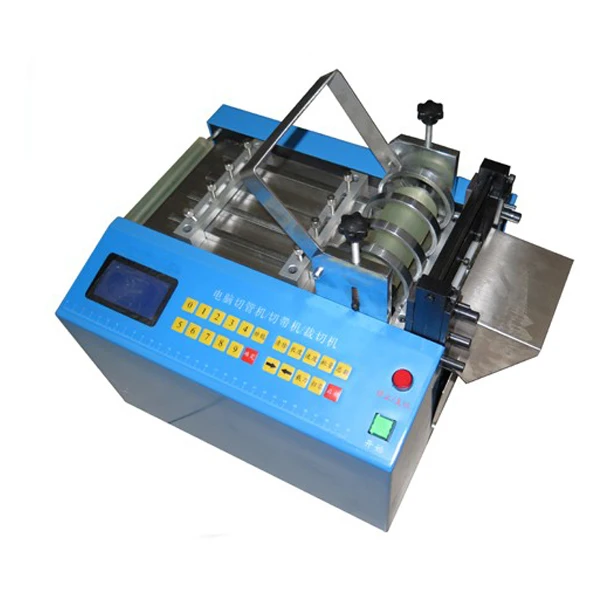

Automatic PU pipe cutting machine

Application

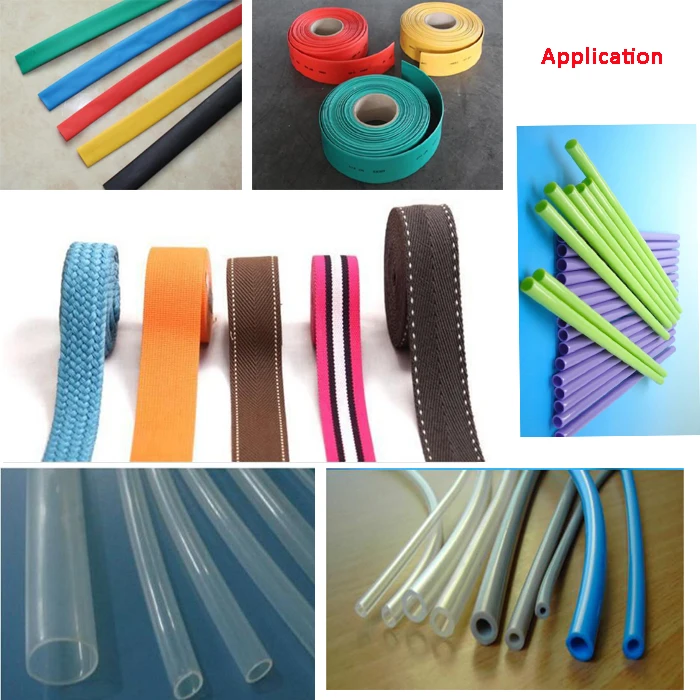

This automatic cutting machine is suitable cutting kinds of tubes, such as pvc tube, rubber tube, silicone tube, fiber tube, teflon tube, heat shrink tube, belt/zipper/webbing/zipper/hook and loop, wire/cable, copper film/aluminum film, etc.



Features

1.High speed: It can cut 100~120 cut per minute. (50mm long)

2.Accuracy: Cut-length is accurate cwing to a stepping motor

3.Cutting type: Cutting is neat due to using a cold cutter which is durable

4.Automatic operation: It works automatically only by setting length and quantity

5.Automatic stopper: It stops automatically if materials run out during operation

6.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on

7.Application: belt loop, soft tube, string, plastic zipper, elastic band, small webbing, etc.
8. Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.



For cutting kinds of tubes



Machine work principle:

This machine adopts microcomputer numerical control display device, the length/number of cutting belt, the feeding speed can be set freely, the adjustable roller feeding mechanism is installed, the pressure and lifting are automatically adjusted on both sides, and the material can be quickly discharged, and the green thimble feeding mechanism can effectively prevent the material from being drawn. Injury, mainly suitable for high-speed cold/hot cutting of strips. • High precision, low loss, machine design and ergonomics, simple operation and high automation.



Technical Parameters:

Model: XX-100

Power: 220V/110V 50/60HZ

Power: 250 W

Cutting length: 0.1—9999.9mm

Cutting width: 100mm

(The company has a variety of styles: 100-500mm depending on the width of the material; 250W-1000W for the root vibration power is available)

Weight: 29KG

Dimension: L360 * W300 * H350 mm
