Характеристики
Constructionfully automatic wire mesh welding machine
Product Description
This is our new developed pneumatic welding machine .The machine adopts synchronons control technique, welding time and sub-control welding is composed of PLC program system. The mesh produced can be used for fences, high-speed railway fences, construction mesh, chicken mesh etc.
Product Parameters
3-6mm fully automatic wire mesh welding machine:
Items | Description |
Finish Mesh Type | Construction wire mesh welding machine |
Welding Wire Diameter | Φ3-6/3-8/5-12(mm) |
Welding Aperture | 50*50-300*300(mm) |
Welding Width | 2000/2500/3000/3500(mm)(customized) |
Number of Electrodes | 32/48/51 |
Welding Speed | 80-100times/min |
Power | Three phase 380V±10% 50HZ (Customized ) |
Welding Power | 50HZ/380V(transformer capacity ≥125KVA) |
Feeding wire type |
By Steel bar or coil |
Weight | 16T |
Overall Dimension | 25x3.0x2.0m |

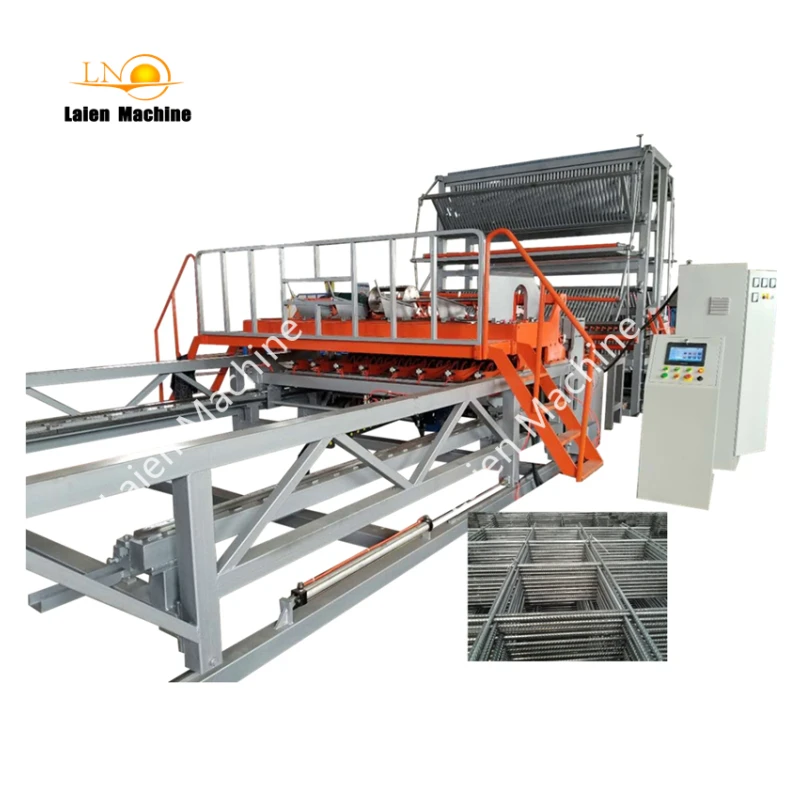

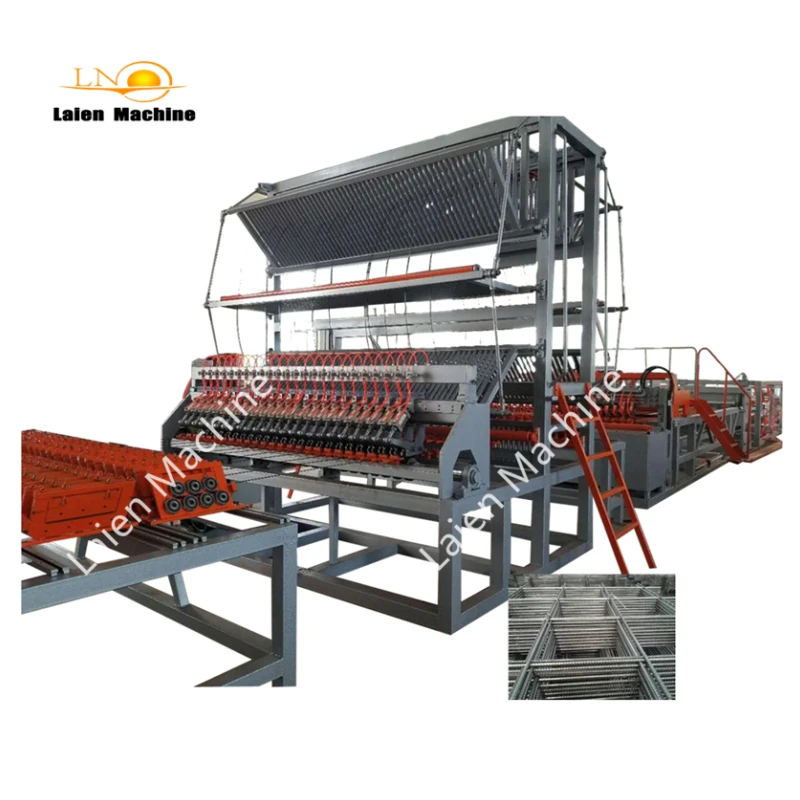

Detailed Images
It can be make sheet or roll as your need.
Advantages
1.This machine adopts Japan Mitsubishi brand electronic synchronous control technique, welding time and sub-control welding are all composed of digital integrated circut, which has high control accuracy, stable performance, firm welding spots and without burned mark.
2.The welding speed is fast and the operation is simple and easy to master.
3.The weft matched with the accurate weft cutting device and accurate positioning device, ensures the weft at the same length and without being out.
4. The mesh drawing system is controlled by motor which improved the precision of mesh opening size, meanwhile the line wire and the weft wire spacing are adjustable.
Application
the finish mesh normally use as brc reinforcing wire meshes, fence mesh, Pet cage, storage cage, mine protection, widely use on side of road for protect, building, bridge, road etc.
Auxiliaires: wire straightening and cutting machine (high speed type)
Speed: 90-100m/min
Related product : Reinforcing mesh welding machine line 5-12/3-8mm
wire cold rolled wire ribbed machine/wire drawing machine
Certifications
Company Information
Customers Visiting
♦ Enough spare parts of machines could be supplied.
♦ All machines were tested and adjusted before delivery.
♦ 24 hour technical support by e-mail and online
♦ We offer installation and train the workers for the customers.
If you have any other question, please Contact Us Now!
