Шаговый двигатель для небольшой машины Nema 17
- Категория: Stepper Motor >>>
- Поставщик: Henan,Lunyee,Industrial,Automation,Equipment,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.6 $* | 5.58 $* |
| Aug-16-2025 | 5.71 $* | 5.36 $* |
| Jul-16-2025 | 4.19 $* | 4.89 $* |
| Jun-16-2025 | 5.94 $* | 5.75 $* |
| May-16-2025 | 4.27 $* | 4.88 $* |
| Apr-16-2025 | 5.30 $* | 5.30 $* |
| Mar-16-2025 | 5.9 $* | 5.90 $* |
| Feb-16-2025 | 4.12 $* | 4.29 $* |
| Jan-16-2025 | 4.77 $* | 4.72 $* |
Характеристики

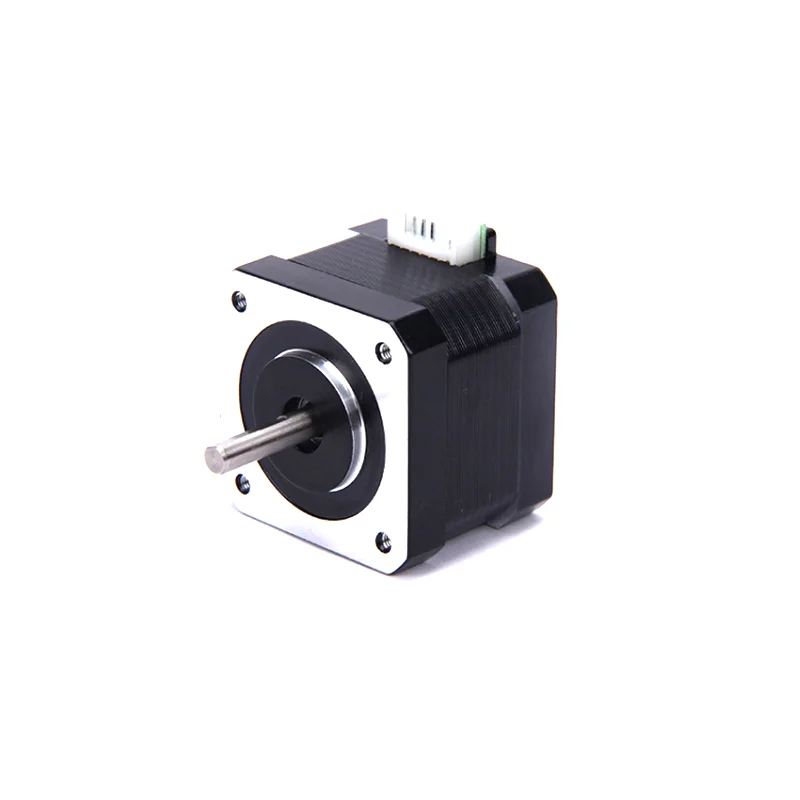

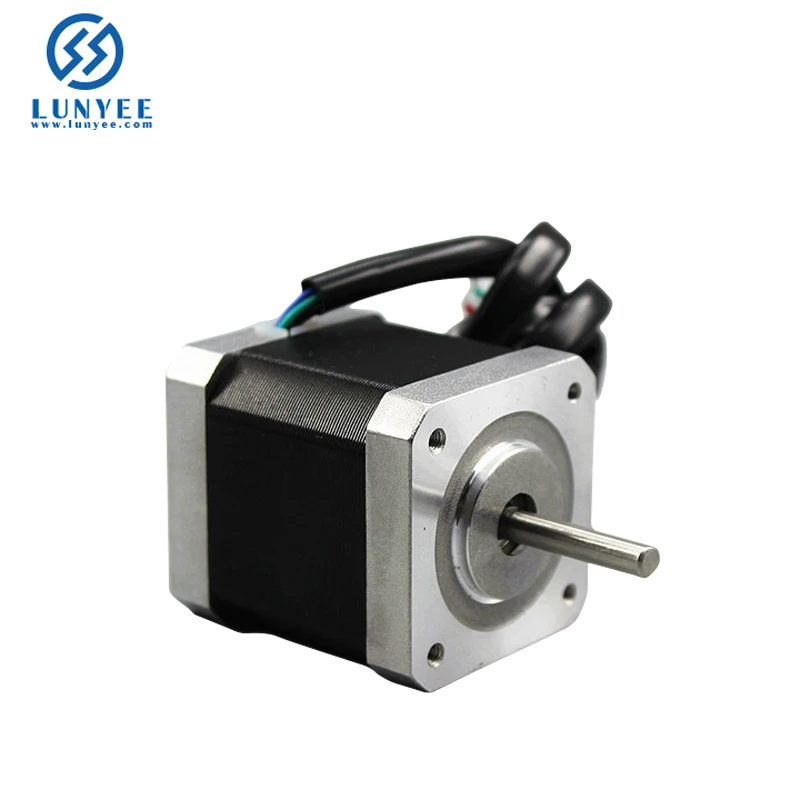

Nema 17 42HS40 Stepper Motor for Small Machine
Product Description
42HS Motor Specifications:
| Step Angle | 1.8° |
| Temperature Rise | 80°C Max |
| Ambient Temperature | -20℃ Max~+50℃ |
| Insulation Resistance | 100MΩMin . 500VDC |
| Dielectric Strength | 500VAC 1minute |
| Shaft Radial Play | 0.02Max(450g-load) |
| Shaft Axial Play | 0.08Max(450g-load) |
| Max.Radial Force | 21N(20mm from the flange) |
| Max.Axial Force | 10N |
Electrical Specifications:
| Model | Step Angle (degree) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (kg.cm) | Detent Torque (g.cm Max) | Rotor Inertia (g.cm2) | Motor Length (mm) | Lead Wires No. | Motor Weight (Kg) |
| 42HS29-0804 | 1.8 | 2.3 | 0.8 | 2.9 | 3 | 1.8 | 180 | 25 | 29 | 4 | 0.16 |
| 42HS34-0404 | 1.8 | 12 | 0.4 | 30 | 35 | 3.2 | 200 | 34 | 34 | 4 | 0.22 |
| 42HS34-0844 | 1.8 | 4.8 | 0.84 | 5.75 | 8 | 2.8 | 200 | 34 | 34 | 4 | 0.22 |
| 42HS34-1704 | 1.8 | 2.2 | 1.7 | 1.3 | 1.8 | 2.8 | 200 | 34 | 34 | 4 | 0.22 |
| 42HS40-0404 | 1.8 | 12 | 0.4 | 30 | 60 | 4.2 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-0804 | 1.8 | 5.4 | 0.8 | 6.8 | 12 | 4.5 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1204 | 1.8 | 6.6 | 1.2 | 5.5 | 11 | 5.2 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1684 | 1.8 | 2.8 | 1.68 | 1.68 | 3.4 | 4 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1704 | 1.8 | 3.4 | 1.7 | 2 | 3 | 4 | 220 | 54 | 40 | 4 | 0.28 |
| 42HS40-1206 | 1.8 | 4 | 1.2 | 3.3 | 3.5 | 2.97 | 220 | 54 | 40 | 6 | 0.28 |
| 42HS48-0404 | 1.8 | 12 | 0.4 | 30 | 45 | 4.5 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-1004 | 1.8 | 4.5 | 1 | 4.5 | 10 | 5 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-1304 | 1.8 | 4.6 | 1.3 | 3.5 | 6.6 | 5.5 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-1504 | 1.8 | 4.2 | 1.5 | 2.8 | 5.5 | 5.5 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-1684 | 1.8 | 3.4 | 1.68 | 2 | 3.8 | 5.2 | 280 | 68 | 48 | 4 | 0.38 |
| 42HS48-0406 | 1.8 | 12 | 0.4 | 30 | 28 | 3.2 | 280 | 68 | 48 | 6 | 0.38 |
| 42HS52-1504 | 1.8 | 4.5 | 1.5 | 3 | 7 | 6.8 | 300 | 95 | 52 | 4 | 0.45 |
| 42HS60-1504 | 1.8 | 3.8 | 1.5 | 2.5 | 6 | 7 | 360 | 95 | 60 | 4 | 0.55 |
Packaging & Shipping

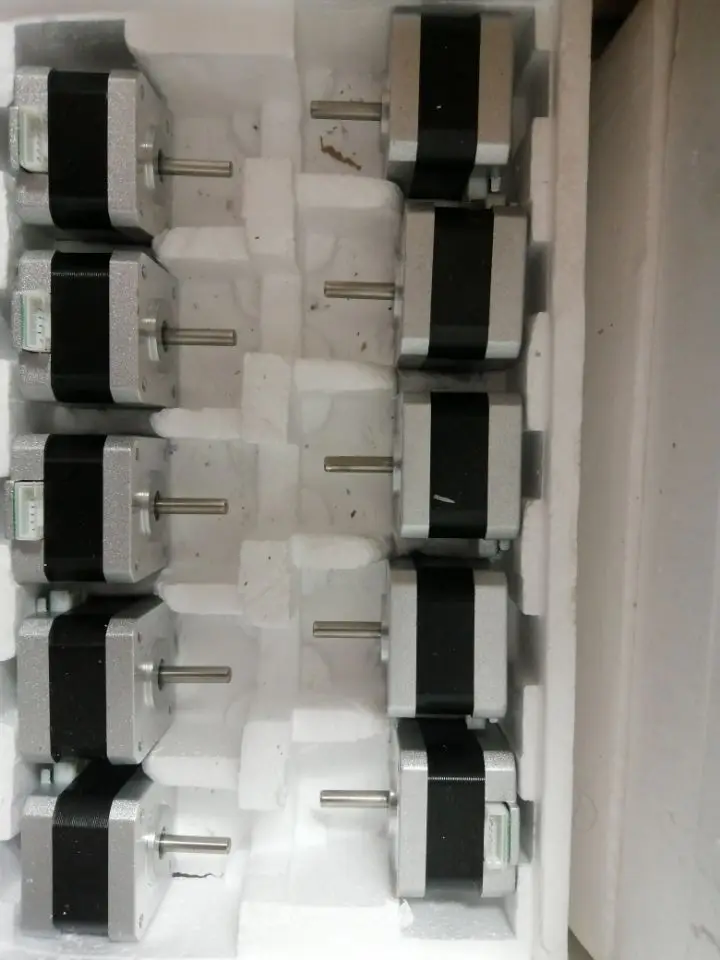

Packing Detail:
1.Inside:Plastic bags with Chemical Desiccant For Motor.
2.Middle:Each case is lined with foam plastics in order to protect the goods against press.
3.Outside:Wooden Box.
Shipping:
According to customer's needs,the methods can be selected.
Our Services

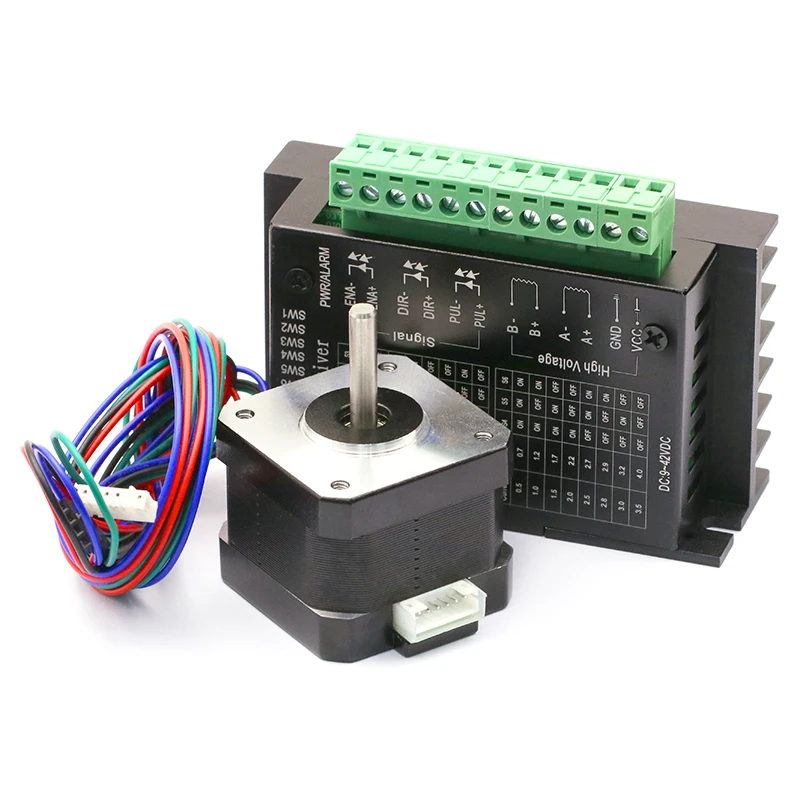

A complete stepper motor control system should include
stepper + stepper driver + switching power supply + controller
Our company can provide any spare parts.
Quality comes from details:

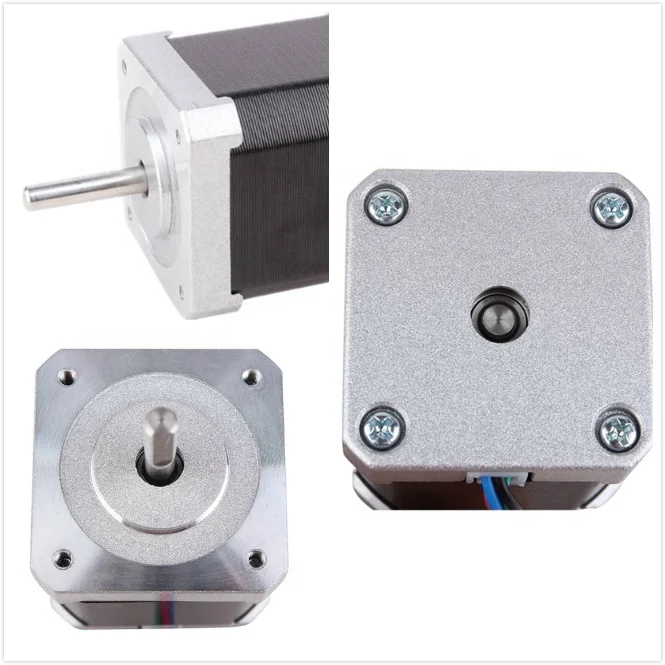

1.The shape of the output shaft of the motor can be customized
2.Single and double shafts can be customized
3.Accessories can be retrofitted: brakes, encoders, etc.
A satisfying one-stop service comes from our continuous innovation team
and our rigorously-inspected sub-contracters!
Wide range of applications:
Our products are widely applied to machine tools, engraving machine,stage lighting equipment,
packing machine,food machine, medical instruments,music fountain and so on!
Company Information
FAQ
Q1: Can I have customized stepper motors?
A: Of course, you can. Please let me know your special requirements.
Q2:What kind of payment methods do you accept?
A:We can accept PayPal,T/T,Western Union,L/C.
Q3:What's the delivery time?
A:It usually takes about 7 working days
Q4:Do your products come with warranty?
A:We offer different warranty terms for different products
Q5:How does your factory do regarding quality control?
A:Quality is priority.
We always attach great importance to quality control from the beginning to the end of the production.
And every product will be fully assembled and carefully tested before packed.
Q6:How shouled we choose motor?
A:You can contract us.Customer satisfaction is the purpose of our service, and customer trust is our eternal pursuit
