Цифровая сушильная печь с автоматическим контролем температуры и защитой от принудительного

Описание и отзывы

Трекер стоимости

Характеристики

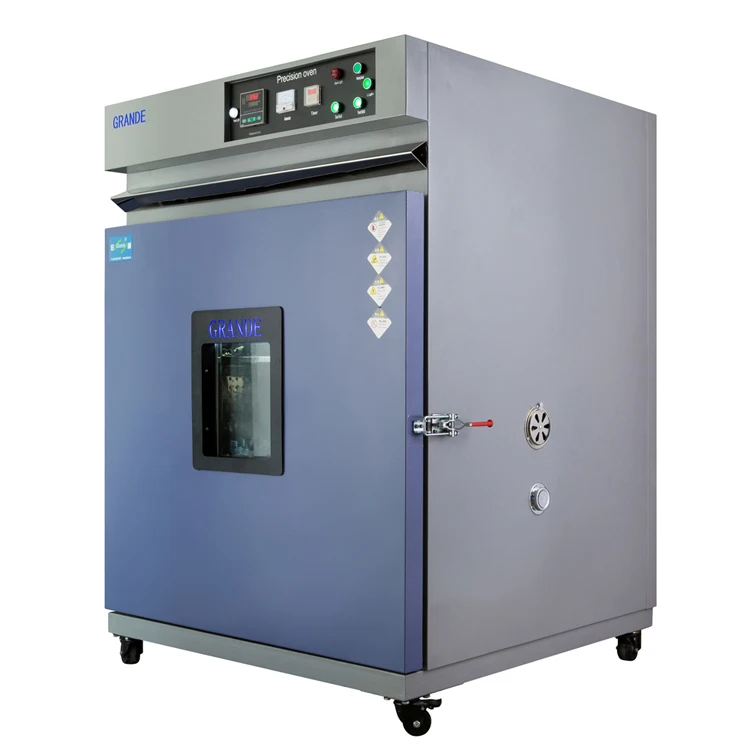

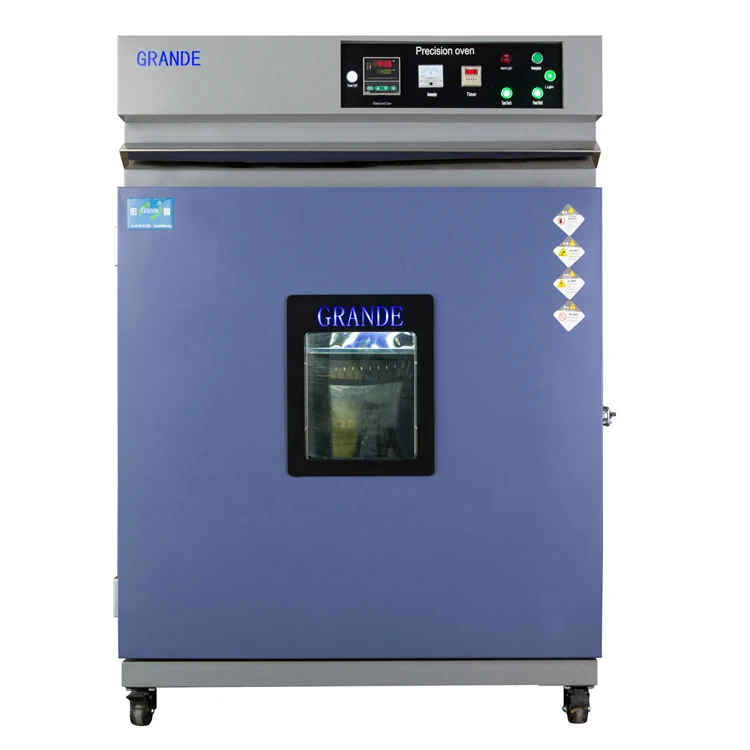

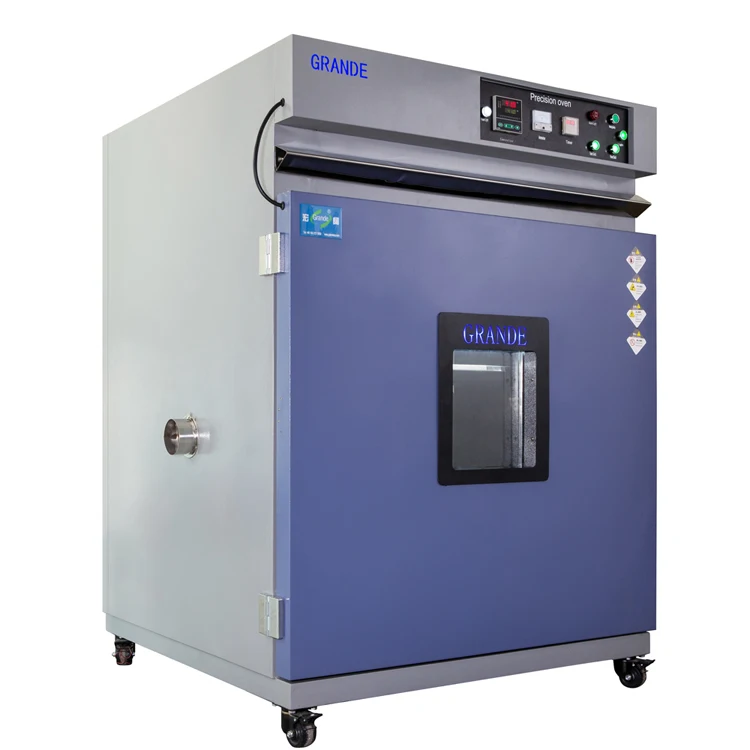

Precision Hot Air Oven



Indoor temperature +10℃~50℃,100℃,150℃,200℃,250℃,300℃,350℃,500℃,600℃,700℃,800℃,

900℃,1000℃,1200℃,1400℃,1600℃,1800℃,2000℃,Customization is available.

It is applicable to a variety of products, materials, components, electronics, automobiles, aviations, plastics, chemicals, foods, chemicals, etc.

Grande offers two types of standard models: the space-saving vertical ovens and the horizontal ovens. Both provide horizontal airflow for even exposure to all samples. Control constancy as low as ±0.1°C and uniformity as low as ±0.5°C ensures accurate operation. An exhaust damper is included to ventilate the oven and allow quick cool-down.

The standard controller offers two-step programming for simple heat-up or shut-down steps. An inexpensive upgrade allows creation of up to ten programs for full cycling applications. The large display is easy to use and read. Four levels of overheat protection are included for safety. A wide variety of options are also available.



Features:

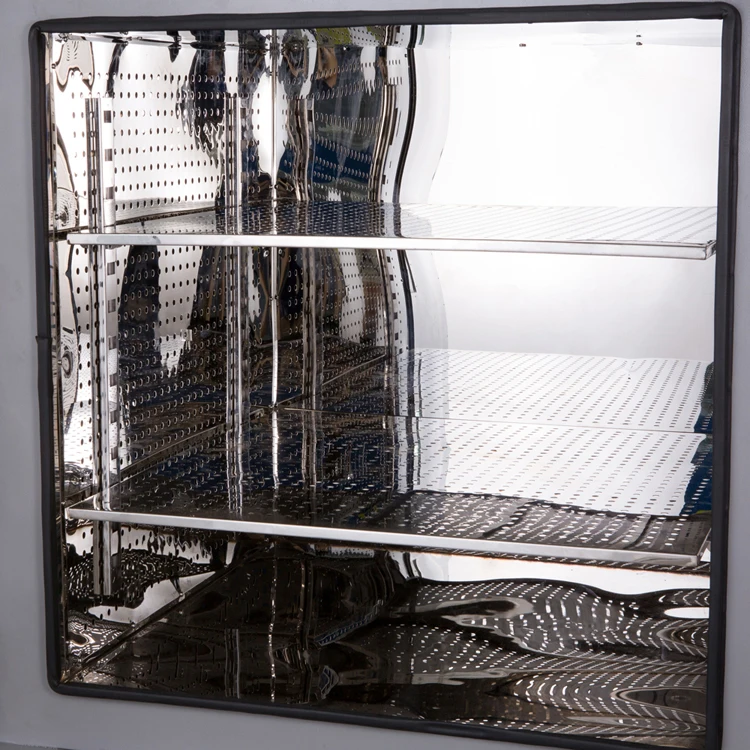

Stainless steel interior

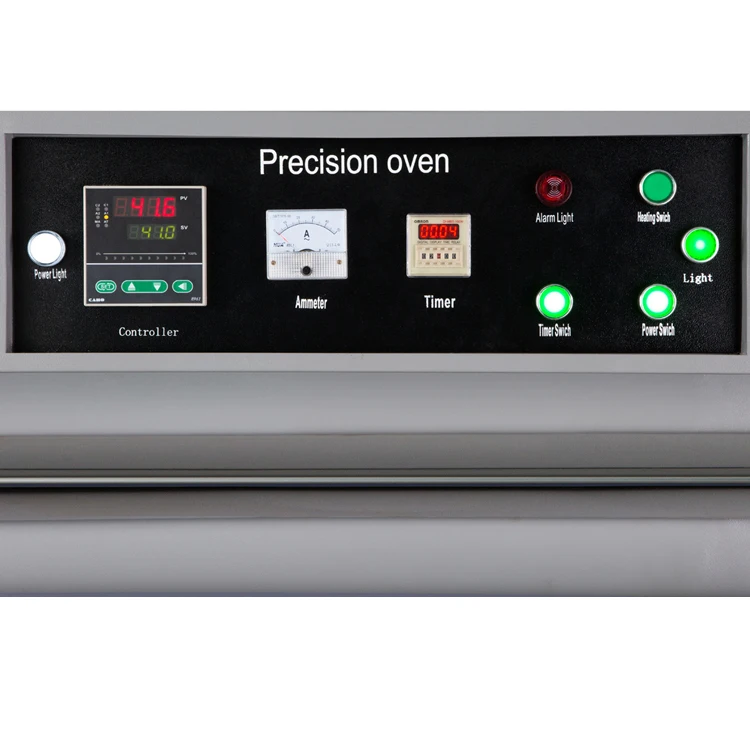

Exclusive Grande controller with large LED display

Two-step programmability with functions for automatic start, stop, ramp, and repeat

Visual and audible alarm with diagnostic fault code

Specimen power supply control terminal: turns specimen off if chamber faults

Four-tiered safety system for overheat conditions

Two shelves included standard, rated for 40 lbs. or more

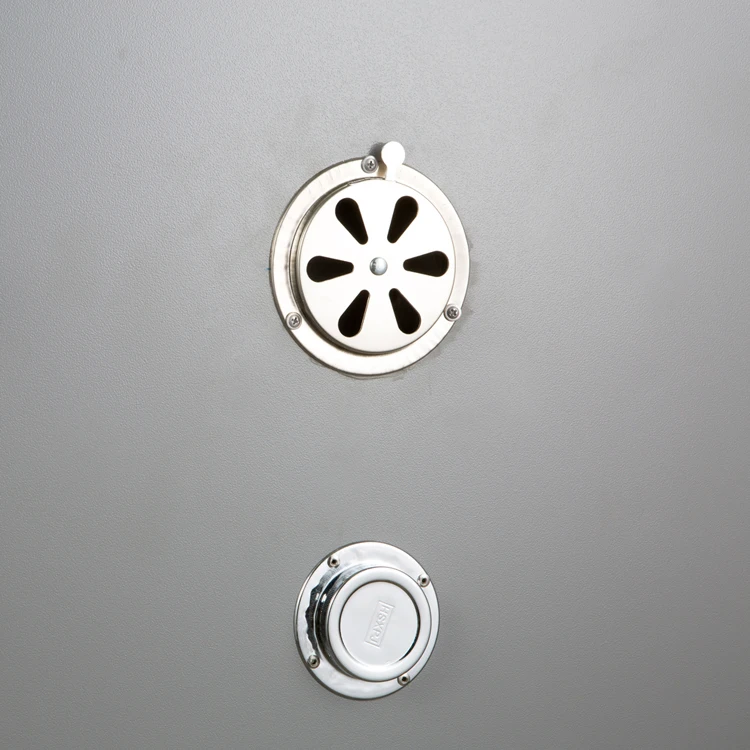

Exhaust damper for ventilating oven and fast cool-down

Large variety of models and optional features

See additional model variations available in the right-hand column



Model types:

· Horizontal-type: Controller and blower to the right of the chamber

· Vertical-type: Controller and blower at the top of the chamber (air distributed horizontally from back wall)

Optional accessories

USB,RS-232 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.



Technical parameters:

Model No

GIO-072

GIO-270

GIO-480

GIO-600

GIO-720

GIO-1000

Inner chamber size(mm)W*H*D

450*400*400

600*900*500

800*1000*600

1000*1000*600

1200*1000*600

1000*1000*1000

Exterior chamber size(mm)W*H*D

900*1050*550

1100*1600*650

1200*1700*840

1400*1750*840

1750*1750*840

1750*1750*1550

Temperature range

Indoor temperature +10℃~200°C, 300°C, 500°C, 700°C,800°C,900°C,1000°C, 1200°C,Customization is available

Performance

Temperature fluctuation

±3℃

Temperature Uniformity

±0.1℃ AT 200℃;±1.5%AT300℃

Temperature resolution

0.1℃/1℃

Heating up time

500℃/30min

Material

Exterior chamber material

Stainless steel plate+ Power Coated

Inner chamber material

SUS#304 stainless steel plate

Insulation Material

PU& Fiberglass wool

System

circulation system

Sirocco fan

Heating system

SUS#304 stainless steel high-speed heater

Controller

Touch-screen controller or Omron E5AZ controller+ S.S.R.

Door

Single gate

Double gate

Other Components

Cable port(50mm), control status indicator lights, loading shelves(2pcs for free)

Safety protection device

Over-heat protection circuit breaker,Control system overload protection,Overload indicator lamp.

Power Supply

AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz

Power(KW)

4

6

8

10

12

15

Customized service

Welcome to Non-standard and Specail requirements,OEM/ODM orders.Customization of inner chamber size, tempreture&humidity range,ect.

The technical information will be subjected to change without notice
