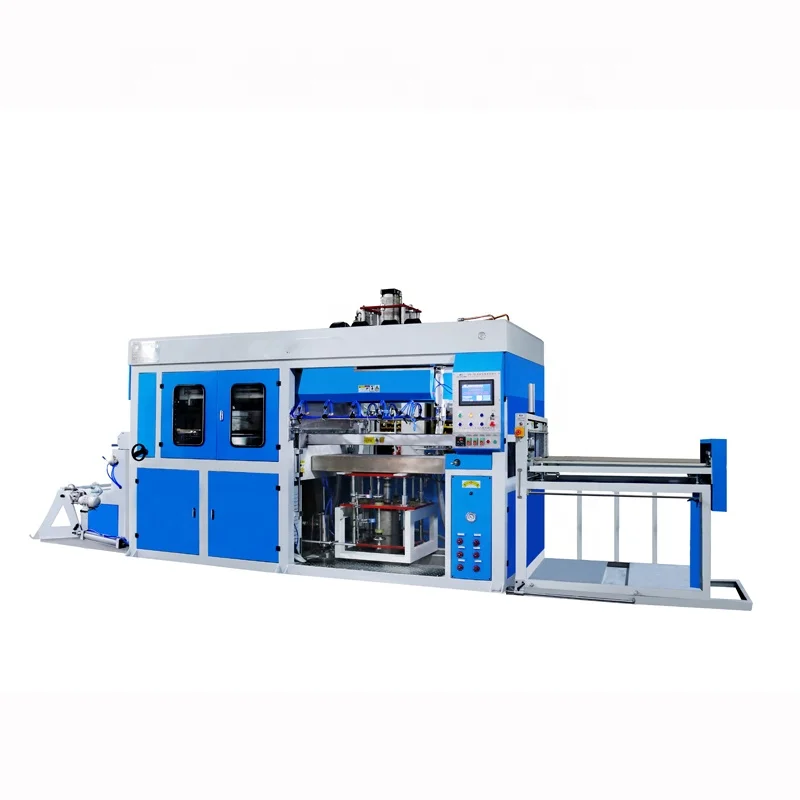

720/1200 вакуумная формовочная машина одноразовый пластиковый продукт Термоформовочная
- Категория: Plastic Vacuum Forming Machines >>>
- Поставщик: Wenzhou,Daba,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 33320.1 $* | 34986.66 $* |
| Aug-16-2025 | 33040.77 $* | 34692.51 $* |
| Jul-16-2025 | 27720.66 $* | 29106.65 $* |
| Jun-16-2025 | 32480.47 $* | 34104.86 $* |
| May-16-2025 | 28280.31 $* | 29694.8 $* |
| Apr-16-2025 | 31920.92 $* | 33516.62 $* |
| Mar-16-2025 | 31640.11 $* | 33222.38 $* |
| Feb-16-2025 | 31360.29 $* | 32928.44 $* |
| Jan-16-2025 | 31080.14 $* | 32634.21 $* |
Характеристики
Product Description
Application Area:
This machine is suitable for forming HIPS, PS, PP, PVC, PET sheet that can produce boxes, trays, fast food,boxes, dishes, lids, cookies tray,egg tray, mobile phone tray & other blister tray.
Technological process:

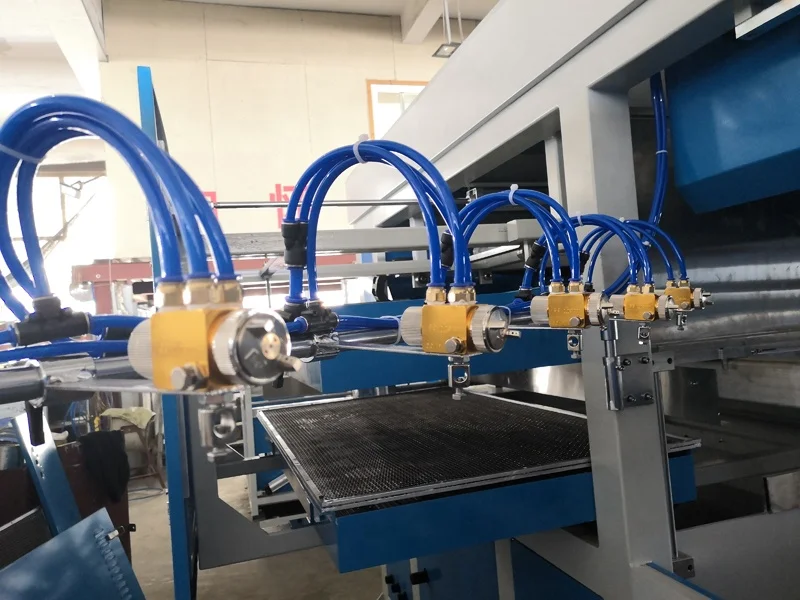

Carrying material(cylinder drives the chain to work)---heating(cylinder drives the electric furnace to lift in order to make a proof)---pulling( cylinder drives the chain)----lifting the lower die, falling the upper die(cylinder drives)—vacuum forming (vacuum pump air admission )---cooling(gas drives the spray gun to work, electric machinery drives the air
blowing).
Technological process:
Carrying material(cylinder drives the chain to work)---heating(cylinder drives the electric furnace to lift in order to make a proof)---pulling( cylinder drives the chain)----lifting the lower die, falling the upper die(cylinder drives)—vacuum forming (vacuum pump air admission )---cooling(gas drives the spray gun to work, electric machinery drives the air
blowing).
Specification
No | Item | Data |
1 | Forming area | 710*1200mm(can change) |
2 | Sheet width | 610-760mm (can change) |
3 | Forming height | 0-165mm |
4 | Thickness of sheet | 0.15-1.0mm |
5 | Production speed | 200-600times/hour(depend on the shape of product and thickness of sheet) |
6 | Mould-up move | Electromotion |
7 | Electric oven power | 30 KW |
8 | Heating device | 60 independent electronics non pole adjust(one control one) |
9 | Traction motor power | 2.2KW |
10 | Vacuum pump power | 3.0 KW |
11 | Cooling-water machine power | 3.37 KW |
12 | Power | 380V 50/60HZ three phases |
13 | Air compressor | 15KW/20HP (remarked by customer) |
14 | Dimension | (L)8800*(W)1500*(H)2800mm |
15 | Weight | 3000kg |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
