Автоматическая машина для изготовления концевых продуктов/линия крышек пищевых банок/Производственная линия производства оловянного дна химических аэрозольных
- Категория: Packaging Line >>>
- Поставщик: Sunnran,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.69 $* | 0.17 $* |
| Aug-16-2025 | 0.18 $* | 0.18 $* |
| Jul-16-2025 | 0.60 $* | 0.94 $* |
| Jun-16-2025 | 0.84 $* | 0.60 $* |
| May-16-2025 | 0.39 $* | 0.25 $* |
| Apr-16-2025 | 0.98 $* | 0.71 $* |
| Mar-16-2025 | 0.16 $* | 0.43 $* |
| Feb-16-2025 | 0.81 $* | 0.8 $* |
| Jan-16-2025 | 0.46 $* | 0.19 $* |
Характеристики
Products Description

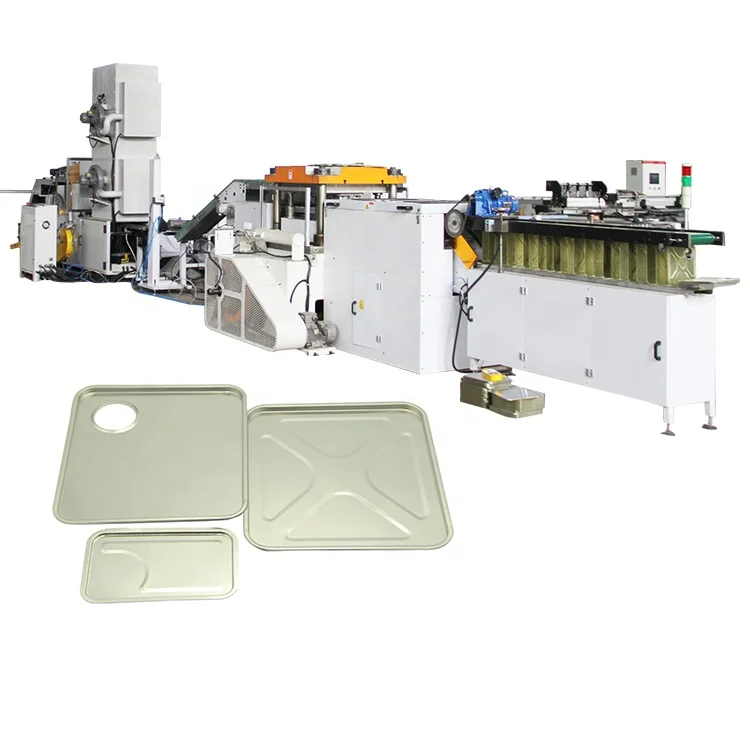

Can making machine for square end making
This line has high efficiency. It saves lots of material for the reason zig-zag feeding. The number of the die can be installed is 2-7 out. This press is equipped with double sheet detector and overload protection to make it more secure and reliable. It is suitable for different components type.
Model | GT2A4-120 | GT2A4-120-H | GT2A4-60 | GT2A4-25 |
Normal force | 120T | 120T | 60T | 25T |
Max. stroke | 200 | 240 | 200 | 200 |
Max. die loading | 7 | 7 | 3 | 1 |
Max. sheet size | 1100*1100 | 1100*1100 | 1100*1100 | 1100*1100 |
Max. thickness | 0.4mm | 0.4mm | 0.4mm | 0.4mm |
Total power | 25kw | 25kw | 20kw | 16kw |
Dimension | 3400*1500*2800 | 3400*1500*2800 | 2700*1300*2700 | 2700*1300*2500 |
Weight | 14T | 14T | 10.8T | 8T |

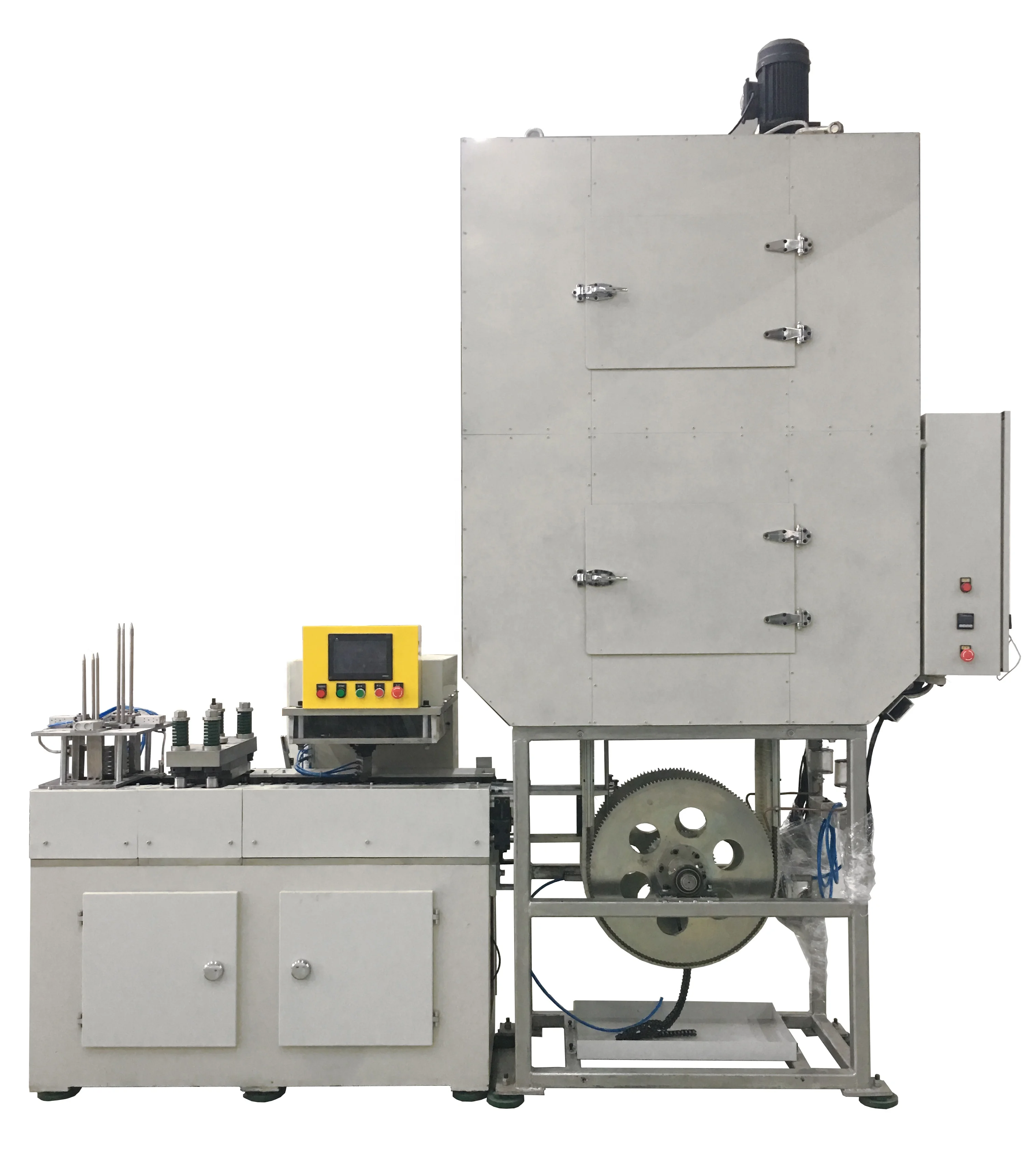

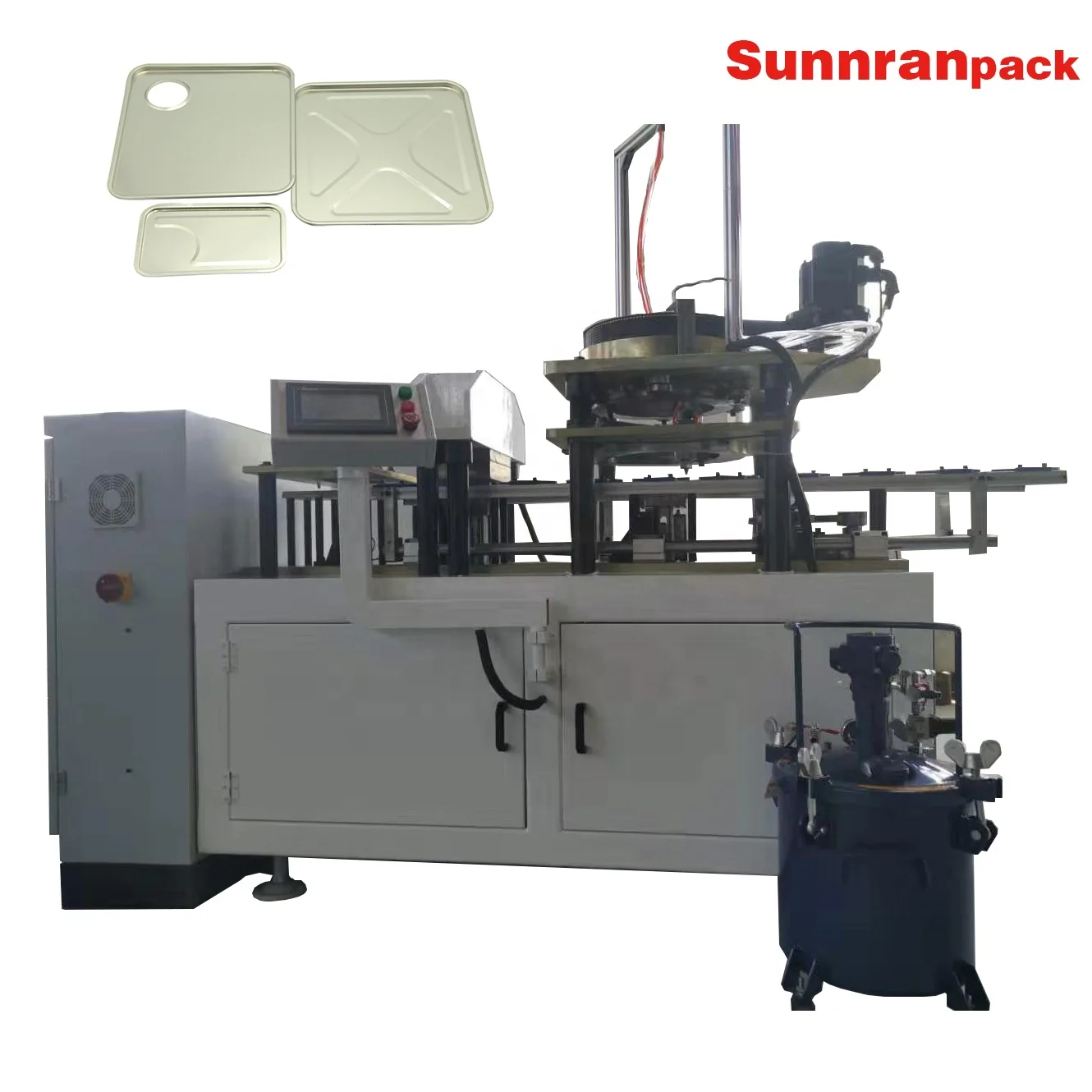

ectangular & square end lining machine
compound lining and curing Its automatic
temperature control can adjust oven with best
temperature Oven adopts electric heating
system End lift-up is driven by screw
End type | End size(mm) | Speed (EPM) | Machine power |
Square end | Min.180x180 Max.250x250 | 35-60(Single channel) | 14-35Kw |
Rectangular end | Min.70x58 Max.206x142 | 60(Single channel) | 14Kw |

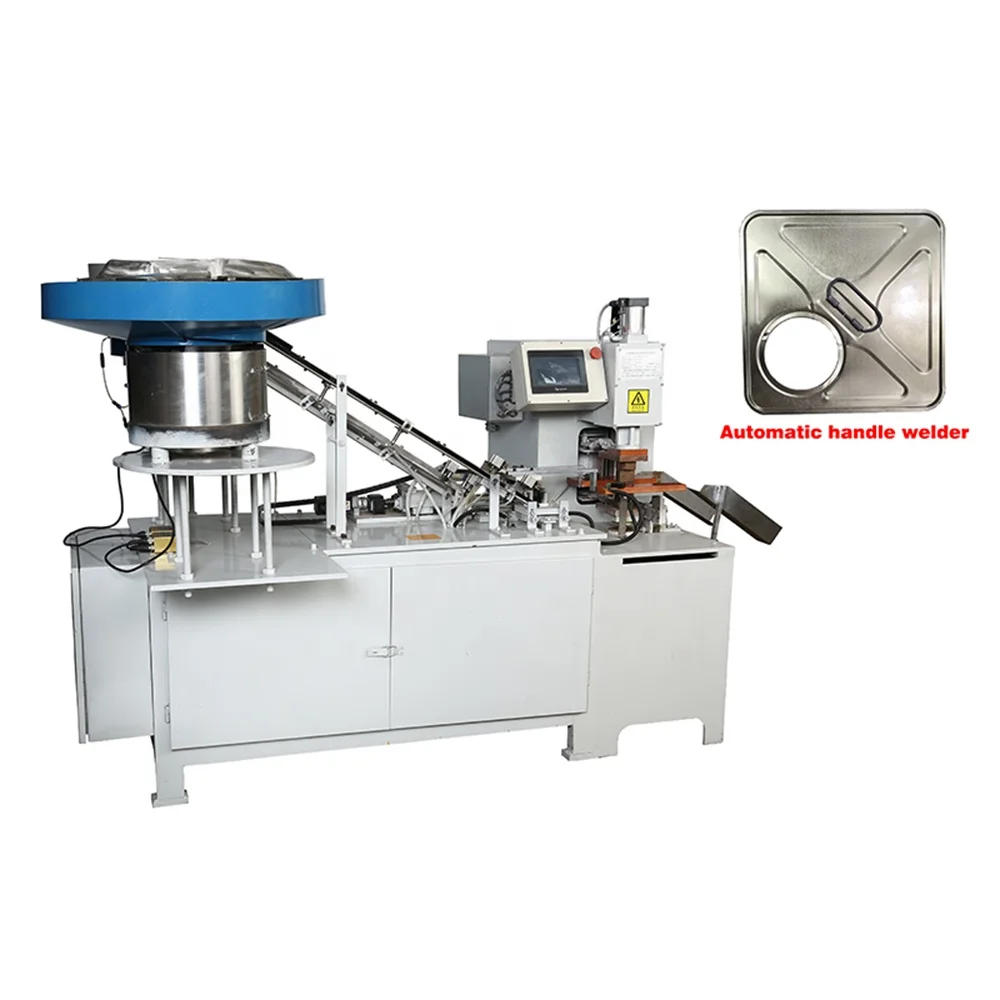

Handle welder
feeding, welding the ear lug on the end.
Max speed | Welding voltage | Air source | Welding pressure |
38-40CPM | 380V | 6-8Kg | 2-3Kg |
