Компактное пивоваренное оборудование на 200л 300л 400л 500л 600л 800л под ключ Пивоваренная микропивоваренная
- Категория: Fermenting Equipment >>>
- Поставщик: Shandong,HG,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 8687.3 $* | 9121.16 $* |
| Aug-17-2025 | 8614.24 $* | 9045.69 $* |
| Jul-17-2025 | 7227.51 $* | 7588.72 $* |
| Jun-17-2025 | 8468.53 $* | 8891.7 $* |
| May-17-2025 | 7373.10 $* | 7742.89 $* |
| Apr-17-2025 | 8322.68 $* | 8738.88 $* |
| Mar-17-2025 | 8249.14 $* | 8661.89 $* |
| Feb-17-2025 | 8176.47 $* | 8585.20 $* |
| Jan-17-2025 | 8103.95 $* | 8508.62 $* |
Характеристики

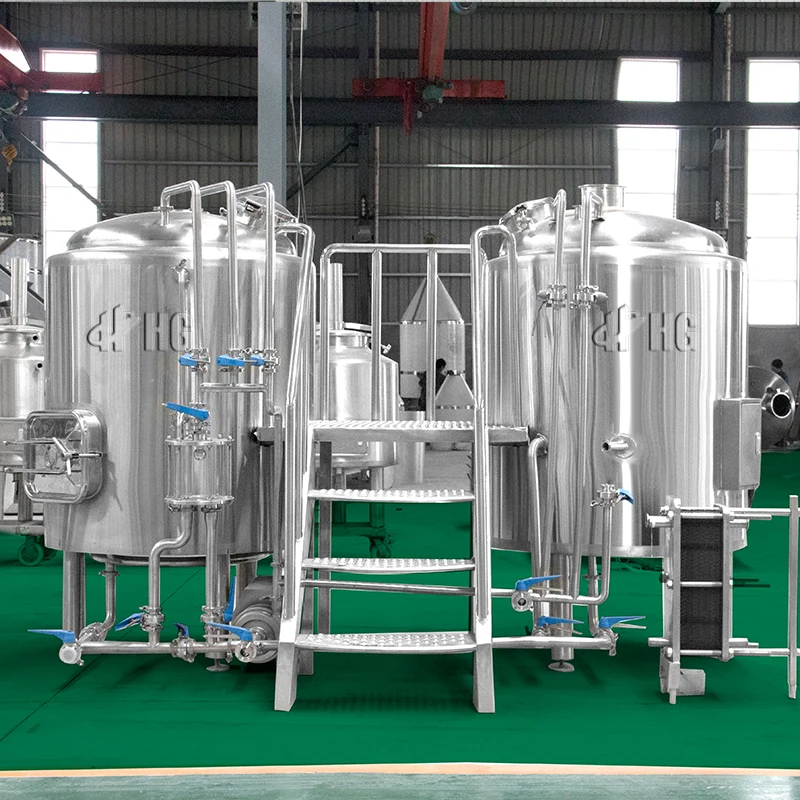

500L 500 Liter 5HL Complete Micro Beer Brewery Equipment Industrial Craft Beer Brewing Equipment Turnkey Project For Sale .
Model | HG-500 | ||||||
Capacity | 500L/Batch | ||||||
Material | SUS304 | ||||||
Application | Restaurants, bars, hotels, brewery | ||||||
Heating way | Stean heating/ Electric heating/ Direct Fire heating | ||||||
Voltage | AC380/220V，50/60HZ | ||||||
Power | 27Kw | ||||||
Water consumption | 3.5m3/T | ||||||
Diameter | 1160mm | ||||||
Height | 2800m | ||||||
Degree of automation | Semi-automatic/Fully automatic | ||||||
500L brewery equipment is widely used in brewery factory, restaurant and so on. It can brew pale lager, amber lager, dark lager, ale and etc at proper temperature with different raw material. According to the client’s requirement, HG can produce stainless steel 304 brewhouse, copper and etc.

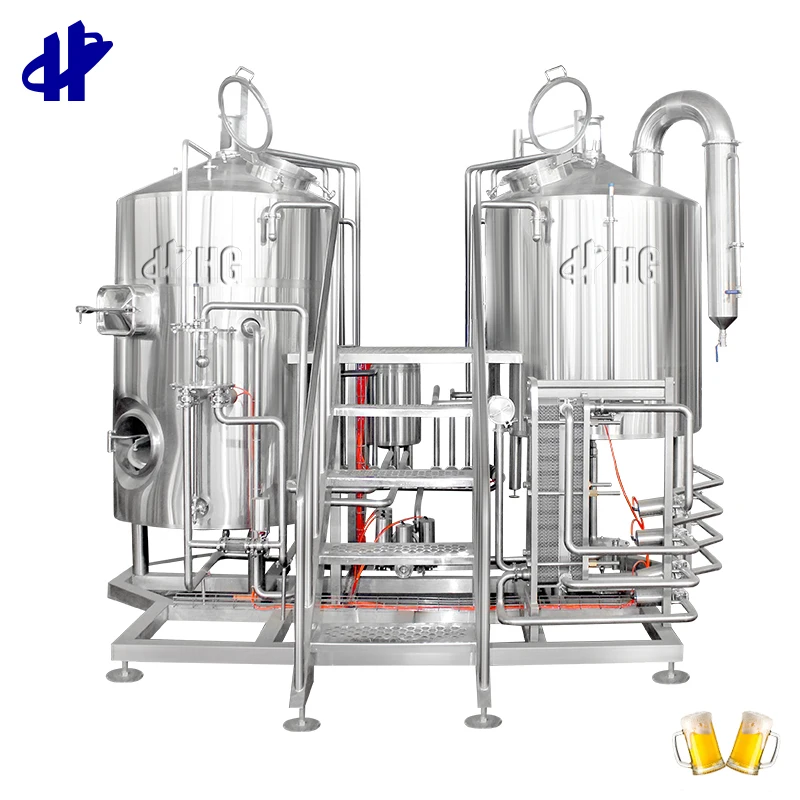

2-Vessel Main Features:
A typical two-vessel Combination Mash Lauter Tuns are the first combination vessel in these brewhouses line ups.Next inline is the combination of the Kettle and Whirlpool tanks.
3-Vessel Main Features :
A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels.
4-Vessel Main Features :
A typical four-vessel brewhouse will include a Mash tun, Lauter Tun, Kettle and Whirlpool. Each of these tanks is dedicated to performing a single process, and is designed differently than similar vessel used for performing multiple processes.
Beer equipment advantages :
1). High cost performance.
2). Good abrasion resistance materialcopper beer equipment.
3). We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket
is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.

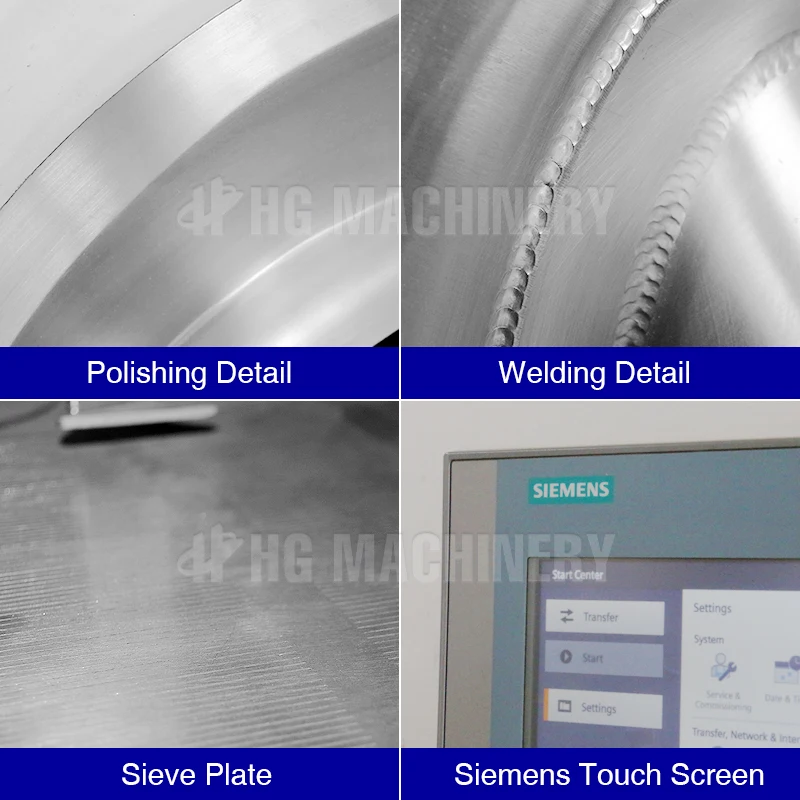

4). Polishing accuracy up to Ra0.4μ m.
5). Strict tank pressure test.
6). Energy conservation and pollution emissions.
2). Good abrasion resistance materialcopper beer equipment.
3). We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket
is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.
4). Polishing accuracy up to Ra0.4μ m.
5). Strict tank pressure test.
6). Energy conservation and pollution emissions.
Item | Production capacity | Volume in US Gallon | Heating area | Tank diameter | Height |
HG-100 | 100L/day | 26US Gallon | 0.25m2 | 650mm | 2000mm |
HG-200 | 200L/day | 53US Gallon | 0.25m2 | 850mm | 2200mm |
HG-300 | 300L/day | 79US Gallon | 0.3m2 | 950mm | 2500mm |
HG-500 | 500L/day | 132US Gallon | 0.5m2 | 1160mm | 2800mm |
HG-1000 | 1000L/day | 264US Gallon | 1.0m2 | 1360mm | 3000mm |
HG-2000 | 2000L/day | 528US Gallon | 2.0m2 | 1760mm | 3150mm |
HG-3000 | 3000L/day | 792US Gallon | 3.0m2 | 1860mm | 3800mm |
HG-5000 | 5000L/day | 1320US Gallon | 5.0m2 | 2260mm | 4400mm |
Q:How many years of experience in brewing equipment do you have?
A: We have more than 20 years in brewing and beer filling equipment.
Q: Where is your factory located?
A: Our factory is located in New Town, Jiyang Zone, Jinan, Shandong, China, 2 hours high speed train to Beijing.
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.
Q: How about the installation?
A: We can supply the installation. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
A: We have more than 20 years in brewing and beer filling equipment.
Q: Where is your factory located?
A: Our factory is located in New Town, Jiyang Zone, Jinan, Shandong, China, 2 hours high speed train to Beijing.
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.
Q: How about the installation?
A: We can supply the installation. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.
Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.
6-year warranty, only for tanks, excluding electrical appliances, wearing parts such as cushions, seals, etc. (mixing seals, pump seals, butterfly valves and other valve seals), pumps.
The price does not include electrical appliances, etc.
The price does not include electrical appliances, etc.
1.Pre-service :
-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement.-Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience
2.After service :
We guarantee the quality of the electrical elements within one year and tanks body within 1 years. If the electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical
question in using it, we will freely do our best to support. We can also dispatch our engineer to your brewery to install and
adjust the machines for you. He can also train your staff to use the equipment.
question in using it, we will freely do our best to support. We can also dispatch our engineer to your brewery to install and
adjust the machines for you. He can also train your staff to use the equipment.
