Хорошее качество промышленный фармацевтический фруктовый лиофилизатор для малого
- Категория: Vacuum Drying Equipment >>>
- Поставщик: Hangzhou,Shengde,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 238000.84 $* | 249900.25 $* |
| Aug-18-2025 | 236000.22 $* | 247800.98 $* |
| Jul-18-2025 | 198000.74 $* | 207900.90 $* |
| Jun-18-2025 | 232000.97 $* | 243600.15 $* |
| May-18-2025 | 202000.20 $* | 212100.22 $* |
| Apr-18-2025 | 228000.1 $* | 239400.52 $* |
| Mar-18-2025 | 226000.1 $* | 237300.70 $* |
| Feb-18-2025 | 224000.3 $* | 235200.73 $* |
| Jan-18-2025 | 222000.44 $* | 233100.78 $* |
Характеристики
Product Description
Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials
Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.
Vacuum freeze-drying method is a liquid → solid → gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge". The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles. With the continuous distillation of solvent, "solid bridge" continuously decrease, but the the relative position between two particles will not longer change until the "solid bridge" completely disappear.
1. Integrated structure design.
2. Cylindrical or rectangular chamber optional.
3. AISI 304 material make sure the dried product quality. Stainless steel 316L is optional.
4. CFC-free, semi-hermetic, piston compressor could cool ice condenser to -80ºC and shelves -50ºC.
5. Hollow shelves with fluid filled, temperature raise by electric heater, During sublimation shelf temperature could programming from -50ºC to +70ºC with accuracy of ±1ºC.
6. 4pcs high sensitive temperature probe to monitor raw material temperature data.

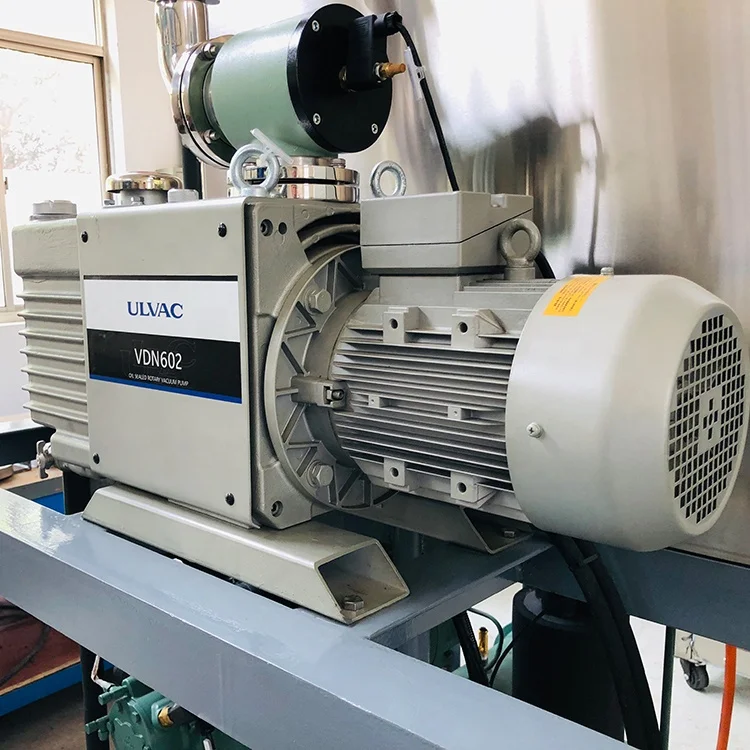

7. Edwards or Leybold vacuum pump optional, System final vacuum <1Pa.
8. Inert gas charge function.
9. Pneumatic system for valves(vacuum pumping/condenser defrosting/vacuum release/inert gas charge) quick action.
10. Patent vapor guidance technology and ice condenser design, strong guarantee ice condenser icing efficient and capacity.
11. CIP, SIP, stoppering, PC/Mobile phone connective, data recorder is optional.
2. Cylindrical or rectangular chamber optional.
3. AISI 304 material make sure the dried product quality. Stainless steel 316L is optional.
4. CFC-free, semi-hermetic, piston compressor could cool ice condenser to -80ºC and shelves -50ºC.
5. Hollow shelves with fluid filled, temperature raise by electric heater, During sublimation shelf temperature could programming from -50ºC to +70ºC with accuracy of ±1ºC.
6. 4pcs high sensitive temperature probe to monitor raw material temperature data.
7. Edwards or Leybold vacuum pump optional, System final vacuum <1Pa.
8. Inert gas charge function.
9. Pneumatic system for valves(vacuum pumping/condenser defrosting/vacuum release/inert gas charge) quick action.
10. Patent vapor guidance technology and ice condenser design, strong guarantee ice condenser icing efficient and capacity.
11. CIP, SIP, stoppering, PC/Mobile phone connective, data recorder is optional.
Power （three-phase and five-wire system） | 380V/50HZ |
Power consumption | 55Kw |
Cooling water qty | ≥18m3/h(T≤30℃/P=0.15-0.2Mpa) |
Compressed air | ≥0.1m3/Min（P=0.5-0.8Mpa） |
Clean water | ≥100L/Min（T=80℃/P≥0.4-0.5Mpa） |
Steam consumption (sterilization) | ≥200Kg/H（P=0.2-0.3MPa） |
Steam consumption (Defrost) | 50Kg/Batch（P≥0.2-0.3MPa） |
Whole volume | 5400*1900*3300 |
Structure | Integral (Rectangular box dry +Rectangular cold trap) |
Total weight | 8600kg |
Products Show
