screw heat treatment furnace quenching tempering for

screw heat treatment furnace quenching tempering for

Категория: Industrial Furnace >>>
Поставщик: Guangzhou,Innor,Machinery,Co.,Ltd.

Цена:38 000,00 $ - 42 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	45220.57 $*	47481.25 $*
Aug-16-2025	44840.32 $*	47082.79 $*
Jul-16-2025	37620.53 $*	39501.17 $*
Jun-16-2025	44080.95 $*	46284.4 $*
May-16-2025	38380.56 $*	40299.62 $*
Apr-16-2025	43320.85 $*	45486.97 $*
Mar-16-2025	42940.84 $*	45087.92 $*
Feb-16-2025	42560.51 $*	44688.59 $*
Jan-16-2025	42180.93 $*	44289.10 $*

Характеристики

FEATURES AT A GLANCE

- Effective working zone： 500X2800X80mm(WxLxH)

- Effective size of mesh belt:500mm

- Furnace heating time:30-120min

- Capacity:60-90kg/hour for carburizing;80-140kg/hour for quenching

PRODUCT SPECIFICATIONS

*The furnace pipe adopts the sealed tank which stamping forming and welded together of 6 mm Sweden import 310 s stainless steel plate,surrounded with groove profile strengthening rib.The jar is equipped with gas curtain tube,and after the tank there are Blanking mouth and mesh belt backing pipe.the backing pipe offer the Water cooling jacket and water seal tank,guarantee the seal of the furnace,Small gas consumption.the furnace pipe dimension is 4000（L）x280(W)x80(H)mm.

*Conveyor mesh belt adopts Φ 1.6 x 2.2 mm Φ Sweden import 310 s heat resistant alloy wire manufacturing,Mesh belt width 220 mm.

*the furnace lining adopts the saving-energy light refractory brick and Aluminum silicate fiber insulation cotton.

*Heating element using OCr21Al6Nb high temperature heating wire which Distribution in the furnace’s up and down,Uniform heating.Can be in exchange on the side of the furnace. Convenient for maintenance, don’t need to stop the furnace when replacement.

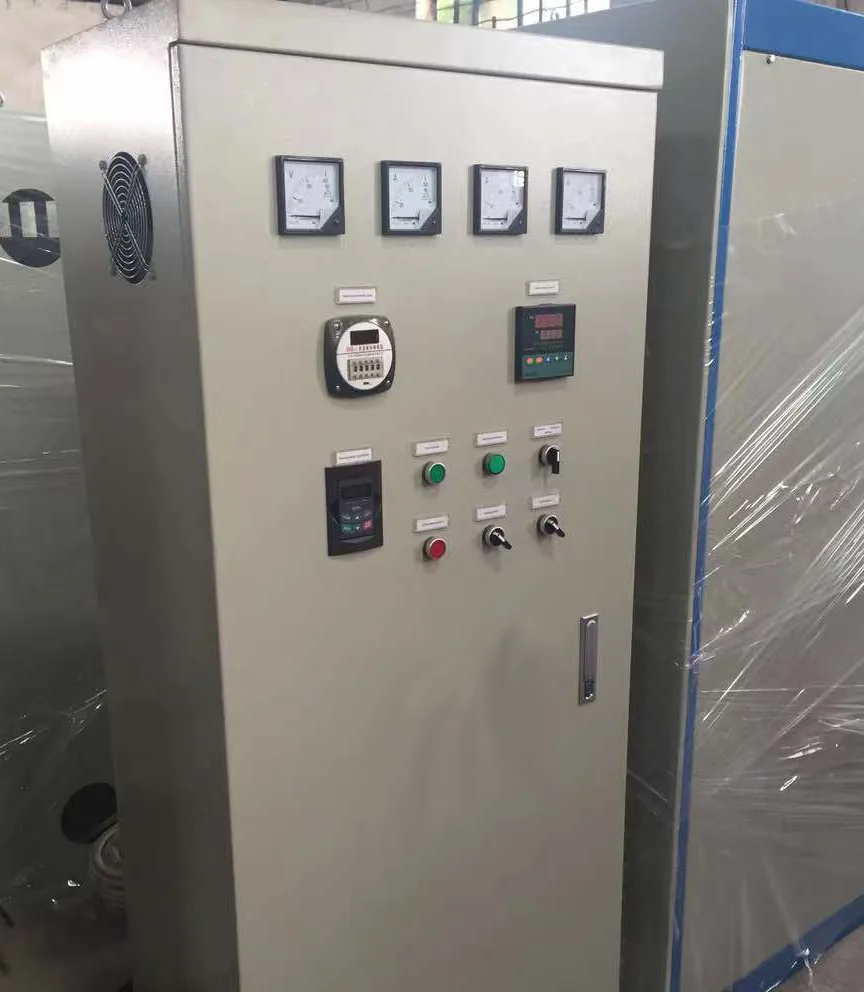

*Five zones control, temperature control adopts intelligent digital display instrument control solid state relay control,with

3 ampere meter and With the function of blackout when overtemperature and alarm.

*In the middle of the furnace and the tail with a drip tube for each one,Each equipped with two-way drip pipes,so that the

Kerosene and methanol can be dropped into the furnace convenience. Equip with methanol and kerosene fowermeter.

*hold-up vessel for Kerosene and methanol.

*capacity for quenching:60-120kg/h capacity for sheet carburizing:20-60kg/h

* the quenching oil tank adopts A3 steel plate and structural steel welded. The dimension of the oil tank is 4000（L）×900（W）×780（h）mm

* Quenching liquid USES the bright quenching oil or water quenching.

* quenching oil tank adopts 400mm width mesh belt to promote the workpiece and the height of hoisting frame is 1200mm.

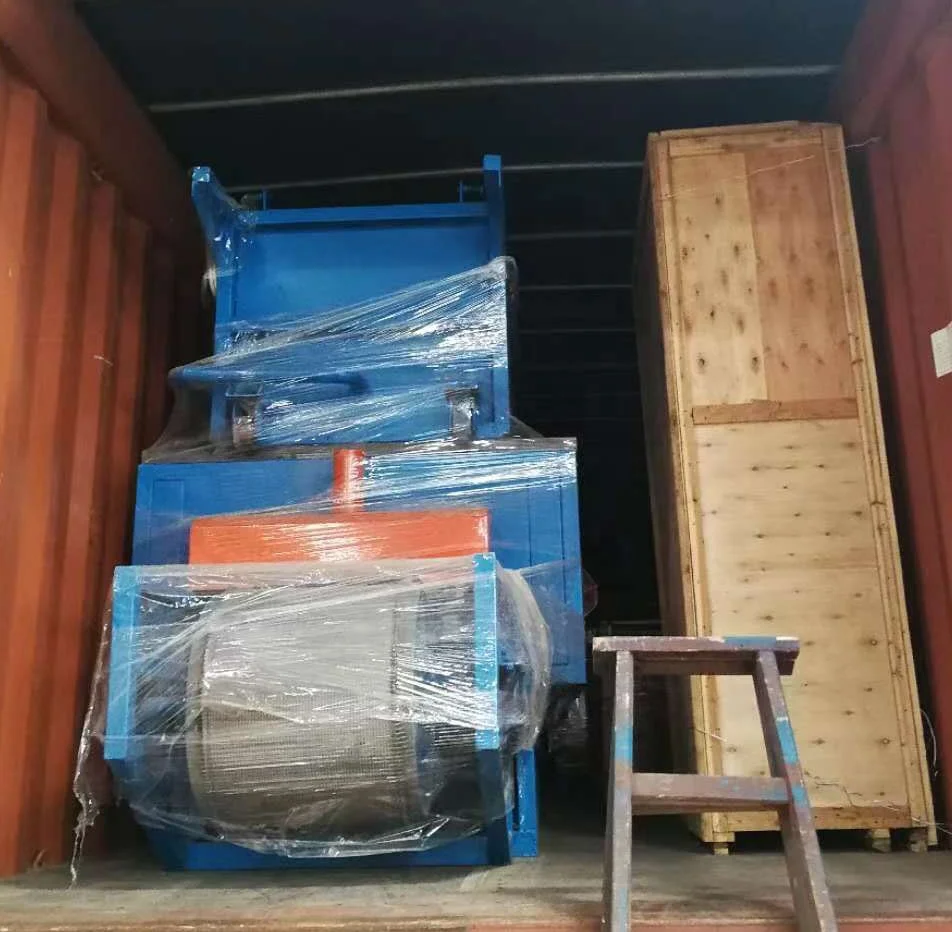

Packaging and Shipping

Certifications

Recommend Products

FAQ

1. What is your MOQ?
1 set of any machines.

2. Where is your company located? Can we visit before placing an order?
Yes, you can visit us during business hours (Monday-Friday 08:30-17:30), factory is located in Guangzhou, Guangdong Province.

3. What is your delivery time?
This is depending on your order quantity, however, we aim to deliver your order within 10-15 working days.

4. We are based in EU countries, do you have CE certificate for our import?
Yes, we have CE certification on all our models, and we are experienced in exporting to any EU countries.

5. Do you have user instruction for machines?
Yes, we have detailed user manual in English for each models.

6. Can we do a sample test before purchasing a larger quantity of machines?
Yes, all you have to pay is mold and material cost, then we will use our machine to make the sample product you require, you can check the samples that made from our machines before you make purchases.
