Характеристики
Products Description

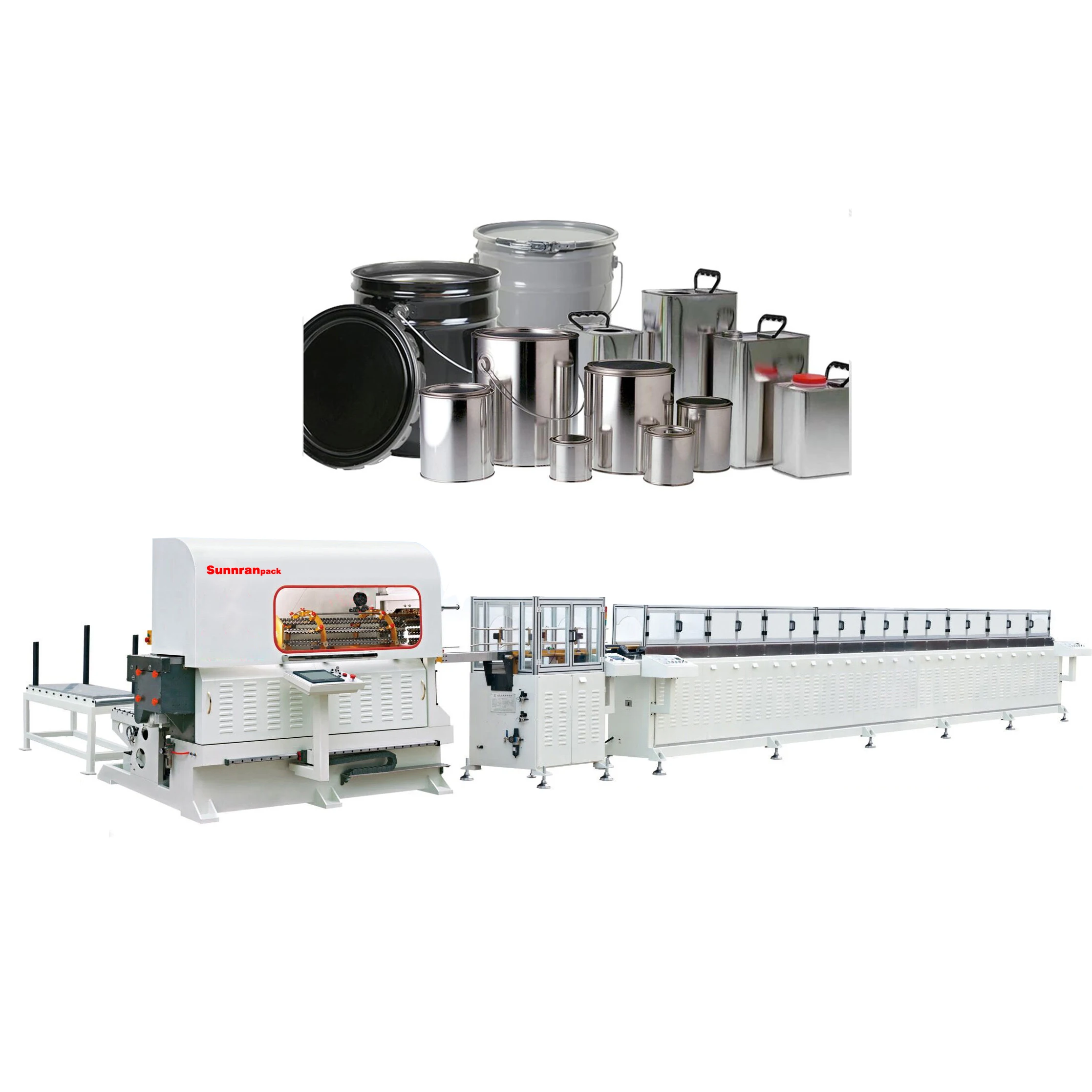

Pail can making line
Three types of pail can making line can be selected, ZD-T18C, ZD-T18CG, ZD-T18A.
ZD-T18C pail line flanges and curls the cylinders by die . Because of the resemblance of the ZD-T18C pail line and ZD-GJ18D drum line , ZD-T18C pail line can be modified for both pail and drum making .
ZD-T18CG and ZD-T18A are using flanging & curling roller to make the cylinder flanged and curled. These design can adapt to different raw material and reduce defective percentage.
ZD-T18C pail line flanges and curls the cylinders by die . Because of the resemblance of the ZD-T18C pail line and ZD-GJ18D drum line , ZD-T18C pail line can be modified for both pail and drum making .
ZD-T18CG and ZD-T18A are using flanging & curling roller to make the cylinder flanged and curled. These design can adapt to different raw material and reduce defective percentage.
Model | Max Speed | Diameter range | Height range | Air pressure | Power |
ZD-T18C | 30CPM | 220-330 | 270-480 | ≥0.6Mpa | APP.25Kw |
ZD-T18CG | 35CPM | 220-330 | 100-350 | ≥0.6Mpa | APP.58Kw |
ZD-T18A | 45CPM | 220-330 | 270-450 | ≥0.6Mpa | APP.30Kw |
Welding line
Adopts sheet upward feeding to avoid double sheet issue.
Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity .
With new innovated frequency inverter to make perfect welding seam.
Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation.
After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies.
Induction oven can be designed to linear or U-shape according to client’s workshop layout.
Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity .
With new innovated frequency inverter to make perfect welding seam.
Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation.
After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies.
Induction oven can be designed to linear or U-shape according to client’s workshop layout.
Automatic welder | ||||||||
Wire speed | Can diameter | Can height | Can material | Power capacity | ||||
9-24m/Min | 200-260/260-290 | 180-450 | Tinplate,Ni-plate,SS | 26Kw | ||||
Internal & external coating machine | ||||||||
Coating speed | Can diameter | Coating width | Power Consumption | Power source | ||||
10-35m/min | 52-300 | 10-14 | 0.6Kwh | 220V | ||||
Induction oven | ||||||||
Conveying speed | Heater Qty. | Power | Cooling water | Air source | ||||
9-30m/min | 3 x 2m/Heater | 380V , 50Hz | >30L/min>400Kpa/cm2<20℃ | |||||
