Производственная линия машина для переработки бутылок и пластиковых из
- Категория: Recycle Washing Line >>>
- Поставщик: Zhangjiagang,Boxin,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.7 $* | 0.21 $* |
| Aug-19-2025 | 0.48 $* | 0.36 $* |
| Jul-19-2025 | 0.89 $* | 0.45 $* |
| Jun-19-2025 | 0.60 $* | 0.4 $* |
| May-19-2025 | 0.4 $* | 0.32 $* |
| Apr-19-2025 | 0.29 $* | 0.58 $* |
| Mar-19-2025 | 0.51 $* | 0.66 $* |
| Feb-19-2025 | 0.41 $* | 0.90 $* |
| Jan-19-2025 | 0.74 $* | 0.33 $* |
Характеристики
Products Description
Product description
1. This plastic bottle recycling machine mainly used for dealing with waste PP PE bucket/bottle, etc.
2. To separate PP PE buckets/bottles to flakes from label, cap, oil, garbage.
3. This waste plastic recycling machine is composed of crusher, cold washing system, dewatering, drying, packing system, etc.
4. Easy to operate,Full automatic.

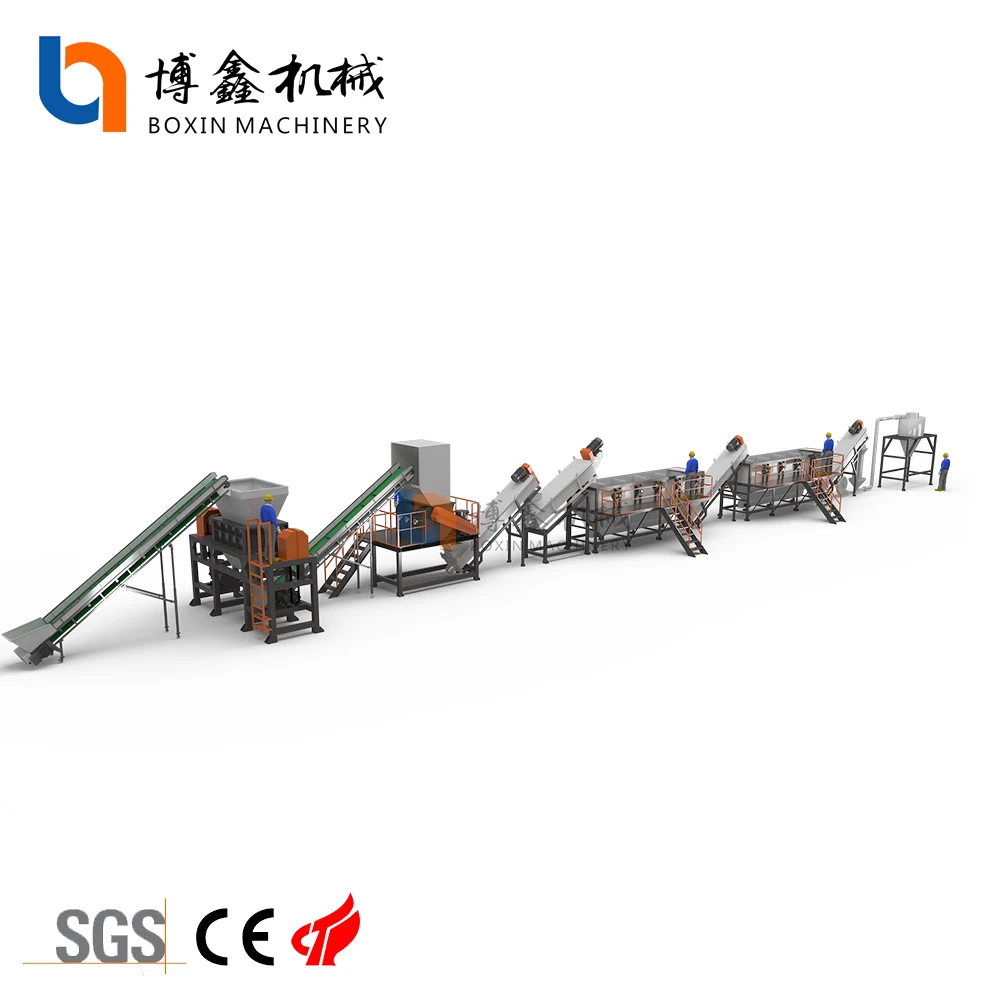

Working Flow of production line pet recycling bottles
Conveying PP PE bottle → crusher→screw loader →friction washer→high speed friction washer→screw loader→floating washer→screw loader→ dewater machine → pipe line dryer → blower →hopper
Project Evaluation
Raw material: waste plastic PP PE bottle
Finished product: Clean PP PE flakes:
1. water content: ≤1.5%
2. stacking density: 0.25-0.35 g/m³
3. flakes size: 6-14mm (the size can be design according to customer request)
8-12mm ≥ 90%
≥12mm: ≤ 2%
fine granule: ≤ 3%;
powder: ≤ 5%
4.Power supply: 330V,3phases,60HZ
5.Total electrical needed: about 194 kw (actual consumption:(70%-80%)
6.Size:106м*6м*5.8м, the height of factory must be over 6M, production line can be placed in a line or an angle (Need to provide plant lay out drawing.)
7.Water needed: about4-6t/h. Equip with water treatment if needed.
1. This plastic bottle recycling machine mainly used for dealing with waste PP PE bucket/bottle, etc.
2. To separate PP PE buckets/bottles to flakes from label, cap, oil, garbage.
3. This waste plastic recycling machine is composed of crusher, cold washing system, dewatering, drying, packing system, etc.
4. Easy to operate,Full automatic.
Working Flow of production line pet recycling bottles
Conveying PP PE bottle → crusher→screw loader →friction washer→high speed friction washer→screw loader→floating washer→screw loader→ dewater machine → pipe line dryer → blower →hopper
Project Evaluation
Raw material: waste plastic PP PE bottle
Finished product: Clean PP PE flakes:
1. water content: ≤1.5%
2. stacking density: 0.25-0.35 g/m³
3. flakes size: 6-14mm (the size can be design according to customer request)
8-12mm ≥ 90%
≥12mm: ≤ 2%
fine granule: ≤ 3%;
powder: ≤ 5%
4.Power supply: 330V,3phases,60HZ
5.Total electrical needed: about 194 kw (actual consumption:(70%-80%)
6.Size:106м*6м*5.8м, the height of factory must be over 6M, production line can be placed in a line or an angle (Need to provide plant lay out drawing.)
7.Water needed: about4-6t/h. Equip with water treatment if needed.
Technical Characteristics
Machine list of recycling plastic bottle machine | ||||||
1.0 | Belt conveyor | 6.0 | Friction washer | |||
2.0 | Crusher(include platform) | 7.0 | De-watering machine | |||
3.0 | Friction washer | 8.0 | Zig-zag label blower | |||
4.0 | High speed friction washer | 9.0 | Silo | |||
5.0 | Float washing tank | 10.0 | Electric cabinet | |||
Model | BXHDPE500 | BXHDPE1000 | BXHDPE2000 | BXHDPE3000 |
Input capacity | 500kg/h | 1000 kg/h | 2000 kg/h | 3000kg/h |
Workshop(M*M*M) | 30 (L)×10(W)×5(H) | 50(L)×12(W)×6(H) | 70(L)×12(W)×6(H) | 100(L)×15(W)×6(H) |
Ancillary staff | 4-6 | 4-8 | 6-8 | 6-8 |
Installation power | 175KW | 198KW | 306KW | 463KW |
Water consumption | 0-3Ton/h | 0-5Ton/h | 0-10Ton/h | 0-15Ton/h |
Belt conveyor
Usage: conveying materials
Belt material: PVC
Height adjustable Easy to move with wheels There are anti-skid devices on the surface of the conveyor belt.

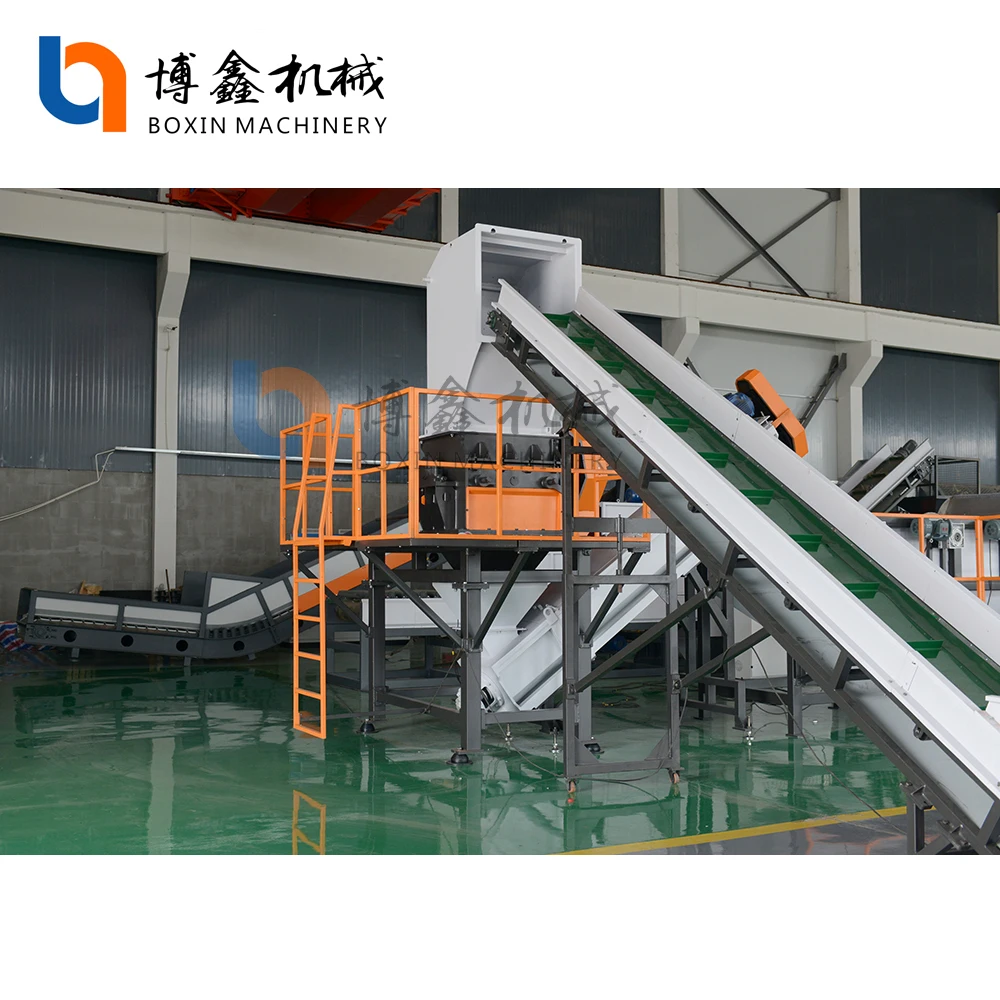

Crusher
Usage: used for crushing materials
Opening method of upper hopper: hydraulic
Broken with water
Opening method of upper hopper: hydraulic
Broken with water
Friction washer
Usage: by injecting high-pressure water, effectively remove debris on the surface of the material.
Body material: stainless steel
Body material: stainless steel
High speed friction washer
Purpose: by injecting high pressure water, it can effectively remove impurities.
Body material: stainless steel
Body material: stainless steel
Float washing tank
Usage: separation of impurities by precipitation
Body material: stainless steel
Friction washer
Usage: by injecting high-pressure water, effectively remove debris on the surface of the material.
Body material: stainless steel
De-watering machine
Usage: remove moisture
Body material: stainless steel
Body material: stainless steel
Silo
Usage: Temporary storage of materials
Body material: stainless steel
Body material: stainless steel
Company Profile
Service&Customer
Project in Ecuador
Project in Pakistan
Project in Nigeria
1. We will provide testing if the customer comes to visit factory to see the machine.
2. We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents
which customer needed for clearing customs and using the machine.
3. We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty
time,we will provide spare parts with factory price.
5. We will provide technical support and repair service in the whole lifetime .
2. We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents
which customer needed for clearing customs and using the machine.
3. We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty
time,we will provide spare parts with factory price.
5. We will provide technical support and repair service in the whole lifetime .
Packaging&Delivery
Packing | ||
Size | Accrding to the product | |
Weight | Accrding to the product | |
Packaging Details | The normal package is wooden box(Size: L*W*H).If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Certifications
FAQ
1) Are we manufacture or trade company?
We are manufacture,have 15 years' experiences in this field.
2) What kind machines we produce?
Our factory produce plastic washing and recycling machines, plastic granulation machines.
3) What kind payment we accept?
Payment term like T/T, L/C.
4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.
5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.
6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test the each production step for the best machine.
7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.
8) How long is your machine’s guarantee time?
One year
9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
We are manufacture,have 15 years' experiences in this field.
2) What kind machines we produce?
Our factory produce plastic washing and recycling machines, plastic granulation machines.
3) What kind payment we accept?
Payment term like T/T, L/C.
4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.
5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.
6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test the each production step for the best machine.
7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.
8) How long is your machine’s guarantee time?
One year
9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
